DSC Touch-SCW9067 Bedienungsanleitung
INSTALLATION MANUAL
DSC Touch 1.4.3 Software
The DSC Touch is a 7” touchscreen built with an
Android operating system, providing full security and
smarthome functionality in an easy to use interface.
INTRODUCTION
INCLUDED IN BOX
ABOUT THIS GUIDE
DSC Confidential and Proprietary Page of2 114
© Last updated 4/29/15 All rights reserved
?
SUPPORT
This document outlines the basic hardware specifications and software directions to
install and customize the DSC Touch. Note that the information presented is not
comprehensive, but is specifically dedicated to those menus, features, and systems
accessible solely to those with the proper installation code. Features accessible to
users and installers alike are outlined in the DSC Touch User Guide. The information
contained is confidential and proprietary, and is solely owned by DSC. Any
reproduction, modification or distribution without permission is strictly prohibited.
This manual covers the following
models of DSC Touch Alarm
System:
- SCW9067C (CDMA model)
- SCW9067H (HSPA model)
Reference to DSC Touch
throughout this manual applies to
all these models unless stated
differently.
Power
Supply
DSC
Touch
TABLE OF CONTENTS
CONTENTS
HARDWARE
5- Exterior Front
6- Exterior Back
7- Interior
8- Wiring Diagram
9- Installing the Back Plate
10- Powering the Panel
11- Mounting the Hardware
SOFTWARE
13- Home Screen Overview
14- Header or “Status” Bar
15- Footer
16- Settings
17- Settings Menu
INSTALLATION
19- Installation
20- Security Account
23- Security Sensors
24- AutoLearn Sensor
25- Add Sensor
26- Sensor Types
27- Sensor Name
29- Chime Type
30- Sensor Groups
44- Voice Prompt
45- Home Control Devices
47- Add Device
48- Clear Device
49- Delete Device
50- Remove All Devices
51- Rediscover Network
52- Neighbor Info
53- Counters
54- Timer
55- Sound
57- System Logs
58- Upgrade Software
59- Siren and Alarms
60- Security and Arming
62- Camera Settings
63- Device List
64- IQ2 Devices
65- Dual Path
SYSTEM TESTS
67- System Tests
68- Wi-Fi Test
69- Sensor Test
70- Cellular Test
71- Image Sensor Config
72- Home Control Test
73- Panel Test
74- IQ2 Devices Test
CUSTOMIZATION
76- System Settings
77- How to Connect Wi-Fi
78- Weather
79- Photo Frame
81- Load Images from SD
Card
82- Photo Frame Settings
Custom Names
83- Dealer Contact
84-Custom Names
85-Edit Chimes
86- User Management
87- Load Help Videos
TROUBLESHOOTING
89-About
92-Upgrade Software Using
Wi-Fi
93- Automatic Software
Updates
94- Software Update Via SD
Card
95- Power Down
96- Panel Reboot
97- Hard Reboot
98- Panel Test
Troubleshooting
101- System Monitor
102- Cannot Load Help
Videos
LEGAL
103- Important Information
SPECIFICATIONS
112- Hardware Specifications
HARDWARE
HARDWARE
EXTERIOR FRONT
Panel Camera
Emergency Button
Home Button
Microphone
7” LCD Resistive
Touch Screen
DSC Confidential and Proprietary Page of5 114
© Last updated 4/29/15 All rights reserved
HARDWARE
EXTERIOR BACK
Mounting plate
Mounting holes
SD Card Slot
Cooling Vents
Two-Way Voice
Speaker
Panel Sounds Speaker
Rear access opening
Siren
DSC Confidential and Proprietary Page of6 114
© Last updated 4/29/15 All rights reserved
HARDWARE

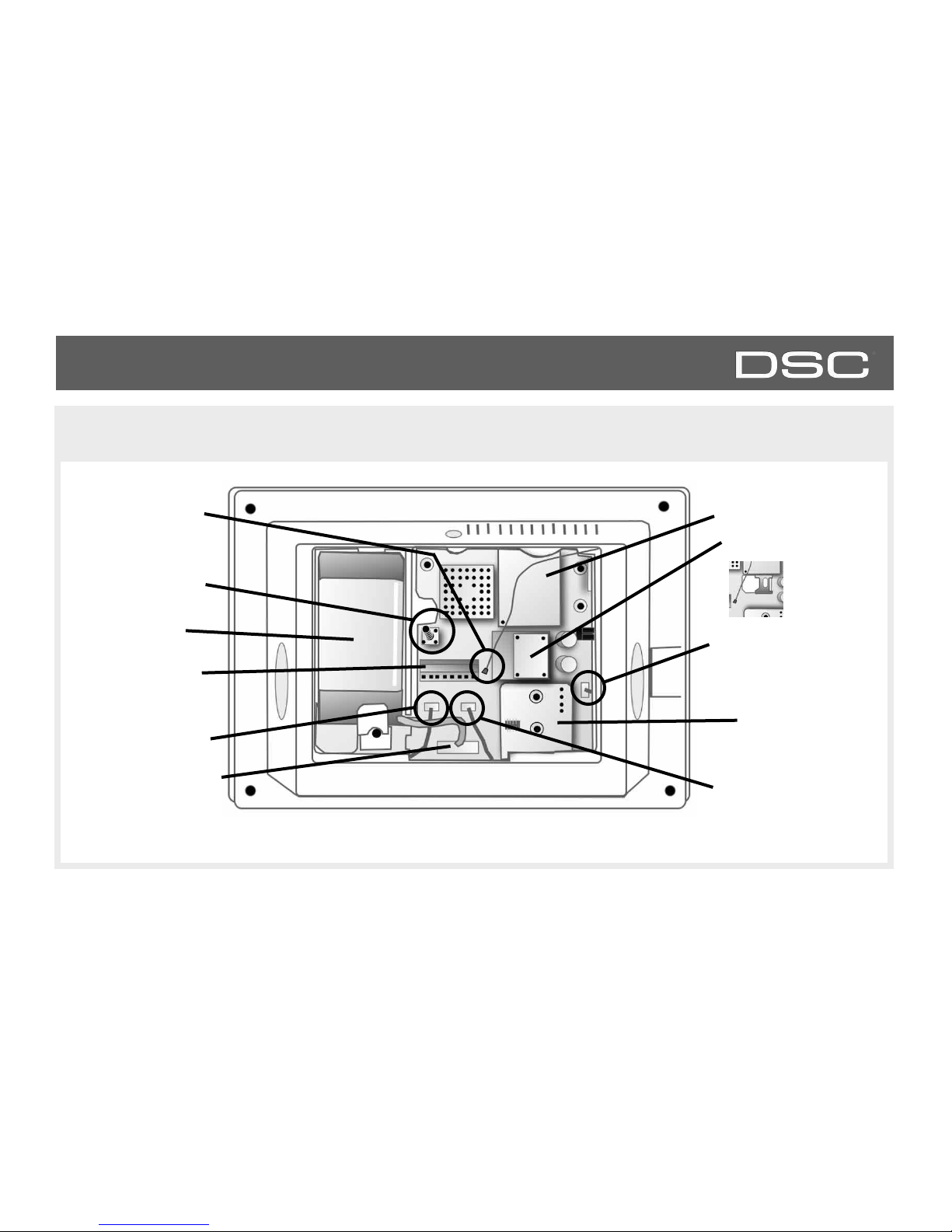

INTERIOR
Battery*
Image Sensor Radio
Z-Wave Radio
Battery Connector*
Cellular Module
Terminal Block
Tamper Switch
Microphone Connector
Two-Way Voice Speaker
Connector
Panel Speaker Connector
Cellular Antenna
The battery should NEVER be disconnected without following proper power-down procedures (page 92)
Failure to comply may result in data corruption, panel failure, and a void of the manufacturer's warranty
*CAUTION
Note:
HSPA Models will
contain a SIM card
DSC Confidential and Proprietary Page of7 114
© Last updated 4/29/15 All rights reserved
HARDWARE
WIRING DIAGRAM
DSC Confidential and Proprietary Page of8 114
© Last updated 4/29/15 All rights reserved
Note:
Only DCIN-, DCIN+ terminals evaluated by
UL/cUL. Other terminal connections have
not been evaluated by UL/cUL.
Note: Do not connect the plug
in adapter to a switched outlet.
Note:
Use only Class 2 power limited power supply
Input rating: 100-240VAC, 50/60Hz, 1A
Output rating: 12.5VDC/1.2A
Model MU15-R125120-A1 (P/N MU15-R1125-A00S) for USA
Model MU15-R125120-A1 (P/N MU15-R1125-A01S) for Canada
HARDWARE
INSTALLING THE BACK PLATE
Remove the retainer screw
and place in a safe location
Remove the back plate
from the panel by pulling
downward from the top
Secure one corner of the
plate in the desired
location, be sure to
position rear access
opening over the location
of your wire
Ensure the plate is level
and secure to wall with
appropriate mounting
hardware (not provided)
DSC Confidential and Proprietary Page of9 114
© Last updated 4/29/15 All rights reserved
HARDWARE
POWERING THE PANEL
Hang the panel’s
suspension strap on the
hook mounted to the back
plate.
Connect power supply
wire to terminal block.
Red- DCIN +
Black- DCIN-
Plug in battery connector
CAUTION: Once connected, DO NOT unplug
the battery without following proper power
down procedures (page 92). Disconnecting the
battery may result in data corruption or panel
failure and a void of the manufacturer warranty.
Connect the wire to Power
Supply terminals.
Red- Positive
Black- Negative
IMPORTANT: Reversing
polarity on these wires may
cause damage to the panel.
DSC Confidential and Proprietary Page of10 114
© Last updated 4/29/15 All rights reserved
IMPORTANT: To ensure proper
power at the panel, 18AWG wire, no
longer than 25 feet, should be used
between the Panel and the Power
Supply.
