Ducasa RP-10 Bedienungsanleitung
Models: RP-10, RP-15, RP-20
User Manual
2
Contents
Thank you for purchasing the Ducasa Sunburst Radiant Panel
Heater.
Index
Safety Precautions & Important Safeguards:...................................................................... 3
Specifications: .................................................................................................................... 5
Features ............................................................................................................................. 5
Removal of Packaging........................................................................................................ 5
Controls & Features............................................................................................................ 6
Control Panel...................................................................................................................... 6
Installation Kit..................................................................................................................... 7
Installation Precautions....................................................................................................... 8
Heater for Bathroom Area................................................................................................... 9
Installation instruction....................................................................................................... 10
A. For free-standing use: ......................................................................................................10
B. For wall mounting:............................................................................................................11
Operation.......................................................................................................................... 12
Cleaning ........................................................................................................................... 12
WARNING ........................................................................................................................ 14
KEEP THESE INSTRUCTIONS
3
Safety Precautions & Important Safeguards:
The appliance must only be used as described in the instructions for use! Use for
any other purpose is forbidden!Any damage resulting from improper use and non-
observance of the safety information will invalidate any liability and warranty!
All liability is disclaimed for any frost damage caused by a heating capacity that
is insufficient for the room size, bad heat insulation of the room, incorrect use or
force majeure (e.g. power failure).
Only connect the appliance to A.C. mains as specified on the rating plate!
Never touch live parts! Danger to life!
Never operate the appliance with wet hands! Danger to life!
The appliance must be placed in a way that the control elements cannot be
touched by persons who are in bath, shower, or any other water-filled receptacle.
The appropriate regulations of the country regarding installation of electrical
equipment in such areas must be adhered to!
The appliance is splash-proof and may be used in bathrooms, however, not in the
immediate vicinity of baths, showers, water connections, washbasins or
swimming pools.
The appliance is not for outdoor use.
The appliance must only be stored indoors!
Never use the appliance if the appliance or cord is damaged. Risk of injury!
Check the power cord regularly for damage.
If the power cord or if the appliance is damaged to the extent that electrical parts
are exposed, disconnect it immediately from the mains and see your authorised
retailer!
The appliance may only be opened up and repaired by authorised qualified
personnel.
Do not store or use any flammable materials or sprays in the vicinity of the
appliance when the appliance is in use. Fire hazard!
Do not use the appliance in flammable atmospheres (e.g. in the vicinity of
combustible gases or spray cans)! Explosion and fire hazard!!
The appliance should not be used in areas which are a fire risk, such as garages,
stables, or wooden sheds.
4
Important! Do not insert any foreign objects into the appliance openings! Risk of
injury (electric shock) and damage to the appliance!
Place the appliance so that it cannot be touched by accident. Risk of burns!
The appliance will cool down gradually after being switched off.
Do not place any items of clothing, towels or similar on the appliance to dry!
Overheating and fire hazard!
If the appliance is connected to permanent wiring a qualified electrician must be
consulted to ensure all relevant regulations are adhered to.
The appliance is not intended for use by young children or infirm persons without
supervision!
Young children should be supervised to ensure that they do not play with the
appliance!
The socket-outlet must be accessible at all times to enable the mains plug to be
disconnected as quickly as possible!
The appliance is not suitable for animal breeding purposes!
The instruction leaflet belongs to the appliance and must be kept in a safe place.
When changing owners, the leaflet must be surrendered to the new owner!
5
Specifications:
Model
RP-10
RP-15
RP-20
Voltage Rating
230V AC, 50Hz
230V AC, 50Hz
230V AC, 50Hz
Power Consumption (W)
650W / 1000W
900W / 1500W
1300W / 2000W
Unit Size (cm)
72 x 12.5 x 49
92 x 12.5 x 49
112 x 12.5 x 49
Unit Weight (kg)
4.4kg
5.4kg
6.4kg
IP Rating
IP24
IP24
IP24
Features:
Two Power Settings
Thermostatic Temperature Control
Power Indicator Light
Safety Thermal Cut-Off
Frost Protection
IP24
Quiet Operation
No Dehumidifying
Removal of Packaging:
1. Remove the heater and fixtures from the box.
2. Remove the polystyrene and polythene bags.
3. Save the packaging to store the heater while it is not being used.
Keep the original box! It can be used for storage in summer season.
6

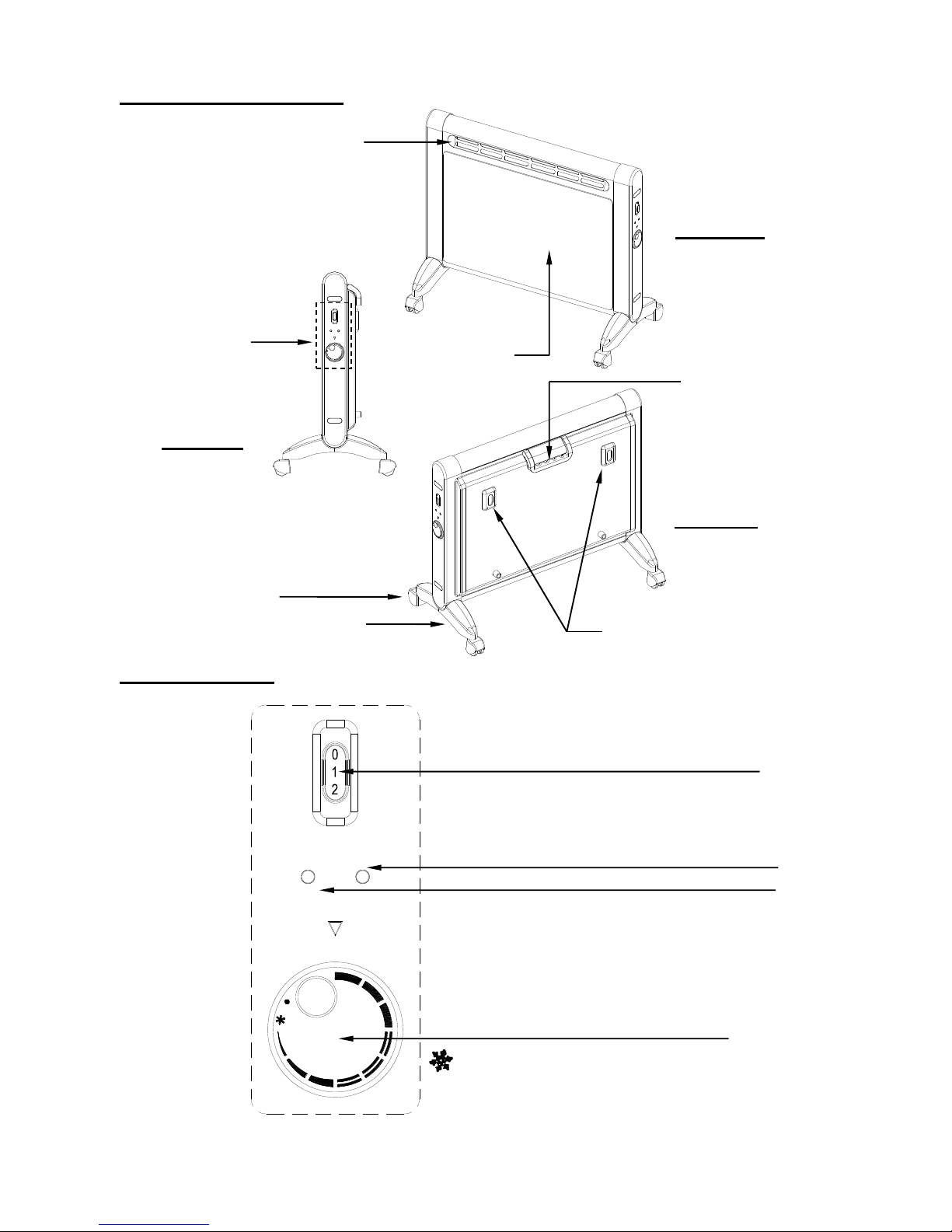

Controls & Features:
Control Panel:
Temperature Control Knob
Control Panel
Power Indicator Light (Green)
Rear View
Air Outlet
Wall mounting support
Power Selection
Switch
Front View
Side View
Carrying
Handle
Feet
Heating Indicator Light (Orange)
Castors
OFF Mode (Dot Position)
Frost protection (Snowflake Position)
Front Grille
7
Installation Kit:
Carefully unpack the components and check that no damage occurred during
transportation. If any damage is apparent or any component is missing, please
contact the dealer immediately.
1.
Wall mounting bracket
1pc
4.
Screw for wall mounting
2pcs
2.
Feet
2pcs
5.
Wall plugs
2pcs
3.
Castors
2pcs
1
2
3
4
5
8

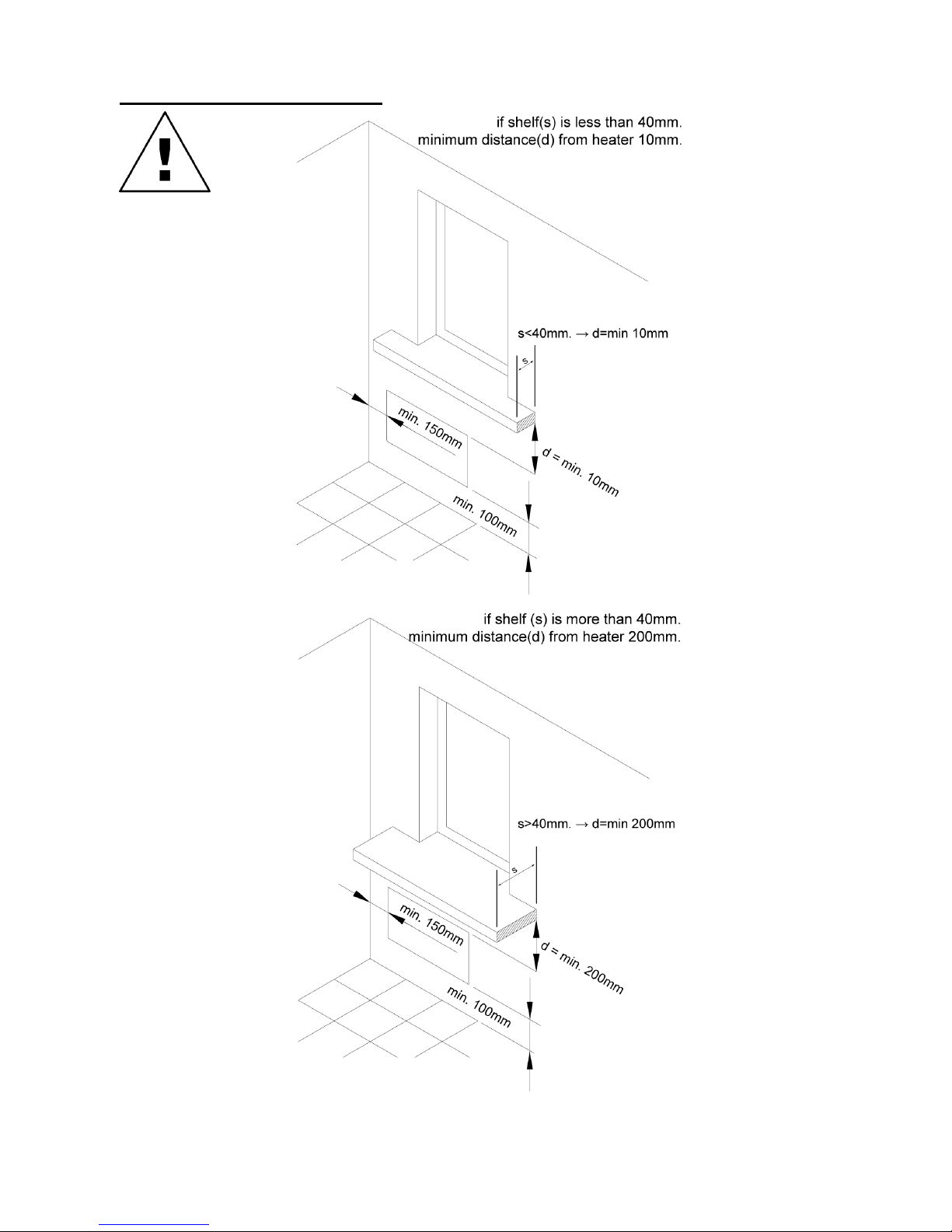

Installation Precautions:
9
Heater for Bathroom Area:

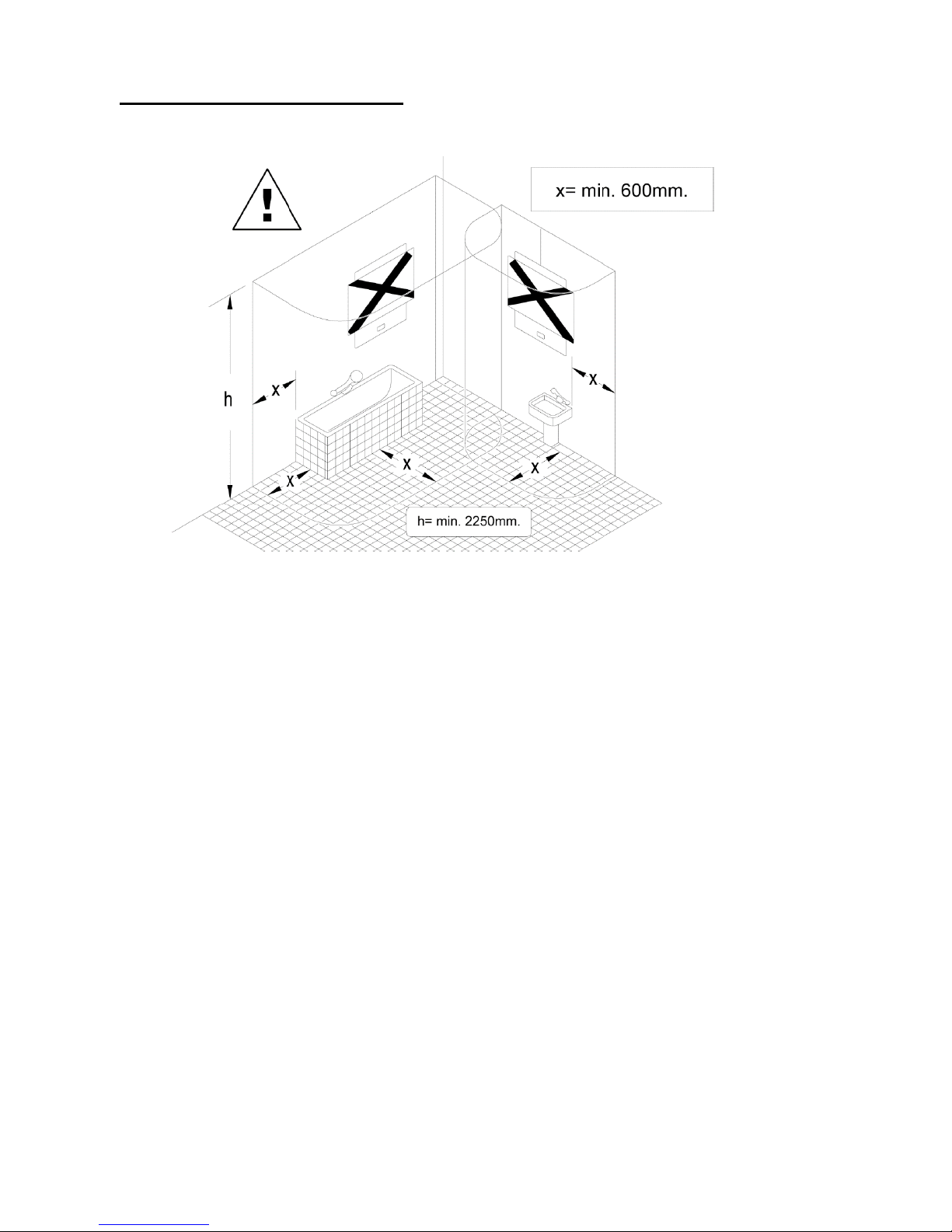

We recommend to install the heater in the bathroom area at least 0.6m away from
shower OR bathtub as shown in the picture. The figure 0.6m is a suggested distance;
the actual distance from the shower and bathtub should follow national standard in
each country.
10
Installation instruction:
A.For free-standing use:
1. Fix 2 castors to the feet.
2. Push feet onto heater until
they click into place.
