Dukane 28A7250 ImagePro Bedienungsanleitung

28A7250 ImagePro

Projector

User's Manual

English

Usage Notice

Precautions .......................................................................................... 2

Introduction

About the Product................................................................................. 3

Package Overview ............................................................................... 4

Installation

Product Overview ................................................................................. 5

Start Your Installation............................................................................ 7

Powering On/Off the Projection Display................................................ 9

Adjusting the Image Size ...................................................................... 10

User Controls

User Control Overview ......................................................................... 11

Function Descriptions........................................................................... 13

Appendices

Troubleshooting .................................................................................... 17

Maintenance ......................................................................................... 19

Specifications ....................................................................................... 22

Compatibility Modes............................................................................. 23

Table of Contents

English

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit.

Do:

qTurn off the product before cleaning.

qUse a soft cloth moistened with mild detergent to clean the display housing.

qDisconnect the power plug fromAC outlet if the product is not being used for a

long period of time.

Don’t:

qBlock the slots and openings on the unit provided for ventilation.

qUse abrasive cleaners, waxes or solvents for your cleaning.

qUse under the following conditions:

- Extremely hot, cold or humid environment.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Warning- Do not look into the lens. The bright light may hurt your eyes.

Warning- To reduce the risk of fire or electric shock, do not expose this

product to rain or moisture.

Warning- Please do not open or disassemble the product as this may cause

electric shock.

Warning- When changing the lamp, please allow unit to cool down and follow

all changing instruction.

Warning- This product will detect the life of the lamp itself. Please be sure to

change the lamp when it shows warning messages.

Warning- After changing a new lamp, please reset the lamp life timer from

OSD menu.

Warning- Before switching off the product, please keep the cooling fan

running for a few minutes.

Usage Notice

English

About the Product

This product, designed with a high-powered metal halide lamp, is an SVGA data/

video portable projection display. The outstanding feature of it are listed as follows:

q10.34lbs (4.7 kg) lightweight compact design

q330-watt user replaceable metal-halide lamp

qSingle panel 6.4” TFT LCD projection system

q800 x 600 addressable pixels

qCompression for 1024 x 768 XGA computer image

q16.7M (24-bit) displayable colors

qXGA/ SVGA/ VGA/ VESA/ Mac/NEC PC-98/ Fujitsu FM Towns compatible

qNTSC / NTSC 4.43/ PAL / SECAM composite video & S-Video

qRemote control with mouse function

qAutomatic image adjustment function

qMultilingual OSD menu adjustments

qAdvanced functions--

keystone correction/ zoom/ freeze/ pointer

Introduction

English

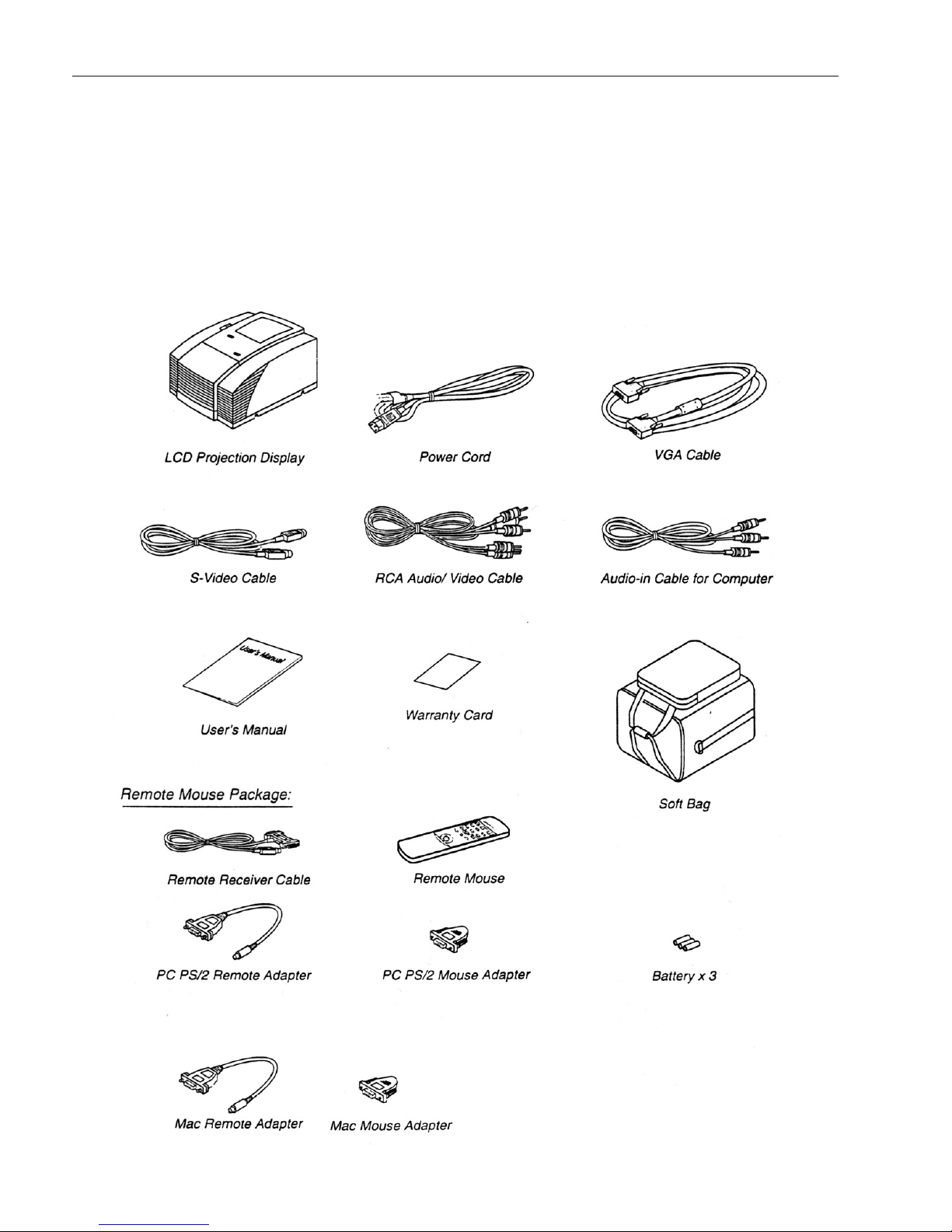

Package Overview

This projection display comes with all the items shown below. Check to make

sure your unit is complete. Contact your dealer immediately if anything is

missing.

English

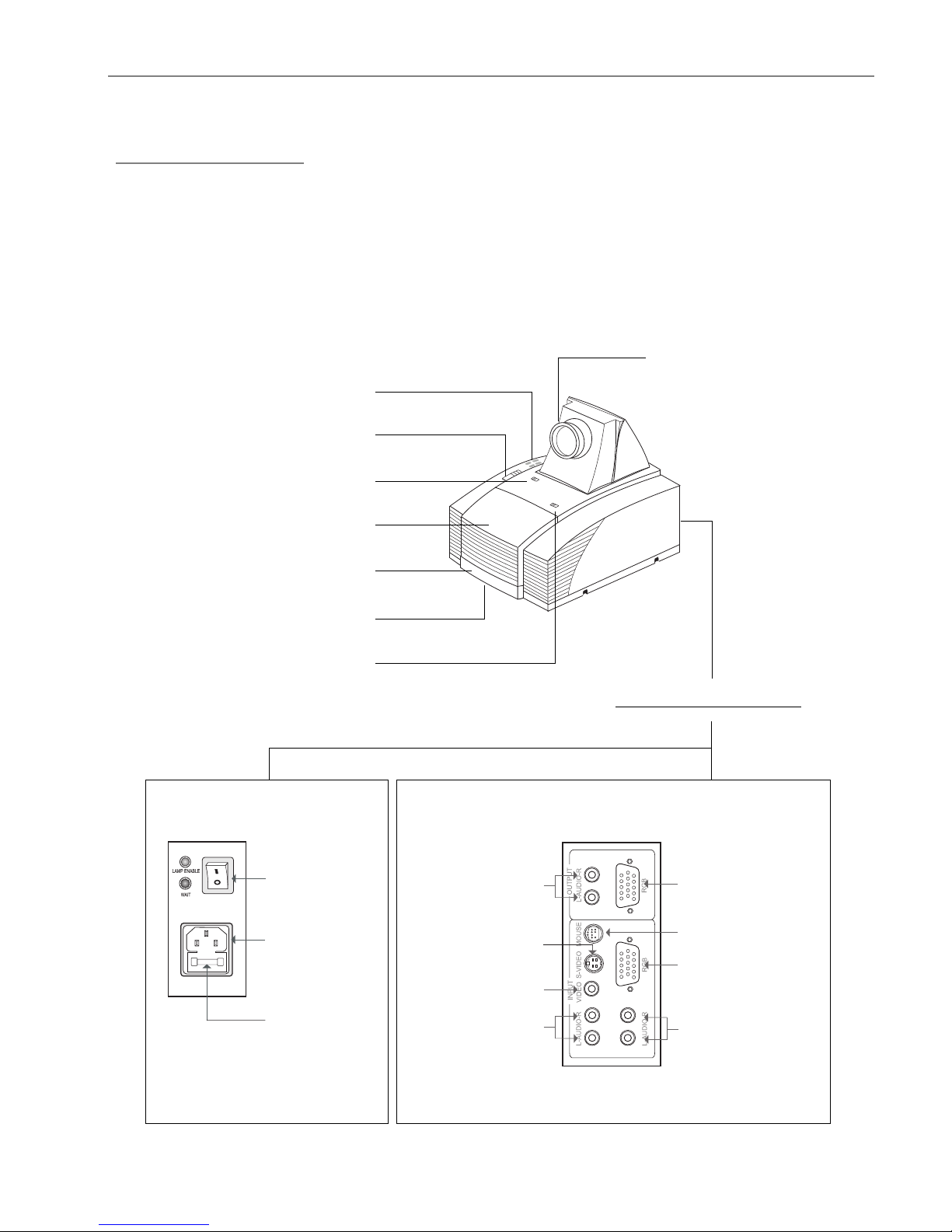

Product Overview

wMainUnit

Installation

Rear Connection Ports

Panel Control Buttons

Keystone Correction

Lens Latch

Lamp Door

Carrying Handle

Elevator Foot

Lamp Latch

Lens

Power Switch

Power

Connector

Fuse

Monitor Loop-

through Connector

Computer Input

Connector

Audio Inputs for

Computer

Audio Outputs

S-Video Connector

Composite Video

Connector

Audio Inputs

for Video

Remote Receiver

Connector

English

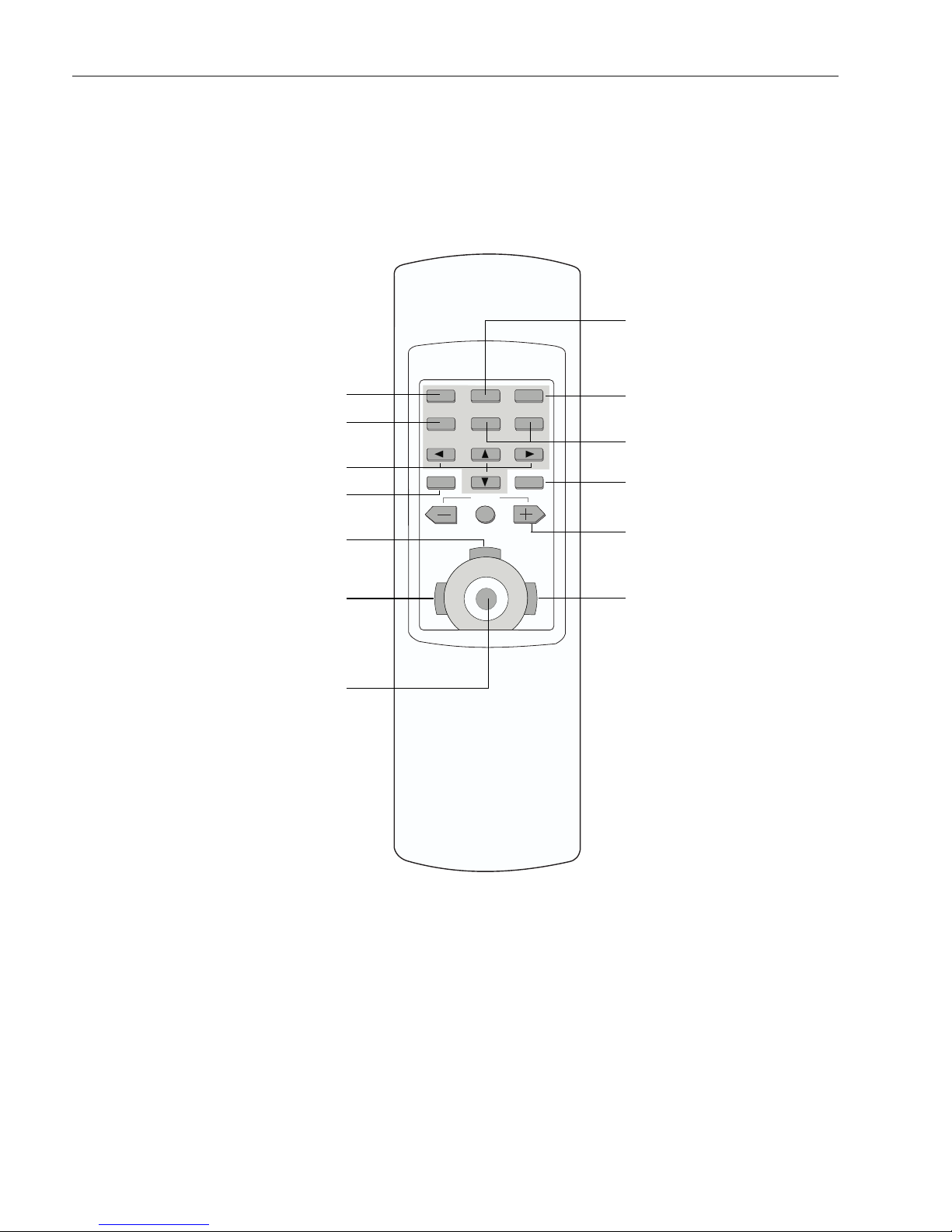

wRemoteControl

Directional Select Keys ZoomIn/ZoomOut

* For more detailed information, please refer to “Function Descriptions”

on page 13.

Curtain

Source Selection

Volume

Enter/Pointer

Poweron/Standby

On-ScreenMenus

FREEZE

CURTAIN

STANDBY

ZOOMINZOOMOUTSOURCE

ENTER

POINTER

MUTE

VOLUME

DRAG

Freeze

LIGHT

Mouse Left ButtonDown

Right Mouse Button/

Backlight Function

Left Mouse Button

Joystick

(Mouse Cursor Function)

English

StartYourInstallation

wConnectingtheProjectionDisplay

Monitor Cable

VGA Signal Cable

Audio Cable

S-Video Cable

RCAAudio/ Video

Cable

Power Cord

Remote Receiver Cable

Computer

MousePort

English

Follow regular setup procedures. Make sure you have a 100% compatible Microsoft

Mouseanda MicrosoftMouse driver installed.

4Setting Up Procedure:

1. Turn off your computer.

2. Unplug the mouse from your computer.*

3. Connect the remote receiver cable to the computer and the projection display.

4. If you need an external mouse, connect the mouse with the other end of the

receiver cable.

5. Turn on your projection display first and then your computer.

6. Begin your presentation.

* If you have a Mac or PC PS/2 mouse, use the matching adapters as shown in

the drawing.

Remote Receiver Cable

(Microsoft Mouse Connection)

Mac or PC PS/2 Mouse

(Mac or PC PS/2 Mouse Connection)

Remote Receiver Cable

Microsoft Mouse

Mac or PC PS/2 Mouse Adapter *

Mac or PC PS/2 RemoteAdapter

wRemoteControlConnections
