NEC Display Solutions of America, Inc.

PX1005QL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PX1005QL Page 1 of 12

Contents

Product Description, Lens Specs, Screen/Aspect Ratio

Notes Pg 1

Distance Charts and Formulas Pg 2-3

Ceiling Mount/Desktop Installation Pg 4

Lens Shift Adjustable Range Pg 5

Cabinet Dimensions Pg 6

Cabinet Dimensions Pg 7

Optional Lens Dimensions Pg 8

Ventilation Requirements/Portrait Requirements Pg 9

Regulatory Labels Pg 10

Input Panel and Button Panel Pg 11

Control Codes Pg 12

Product Description

Type: 1 chip DMD Reflection Type Dimensions: 19.7” (W) x 8.49” (H) x 23.0” (D)

0.66 in. TRP DMD Weight: 63.9 lbs. / 29.0kg

DMD Resolution: 2716 x 1528 (16:9) Brightness: 10,000 Lumens

Output Resolution: 3840 x 2160 (16:9)

Fan Noise: 43 dB / 39dB @ 1 meter

Power Consumption: 1220W (max) BTU’s: 4163 BTU/hour

Network Ready, RJ45

Powered: Lens Shift, Horizontal & Vertical/Zoom/ Focus

Lens Specifications

NP39ML-4K:Throw Ratio: ~ 0.38:1 Focal Length: 11.4mm NP19ZL-4K:Throw Ratio: 2.20 -3.67:1 Focal Length: 32.9 –54.2mm

Screen Sizes: 85”-350”F/#: 1.85 Screen Sizes: 50-300” F/#: 1.86 –2.48

NP16FL-4K:Throw Ratio: ~ 0.76:1 Focal Length:11.6mm NP20ZL-4K:Throw Ratio: 3.54 –5.36:1 Focal Length: 52.8 –79.1mm

Screen Sizes: 50”-300” F/#: 1.85 Screen Sizes: 50-300” F/#: 1.85-2.41

NP17ZL-4K:Throw Ratio: 1.24 - 1.78:1 Focal Length: 18.7 –26.5mm NP21ZL-4K: Throw Ratio: 5.25 –8.28:1 Focal Length: 78.5 -121.9mm

Screen Sizes: 50”-300” F/#: 1.85 Screen Sizes: 50-300” F/#: 1.85-2.48

NP18ZL-4K:Throw Ratio: 1.71–2.25:1 Focal Length: 26.0 –34.0mm NP31ZL-4K: Throw Ratio: 0.74 –0.93:1 Focal Length: 11.3 -14.1mm

Screen Sizes: 50-300” F/#: 1.70-1.90 Screen Sizes: 50-300” F/#: 1.96-2.3

Screen/Aspect Ratio

4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using developed scaling

technology.Menu selections have settings for each screen type and aspectratio control for each source type.

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary 5%.

68100-4KSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 68100-4KSS_Installation _Guide-00 Page 1 of 12

DUKANE CORP AV SERVICE DEPT

2900 Dukane Drive

St Charles, IL 60174

800-676-2487 / 630-762-4032

Fax 630-584-5156

[email protected]

www.dukaneav.com

NEC Display Solutions of America, Inc.

PX1005QL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PX1005QLPage 2 of 12

Formulas: 16:10 Aspect Ratio (WUXGA)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size

varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to

calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas: Definitions: 16:9 Screen Formulas

NP16FL-4K: C = 0.794W –1.85 W = Image Width W = H x 16/9

NP17ZL-4K: C(Wide) = 1.269W –2.091 ------ C(Tele) = 1.802W –1.910 H = Image Height (size) H = W x 9/16

NP18ZL-4K: C(Wide) = 1.748W –2.673 ------ C(Tele) = 2.290W –2.633 C = Throw distance Screen Diagonal = W x 18.358/16

NP19ZL-4K: C(Wide) = 2.241W –3.150 ------ C(Tele) = 3.713W –3.114 16:10 Screen Formulas

NP20ZL-4K: C(Wide) = 3.618W –5.319 ------ C(Tele) = 5.434W –5.299 W = H x 16/10

NP21ZL-4K: C(Wide) = 5.412W –11.622---- C(Tele) = 8.438W –11.531 H = W x 10/16

NP31ZL-4K: C(Wide) = 0.768W –1.795 ------ C(Tele) = 0.953W –1.705 Screen Diagonal = W x 18.868/16

NP39ML-4K:Ultra-Short Throw lens (See page 3 for Formulas)

Distance Chart using 16:9 native projector with 16:9 Image (1080p)

Rear Lens

NP16FL-4K

Diagonal

Width(W)

Height (H) 0.76:1

inches inches inches inches

30 26 15 19.29 18.3 -23.2 31.1 -45.2 43.0 -57.2 55.4 -94.0 89.3 -136.8 129.9 -209.1

59 51 29 38.98 37.7 -47.3 63.2 -90.8 87.2 -115.1 112.1 -187.8 180.7 -274.1 266.7 -422.4

67 58 33 44.51 43.1 -53.9 72.0 -103.3 99.4 -131.1 127.7 -213.7 206.0 -312.0 304.4 -481.2

70 61 34 46.59 45.1 -56.4 75.3 -108.0 104.0 -137.1 133.6 -223.4 215.4 -326.2 318.6 -503.3

83 72 41 55.59 53.8 -67.2 89.7 -128.4 123.8 -163.0 159.0 -265.5 256.4 -387.8 379.9 -598.9

106 92 52 71.50 69.2 -86.3 115.1 -164.6 158.8 -208.9 203.9 -339.9 328.9 -496.7 488.4 -768.0

110 96 54 74.27 71.8 -89.7 119.6 -170.8 164.9 -216.9 211.7 -352.9 341.5 -515.7 507.2 -797.4

126 110 62 85.34 82.5 -102.9 137.3 -196.0 189.3 -248.8 242.9 -404.6 392.0 -591.4 582.7 -915.1

133 116 65 90.19 87.2 -108.8 145.0 -207.0 199.9 -262.8 256.6 -427.3 414.1 -624.6 615.7 -966.6

159 139 78 108.18 104.6 -130.4 173.8 -247.8 239.6 -314.7 307.4 -511.4 496.1 -747.7 738.4 -1157.8

184 160 90 125.48 121.4 -151.1 201.4 -287.1 277.6 -364.6 356.2 -592.3 574.9 -866.1 856.3 -1341.6

202 176 99 137.94 133.4 -166.1 221.3 -315.3 305.1 -400.5 391.4 -650.6 631.6 -951.4 941.2 -1474.0

220 192 108 150.39 145.5 -181.0 241.2 -343.6 332.5 -436.5 426.5 -708.8 688.4 -1036.6 1026.1 -1606.4

263 229 129 180.15 174.2 -216.7 288.8 -411.1 398.0 -522.3 510.5 -848.0 824.0 -1240.3 1228.9 -1922.6

299 261 147 205.06 198.3 -246.6 328.6 -467.7 452.8 -594.1 580.8 -964.5 937.5 -1410.8 1398.7 -2187.4

inches

Screen Size (16:9)

2.20-3.67:1

NP31ZL-4K

NP17ZL-4K

NP18ZL-4K

NP19ZL-4K

1.71-2.25-1

Zoom Lenses

NP21ZL-4K

0.74-0.93:1

1.24-1.78:1

inches

5.25-8.28:1

NP20ZL-4K

3.54-5.36:1

inches

68100-4KSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 68100-4KSS_Installation _Guide-00 Page 2 of 12

NEC Display Solutions of America, Inc.

PX1005QL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PX1005QLPage 3 of 12

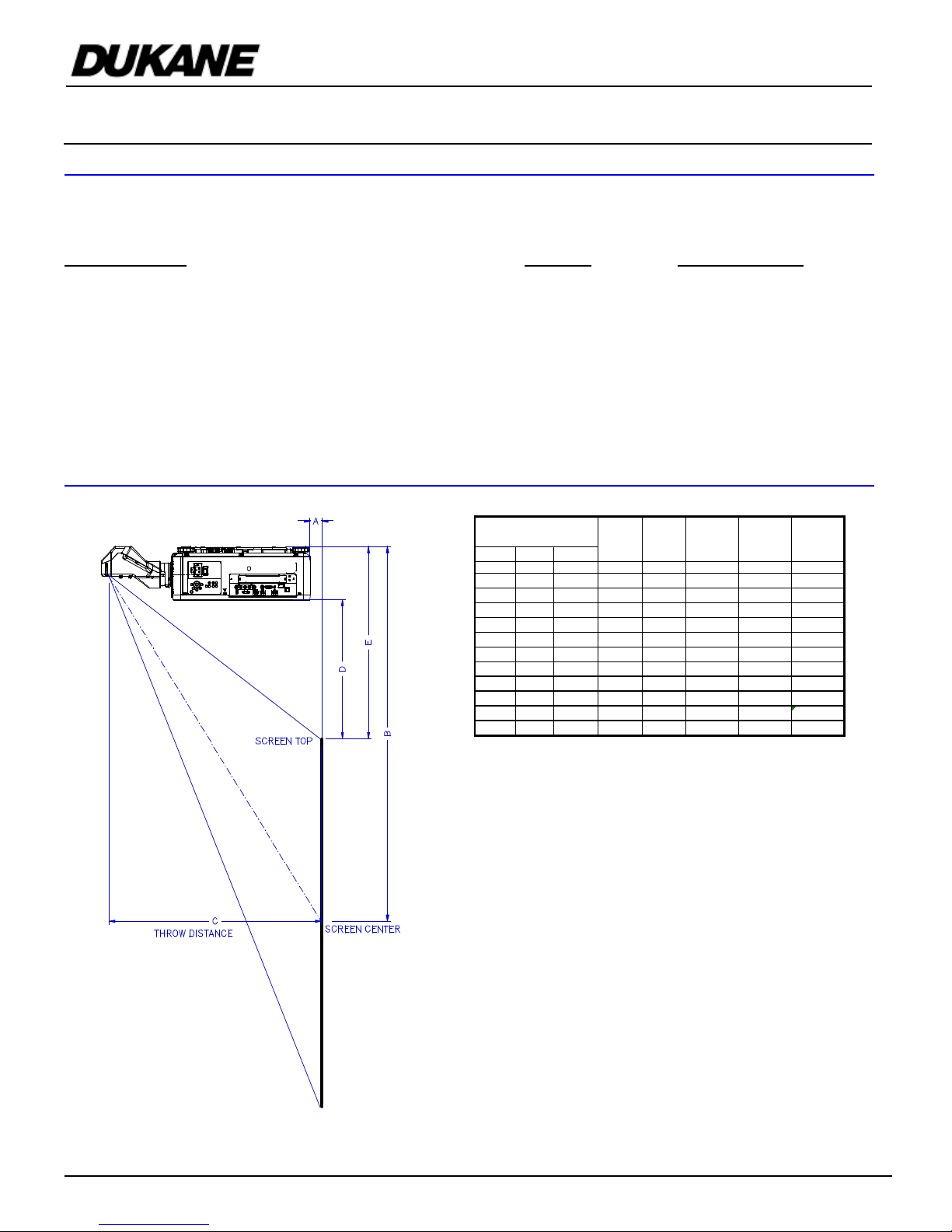

Formulas: 16:9 Aspect Ratio (WUXGA)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size

varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to

calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas: Definitions: 16:9 Screen Formulas

NP39ML-4K: A=C-33 .0 W = Image Width W = H x 16/9

B=0.588*W H = Image Height (size) H = W x 9/16

C=(0.351*W)+2.362 C = Throw distance Screen Diagonal = W x 18.358/16

D=0.239*W

E=0.310*W

NP39ML-4 Installation

Diagonal

Width(W)

Height (H)

inches inches inches inches inches inches inches inches

108 94 53 155 35 21 30

113 98 55 358 37 23 31

130 113 64 867 42 27 36

137 119 67 10 70 44 29 38

164 143 80 18 84 53 37 45

189 165 93 26 97 60 43 52

208 181 102 31 107 66 49 57

226 197 111 37 116 71 54 62

270 235 132 50 138 85 66 74

300 261 147 59 154 94 50 59

350 305 172 74 179 109 88 96

Screen Size (16:9)

68100-4KSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 68100-4KSS_Installation _Guide-00 Page 3 of 12

NEC Display Solutions of America, Inc.

PX1005QL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PX1005QLPage 4 of 12

Ceiling Mount Installation

Note: Lens Shift Feature is not available for the NP16FL.This lens should only be used for “zero degree”/”no-offset” applications.

Screen Cent er

Sc ree n T op

Shift Rang e

Screen Cent er

4. 46

68100-4KSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 68100-4KSS_Installation _Guide-00 Page 4 of 12

NEC Display Solutions of America, Inc.

PX1005QL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PX1005QL Page 6 of 12

Cabinet Dimensions

The following diagrams show the cabinet dimensions for the 68100-4KSS.

Dimensions are in inches. For millimeters multiply by 25.4.

Note: Dimensions below shown without a lens

22.65

22.89

9.82 9.82

19.63

8.31

4.46

8.49

IN TAKE

INTAKE

EXHAUST

LENS RELEASE BUTTON

68100-4KSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 68100-4KSS_Installation _Guide-00 Page 5 of 12

NEC Display Solutions of America, Inc.

PX1005QL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PX1005QL Page 6 of 12

Cabinet Dimensions

The following diagrams show the cabinet dimensions for the 68100-4KSS.

Dimensions are in inches. For millimeters multiply by 25.4.

Note: Dimensions below shown without a lens

22.65

22.89

9.82 9.82

19.63

8.31

4.46

8.49

IN TAKE

INTAKE

EXHAUST

LENS RELEASE BUTTON

68100-4KSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 68100-4KSS_Installation _Guide-00 Page 6 of 12

NEC Display Solutions of America, Inc.

PX1005QL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PX1005QLPage 7 of 12

Cabinet Dimensions

6-M4 (Max. M4 x 16)

5.12 5.90 5.90

3.91 11.80

1.58 16.51 1.58

2.34 19.06 1.51

68100-4KSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 68100-4KSS_Installation _Guide-00 Page 7 of 12

NEC Display Solutions of America, Inc.

PX1005QL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PX1005QLPage 8 of 12

Optional Lens Dimensions

NP16FL NP17ZL

NP18ZL NP19ZL

NP20ZL

NP39ML

NP31ZL

1.36

NP21ZL

16.5

(15.5)

12.165

7.244

68100-4KSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 68100-4KSS_Installation _Guide-00 Page 8 of 12

NEC Display Solutions of America, Inc.

PX1005QL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PX1005QLPage 9 of 12

Ventilation Requirements

If there are walls on boths sides of the projector :

If there’s a wall behind the projector :

Portrait Requirements

68100-4KSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 68100-4KSS_Installation _Guide-00 Page 9 of 12

NEC Display Solutions of America, Inc.

PX1005QL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PX1005QLPage 10 of 12

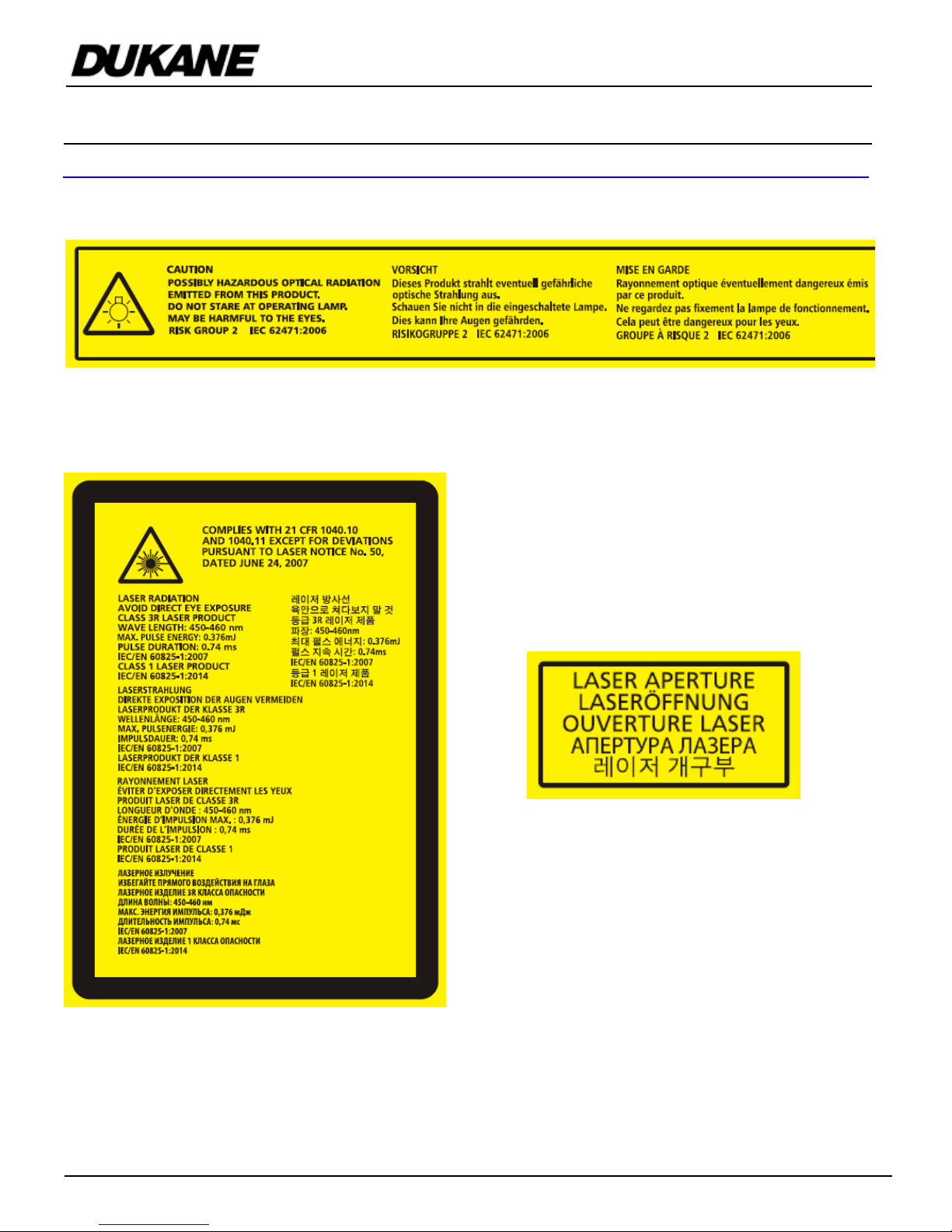

Regulatory Labels

68100-4KSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 68100-4KSS_Installation _Guide-00 Page 10 of 12

Inhaltsverzeichnis

Andere Dukane Projektor Handbücher

Dukane

Dukane 8420 Bedienungsanleitung

Dukane

Dukane 8953H Bedienungsanleitung

Dukane

Dukane ImagePro 8761A Bedienungsanleitung

Dukane

Dukane ImagePro 8947 Bedienungsanleitung

Dukane

Dukane 8928 Bedienungsanleitung

Dukane

Dukane 8950W Bedienungsanleitung

Dukane

Dukane SunSplash SP2127 Bedienungsanleitung

Dukane

Dukane ImagePro 8772 Bedienungsanleitung

Dukane

Dukane 8980WU Bedienungsanleitung

Dukane

Dukane 9005 Bedienungsanleitung

Dukane

Dukane 8122WI Bedienungsanleitung

Dukane

Dukane ImagePro 8757 Bedienungsanleitung

Dukane

Dukane 28A640 Bedienungsanleitung

Dukane

Dukane ImagePro 8746 Bedienungsanleitung

Dukane

Dukane 9005 Bedienungsanleitung

Dukane

Dukane ImagePro 8043 Bedienungsanleitung

Dukane

Dukane 8973WA Bedienungsanleitung

Dukane

Dukane ImagePro 8753 Bedienungsanleitung

Dukane

Dukane ImagePro 8247 Bedienungsanleitung

Dukane

Dukane ImagePro FastFax 28A8043 Bedienungsanleitung

Dukane

Dukane 8755E-RJ Bedienungsanleitung

Dukane

Dukane ImagePro 8077A Bedienungsanleitung

Dukane

Dukane ImagePro 8915 Bedienungsanleitung

Dukane

Dukane ImagePro 8914 Gebrauchs- und Pflegehandbuch

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung
