CP-X1200(P5XLA) / CP-X1250(P5XMLA) / CP-X1200WA(P5XMLB)

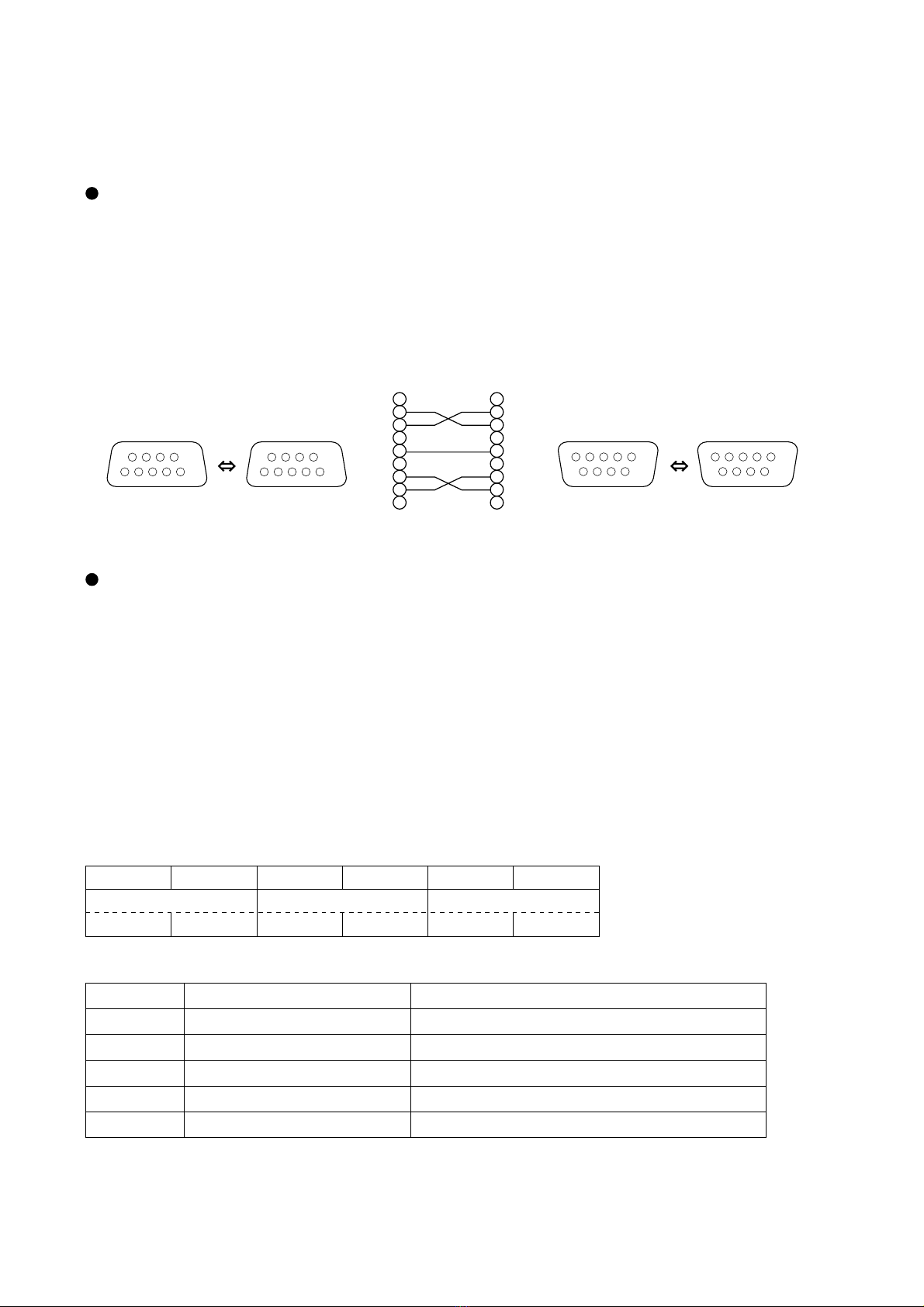

10. RS-232C communication

Connecting the cable

(1) Turn off the projector and the computer power supplies.

(2) Connect the CONTROL port of the projector with a RS-232C port of the computer by a RS-232C cable. Use

the cable that fulfills the specification shown in the following figure.

(3) Turn on the computer power supply and after the computer has started up, turn on the projector power

supply.

CONTROL

port

D-sub 9-pin

plug

RS-232C port

D-sub 9-pin

plug

D-sub 9-pin

jack

D-sub 9-pin

jack

GND

CTS

RTS

DTR

GND

DSR

RTS

DTS

Projector RS-232C cross cable Computer

6789

54321

9876

12345 6789

54321

9876

12345

Communications setting

19200bps, 8N1

1. Protocol

Consist of header (7 bytes) + command data (6 bytes).

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high

CRC_low : Lower byte of CRC flag for command data

CRC_high : Upper byte of CRC flag for command data

3. Command data

Command data chart

byte_0 byte_1 byte_2 byte_3 byte_4 byte_5

Action Type Setting code

low high low high low high

Action (byte_0 - 1)

Action Classification Content

1 SET Change setting to desired value.

2 GET Read projector internal setup value.

4 INCREMENT Increment setup value by 1.

5 DECREMENT Decrement setup value by 1.

6 EXECUTE Run a command.

8935 & 8942

CP-X1200(P5XLA) / CP-X1250(P5XMLA) / CP-X1200WA(P5XMLB)

Requesting projector status (Get command)

(1) Send the request code Header + Command data (‘02H’+‘00H’+ type (2 bytes)+‘00H’+‘00H’) from the

computer to the projector.

(2) The projector returns the response code ‘1DH’+ data (2 bytes) to the computer.

Changing the projector settings (Set command)

(1) Send the setting code Header + Command data (‘01H’+‘00H’+ type (2 bytes) + setting code (2 bytes)) from

the computer to the projector.

(2) The projector changes the setting based on the above setting code.

(3) The projector returns the response code ‘06H’ to the computer.

Using the projector default settings (Reset Command)

(1) The computer sends the default setting code Header + Command data (‘06H’+‘00H’+ type (2 bytes) +‘00H’+

‘00H’) to the projector.

(2) The projector changes the specified setting to the default value.

(3) The projector returns the response code ‘06H’ to the computer.

Increasing the projector setting value (Increment command)

(1) The computer sends the increment code Header + Command data (‘04H’+‘00H’+ type (2 bytes) +‘00H’+

‘00H’) to the projector.

(2) The projector in creases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the computer.

Decreasing the projector setting value (Decrement command)

(1) The computer sends the decrement code Header + Command data (‘05H’+‘00H’+ type (2 bytes) +‘00H’ +

‘00H’) to the projector.

(2) The projector decreases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the computer.

When the projector cannot understand the received command.

When the projector cannot understand the received command, the error code ‘15H’ is sent back to the computer.

Sometimes the projector cannot properly receive the command. In such a case, the command is not executed

and the error code ‘15H’ is sent back to the computer. If this error code is returned, send the same command

again.

When the projector cannot execute the received command.

When the projector cannot execute the received command, the error code ‘1cH’ + ‘xxxxH’ is sent back to the

computer. When the data length is greater than indicated by the data length code, the projector ignore the

excess data code.

Conversely when the data length is shorter than indicated by the data length code, an error code will be returned

to the computer.

NOTE • Operation cannot be guaranteed when the projector receives an undeﬁned command or data.

• Provide an interval of at least 40ms between the response code and any other code.

•

The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.

• Commands are not accepted during warm-up.

CP-X1200(P5XLA) / CP-X1250(P5XMLA) / CP-X1200WA(P5XMLB)

Names Operation type Header Command data

CRC Action Type Setting code

Keystone V

Get BE EF 03 06 00 B9 D3 02 00 07 20 00 00

Increment BE EF 03 06 00 DF D3 04 00 07 20 00 00

Decrement BE EF 03 06 00 0E D2 05 00 07 20 00 00

Keystone V Reset

Execute

BE EF 03 06 00 08 D0 06 00 0C 70 00 00

Keystone H

Get BE EF 03 06 00 E9 D0 02 00 0B 20 00 00

Increment BE EF 03 06 00 8F D0 04 00 0B 20 00 00

Decrement BE EF 03 06 00 5E D1 05 00 0B 20 00 00

Keystone H Reset

Execute

BE EF 03 06 00 98 D8 06 00 20 70 00 00

Brightness

Get BE EF 03 06 00 89 D2 02 00 03 20 00 00

Increment BE EF 03 06 00 EF D2 04 00 03 20 00 00

Decrement BE EF 03 06 00 3E D3 05 00 03 20 00 00

Brightness Reset Execute BE EF 03 06 00 58 D3 06 00 00 70 00 00

Contrast

Get BE EF 03 06 00 FD D3 02 00 04 20 00 00

Increment BE EF 03 06 00 9B D3 04 00 04 20 00 00

Decrement BE EF 03 06 00 4A D2 05 00 04 20 00 00

Contrast Reset Execute

BE EF 03 06 00 A4 D2 06 00 01 70 00 00

Aspect Set

4:3

BE EF 03 06 00 9E D0 01 00 08 20 00 00

16:9

BE EF 03 06 00 0E D1 01 00 08 20 01 00

SMALL

BE EF 03 06 00 FE D1 01 00 08 20 02 00

NORMAL

BE EF 03 06 00 5E DD 01 00 08 20 10 00

Get

BE EF 03 06 00 AD D0 02 00 08 20 00 00

Whisper Set NORMAL

BE EF 03 06 00 3B 23 01 00 00 33 00 00

WHISPER

BE EF 03 06 00 AB 22 01 00 00 33 01 00

Get

BE EF 03 06 00 08 23 02 00 00 33 00 00

Mirror Set

Normal

BE EF 03 06 00 C7 D2 01 00 01 30 00 00

H Inverse

BE EF 03 06 00 57 D3 01 00 01 30 01 00

V lnverse

BE EF 03 06 00 A7 D3 01 00 01 30 02 00

H&V Inverse

BE EF 03 06 00 37 D2 01 00 01 30 03 00

Get

BE EF 03 06 00 F4 D2 02 00 01 30 00 00

(This table is continued to the following page.)

Command data chart

CP-X1200(P5XLA) / CP-X1250(P5XMLA) / CP-X1200WA(P5XMLB)

Names Operation type Header Command data

CRC Action Type Setting code

Language Set

ENGLISH BE EF 03 06 00 F7 D3 01 00 05 30 00 00

FRANÇAIS

BE EF 03 06 00 67 D2 01 00 05 30 01 00

DEUTSCH BE EF 03 06 00 97 D2 01 00 05 30 02 00

ESPAÑOL BE EF 03 06 00 07 D3 01 00 05 30 03 00

ITALIANO BE EF 03 06 00 37 D1 01 00 05 30 04 00

NORSK BE EF 03 06 00 A7 D0 01 00 05 30 05 00

NEDERLANDS

BE EF 03 06 00 57 D0 01 00 05 30 06 00

PORTUGUÊS

BE EF 03 06 00 C7 D1 01 00 05 30 07 00

日本語

BE EF 03 06 00 37 D4 01 00 05 30 08 00

中文

BE EF 03 06 00 A7 D5 01 00 05 30 09 00

BE EF 03 06 00 57 D5 01 00 05 30 0A 00

SVENSKA BE EF 03 06 00 C7 D4 01 00 05 30 0B 00

BE EF 03 06 00 F7 D6 01 00 05 30 0C 00

SUOMI BE EF 03 06 00 67 D7 01 00 05 30 0D 00

POLSKI BE EF 03 06 00 97 D7 01 00 05 30 0E 00

Get BE EF 03 06 00 C4 D3 02 00 05 30 00 00

Gamma Set

NORMAL BE EF 03 06 00 C7 F0 01 00 A1 30 00 00

CINEMA BE EF 03 06 00 57 F1 01 00 A1 30 01 00

DYNAMIC BE EF 03 06 00 A7 F1 01 00 A1 30 02 00

CUSTOM BE EF 03 06 00 07 FD 01 00 A1 30 10 00

Get BE EF 03 06 00 F4 F0 02 00 A1 30 00 00

Custom Gamma

Get BE EF 03 06 00 08 F1 02 00 A0 30 00 00

Increment BE EF 03 06 00 6E F1 04 00 A0 30 00 00

Decrement BE EF 03 06 00 BF F0 05 00 A0 30 00 00

Custom

Color Temp

Set

USER BE EF 03 06 00 3B F8 01 00 B0 30 10 00

HIGH BE EF 03 06 00 0B F5 01 00 B0 30 03 00

MIDDLE BE EF 03 06 00 9B F4 01 00 B0 30 02 00

LOW BE EF 03 06 00 6B F4 01 00 B0 30 01 00

Get BE EF 03 06 00 C8 F5 02 00 B0 30 00 00

Custom User R Set

50 BE EF 03 06 00 57 F7 01 00 B1 30 05 00

60 BE EF 03 06 00 C7 F6 01 00 B1 30 04 00

70 BE EF 03 06 00 F7 F4 01 00 B1 30 03 00

80 BE EF 03 06 00 67 F5 01 00 B1 30 02 00

90 BE EF 03 06 00 97 F5 01 00 B1 30 01 00

100 BE EF 03 06 00 07 F4 01 00 B1 30 00 00

Get BE EF 03 06 00 34 F4 02 00 B1 30 00 00

Custom User G Set

50 BE EF 03 06 00 13 F7 01 00 B2 30 05 00

60 BE EF 03 06 00 83 F6 01 00 B2 30 04 00

70 BE EF 03 06 00 B3 F4 01 00 B2 30 03 00

80 BE EF 03 06 00 23 F5 01 00 B2 30 02 00

90 BE EF 03 06 00 D3 F5 01 00 B2 30 01 00

100 BE EF 03 06 00 43 F4 01 00 B2 30 00 00

Get BE EF 03 06 00 70 F4 02 00 B2 30 00 00

(This table is continued to the following page.)

CP-X1200(P5XLA) / CP-X1250(P5XMLA) / CP-X1200WA(P5XMLB)

Names Operation type Header Command data

CRC Action Type Setting code

Custom User B Set

50 BE EF 03 06 00 EF F6 01 00 B3 30 05 00

60 BE EF 03 06 00 7F F7 01 00 B3 30 04 00

70 BE EF 03 06 00 4F F5 01 00 B3 30 03 00

80 BE EF 03 06 00 DF F4 01 00 B3 30 02 00

90 BE EF 03 06 00 2F F4 01 00 B3 30 01 00

100 BE EF 03 06 00 BF F5 01 00 B3 30 00 00

Get BE EF 03 06 00 8C F5 02 00 B3 30 00 00

Color Balance R

Get

BE EF 03 06 00 01 D2 02 00 05 20 00 00

Increment

BE EF 03 06 00 67 D2 04 00 05 20 00 00

Decrement

BE EF 03 06 00 B6 D3 05 00 05 20 00 00

Color Balance R

Reset Execute

BE EF 03 06 00 94 D3 06 00 05 70 00 00

Color Balance G

Get

BE EF 03 06 00 B5 D7 02 00 12 20 00 00

Increment

BE EF 03 06 00 D3 D7 04 00 12 20 00 00

Decrement

BE EF 03 06 00 02 D6 05 00 12 20 00 00

Color Balance G

Reset Execute

BE EF 03 06 00 04 DB 06 00 29 70 00 00

Color Balance B

Get BE EF 03 06 00 45 D2 02 00 06 20 00 00

Increment BE EF 03 06 00 23 D2 04 00 06 20 00 00

Decrement BE EF 03 06 00 F2 D3 05 00 06 20 00 00

Color Balance B

Reset Execute BE EF 03 06 00 D0 D3 06 00 06 70 00 00

Sharpness

Get BE EF 03 06 00 F1 72 02 00 01 22 00 00

Increment BE EF 03 06 00 97 72 04 00 01 22 00 00

Decrement BE EF 03 06 00 46 73 05 00 01 22 00 00

Sharpness Reset Execute BE EF 03 06 00 C4 D0 06 00 09 70 00 00

Color

Get BE EF 03 06 00 B5 72 02 00 02 22 00 00

Increment BE EF 03 06 00 D3 72 04 00 02 22 00 00

Decrement BE EF 03 06 00 02 73 05 00 02 22 00 00

Color Reset Execute BE EF 03 06 00 80 D0 06 00 0A 70 00 00

Tint

Get BE EF 03 06 00 49 73 02 00 03 22 00 00

Increment BE EF 03 06 00 2F 73 04 00 03 22 00 00

Decrement BE EF 03 06 00 FE 72 05 00 03 22 00 00

Tint Reset

Execute BE EF 03 06 00 7C D1 06 00 0B 70 00 00

My Memory Load

Set

1 BE EF 03 06 00 0E D7 01 00 14 20 00 00

2 BE EF 03 06 00 9E D6 01 00 14 20 01 00

3 BE EF 03 06 00 6E D6 01 00 14 20 02 00

4 BE EF 03 06 00 FE D7 01 00 14 20 03 00

My Memory Save

Set

1 BE EF 03 06 00 F2 D6 01 00 15 20 00 00

2 BE EF 03 06 00 62 D7 01 00 15 20 01 00

3 BE EF 03 06 00 92 D7 01 00 15 20 02 00

4 BE EF 03 06 00 02 D6 01 00 15 20 03 00

(This table is continued to the following page.)

CP-X1200(P5XLA) / CP-X1250(P5XMLA) / CP-X1200WA(P5XMLB)

Names Operation type Header Command data

CRC Action Type Setting code

V Position

Get BE EF 03 06 00 0D 83 02 00 00 21 00 00

Increment BE EF 03 06 00 6B 83 04 00 00 21 00 00

Decrement BE EF 03 06 00 BA 82 05 00 00 21 00 00

V Position Reset Execute BE EF 03 06 00 E0 D2 06 00 02 70 00 00

H Position

Get BE EF 03 06 00 F1 82 02 00 01 21 00 00

Increment BE EF 03 06 00 97 82 04 00 01 21 00 00

Decrement BE EF 03 06 00 46 83 05 00 01 21 00 00

H Position Reset Execute BE EF 03 06 00 1C D3 06 00 03 70 00 00

H Phase

Get BE EF 03 06 00 49 83 02 00 03 21 00 00

Increment BE EF 03 06 00 2F 83 04 00 03 21 00 00

Decrement BE EF 03 06 00 FE 82 05 00 03 21 00 00

H Size

Get BE EF 03 06 00 B5 82 02 00 02 21 00 00

Increment BE EF 03 06 00 D3 82 04 00 02 21 00 00

Decrement BE EF 03 06 00 02 83 05 00 02 21 00 00

H Size Reset Execute BE EF 03 06 00 68 D2 06 00 04 70 00 00

Over Scan

Get BE EF 03 06 00 91 70 02 00 09 22 00 00

Increment BE EF 03 06 00 F7 70 04 00 09 22 00 00

Decrement BE EF 03 06 00 26 71 05 00 09 22 00 00

Over Scan Reset Execute BE EF 03 06 00 EC D9 06 00 27 70 00 00

Color Space

Set

AUTO BE EF 03 06 00 0E 72 01 00 04 22 00 00

RGB BE EF 03 06 00 9E 73 01 00 04 22 01 00

SMPTE240 BE EF 03 06 00 6E 73 01 00 04 22 02 00

REC709 BE EF 03 06 00 FE 72 01 00 04 22 03 00

REC601 BE EF 03 06 00 CE 70 01 00 04 22 04 00

Get BE EF 03 06 00 3D 72 02 00 04 22 00 00

Component

Set COMPONENT BE EF 03 06 00 4A D7 01 00 17 20 00 00

SCART RGB BE EF 03 06 00 DA D6 01 00 17 20 01 00

Get BE EF 03 06 00 79 D7 02 00 17 20 00 00

Video Format Set

AUTO BE EF 03 06 00 9E 75 01 00 00 22 0A 00

NTSC BE EF 03 06 00 FE 71 01 00 00 22 04 00

PAL BE EF 03 06 00 6E 70 01 00 00 22 05 00

SECAM BE EF 03 06 00 6E 75 01 00 00 22 09 00

NTSC 4.43 BE EF 03 06 00 5E 72 01 00 00 22 02 00

M-PAL BE EF 03 06 00 FE 74 01 00 00 22 08 00

N-PAL BE EF 03 06 00 0E 71 01 00 00 22 07 00

Get BE EF 03 06 00 0D 7302 00 00 22 00 00

3D-YCS Set TURN OFF BE EF 03 06 00 E6 70 01 00 0A 22 00 00

TURN ON BE EF 03 06 00 76 71 01 00 0A 22 01 00

Get BE EF 03 06 00 D5 70 02 00 0A 22 00 00

(This table is continued to the following page.)

CP-X1200(P5XLA) / CP-X1250(P5XMLA) / CP-X1200WA(P5XMLB)

Names Operation type Header Command data

CRC Action Type Setting code

Video NR Set

LOW BE EF 03 06 00 26 72 01 00 06 22 01 00

MIDDLE BE EF 03 06 00 D6 72 01 00 06 22 02 00

HIGH BE EF 03 06 00 46 73 01 00 06 22 03 00

Get BE EF 03 06 00 85 73 02 00 06 22 00 00

S2-Aspect Set TURN OFF BE EF 03 06 00 1A 71 01 00 0B 22 00 00

TURN ON BE EF 03 06 00 8A 70 01 00 0B 22 01 00

Get BE EF 03 06 00 29 71 02 00 0B 22 00 00

Auto Adjust Execute BE EF 03 06 00 91 D0 06 00 0A 20 00 00

Auto off

Get BE EF 03 06 00 08 86 02 00 10 31 00 00

Increment BE EF 03 06 00 6E 86 04 00 10 31 00 00

Decrement BE EF 03 06 00 BF 87 05 00 10 31 00 00

Auto Search Set TURN OFF BE EF 03 06 00 B6 D6 01 00 16 20 00 00

TURN ON BE EF 03 06 00 26 D7 01 00 16 20 01 00

Get BE EF 03 06 00 85 D6 02 00 16 20 00 00

Blank Color Set

My Screen BE EF 03 06 00 FB CA 01 00 00 30 20 00

Original BE EF 03 06 00 FB E2 01 00 00 30 40 00

Blue BE EF 03 06 00 CB D3 01 00 00 30 03 00

White BE EF 03 06 00 6B D0 01 00 00 30 05 00

Black BE EF 03 06 00 9B D0 01 00 00 30 06 00

Get BE EF 03 06 00 08 D3 02 00 00 30 00 00

Blank on/off

Set TURN OFF BE EF 03 06 00 FB D8 01 00 20 30 00 00

TURN ON BE EF 03 06 00 6B D9 01 00 20 30 01 00

Get BE EF 03 06 00 C8 D8 02 00 20 30 00 00

Startup

Set

My Screen BE EF 03 06 00 CB CB 01 00 04 30 20 00

Original BE EF 03 06 00 0B D2 01 00 04 30 00 00

TURN OFF BE EF 03 06 00 9B D3 01 00 04 30 01 00

Get BE EF 03 06 00 38 D2 02 00 04 30 00 00

Menu Position V

Get BE EF 03 06 00 40 D7 02 00 16 30 00 00

Increment BE EF 03 06 00 26 D7 04 00 16 30 00 00

Decrement BE EF 03 06 00 F7 D6 05 00 16 30 00 00

Menu Position V

Reset Execute BE EF 03 06 00 A8 C7 06 00 44 70 00 00

Menu Position H

Get BE EF 03 06 00 04 D7 02 00 15 30 00 00

Increment BE EF 03 06 00 62 D7 04 00 15 30 00 00

Decrement BE EF 03 06 00 B3 D6 05 00 15 30 00 00

Menu Position H

Reset Execute BE EF 03 06 00 DC C6 06 00 43 70 00 00

Message Set TURN OFF BE EF 03 06 00 8F D6 01 00 17 30 00 00

TURN ON BE EF 03 06 00 1F D7 01 00 17 30 01 00

Get BE EF 03 06 00 BC D6 02 00 17 30 00 00

(This table is continued to the following page.)

CP-X1200(P5XLA) / CP-X1250(P5XMLA) / CP-X1200WA(P5XMLB)

Names Operation type Header Command data

CRC Action Type Setting code

Volume

Get BE EF 03 06 00 31 D3 02 00 01 20 00 00

Increment BE EF 03 06 00 57 D3 04 00 01 20 00 00

Decrement BE EF 03 06 00 86 D2 05 00 01 20 00 00

Mute Set TURN ON BE EF 03 06 00 46 D3 01 00 02 20 00 00

TURN OFF BE EF 03 06 00 D6 D2 01 00 02 20 01 00

Get BE EF 03 06 00 75 D3 02 00 02 20 00 00

Lamp Time Get BE EF 03 06 00 C2 FF 02 00 90 10 00 00

Lamp Time Reset Execute BE EF 03 06 00 58 DC 06 00 30 70 00 00

Filter Time Get BE EF 03 06 00 C2 F0 02 00 A0 10 00 00

Filter Time Reset Execute BE EF 03 06 00 98 C6 06 00 40 70 00 00

Magnify

Get BE EF 03 06 00 7C D2 02 00 07 30 00 00

Increment BE EF 03 06 00 1A D2 04 00 07 30 00 00

Decrement BE EF 03 06 00 CB D3 05 00 07 30 00 00

Freeze Set Normal BE EF 03 06 00 83 D2 01 00 02 30 00 00

Freeze BE EF 03 06 00 13 D3 01 00 02 30 01 00

Get BE EF 03 06 00 B0 D2 02 00 02 30 00 00

Power

Set TURN OFF BE EF 03 06 00 2A D3 01 00 00 60 00 00

TURN ON BE EF 03 06 00 BA D2 01 00 00 60 01 00

Get

BE EF 03 06 00 19 D3 02 00 00 60 00 00

(Example Return)

00 00 01 00 02 00

(Off) (On) (Cool down)

Input Source Set

M1-D BE EF 03 06 00 0E D2 01 00 00 20 03 00

RGB BE EF 03 06 00 FE D2 01 00 00 20 00 00

BNC BE EF 03 06 00 3E D0 01 00 00 20 04 00

Video BE EF 03 06 00 6E D3 01 00 00 20 01 00

S-Video BE EF 03 06 00 9E D3 01 00 00 20 02 00

Component BE EF 03 06 00 AE D1 01 00 00 20 05 00

Get BE EF 03 06 00 CD D2 02 00 00 20 00 00

Error Status Get

BE EF 03 06 00 D9 D8 02 00 20 60 00 00

(Example of Return)

00 00 01 00 02 00 03 00

(Normal) (Cover-error) (Fan-error) (Lamp-error)

04 00 05 00 06 00 07 00 08 00

(Temp-error) (Air flow- (Lamp- (Cool-error) (Filter-Error)

error) Time-over)

(This table is continued to the following page.)

CP-X1200(P5XLA) / CP-X1250(P5XMLA) / CP-X1200WA(P5XMLB)

Names Operation type Header Command data

CRC Action Type Setting code

PinP Size Set

Off BE EF 03 06 00 FE 22 01 00 00 23 00 00

Large BE EF 03 06 00 6E 23 01 00 00 23 01 00

Small BE EF 03 06 00 9E 23 01 00 00 23 02 00

Get BE EF 03 06 00 CD 22 02 00 00 23 00 00

PinP Position Set

Upper Left BE EF 03 06 00 02 23 01 00 01 23 00 00

Upper Right BE EF 03 06 00 92 22 01 00 01 23 01 00

Bottom Left BE EF 03 06 00 62 22 01 00 01 23 02 00

Bottom Right BE EF 03 06 00 F2 23 01 00 01 23 03 00

Get BE EF 03 06 00 31 23 02 00 01 23 00 00

PinP Audio Ch Set RGB BE EF 03 06 00 BA 22 01 00 03 23 00 00

Video BE EF 03 06 00 2A 23 01 00 03 23 01 00

Get BE EF 03 06 00 89 22 02 00 03 23 00 00

PinP Input Set Video BE EF 03 06 00 D6 22 01 00 02 23 01 00

S-Video BE EF 03 06 00 26 22 01 00 02 23 02 00

Get BE EF 03 06 00 75 23 02 00 02 23 00 00

Myscreen size Set Full BE EF 03 06 00 43 D6 01 00 12 30 00 00

X1 BE EF 03 06 00 D3 D7 01 00 12 30 01 00

Get BE EF 03 06 00 70 D6 02 00 12 30 00 00

Myscreen Lock Set Off BE EF 03 06 00 3B EF 01 00 C0 30 00 00

On BE EF 03 06 00 AB EE 01 00 C0 30 01 00

Get BE EF 03 06 00 08 EF 02 00 C0 30 00 00

IR Remote Front Set Off BE EF 03 06 00 FF 32 01 00 00 26 00 00

On BE EF 03 06 00 6F 33 01 00 00 26 01 00

Get BE EF 03 06 00 CC 32 02 00 00 26 00 00

IR Remote Rear Set Off BE EF 03 06 00 03 33 01 00 01 26 00 00

On BE EF 03 06 00 93 32 01 00 01 26 01 00

Get BE EF 03 06 00 30 33 02 00 01 26 00 00

IR Remote Top Set Off BE EF 03 06 00 47 33 01 00 02 26 00 00

On BE EF 03 06 00 D7 32 01 00 02 26 01 00

Get BE EF 03 06 00 74 33 02 00 02 26 00 00

(This table is continued to the following page.)

CP-X1200(P5XLA) / CP-X1250(P5XMLA) / CP-X1200WA(P5XMLB)

Names Operation type Header Command data

CRC Action Type Setting code

Power Up Source Set

Last Ch BE EF 03 06 00 9E D9 01 00 18 20 10 00

M1-D BE EF 03 06 00 AE D4 01 00 18 20 03 00

RGB BE EF 03 06 00 5E D4 01 00 18 20 00 00

BNC BE EF 03 06 00 9E D6 01 00 18 20 04 00

Component BE EF 03 06 00 0E D7 01 00 18 20 05 00

S-Video BE EF 03 06 00 3E D5 01 00 18 20 02 00

Video BE EF 03 06 00 CE D5 01 00 18 20 01 00

Get BE EF 03 06 00 6D D4 02 00 18 20 00 00

Auto Adjust Enable Set DISABLE BE EF 03 06 00 A2 D5 01 00 19 20 00 00

ENABLE BE EF 03 06 00 32 D4 01 00 19 20 01 00

Get BE EF 03 06 00 91 D5 02 00 19 20 00 00

Internal Speaker Set TURN OFF BE EF 03 06 00 6E D5 01 00 1C 20 00 00

TURN ON BE EF 03 06 00 FE D4 01 00 1C 20 01 00

Get BE EF 03 06 00 5D D5 02 00 1C 20 00 00

Lens Lock Set TURN OFF BE EF 03 06 00 FF 97 01 00 10 24 00 00

TURN ON BE EF 03 06 00 6F 96 01 00 10 24 01 00

Get BE EF 03 06 00 CC 97 02 00 10 24 00 00

Remote ID Set

All BE EF 03 06 00 9F 30 01 00 08 26 00 00

1 BE EF 03 06 00 0F 31 01 00 08 26 01 00

2 BE EF 03 06 00 FF 31 01 00 08 26 02 00

3 BE EF 03 06 00 6F 30 01 00 08 26 03 00

Get BE EF 03 06 00 AC 30 02 00 08 26 00 00

Auto Power On Set TURN OFF BE EF 03 06 00 3B 89 01 00 20 31 00 00

TURN ON BE EF 03 06 00 AB 88 01 00 20 31 01 00

Get BE EF 03 06 00 08 89 02 00 20 31 00 00

Lens Set

AUTO BE EF 03 06 00 3F D8 01 00 70 25 00 00

1 BE EF 03 06 00 AF D9 01 00 70 25 01 00

2 BE EF 03 06 00 5F D9 01 00 70 25 02 00

3 BE EF 03 06 00 CF D8 01 00 70 25 03 00

4 BE EF 03 06 00 FF DA 01 00 70 25 04 00

5 BE EF 03 06 00 6F DB01 00 70 25 05 00

Get BE EF 03 06 00 0C D8 02 00 70 25 00 00

Andere Handbücher für ImagePro 8935

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dukane Projektor Handbücher

Dukane

Dukane ImagePro 8762 Bedienungsanleitung

Dukane

Dukane ImagePro 8065 Bedienungsanleitung

Dukane

Dukane ImagePro 8925H-RJ Bedienungsanleitung

Dukane

Dukane ImagePro 8766 Bedienungsanleitung

Dukane

Dukane 28A8711 Bedienungsanleitung

Dukane

Dukane ImagePro 8755C Bedienungsanleitung

Dukane

Dukane 9005 Bedienungsanleitung

Dukane

Dukane 9137WU-RJ Bedienungsanleitung

Dukane

Dukane 28A8910 Bedienungsanleitung

Dukane

Dukane ImagePro 8070 Bedienungsanleitung

Dukane

Dukane 6655WU Bedienungsanleitung

Dukane

Dukane ImagePro 8806 Bedienungsanleitung

Dukane

Dukane ImagePro 8039B Bedienungsanleitung

Dukane

Dukane ImagePro 9135 Bedienungsanleitung

Dukane

Dukane ImagePro 8755D-RJ Bedienungsanleitung

Dukane

Dukane ImagePro 8941A Bedienungsanleitung

Dukane

Dukane 6235W Bedienungsanleitung

Dukane

Dukane 28A33 Bauanleitung

Dukane

Dukane 9006W Bedienungsanleitung

Dukane

Dukane ImagePro 9060 Bedienungsanleitung

Dukane

Dukane ImagePro 6780WU Bedienungsanleitung

Dukane

Dukane 28A7100HC Bedienungsanleitung

Dukane

Dukane 6133 Bedienungsanleitung

Dukane

Dukane 9010 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung
