Dukane ImagePro 8950WU Bedienungsanleitung

LCD Projector

8945WU / 8950WU

User's Manual (detailed)

Operating Guide

Th a n k y o u f o r p u r c h a s i n g t h i s p r o j e c t o r .

►Before using this product, please read all manuals for this

product. Be sure to read S a f e t y G u i d e rst. After reading them, store them in a

safe place for future reference.

WARNING

NOTE

Tr a d e m a r k a c k n o w l e d g m e n t

Various symbols are used in this manual. The meanings of these symbols are

described below.

About this manual

WARNING

CAUTION

This symbol indicates information that, if ignored, could possibly

result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly

result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.



• VESA and DDC are trademarks of the Video Electronics Standard Association.

• Mac®, OS X® and macOS® are registered trademarks of Apple Inc. in the U.S. and/or

other countries.

•

HDMI

, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

• Blu-ray DiscTM and Blu-rayTM are trademarks of Blu-ray Disc Association.

• DICOM® is the registered trademark of the National Electrical Manufacturers Association

for its standards publications relating to digital communications of medical information.

•

MHL®, the MHL logo, and Mobile High-Denition Link are trademarks or registered

trademarks of MHL, LLC in the United States and other countries.

All other trademarks are the properties of their respective owners.

NOTICE This entry notices of fear of causing trouble.

• The information in this manual is subject to change without notice.

• The illustrations in this manual are for illustrative purposes. They may differ

slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in

this manual.

• The reproduction, transfer or copy of all or any part of this document is not

permitted without express written consent.

8945WU_8950WU_User_anual-00

Contents

Introduction ............... 3

Features ......................3

Checking the contents of package

....3

Part names ....................4

Projector, Control panel, Ports,

Remote control

Setting up ................. 7

Arrangement ...................7

Connecting with your devices

.....1 0

Connecting to a power supply

.....1 5

Fastening the cable

.............1 5

Fastening the adapter cover ......

1 6

Using the security bar and slot ....1 6

Remote control ............ 17

Installing the batteries ...........1 7

About the remote control signal ...1 8

Changing the frequency of remote

control signal ..................1 8

Using as a simple PC mouse & keyboard

. . 1 9

Power on/off .............. 20

Turning on the power ...........2 0

Turning off the power ...........2 1

Operating ................ 22

Adjusting the volume ............2 2

Temporarily muting the sound .....2 2

Selecting an input signal .........2 3

Selecting an aspect ratio .........2 3

Adjusting the projector's elevator

....2 4

Adjusting the zoom and focus .....2 4

Using the automatic adjustment feature

. . 2 5

Correcting the distortion .........2 6

Using the magnify feature ........2 9

Temporarily freezing the screen ...3 0

Temporarily blanking the screen ...3 0

Using the menu function .........3 1

Indication in OSD,

Containing items of each menu

EASY MENU. . . . . . . . . . . . . . . 34

PICTURE menu ............ 36

IMAGE menu .............. 40

INPUT menu .............. 42

SETUP menu .............. 46

AUDIO menu .............. 52

SCREEN menu............. 53

OPTION menu ............. 59



NETWORK menu ........... 72

SECURITY menu ........... 73

Presentation tools ......... 79

PC-LESS Presentation. .........7 9

Maintenance .............. 88

Replacing the lamp .............8 8

Cleaning and replacing the air lter . . 9 0

Replacing the internal clock battery

. .

.92

Other care ....................9 3

Troubleshooting ........... 94

Related messages .............9 4

Regarding the indicator lamps ....9 6

Resetting all settings ............9 8

Phenomena that may be easy to

be mistaken for machine defects

...9 9

Specications ............ 104



Introduction

• Keep the original packing materials, for future reshipment. Be sure

to use the original packing materials when moving the projector. Use special

caution for the lens.

• The projector may make a rattling sound when tilted, moved or shaken, since

a ap to control the air ow inside of the projector has moved. Be aware that

this is not a failure or malfunction.

NOTE

The projector provides you with the broad use by the following features.

Checking the contents of package

ü This projector has a variety of I/O ports that supposedly cover for any

business scene. An HDMITM port can support various image equipment which

have digital interface to get clearer pictures on a screen. This model has two

HDMITM ports.

ü If you insert a USB storage device, such as a USB memory, into the US B

TY PE A port and select the port as the input source, you can view images

stored in the device.

ü This projector can be controlled and monitored via LAN connection.

Furthermore, you can use the designated USB wireless adapter (optional) to

establish wireless LAN connection.

ü The built-in 16W speaker can deliver sufcient sound volume in a large space

like a classroom without external speakers.

ü Has an HDCR and an ACCENTUALIZER features which are original image

stabilizer for a clearer image.

ü Equipped with IMAGE OPTIMIZER which is original function to maintain

visibility by automatic image correction in accordance with lamp deterioration.

Please see the C o n t e n t s o f p a c k a g e section in the Us e r ’ s M a n u a l ( c o n c i s e )

which is a book. Your projector should come with the items shown there. Require

of your dealer immediately if any items are missing.

Features

►Keep small parts away from children and pets. Take care

not to put in the mouth. If swallowed, consult a physician immediately for

emergency treatment.

WARNING

Introduction

►Do not open or remove any portion of the product, unless the

manuals direct it.

►Do not subject the projector to unstable conditions.

►Do not apply a shock or pressure to this product.

►Do not look into the lens and the openings on the projector while the lamp is

on, since the projection ray may cause a trouble on your eyes.

►Keep any object away from concentrated projection light beam. Blocking the

beam by something causes high temperature and could result in re or smoke.

WARNING

►Do not touch around the lamp cover and the exhaust

vents during use or just after use, since it is too hot.

►Do not attach anything onto the lens because it could damage the lens,

such as melting the lens.

►Do not attach anything onto the lens except the lens cover of this projector

because it could damage the lens, such as melting the lens.

CAUTION

(continued on next page)

Part names

Projector

(1) Lamp cover (98)

The lamp unit is inside.

(2) Speaker (22, 55)

(3) Filter cover (100)

The air lter and intake vent are inside.

(4) Elevator feet (x2) (25)

(5) Elevator button (25)

(6) Remote sensor (18)

(7) Lens (103)

(8) Lens cover

(9) Intake vents

(10) Control panel (5)

(11) F O C US ring (25)

(12) Z O O M ring (25)

(13) AC (AC inlet) (15)

(14) Exhaust vent

(15) Ports (5)

(7)

(4)

(5)

(6)

(9)

(3)

(2)

(13)

(14)

(15) (9)

(10) (1)

(11)

(8) (12)

(4)(5)

Introduction

Part names (continued)

Control panel

(1) S TA ND B Y / O N button (20)

(2) INPUT button (23)

(3) M E NU button (32)

(4) L A M P indicator (106)

(5) TE M P indicator (106)

(6) PO W E R indicator (106)

Ports(10 ~ 14)

(1) L A N port

(2) US B TY PE A port (x2)

(3) US B TY PE B port

(4) H D M I1 port

(5) H D M I2 / M H L port

(6) A UD IO IN1 port

(7) A UD IO IN2 port

(8) A UD IO IN3 (R , L ) ports

(9) A UD IO O UT port

(10) C O M PUTE R IN1 port

(11) C O M PUTE R IN2 / M O NITO R O UT port

(12) C O NTR O L port

(13) V ID E O port

(14) Security slot (16)

(15) Security bar (16)

(continued on next page)

(1) (3)(2) (6)

(4)(5)

(10)

(8)

(4)

(3)(2) (5)

(14) (13)

(12)

(11)

(1)

(6) (7) (15)

(9)

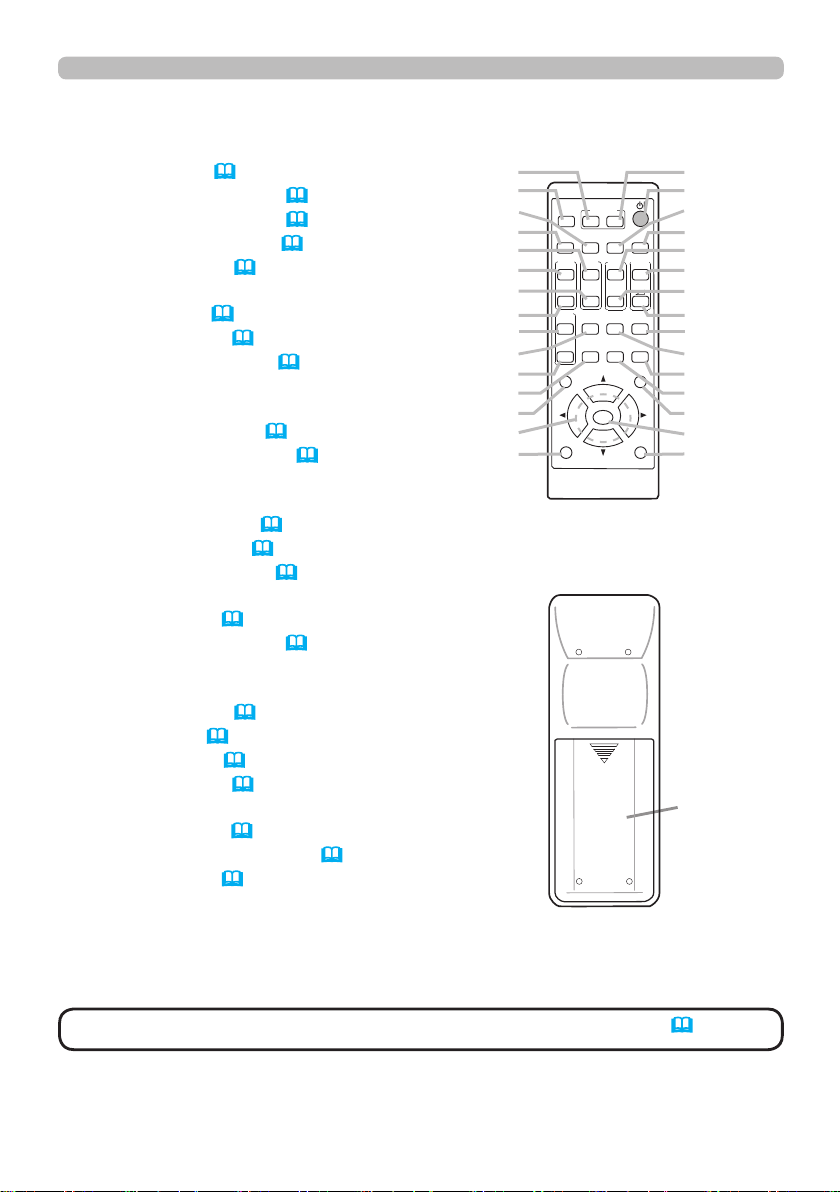

Part names (continued)

• Any button marked with “*” is not supported on this projector (105).

NOTE

Back of

the remote control

(1) INPUT button (23)

(2) M Y B UTTO N- 1 button (64, 65)

(3) M Y B UTTO N- 2 button (64, 65)

(4) S TA ND B Y / O N button (20)

(5) A S PE C T button (24)

(6) Pb y P button *

(7) A UTO button (26)

(8) F R E E Z E button (31)

(9) M A G NIF Y O N button (30)

(10) F O C US + button *

(11) Z O O M + button *

(12) V O L UM E + button (22)

(13) M A G NIF Y O F F

button

(30)

(14) F O C US - button *

(15) Z O O M - button *

(16) V O L UM E - button (22)

(17) PA G E UP button (19)

(18) G E O M E TR Y button (27)

(19) PIC TUR E button

(20) M UTE button (22)

(21) PA G E D O W N button (19)

(22) INTE R A C TIV E button *

(23) NE TW O R K button

(24) BLANK button (31)

(25) ESC button (19)

(26) M E NU button (32)

(27) E NTE R button (32)

(28) O S D M S G button

(29) RESET button (32)

(30) ▲/▼/◄/►cursor buttons (32)

(31) Battery cover (17)

(3)

(4)

(7)

(8)

(11)

(12)

(15)

(16)

(20)

(19)

(24)

(23)

(26)

(27)

(29)

(31)

ASPECT

BLANK

ESC MENU

RESET

AUTO

PAGE

DOWN

OFF

FREEZE

ENTER

FOCUS

ZOOM

INPUT

INTERACTIVE

MYBUTTON

1 2

PbyP

MAGNIFY

VOLUME

GEOMETRY PICTURE MUTE

NETWORK

OSD MSG

(2)

(1)

(6)

(5)

(10)

(9)

(14)

(13)

(17)

(18)

(21)

(22)

(25)

(30)

(28)

Remote control

Introduction

Setting up

Install the projector according to the environment and manner the projector will be

used in.

For the case of installation in a special state such as ceiling mount, the specied

mounting accessories (Specications in the Us e r ’ s M a n u a l ( c o n c i s e ) ) and

service may be required. Before installing the projector, consult your dealer about

your installation.

Arrangement

Refer to tables T- 1 to T- 3 and gures F - 1 and F - 2 at the end of User’s Manual

(concise) to determine the screen size and projection distance.

The values shown in the table are calculated for a full size screen.

(continued on next page)

• If the projector is used at an altitude of about 1600 m (5250 feet) or higher,

set ALTITUDE of the SERVICE item in the OPTION menu to HIGH (69).

Otherwise, set it to NORMAL. If the projector is used with a wrong setting, it may

cause damage to the projector itself or the parts inside.

a Screen size (diagonal)

b Projection distance (±10%, from the projector’s end)

c1 , c2 Screen height (±10%)

• The screen position may shift after installation if the projector is

suspended from the ceiling or other location due to the exibility of the plastic

projector body. If readjustment is necessary, consult with your dealer or service

personnel.

NOTE

Setting up

Arrangement (continued)

WARNING

(continued on next page)

►In s t a l l t h e p r o j e c t o r w h e r e y o u c a n a c c e s s t h e p o w e r

o u t l e t e a s i l y . If an abnormality should occur, unplug the projector urgently.

Otherwise it could cause a re or electric shock.

►D o n o t s u b j e c t t h e p r o j e c t o r t o u n s t a b l e c o n d i t i o n s . If the projector falls

or topples over, it could result in injury or damage to the projector and the

surrounding things. Using a damaged projector could result in a re and an

electric shock.

• Do not place the projector in unstable places, such as an inclined surface,

places subject to vibration, on top of a wobbly table or cart, or a surface that is

smaller than the projector.

• Do not put the projector on its side, front or rear position.

• Do not attach nor place anything on the projector unless otherwise specied in

the manual.

• Do not use any mounting accessories except the accessories specied by the

manufacturer. Read and keep the manuals of the accessories used.

• For special installation such as ceiling mounting, be sure to consult your dealer

beforehand.

►

Do not install the projector near thermally conductive or ammable

t h i n g s . Such things when heated by the projector could result in a re and burns.

• Do not place the projector on a metal stand.

►D o n o t p l a c e t h e p r o j e c t o r w h e r e a n y o i l s , s u c h a s c o o k i n g o r m a c h i n e

o i l , a r e u s e d . Oil may harm the product, resulting in malfunction, or falling from

the mounted position. Do not use adhesive such as threadlocker, lubricant and

so on.

►D o n o t p l a c e t h e p r o j e c t o r i n a p l a c e w h e r e i t m a y g e t w e t . Getting the

projector wet or inserting liquid into the projector could cause a re and an

electric shock, and damage the projector.

• Do not place the projector near water, such as in a bathroom, kitchen, or

poolside.

• Do not place the projector outdoors or by the window.

• Do not place anything containing liquid near the projector.

Setting up

Arrangement (continued)

►Place the projector in a cool place with sufcient

v e n t i l a t i o n . The projector may shutdown automatically or may malfunction if its

internal temperature is too high.

Using a damaged projector could result in a re and an electric shock.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

• Do not place the projector where the air from an air conditioner or similar unit

will blow on it directly.

• Keep a space of 30 cm or more between a side of the projector and other

objects such as walls.

• Do not place the projector on carpet, cushions or bedding.

• Do not stop up, block nor cover the projector's vent holes. Do not place

anything around the projector that could be sucked in or stuck to the projector's

intake vents.

• Do not place the projector at places that are exposed to magnetic elds, doing

so can cause the cooling fans inside the projector to malfunction.

►A v o i d p l a c i n g t h e p r o j e c t o r i n s m o k y , h u m i d o r d u s t y p l a c e . Placing the

projector in such places could cause a re, an electric shock and malfunction of

the projector.

• Do not place the projector near humidiers. Especially for an ultrasonic

humidier, chlorine and minerals contained in tap water are atomized and could

be deposited in the projector causing image degradation or other problems.

• Do not place the projector in a smoking area, kitchen, passageway

or by the window.

• Position the projector to prevent light from directly hitting the projector's remote

sensor.

• Positional deviation or distortion of a projected image, or shift of the focus

may occur due to ambient conditions, and so on. They tend to occur until the

operation becomes stable, especially within about 30 minutes after the lamp is

turned on. Check and readjust them as necessary.

• Do not place the product in a place where radio interference may be caused.

• Check and correct the setting for ALTITUDE of SERVICE in the OPTION menu

according to the usage environment (69). If the projector is used with a wrong

setting, it may cause damage to the projector itself or the parts inside.

• Keep heat-sensitive things away from the projector. Otherwise, they may be

damaged by the heat from the projector.

CAUTION

NOTICE

1 0

Setting up

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to

conrm that the device is suitable for connecting with this projector and prepare

the required accessories, such as a cable in accord with the signal of the device.

Consult your dealer when the required accessory did not come with the product or

the accessory is damaged.

After making sure that the projector and the devices are turned off, perform

the connection, according to the following instructions. Refer to the gures in

subsequent pages.

Before connecting the projector to a network system, be sure to read Ne t w o r k

G u i d e too.

►Us e o n l y t h e a p p r o p r i a t e a c c e s s o r i e s . Otherwise it could

cause a re or damage the projector and devices.

• Use only the accessories specied or recommended by the projector’s

manufacturer. It may be regulated under some standard.

• Neither disassemble nor modify the projector and the accessories.

• Do not use the damaged accessory. Be careful not to damage the accessories.

Route a cable so that it is neither stepped on nor pinched out.

WARNING

►F o r a c a b l e w i t h a c o r e a t o n l y o n e e n d , c o n n e c t t h e e n d

w i t h t h e c o r e t o t h e p r o j e c t o r . That may be required by EMI regulations.

CAUTION

• Plug-and-Play is a system composed of a computer, its operating system

and peripheral equipment (i.e. display devices). This projector is VESA DDC

2B compatible. Plug-and-Play can be used by connecting this projector to a

computer that is VESA DDC (display data channel) compatible.

- Take advantage of this feature by connecting a computer cable to the

C O M PUTE R IN 1 port (DDC 2B compatible). Plug-and-Play may not work

properly if any other type of connection is attempted.

- Please use the standard drivers in your computer as this projector is a Plug-

and-Play monitor.

• Do not turn on or off the projector while connected to a device in

operation, unless that is directed in the manual of the device. Otherwise it may

cause malfunction in the device or projector.

• The function of some input ports can be selected according to your usage

requirements. Check the reference page indicated beside each port in the

following illustration.

• Be careful not to mistakenly connect a connector to a wrong port. Otherwise it

may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of

the projector are recessed.

About Plug-and-Play capability

NOTE

(continued on next page)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dukane Projektor Handbücher

Dukane

Dukane Starfire SF3010 Bedienungsanleitung

Dukane

Dukane ImagePro 8771 Bedienungsanleitung

Dukane

Dukane Economy Plus EP1800 Bedienungsanleitung

Dukane

Dukane ImagePro 8038A Bedienungsanleitung

Dukane

Dukane 6650HDA Bedienungsanleitung

Dukane

Dukane 8063C Bedienungsanleitung

Dukane

Dukane ImagePro 8783 Bedienungsanleitung

Dukane

Dukane 8958A Bedienungsanleitung

Dukane

Dukane ImagePro 8783 Bedienungsanleitung

Dukane

Dukane 6135W Bedienungsanleitung

Dukane

Dukane 8950WSS Technisches Dokument

Dukane

Dukane ImagePro 8070 Bedienungsanleitung

Dukane

Dukane ImagePro 8783 Bedienungsanleitung

Dukane

Dukane ImagePro 8053 Bedienungsanleitung

Dukane

Dukane ImagePro 8039B Bedienungsanleitung

Dukane

Dukane 8964WSS Bedienungsanleitung

Dukane

Dukane ImagePro 8742 Bedienungsanleitung

Dukane

Dukane ImagePro 8755D Bedienungsanleitung

Dukane

Dukane 8975WUA Bedienungsanleitung

Dukane

Dukane 8112 Bedienungsanleitung

Dukane

Dukane 8952P Bedienungsanleitung

Dukane

Dukane ImagePro 8762 Bedienungsanleitung

Dukane

Dukane 8104WB Bedienungsanleitung

Dukane

Dukane 28A680 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung
