DUKANE

APPLICATION NOTE AN532

iQ Series

ULTRASONIC WELDING SYSTEM

43Q220-P-301

OPERATING A DUKANE

THRUSTER FROM A PLC

Dukane Ultrasonic Welders

Page 2 of 5

DUKANE

APPLICATION NOTE AN532

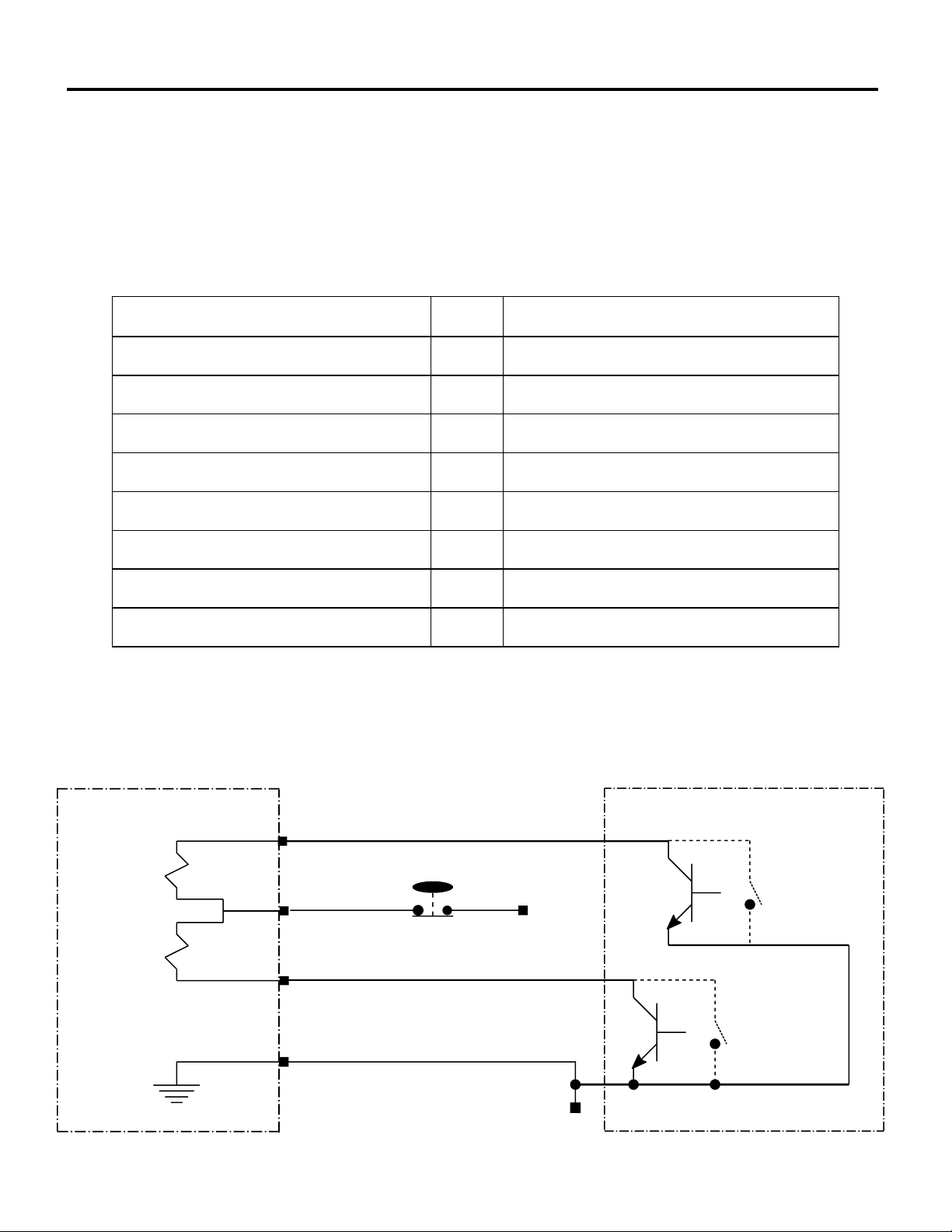

CONNECTING A 43Q220-P-301 THRUSTER TO A PLC

Thruster Cable part number: 200-1413

The cable is provided with a connector on both ends. If desired cut the connector from one end to expose the individual

wires. Below are the pins used for thruster control. At minimum only 4 connections are needed. The Top of Stroke,

Trigger and Dual Pressure Valve connections are optional if additional functionality is desired.

Wire Color

Pin no#

Function

BLK/RED

22 Volts

BLK/GRN

Up Valve

BLK/BLU

Down Valve

BRN/BLK

Top of Stroke (relative to GND)

ORN/BLK

Trigger

BLU/RED

Trigger return

YEL/RED

Dual Pressure Valve

GRN/RED

GND

It is recommended that an E-stop be inserted between the 24 volt power supply and the cable connection. This will turn

both valves off, allowing the thruster to go to a neutral state. The 24 volt power supply should be capable of supplying

0.5 amps or more.































 









Page 3 of 5

DUKANE

APPLICATION NOTE AN532

OPTIONAL TRIGGER SWITCH AND TOP OF STROKE SIGNALS

OPTIONAL DUAL PRESSURE VALVE

NOTE: These signals are not necessary for operation. These are only provided as optional if additional functionality is

required.













 

 



































































Page 4 of 5

DUKANE

APPLICATION NOTE AN532

Dukane

2900 Dukane Drive

St. Charles, IL 60174 USA

Tel: (630) 797-4900

Fax: (630) 797-4949

http://www.dukane.com/

Disclaimer: Dukane IAS assumes no responsibility for any errors which may appear in this document, reserves the right to change devices or

specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein.
