Dunavox DX-6.16SC Bedienungsanleitung

INSTRUCTION MANUAL

MODEL

DX-6.16SC, DX-12.33DSC,

DX-12.35SC, DX-24.68DSC

Wine cooler

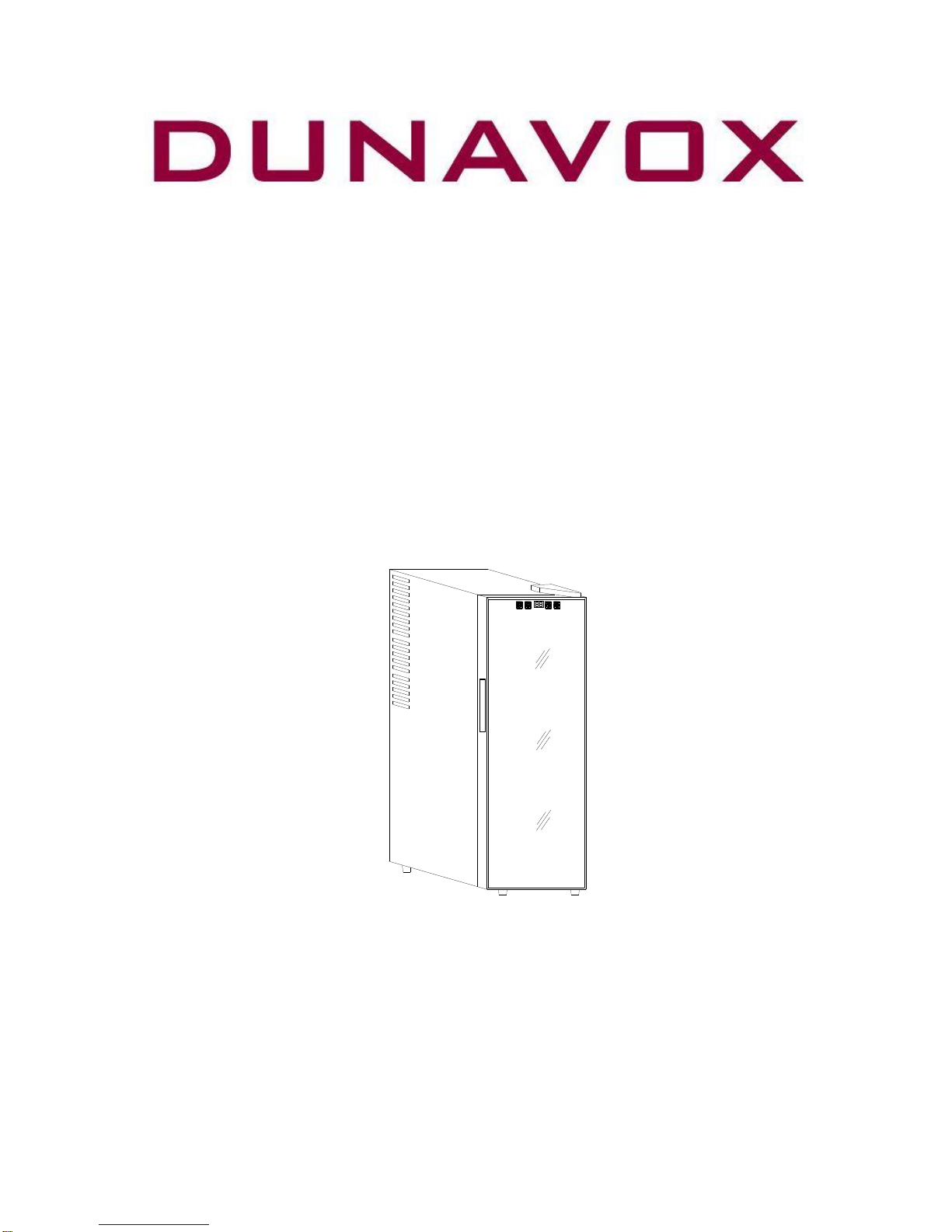

(Drawing of: DX-12.35SC)

CAUTION!

Please read carefully and follow all safety rules and operating instructions!

INSTRUCTION MANUAL

CONTENTS

YOUR WINE REFRIGERATOR 3

TECHNICAL DATA 6

IMPORTANT SAFETY INSTRUCTIONS 7

INSTALLATION INSTRUCTIONS 8

BEFORE USING YOUR WINE REFRIGERATOR 8

ELECTRICALCONNECTION 8

OPERATING YOUR WINE REFRIGERATOR 9

HOW TO USETHE PRESS-BUTTONS ONTHE DISPLAY PANEL: 9

CARE AND MAINTENANCE 9

CLEANING YOURWINE REFRIGERATOR 9

MOVING YOURWINE REFRIGERATOR 9

PROBLEMS DISPOSAL 10

Important!

Never place the wine cooler on the top of refrigerator!

Never build or recess the wine cooler into the furniture. For such installation choose our built-in or

under counter models!

INSTRUCTION MANUAL

THIS PRODUCT IS DESIGNED FOR WINE STORAGE ONLY.

YOUR WINE REFRIGERATOR

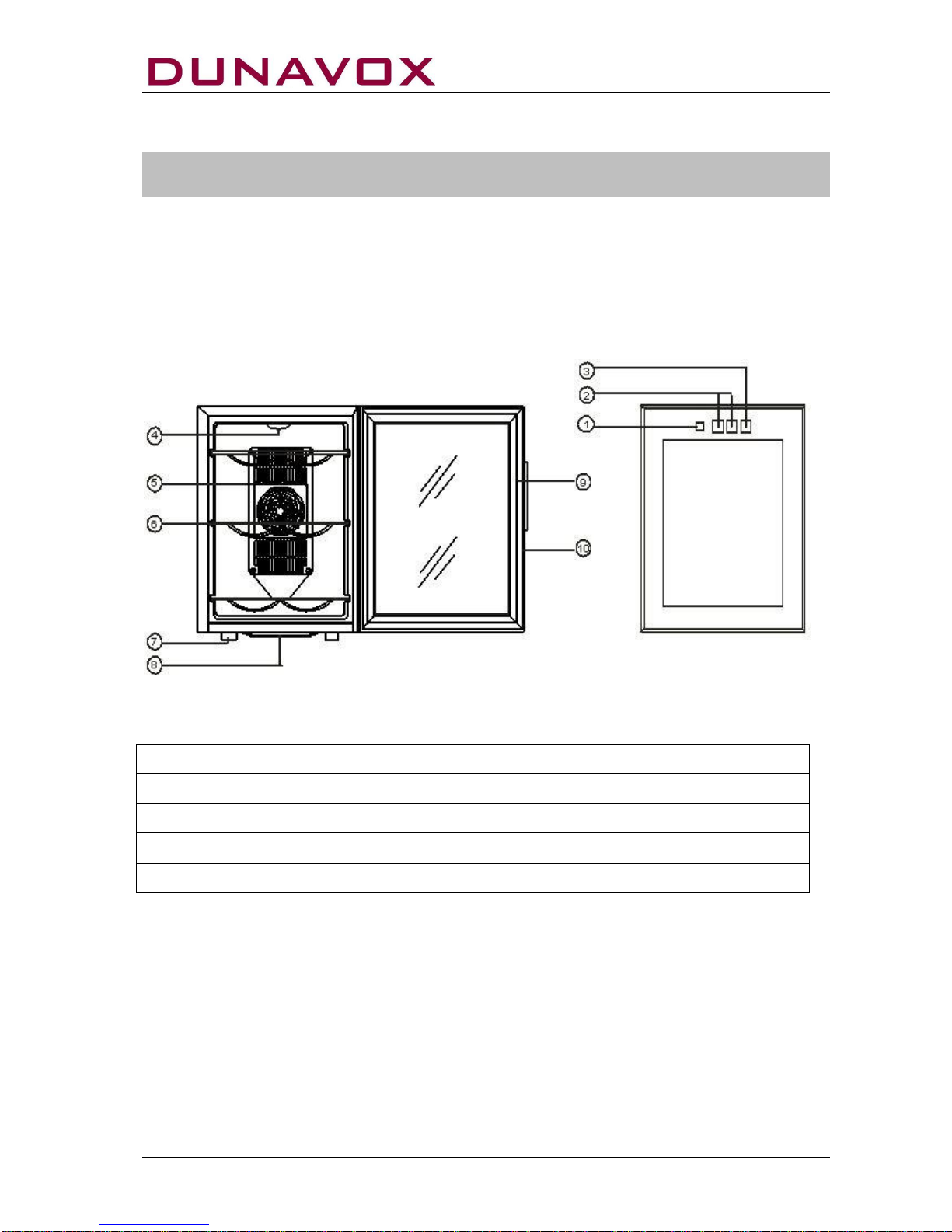

Model: DX-6.16SC

1. TEMPERATURE DISPLAY

6. SHELF

2. TEMPERATURE SETTING

7. FOOT

3. LIGHT SWITCH

8. WATER TRAY

4. LIGHT

9. MAGNETIC SEAL

5. FAN MASK

10. DOOR FRAME

INSTRUCTION MANUAL

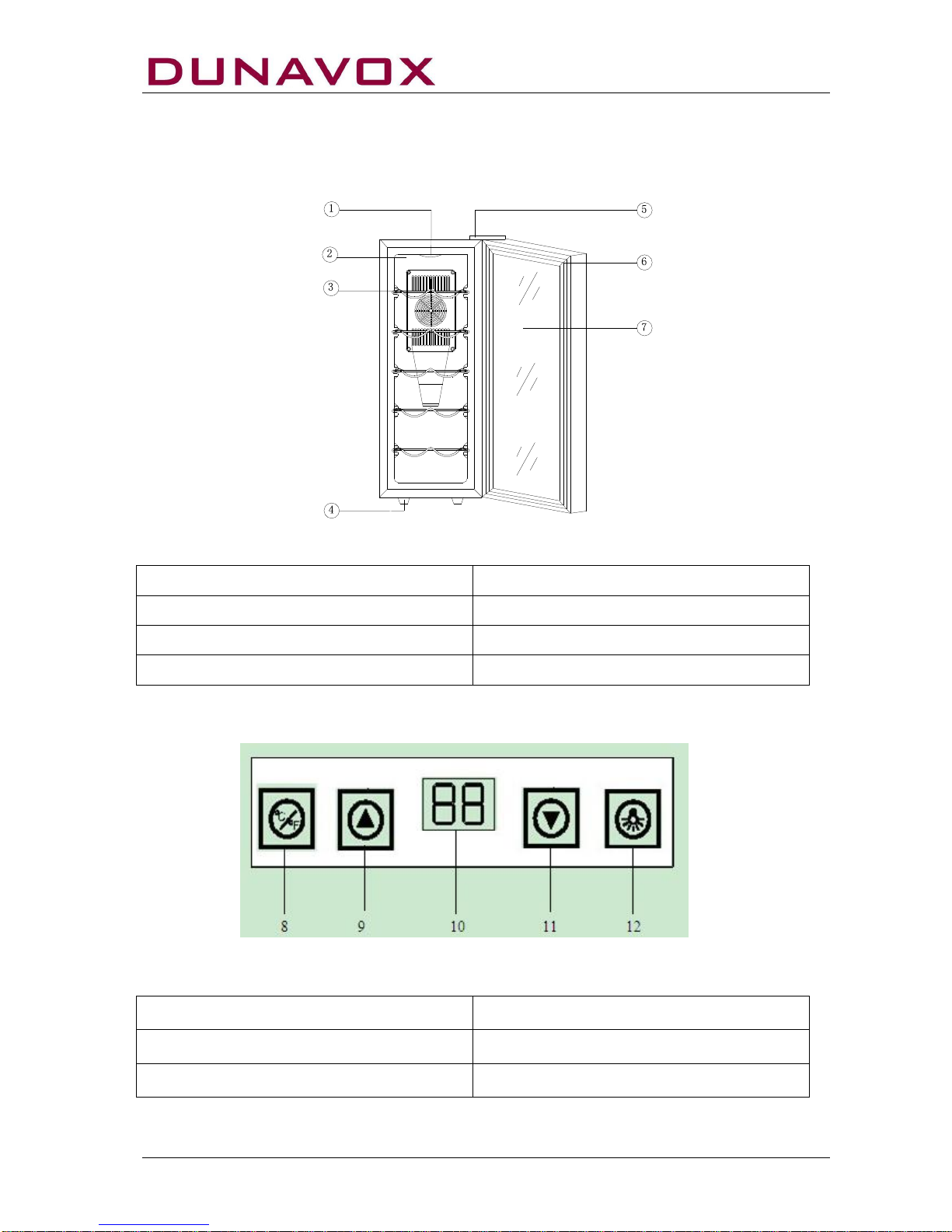

Model: DX-12.35SC

1. LIGHT

5. HINGE

2. FAN MASK

6. MAGNETIC SEAL

3. SHELF

7. GLASS

4. ADJUSTABLE LEG

8. C/F BUTTON

11. SET TEMPERATURE DOWN BUTTON

9. SET TEMPERATURE UP BUTTON

12. LIGHT BUTTON

10. LCD DISPLAY

INSTRUCTION MANUAL

Model:

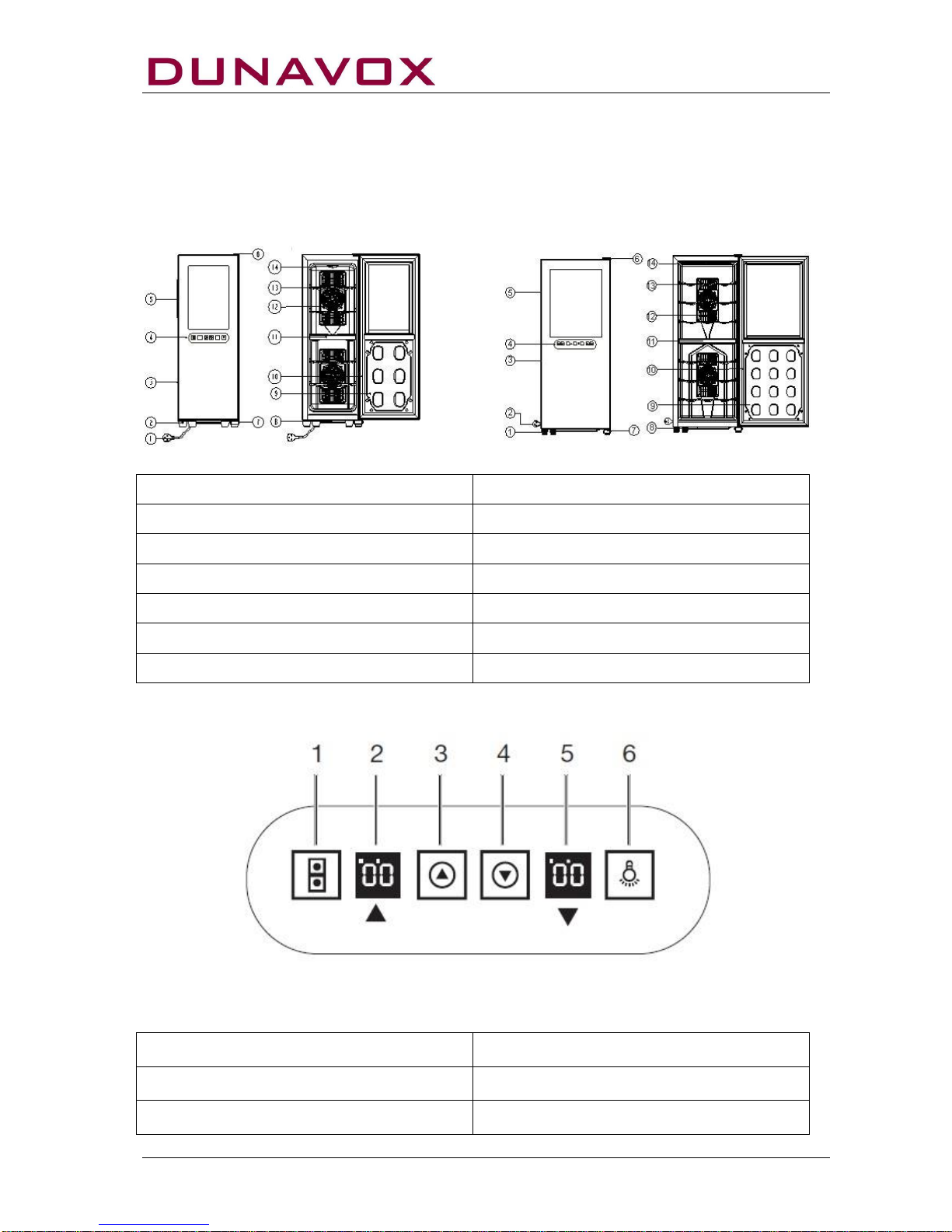

DX-12.33DSC DX-24.68DSC

1. POWER CORD

8. WATER TRAY

2. FOOT

9. DOOR LINER

3. DOOR FRAME

10. MAGNETIC SEAL

4. GLASS DOOR

11. ISOLATED BOARD

5. RECESSED HANDLE

12. COLD FAN MASK

6. UPPER HINGE COVER

13. SHELF

7.LOWER HINGE

14. LAMP COVER

1. UPPER/LOWER SELECTOR

4. SET TPERATURE DOWN BUTTON

2. UPPER SECTION TEMPERATURE

5. LOWER SECTION TEMPERATURE

3. SET TEMPERATURE UP BUTTON

6. LIGHT

INSTRUCTION MANUAL

TECHNICAL DATA

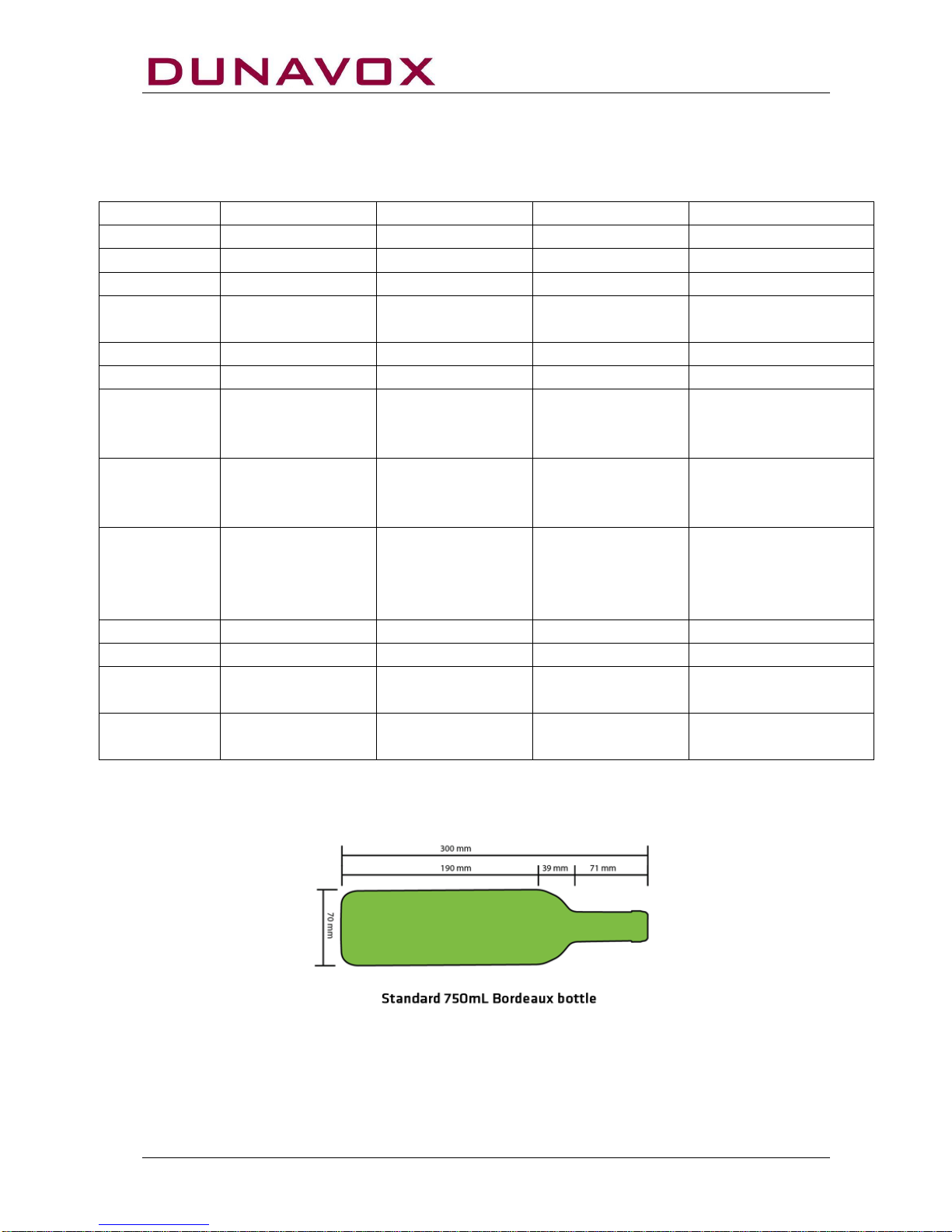

Dunavox thermoelectric models designed for standard Bordeaux bottles only.

Note: should your bottles exceed this size, remove shelves and store the bottles in upright position!

Model no.

DX-6.16SC

DX-12.33DSC

DX-12.35SC

DX-24.68DSC

Capacity

16L

33L

35L

68L

Voltage

220V

Current

0.45A(25℃/77℉)

0.9A(25℃/77℉)

0.5A(25℃/77℉)

0.9A(25℃/77℉)

Protection

class

Climate class

SN;N

Input power

50W

100W

70W

100W

Power

Consumption(K

W.h/24h)

0.27(15℃/59°F)

0.37(15℃/59°F)

0.8(15℃/59°F)

0.41(15℃/59°F)

Max

Temperature

Difference

﹥14℃(57°F)

Temperature

Control Range

8-18℃(52-64°F)

upper:12-18℃

(52-64°F)

lower 8-18℃

(52-64°F)

11-18℃(52-64°F)

upper:12-18℃(52-64°F)

lower 8-18℃(52-64°F)

Net weight

8kg

13,8kg

12.4kg

20,3kg

Gross weight

9,3kg

15,8kg

14.2kg

23,1kg

Shape

size(W×H×D)

25,2x37,8x51cm

25,5x66,7x51,5cm

26×65×49.5cm

35,5x85x51,1cm

Packing

size(W×H×D)

29,5x42,5x54,8cm

29,7x71x55,3cm

30.5×66×54cm

41,1x90,5x55,6cm

INSTRUCTION MANUAL

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these

basic precautions;

Read all instructions before using the wine refrigerator.

DANGER or WARNING: risk of child entrapment.

Junked or abandoned appliances are dangerous …even if they “just sit in the

garage a few days.”

Before you throw away your old wine refrigerator: take of the door .leave the

shelves in place so that children may not easily climb inside.

Never allow children to operate, play with, or crawl inside the appliance.

Never clean appliance parts with flammable fluids. The fumes can create a fire

hazard or explosion.

Do not store or use gasoline or any other flammable vapors and liquids in the

vicinity of this or any other appliance. The fumes can create a fire hazard or

explosion.

Does not store food in wine refrigerator, as interior temperature may not get cool

enough to prevent spoilage

SERVICE & IMPORTANT NOTICE

Upon receipt and inspection of the unit, if supply cord is damaged, It must be

replaced. For any additional information or questions, please contact the

service center.

WARNING: please do not uses where children can touch the unit, nor let

children use the unit by themselves.

SAVE THESE INSTRUCTIONS!

INSTRUCTION MANUAL

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR WINE REFRIGERATOR

Remove the exterior and interior packing

Check to be sure the following parts are included:

oslide out shelves (DX-6.16SC 2pcs, DX-12.33DSC 4 pcs, DX-12.35SC

&DX-24.68DSC 5 pcs)

oinstruction manual

Before connecting the appliance to the power source, let it stand upright for

approximately 2 hours. This will reduce the possibility of a malfunction in the

cooling system from handling during transportation.

Clean the interior surface with lukewarm water using a soft cloth.

Place your appliance on a floor that is strong enough to support the appliance

when it is fully loaded. To level your appliance, adjust the front legs at the bottom

of the appliance.

Do not place the unit to direct sunlight and sources of heat (stove, heater,

radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources

may increase electrical consumption. Extreme cold or hot ambient temperatures

may also cause the appliances not to perform properly. Never place the wine

cooler on the top of refrigerator!. Never build or recess the wine cooler into

the furniture. For such installation choose our built-in or under counter

models!

ELECTRICAL CONNECTION

Warning!

IMPROPER USE OF THE GROUNDED PLUG CAN RESULT IN THE RISK OF ELECTRICAL SHOCK.

IF THE POWER CORD IS DAMAGED, HAVE IT REPLACED BY AN AUTHORIZED PRODUCTS

SERVICE CENTER.

This unit should be properly grounded for your safety. The power cord of this unit

is equipped with a 2-pin plug which mates with 2-pin wall outlets to minimize the

possibility of electrical shock. Do not under any circumstances cut or remove the

ground wine from the power cord supplied.

Use of extension cords is not recommended.

This unit requires a standard 220V-50HZ electrical outlet with 2-pin plug.

The cord should be secured behind the wine refrigerator and not let exposed or

dangling to prevent accidental injury.

INSTRUCTION MANUAL

OPERATING YOUR WINE REFRIGERATOR

It is recommended that you installed the wine refrigerator in a place where the

ambient temperature is between 10-26 °C(50-80 °F) .If the ambient temperature

is above or below recommended temperatures, the performance of the unit may

be affected. For example, placing in extreme cold or hot conditions may cause

interior temperature to fluctuate. The range of set temperature (see Technical

data) may not be reached.

The temperature may fluctuate depending on whether or not the interior light is

on or off or whether the bottles are located on the upper, middle or lower section.

HOW TO USE THE PRESS-BUTTONS ON THE DISPLAY PANEL:

You can set the temperature as your desire by pressing the button.

There are press-buttons on the panel and to adjust the temperature by

1 °C.

You can tune the interior light on or off by pressing the “Light” button.

CARE AND MAINTENANCE

CLEANING YOUR WINE REFRIGERATOR

Unplug the wine refrigerator and remove the bottles.

Wash the inside with a warm water and baking soda solution. The solution

should be about 2 tablespoons of baking soda to a quart of water.

Outside of wine refrigerator should be cleaned with mild detergent and water.

Draw out the water box at the bottom, and wash.

Clean the fans by hoover regularly! Dirty fans reduce the cooling performance

and decrease fan lifetime.

MOVING YOUR WINE REFRIGERATOR

Remove all the bottles.

Securely tape down all loose items inside your wine refrigerator.

Turn the leveling legs up to the base to avoid damage.

Tape the door.

Be sure the wine refrigerates stays in the upright position during transportation.

INSTRUCTION MANUAL

PROBLEMS DISPOSAL

You can solve many common wine refrigerator problems easily, saving you the cost of a possible service

call. Try the suggestion below to see if you can solve the problem before calling service center.

PROBLEM

POSSIBLE CAUSE

Wine refrigerator do not operate.

Not plugged in using different voltage. The circuit breaker

tripped or a blown fuse.

Wine refrigerator is not cold enough.

Check the temperature control setting.

External environment may require a higher setting.

The door is open too often.

The door is not closed completely.

The door seal does not seal properly.

The wine refrigerator does not have the correct clearance.

The light does not work.

Check the service center.

Vibrations.

Check to assure that the wine refrigerator is level.

The wine refrigerator seems to make

to much noise

The wine refrigerator is not level.

Check the fan.

The door will not close properly.

The wine refrigerator is not level.

The doors were reversed and not properly installed.

The seal is weak.

The shaves out of position.

LED could not display.

Main control board does not work.

PCB Problem.

There is some problem with the plug.

LED display error.

Weak quality of display.

Temperature point is out off.

Bottoms are not functional.

Temperature controller panel is damaged.
