This unit has three input terminals, AV1(TV) or AV2(DECODER) on the rear panel and AV3 on the front panel. Be sure that all the units are off before making
connections.
Switch the input selector on your TV to an appropriate external input channel. For details, refer to the Owner’s Manual of your TV.
Note
• Connect this unit directly to the TV. If the TV cables are connected to a VCR, pictures may be distorted due to the effects of the copy protection system.
Questions and Help on this products, please call
ASDA Help Line: 0845 300 7775 in UK.
Connecting to External Equipment
Note
• When you record a TV programme
from a Satellite Box, you must connect
a Scart cable to AV2(DECODER). (See
page 33 on the Owner’s Manual for
details.)
• When AV2 is connected, the signal
from the AV2 will be output
automatically. If you want to monitor
the signal from other input, you must
press [DISPLAY] first. Then, select
the desired input to monitor with
[INPUT SELECT].
• If you connect a Satellite or DVB-T
Receiver at AV2, the channel must be
tuned at the Receiver, not with this
device.
If no S-Video input jack is available,
connect to VIDEO input jack on the front
panel using an RCA Video cable.
Set “S-Video In” when using S-VIDEO
input jack. (See page 35 on the Owner’s
Manual for details.)
Digital Audio for Better Sound Quality
For clear digital sound quality, use the
DIGITAL AUDIO OUT (OPTICAL or
COAXIAL) jacks to connect your
digital audio equipment.
If the audio format of the digital output
does not match the capabilities of your
receiver, the receiver will produce a
strong, distorted sound or no sound at
all.
It may be necessary to change the setup
depending on the connecting device.
See page 17 on the Owner’s Manual for
details.

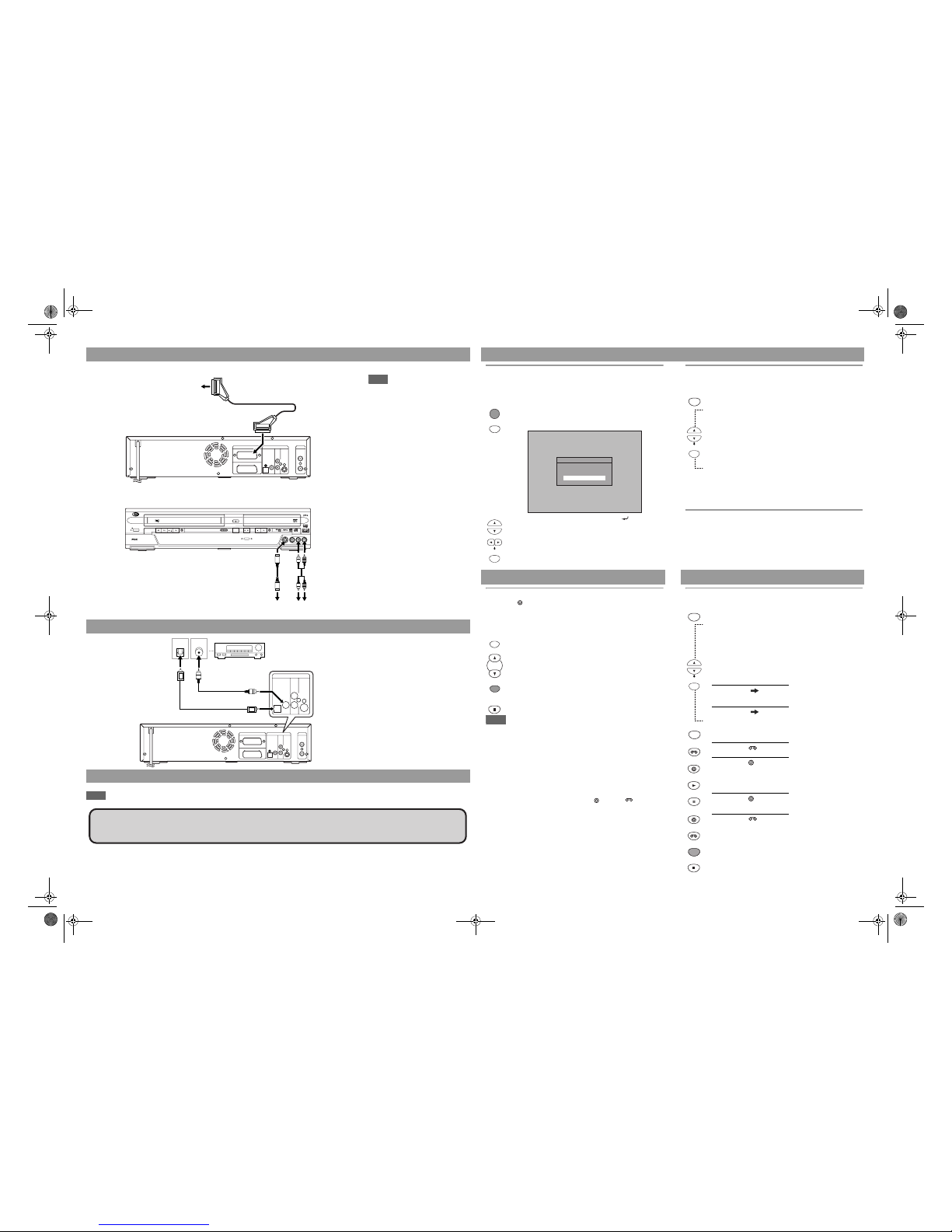

After You Have Completed Connections
DIGITAL
AUDIOOUT
COAXIALOPTICAL
DVD/VCR
AV2(DECODER)
AUDIO
OUT
OUT
IN
L
R
S-VIDEO
OUT
AV1(TV)
DVD
ANTENNA
Scart cable (not supplied)
AV2(DECODER)
AV output jack
(Scart)
Recording from a DVD player, VCR, Satellite
Box or other Audio-Video equipment with a
Scart output jack (AV2)
STANDBY-ON REW F.FWD
STOP/EJECT
PLAY RECORD PROG. DUBBING SELECT STOP PLAY RECORD
SELECT DVDVCR
S-VIDEO VIDEO
L(MONO)-AUDIO-R
OPEN/CLOSE
S-VIDEO
OUT
AUDIO
OUT
AV3 (Front )
S-Video cable
(not supplied)
Audio cable
(not supplied)
Recording from a camcorder or other Audio-Video equipment with no Scart
output jack (AV3)
DIGITAL
AUDIOOUT
COAXIALOPTICAL
DVD/VCR
AV2(DECODER)
AUDIO
OUT
OUT
IN
L
R
S-VIDEO
OUT
AV1(TV)
DVD
ANTENNA
AUDIO
OUT
L
R
S-VIDEO
OUT
DVD
DIGITAL
AUDIO OUT
COAXIALOPTICAL
COAXIAL
OPTICAL
Dolby Digital decoder, DTS
decoder or MPEG decoder, etc.
Digital audio
input jacks
Optical cable
(not supplied)
Coaxial cable
(not supplied)
or
WARNING! DO NOT change connections while power is on.
Before installation, unplug your TV and this unit.
Initial Setups
For the First Time Use Channel Setting
1After making all the necessary connections, turn
on the TV. Select the appropriate external input
channel. (See pages 16 to 17 on the Owner’s Manual for
details.)
2Press [STANDBY-ON].
3Press [ENTER] to start Auto Channel Tuning.
If you like to skip this step, press [RETURN ].
4Use [U/ D/ L/ P] to set current time then press
[ENTER].
Programme the tuner to scan only the channels you can receive in your
area.
1Press [SETUP] in stop mode.
Setup Menu will appear.
2Select “General Setting” using [U/ D], then
press [ENTER].
3Select “Channel” using [U/ D], then press
[ENTER].
4Select “Auto Tuning” using [U/ D], then press
[ENTER].
The unit will start storing channels available in your area.
• Wait for several minutes to finish channel storing.
After Auto Tuning has stopped:
Use [PROG. K/ L]or [the Number Buttons] to change the
channel.
Tuning the channel manually
You can store channels manually. For details, see page 20 on the
Owner’s Manual.
DVD Recording DVD / VCR Basic Dubbing
Basic recording
Press [DVD ]first.
Insert a recordable disc.
1Turn on the TV. Select the appropriate external
input channel. (See pages 16 to 17 on the Owner’s
Manual for details.)
2Select a recording speed using [REC SPEED].
(See page 23 on the Owner’s Manual for details.)
3Select the desired channel to record using
[PROG. K/ L] or [the Number buttons].
4Press [REC / OTR] to start recording.
The “I” mark will be displayed for 5 seconds.
To pause the recording, press [PAUSE p].
Press [REC / OTR] or [PAUSE p]to resume the recording.
5Press [STOP S] to stop the recording.
Note
• When the Clock Setting has not been made, the date and time of title
names will be 01/01/07 and 00:00.
• Up to 99 titles can be recorded on the DVD-RW/-R discs.
• You cannot change the recording speed in the REC or REC pause
mode.
• If you want to monitor the programme that you are recording, make
sure the device such as a Satellite Box is powered off or press
[DISPLAY] when it is connected to AV2.
• NTSC recording is prohibited in this unit.
• You can play back a title on one device while making a recording on
other device. To do so, simply select the device (DVD or VCR) you like
to use for the playback by pressing [DVD ]or [VCR ]button
during DVD / VCR recording. And then follow the normal playback
procedure.
Bi-directional Dubbing between DVD and VCR
Insert a disc and a tape with a record tab.
1In stop mode, press [SETUP].
2Select “General Setting” using [U/ D], then press
[ENTER].
3Select “Recording” using [U/ D], then press
[ENTER].
4Select “Dubbing Mode” using [U/ D], then press
[ENTER].
Option window will appear.
5For VCR to DVD dubbing:
Select “VCR DVD” using [U/ D], then press
[ENTER].
For DVD to VCR dubbing:
Select “DVD VCR” using [U/ D], then press
[ENTER].
6Press [SETUP] to exit.
7For VCR to DVD dubbing:
Press [VCR ].
For DVD to VCR dubbing:
Press [DVD ].
8Press [PLAY P], and then press [PAUSE p] at the
point you wish to start recording.
9For VCR to DVD dubbing:
Press [DVD ].
Make sure to select a recording speed using [REC SPEED].
For DVD to VCR dubbing:
Press [VCR ].
Make sure to select a recording speed using [REC SPEED].
Rewind or fast forward the tape to the point where you want
to start recording.
10
Press [DUBBING].
Duplication will start.
11
Press [STOP S] to stop the recording.
STANDBY-ON
ENTER
ENTER
Auto Tuning
Make sure the antenna is
connected to “ANTENNA IN”jack.
Start
SETUP
ENTER
REC SPEED
PROG.
REC/OTR
STOP
SETUP
VCR
PLAY
DVD
VCR
DUBBING
STOP
DVD
PAU SE
SETUP
ENTER
