Duratech LINK Driver PLP-REM-300 Bedienungsanleitung

English....................Page 3

Nederlands.......Pagina 23

Français...............Page 43

Deutsch...............Seite 63

Español.............Página 83

PLP-REM-300

Manual

LINK Driver

ENG

Table of contents

Technical speciﬁcations

General Speciﬁcations

PLP-REM-300 overview

Logic board

Installation Instructions

Single PLP-REM-300 unit

Multiple PLP-REM-300 installation

Operation modes

DIP switch functionalities

Transmitter functions

Operation mode: PLC

Operation mode: ON/OFF

Replacing transmitter keypad

Transmitter battery

Pairing the handheld transmitter

LinkTouch ready transmitters: OLD & NEW mode

DMX 512 communication

Single PLP-REM-300 unit

Multiple PLP-REM-300 installation

RS-485 communication

Single PLP-REM-300 unit

Multiple PLP-REM-300 installation

RS-485 command set

RESET procedure

Troubleshooting

Pool light wiring instructions

Wiring remark

Page 4

Page 5

Page 6

Page 7

Page 8

Page 9

Page 10

Page 11

Page 12

Page 13

Page 14

Page 15

Page 16

Page 17

Page 18

Page 19

Page 20

Page 22

...........................................................

.........................................................

..............................................................................

.....................................................

......................................

..................................................................................

....................................................................

............................................................

.....................................................

...............................................

..................................................................

.........................................

...........

.....................................................

.....................................

.....................................................

.....................................

...........................................................................

...................................................................................

.....................................................................................

..............................................................

.........................................................................................

Technical speciﬁcations

General speciﬁcations

Input Voltage: 230 VAC 50Hz

Output Voltage: 12 VAC

Transformer VA rating: 350VA

Max output Power: 300 VA (12 VAC / 25A)

Max rating relay contact A &B 16A / 250 VAC

Max switching power A & B 4000VA

RF band 868 MHz

Ambient Air Temperature: 0°C to +40°C

Humidity 10% to 90% RH - non condensing

Ingress protection rate: IP54

IEC Protection Class: Class II

PLP-REM-300 overview

12 VAC

Transformer

Integrated toroïdal

Transformer 350VA

Circuit breakers

Logic board

For details:

see next page

12VAC connection

terminals

To connect the pool

lights

ENG

Logic board

DMX Address dial

To choose the

DMX start address

CAN bus

12VAC connection

terminals

To connect the pool

lights

DIP switch

To select controller functionalities

RS-485

connection

To connect to

home automation

system

(see page 16)

SD card slot

For ﬁrmware updates

DMX input/outpout

The PLP-REM can act

as a DMX receiver with

DMX passthrough

A/B output

For auxiliary circuits

Acts as a SPST

(single-pole, single-

throw) switch

Status LED’s:

(1) General status

Green = OK

Red = error overvoltage or overcurrent

(2) Pairing / RESET status

(3) 12VAC to Pool lamps (Green = ON)

(4) Switch A (Green = ON)

(1)

(2)

(3)

(5)

(4)

(8)

(6)

(7)

(5) Switch B status (Green = ON)

(6) CAN status

(7) RS-485 signal

(8) DMX signal

Pairing / RESET

button

DuraLink RF board

For wireless communication

DuraLink

Installation Instructions

Single PLP-REM-300 unit

.Connect a 230VAC power source to the 230VAC terminals of the

PLP-REM-300. Connect the pool lights to the 12VAC connection terminal

block in the PLP-REM-300.

.The PLP-REM-300 has a 300VA transformer built in. The total power load

of pool lights (+ cable losses) may not exceed this.

230VAC

Connect the pool

lights to the 12VAC

terminals

Connect the

230VAC power

source to the

circuit breaker

ENG

230VAC

230VAC230VAC

Multiple PLP-REM-300 installation

For extended installations (total lamp power > 300VA), multiple PLP-REM-

300’s can be linked together. This way, a perfect synchronisation of all pool

lights is still guaranteed.

The PLP-REM-300’s need to communicate with each other, to ensure all

the lamps are in perfect sync.

Connect the PLP-REM-300’s with each other using the CAN bus:

Connect the CAN terminals of the ﬁrst PLP-REM-300 with the CAN terminal

of the second PLP-REM-300*.

If more than 2 PLP-REM-300’s are necessary, simply daisy chain each CAN

terminal with the one from the next PLP-REM-300 (see below).

Respect the polarity of the terminals! (CAN L & H)

Next, set the DIP switches on the PLP-REM-300’s to the correct MASTER/

SLAVE setting. The ﬁrst PLP-REM-300 will be the MASTER. All the others will

be SLAVE’s. Refer to page 9 for Master/Slave DIP switch info.

CAN BUS

set as MASTER set as SLAVE set as SLAVE

* We recommend using a shielded twisted pair cable (min. 0,5mm² - up to 200m) to connect

multiple PLP-REM-300’s using the CAN bus.

In a Master/Slave setup, only the PLP-REM-300 that is set as MASTER

will react to transmitter commands. Any additional transmitters will

need to be paired with this MASTER PLP-REM-300

ON/OFF PLC

Compatible lamps

Switch lamps ON/OFF YES YES

Change lamp color YES(1) YES(1)

Operate Relay A & B YES YES

Dimming lamps NO YES(1)

DMX control NO YES

RS-485 control YES(2) YES

Dip switch setting DIP 1 ON DIP 1 OFF

Remote keypad type(3)

Operation Modes

The PLP-REM-300 controller has 2 main operation modes:

“ON/OFF control mode” & “PLC control mode”. Each mode has it’s own

functionalities:

1) Only for RGB lamps

2) In ON/OFF control mode, only a few RS-485 commands are available (see p 17)

3) Depending on which control mode is selected, the keypad of the transmitter needs

to be changed

ENG

DIP switch functionalities

The DIP switch on the main circuit board of the PLP-REM-300 allows the

user to customise the way the PLP-REM-300 operates.

* Fast DMX setting

Only for Adagio Pro lamps from 2018 and onwards

DIP SWITCH

function setting 1 2 3 4 5 6

Operation Mode ON/OFF ON

PLC OFF

Relay A PULSE mode ON

TOGGLE mode OFF

Relay B PULSE mode ON

TOGGLE mode OFF

Fast DMX setting * FAST ON

STANDARD OFF

DMX NO LOOP ON

LOOP OFF

MASTER/SLAVE mode SLAVE ON

MASTER OFF

ON position

OFF position

CAUTION: Always switch o the main power supply to the

PLP-REM-300 before changing the DIP switches

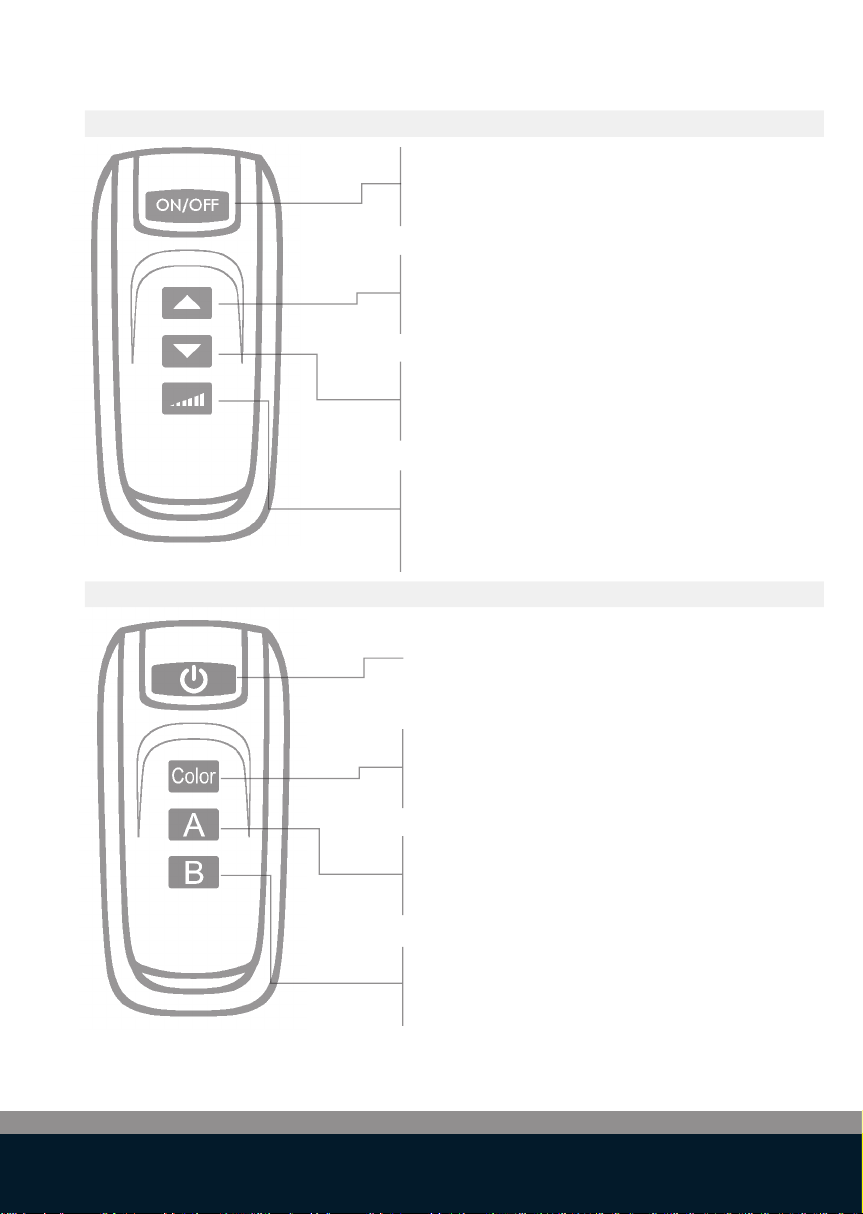

Transmitter functions

Short push (< 1 sec):

Toggle all lamps ON or OFF

Short push:

Go to next color program

Long push:

Auto sync procedure (3)

OPERATION MODE: PLC (default mode)

Short push:

Toggle output A ON/OFF

Long push:

Short push:

Toggle output B ON/OFF

Long push:

Short push (< 1 sec):

Toggle all lamps ON or OFF (1)

Long push (> 2 sec(2)):

All lamps & “12VAC TO LAMPS” relay are turned OFF (1)

Short push:

Go to next color program

Long push:

Toggle output A ON/OFF

Short push:

Go to the previous color program

Long push:

Toggle output B ON/OFF

Short push:

Select next dimming level:

100% -- 50% -- 25% ---> 100% -- ...

Long push:

Set lamps to Program 1 (blue) & full brightness

(1) Lamp ON or OFF status is memorized after power down

(2) The green LED in the transmitter will light up as soon as you start pressing a button, and will stop

after 2 seconds, so you know exactly when to release the button.

(3) The lamps will be turned o for 30 seconds and then switched ON/OFF 3 times. This will set all

lamps to program 1: blue

OPERATION MODE: ON/OFF
