Dynaudio BM5 mkIII Bedienungsanleitung

User manual

▪Important safety instructions

▪Warning!

▪Service

▪EMC/EMI

▪For customers in Canada:

▪Disposal

▪Break-in time

▪Introduction

▪Setup and Operation

▪Overview – rear panel

▪Setting up

▪1/2. Power on/o switch / AC power in

▪3. Balanced analog input

▪4. Unbalanced analog input (RCA)

▪Switches

▪5. Power mode switch

▪6. Remote

▪7. Filter switches

▪8. Level trim

▪Protection

▪Positioning

▪Miscellaneous

▪Troubleshooting

▪Care

▪Options

▪Service

▪Warranty

▪Exceptions

▪Technical speciﬁcations

2BM User manual

Important safety instructions

The lightning ﬂash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sucient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the product.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that

produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider

than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a

cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

4BM User manual

Warning!

▪To reduce the risk of ﬁre or electrical shock, do not expose this equipment to dripping or splashing and ensure that no

objects ﬁlled with liquids, such as vases, are placed on the equipment.

▪This apparatus must be earthed.

▪Use a three wire grounding type line cord like the one supplied with the product.

▪Be advised that dierent operating voltages require the use of dierent types of line cord and attachment plugs.

▪Always observe the local safety regulations. Ensure that the factory-set power requirements for the device (refer to the

label on the back of the monitor) corresponds to the mains supply in your region.

▪This equipment should be installed near the socket outlet and disconnection of the device should be easily accessible.

▪To completely disconnect from AC mains, disconnect the power supply cord from the AC receptacle.

▪The mains plug of the power supply shall remain readily operable.

▪Do not install in a conﬁned space.

▪Do not open the unit – risk of electric shock inside.

Caution

You are cautioned that any change or modiﬁcations not expressly approved in this manual could void your

authority to operate this equipment.

Service

▪There are no user-serviceable parts inside.

▪All service must be performed by qualiﬁed personnel.

EMC/EMI

This equipment has been tested and found to comply with the limits for a Class B Digital device, pursuant to part

15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful interference in residential installations.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If the equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment o an on, the user

is encouraged to try to correct the interference by one or more of the following measures.

▪Reorient or relocate the receiving antenna.

Important safety instructions 5

▪Increase the separation between the equipment and receiver.

▪Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

▪Consult the dealer or an experienced radio/TV technician for help.

For customers in Canada:

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Disposal

Disposal of used electrical and electronic equipment (applicable in European countries with separate collection

systems for this equipment)

This symbol on the product or its packaging indicates that the product may not be treated as household waste.

Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic

equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health. The recycling of materials helps to conserve natural

resources. For more detailed information on recycling this product, please contact your local authority, community

waste disposal of, or the shop where you purchased the product.

Break-in time

The transducers of your Dynaudio BM5 mkIII will achieve better sound quality after breaking in, especially after the

ﬁrst hours of use you may notice a signiﬁcant advance in sound quality, and further subtle improvements in

subsequent hours of use.

6BM User manual

Introduction

Congratulations on your purchase of the Dynaudio BM5 mkIII active monitor system. With the right care and

attention it will provide many years of excellent and trouble-free audio reproduction. It is most important, however,

that you take a few minutes at this early stage of your monitor’s life to read this manual. It contains essential

information to help you get the best from your new monitors.

The latest revision of this manual is always available on our website:

dynaudio.com

For support, please refer to:

dynaudio.com/support

Introduction 7

Setup and Operation

Overview – rear panel

Correct setup and connections is essential to achieve optimal performance from your monitors. Please follow the

instructions on the following pages.

1. Power On/O switch

2. AC power Input

3. Balanced analog input (XLR)

4. Unbalanced analog input (RCA)

5. Power Mode switch

6. Remote

7. Filter switches

High Pass

LF – Low ﬁlter setting

MF – Mid ﬁlter setting

HF – Hi ﬁlter setting

8. Level – Sensitivity switch

8BM User manual

Setting up

1/2. Power on/o switch / AC power in

Before switching on, make sure Mains Voltage matches your area’s mains voltage speciﬁcation.

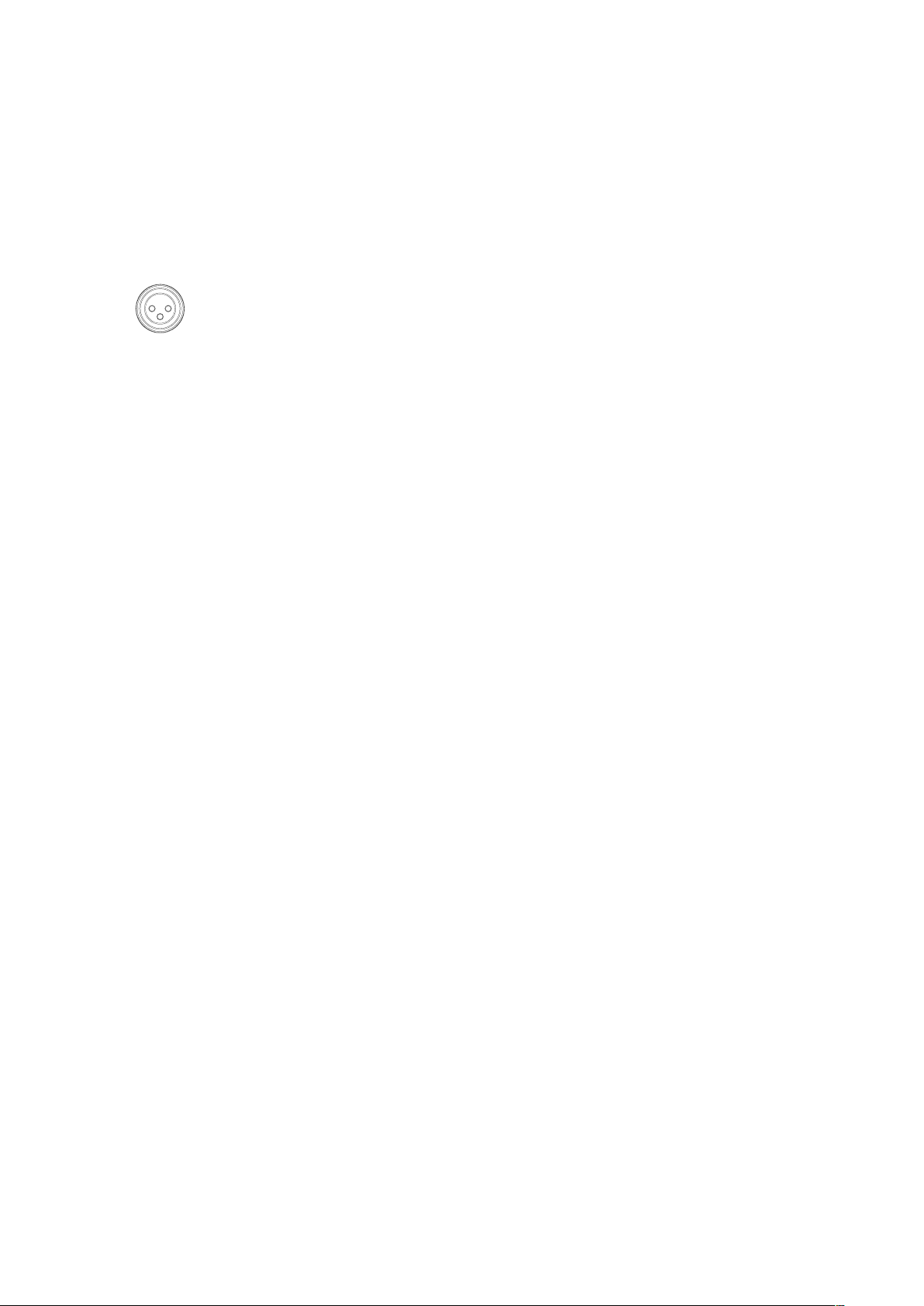

3. Balanced analog input

1 : 0

2 : +

3 : -

Audio Input is via a female XLR connector. The input is electronically balanced with the following connections. The

connections are printed on the rear for easy reference.

4. Unbalanced analog input (RCA)

Unbalanced Input via RCA. If your audio source doesn’t have a balanced output, use the RCA input connection.

For best results always use only good quality screened cables and connectors.

Switches

On the rear of the monitor you will ﬁnd six switches for setting up the monitor for optimum performance in dierent

acoustic environments. Each switch is explained in the following.

5. Power mode switch

ON: The speaker is active and ready to play.

ON/SLEEP: After if no input signal has been present on the input for 20 minutes the speaker enters the “Sleep”

mode and saves power. The speaker is invoked and ready to play when a signal is present on the input again.

Wake-up time is approximately two seconds.

6. Remote

Usually, active speakers are at max level all the time. By connecting the Dynaudio External Volume control, the

volume is conveniently controllable via the remote.

7. Filter switches

This switch controls the bass gain level using shelf-type EQ. The level can be set to +2 dB, 0 dB or -2 dB.

This ﬁlter is used to adjust for the proximity of boundaries, so if positioned close to wall or corner, use the -2 dB

setting. If positioned far from walls use the +2 dB or 0 position, depending on other equipment, and personal

taste.

This switch sets a notch ﬁlter, used to compensate for the acoustic eect of a console.

Such placement usually results in a response peak in lower midrange. The MF switch activates a bell shaped

notch ﬁlter, which can compensate. Use either the -2 or the -4 dB setting. Find the setting that provides the

ﬂattest response.

This switch controls the Treble level and it is used to match the high end of the monitor to your other electronic

equipment, and your acoustical environment. Use the setting providing the preferred timbre. If the sound is too

bright; try to set to -1 dB to reduce treble by 1 dB. If the sound is too dull, use +1 dB setting to raise the High

Setting up 9

Pass by 1 dB.

This switch sets the lower cut-o frequency of the monitor. It is used to match the monitor to a subwoofer. You

can select between 60 Hz or 80 Hz X-over. Flat is used in case you do not use a subwoofer to assist your

monitors. When used with a subwoofer it is recommended to use either 60 Hz or 80 Hz ﬁlter, thus allowing a

higher undistorted sound pressure level.

8. Level trim

Use this switch to match the sensitivity of the BM5 mkIII monitor to your source.

High-output Source

If your source has a high output, set switch to the -10 position to reduce sensitivity by 10 dB.

Low-output source

If your source has a low output, set switch to the +4 position to gain 4 dB more sensitivity.

Protection

The BM5 mkIII monitor has several built in protection systems to reduce the risk of hazard or damage due to

overloading.

Both power ampliﬁers have thermal protection. This activates if a problem should occur, and helps protect both

the electronics and the loudspeaker drivers.

The woofer channel has a built in limiter that protects the woofer unit from too much excursion. It works by

reducing the gain of the circuit when a certain threshold level is reached.

10 BM User manual
