Dynojet Power Commander III EX Bedienungsanleitung

i233-411EX 2008 Kawasaki ZX10R - PCIII USB EX - 1

2008 KAWASAKI

ZX10R

INSTALLATION INSTRUCTIONS

Dynojet Research • 2191 Mendenhall Drive • North Las Vegas, NV 89081 • (800) 992-4993

DOWNLOAD THE POWER COMMANDER SOFTWARE AND LATEST MAPS FROM OUR WEBSITE:

WWW.POWERCOMMANDER.COM

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

PARTS LIST

quantity description

1 power commander EX

1USBcable

1cd-rom

1 installation guide

1poweradapter

2 power commander decal

2dynojetdecal

2 dual lock velcro strip

1 alcohol swab USB port

expansion port

i233-411EX

2008 Kawasaki ZX10R - PCIII USB EX - 2

The ignition must be turned OFF before

installation.

1 Remove the main seat and the passenger seat.

2 Remove the right hand side tail section as

shown in Figure A.

3 Prop the front of the fuel tank up.

4 Remove the pins on the underside tail section

as shown in Figure B.

5 Route the PCIII USB EX harness between the

underside tail section and sub frame as shown

in Figure C.

Continue routing the harness down the right

hand side of the bike towards the throttle

bodies.

Figure AFigure BFigure C

remove covers

remove pins

PCIII USB EX

harness

i233-411EX

2008 Kawasaki ZX10R - PCIII USB EX - 3

6 Unplug the stock connector from the throttle

bodies as shown in Figure D.

This is a 16-pin brown connector located

under the fuel tank on the right hand side of

the bike.

7 Attach the connectors from the PCIII USB EX

harness to the throttle bodies and stock wiring

harness connectors as shown in Figure E.

8 Attach the ground wire from the PCIII USB EX

to the negative side of the battery as shown in

Figure F.

Figure DFigure EFigure F

unplug

connector

PCIII USB EX

connectors

stock

connectors

PCIII USB EX

ground wire

i233-411EX

2008 Kawasaki ZX10R - PCIII USB EX - 4

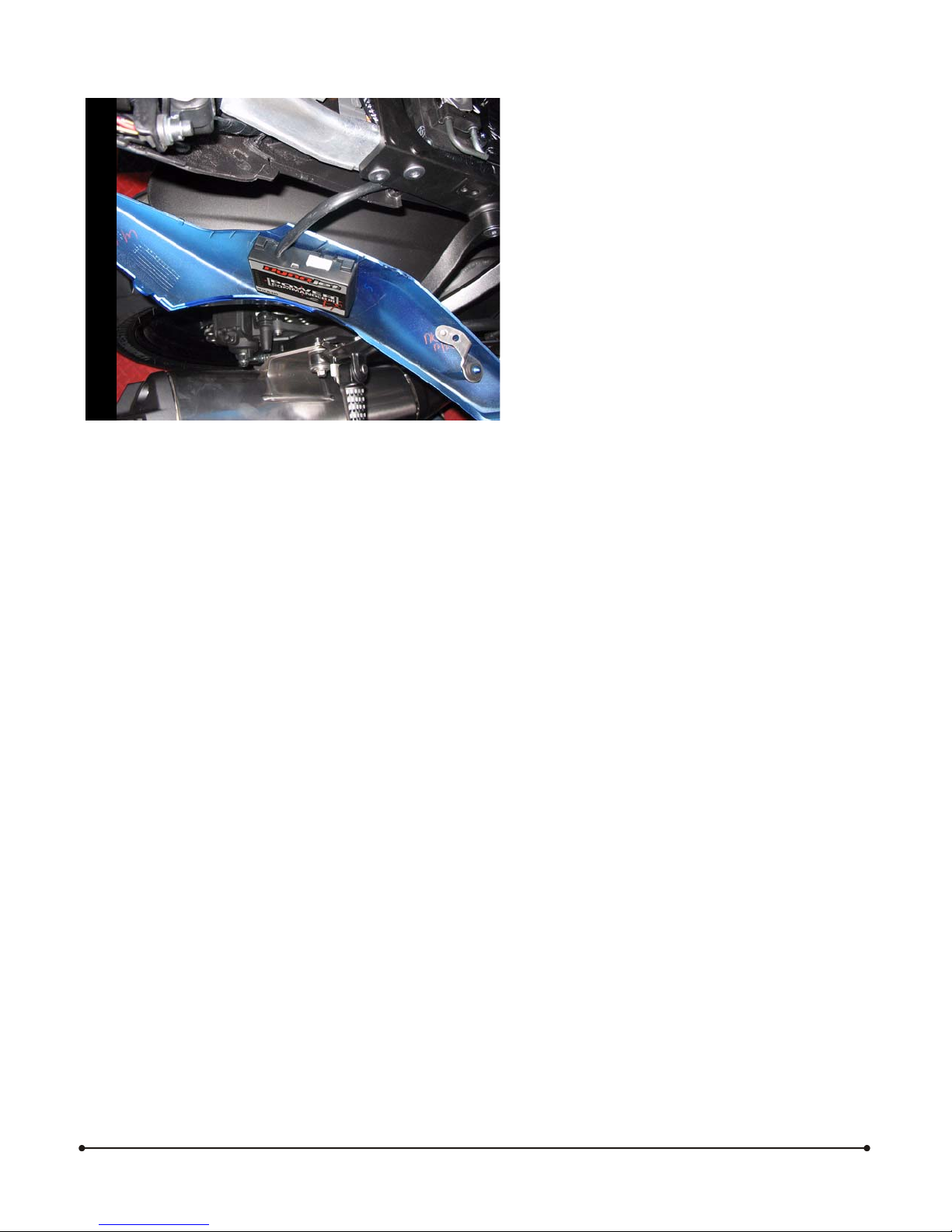

9 Using the supplied velcro, secure the

PCIII USB EX to the inner part of the right

hand fairing as shown in Figure G. Make sure

to clean both surfaces with the alcohol swab

before attaching.

10 Reinstall all body work and the fuel tank.

11 Reinstall the main seat and passenger seat.

12 Insert the cd provided into your computer’s

cd-rom drive.

13 Follow the on-screen instructions to install the

PCIII USB EX software.

Visit www.powercommander.com to download

software tutorials and the latest maps.

Note: This harness is intentionally long for

racing applications.

For information on how to use the Control Center

software open the software and go to HELP.

Figure G
