See3CAM_CU135

Camera

Version 1.0

e-con Systems

1/11/2017

DFU Application

User Manual

Disclaimer

e-con Systems reserves the right to edit/modify this document without any prior

intimation of whatsoever.


2 See3CAM_DFU Application User Manual
Contents
INTRODUCTION TO FIRMWARE 3
INSTALLING THE SEE3CAM_DFU APPLICATION 4
STEP 1-WELCOME SCREEN 4
STEP 2-INSTALLATION PATH SELECTION 4
STEP 3-READY TO INSTALL WINDOW 5
STEP 4-ATTACHING THE DEVICE 5
USING THE SEE3CAM_DFU APPLICATION 7
STEP 1-DEVICE SELECTION 7
STEP 2-FIRMWARE SELECTION 8
STEP 3-FIRMWARE UPDATE PROCESS 8
STEP 4-FIRMWARE UPDATE COMPLETE 10
TROUBLESHOOTING 13
FAQ 14
WHAT’S NEXT? 16
SUPPORT 17


Introduction to Firmware

The firmware is a program, embedded into the See3CAM device, which ensures

proper functioning of the device. The firmware can control all the features of the

device.

The See3CAM has a stable firmware that has been embedded into the device. But as

e-con Systems continuously works on this project, new firmware will be released

which has additional features that are supported in the See3CAM device. Please

refer to Firmware Release Notes to know about additional features. The new

firmware also includes bug fixes, and hence it is essential to upgrade this firmware

to avail the new features of See3CAM device.

This document highlights the process of updating a new firmware in the See3CAM

product. In future to add new functionalities to the See3CAM device, e-con Systems

will release new firmware binary. You can update this firmware into the See3CAM

device by using the See3CAM_DFU application.

4 See3CAM_DFU Application User Manual

Installing the See3CAM_DFU Application

To perform a firmware update, it is essential to install the See3CAM_DFU

application. The steps to install the See3CAM_DFU application are as follows:

Step 1. Welcome Screen

Step 2. Installation Path Selection

Step 3. Ready to Install Window

Step 4. Attaching the Device

Step 1 - Welcome Screen

As a first step, double click the See3CAM_DFU application setup file. The files

required are extracted and you can view the Welcome screen as shown below.

Figure 1: Welcome Screen

Click the Next button to go to the next screen.

Step 2 - Installation Path Selection

To select the installation path, you can either use the default installation path

C:\Program Files\e-con Systems\See3Cam_DFU\ or can change to another

installation path. After choosing the installation path, you can click the Next button

as shown below.

Figure 2: Installation Path Selection Window

Step 3 - Ready to Install Window

To begin the installation, you can click the Install button as shown below.

Figure 3: Ready to Install Window

Step 4 - Attaching the Device

The See3CAM device can be attached to the PC, and you can view the completion

window as shown below.

6 See3CAM_DFU Application User Manual

Figure 4: Completion Window

Click the Finish button to exit the Setup Wizard.

Using the See3CAM_DFU Application

The steps to update the firmware of any See3CAM device using See3CAM_DFU

application are as follows:

Step 1. Device Selection

Step 2. Firmware Selection

Step 3. Firmware Update Process

Step 4. Firmware Update Complete

Step 1 - Device Selection

Click the Device drop-down list which lists all the devices connected to the PC and

select the camera to update the firmware as shown below.

Figure 5: Device Selection

If no devices are connected for update, No Device Connected label will be displayed

as shown below.

8 See3CAM_DFU Application User Manual

Figure 6: Drop-down List Empty when no See3CAM Device is Connected

Step 2 - Firmware Selection

Click the Browse key and select the firmware image file as shown below.

Figure 7: Firmware File Selection Window

You can verify the product name and the firmware version before proceeding. Click

the Open group on the Home tab to view the firmware image.

Note: Please refer to Firmware Release Notes from firmware image package to know

more about the update in firmware.

Step 3 - Firmware Update Process

To start the firmware update process, click the F/W UPDATE button as shown

below.

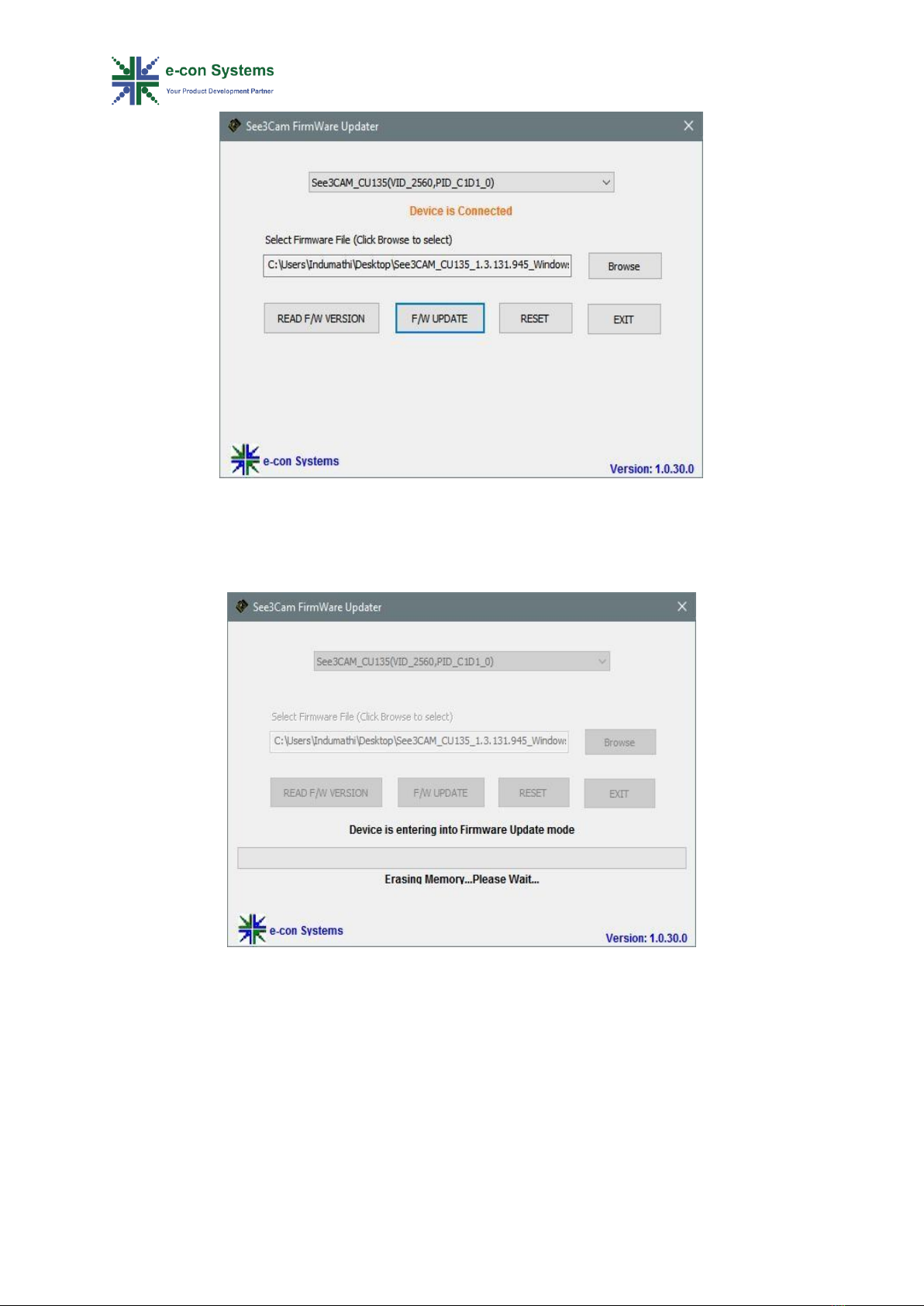

Figure 8: Firmware Update Process

You can switch the device to Firmware Update mode and can start erasing the Old

Firmware as shown below.

Figure 9: Switching to e-con DFU and Erasing the Old Firmware

The application reads the firmware file and updates it into the device as shown

below.
