E-Z UP VUE Bedienungsanleitung
Thank you for purchasing your E-Z UP®Instant Shelter®
Product.
With proper care, this shelter will deliver years of trouble-free use.
Please take a few minutes to read the use and care instructions
in this manual. If you have any questions or require assistance,
please contact us at 800-45-SHADE or visit ezup.com.
TABLE OF CONTENTS
About Us........................................................................................4
Important Information..................................................................5
Vue™ 5’ x 5’
(1.5 m x 1.5 m)
Package Contents.........................................................................6
Parts Diagram................................................................................7
One-Time Top Installation ...........................................................8
Set Up ............................................................................................10
Take Down.....................................................................................13
Care & Maintenance.....................................................................16
Product Warranty ..........................................................................17
THANK YOU
Vue Owner’s Manual
33
THE ORIGINAL & STILL THE BEST
Over 30 years ago, Mark Carter, Founder & Chairman of International E-Z UP,
Inc., created the first Instant Shelter®. Today, E-Z UP®Instant Shelters®are still the
easiest to open, highest quality, and most durable instant shelter available.
INNOVATION...IT’S IN OUR DNA
Over 150 patents is a testament to our innovation. We are the brand leader
in the portable shelter industry, and we maintain this position by continuously
innovating our products and processes. We just can’t help ourselves; it’s in our
DNA.
A TRADITION OF THE HIGHEST QUALITY
While our commitment to innovation drives us forward, it is our dedication to
quality that defines us. From concept to development to finished product, E-Z UP
meticulously designs, engineers and tests the smallest details of construction and
material to ensure years of durable use. All of this is supported with extended
warranties from a brand you can trust.
AWARD WINNING DESIGN & PRODUCTION
For multiple years, E-Z UP has won the Gold Award for Digital Printing by the
Specialty Graphics Imaging Association. Consistently earning the highest honor
for printing excellence from the graphics industry’s leading authority designates
E-Z UP as among the top specialty printers in the world. When you need the
best Instant Shelter®with award winning digital printing, rely on the brand
recognized by industry experts.
International E-Z UP, Inc.
Worldwide Corporate Headquarters
1900 Second Street, Norco, CA 92860
PHONE: 800-45-SHADE | 951-279-0999
FAX: 951-279-0888 | ezup.com
ABOUT US
44
Vue Owner’s Manual
READ THIS INFORMATION BEFORE PROCEEDING.
IT IS THE USER’S RESPONSIBILITY TO TAKE THE
FOLLOWING PRECAUTIONS AT ALL TIMES.
Always stake or weigh down your E-Z UP®Instant Shelter®
with genuine
E-Z UP®accessories. Do not use in any potentially windy or rainy weather.
Wind and rain can damage the E-Z UP®Instant Shelter®product and may
also result in injury to you or others. Therefore, do not rely on your Instant
shelter®for protection in heavy or prolonged rain storms.
The E-Z UP®Instant Shelter®product is designed as a temporary shelter.
Do not leave it up for extended periods.
Use caution when handling the E-Z UP®folding frame. Avoid pinching hands
or fingers as frame opens or closes.
Do not use shelter in a lightning storm.
Do not leave your E-Z UP®Instant Shelter®product unattended.
Do not build fires within your E-Z UP®Instant Shelter®enclosure.
WARNING:
Keep all flame and heat sources away from all Instant Shelter®fabrics and
accessories. These fabrics meet the flammability requirements of CPAI-84.
The fabric may burn if left in continuous contact with any flame source. The
application of any foreign substance to the fabric may render the flame-
resistant properties ineffective.
IMPORTANT INFORMATION
Vue Owner’s Manual
55

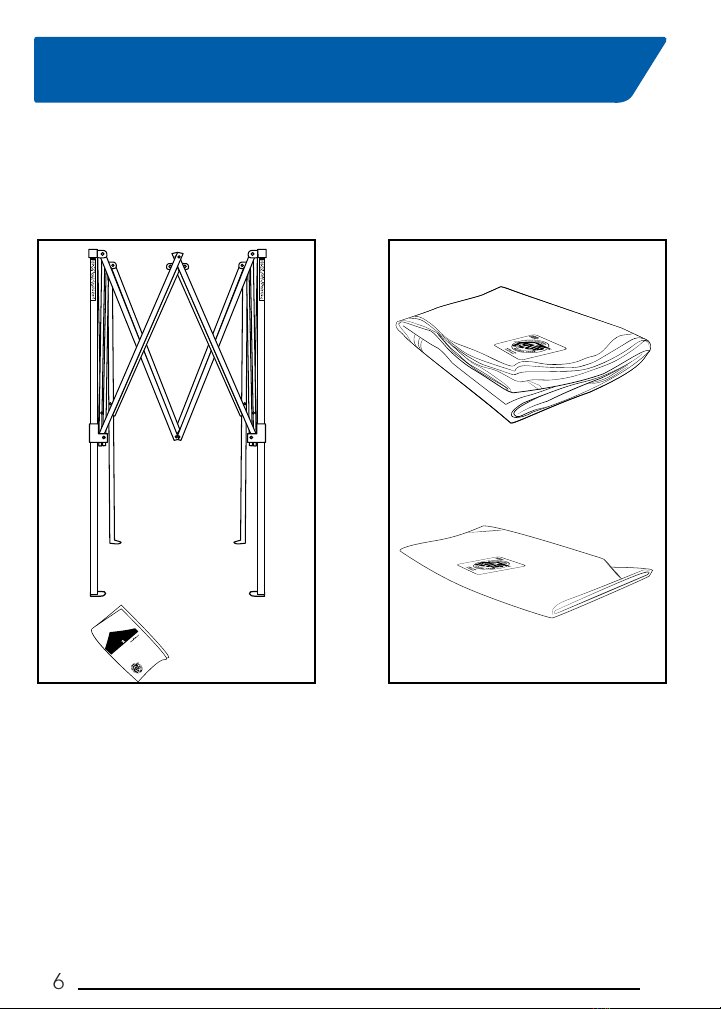

PACKAGE CONTENTS
FRAME BOX
CONTENTS:
Frame
Owner’s Manual
TOP BOX
CONTENTS:
Fabric Top
Cover Bag
For Vue™5’ x 5’
(1.5 m x 1.5 m)
Your shelter is packaged in two boxes:
66
Vue Owner’s Manual
The parts noted below are referenced in bold in the Set Up and
Take Down instructions in this manual. Refer to the diagram below
for appropriate frame location.
Vue™5’ x 5’
(1.5 m x 1.5 m)

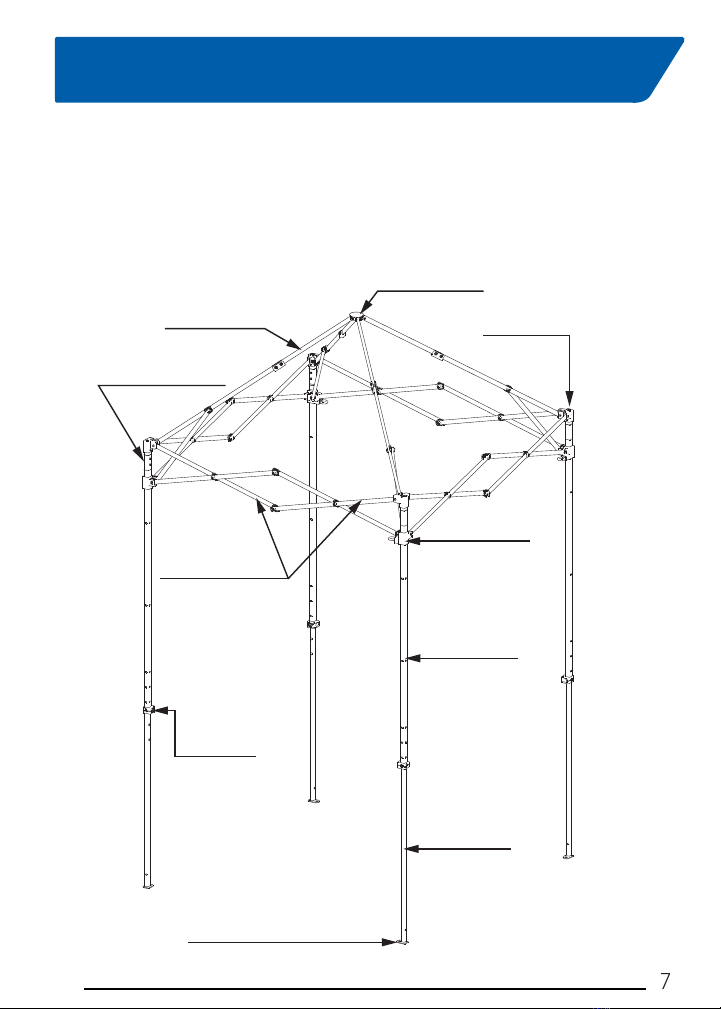

PARTS DIAGRAM
Outer Leg
Weight Bag/Stake
Kit Attachment Point
Toggle
Auto-Slider®
Pull Pin
Outer Trusses
End Cap
Frame Corner
Peak Truss
Peak Hub
Inner Leg
Vue Owner’s Manual
77

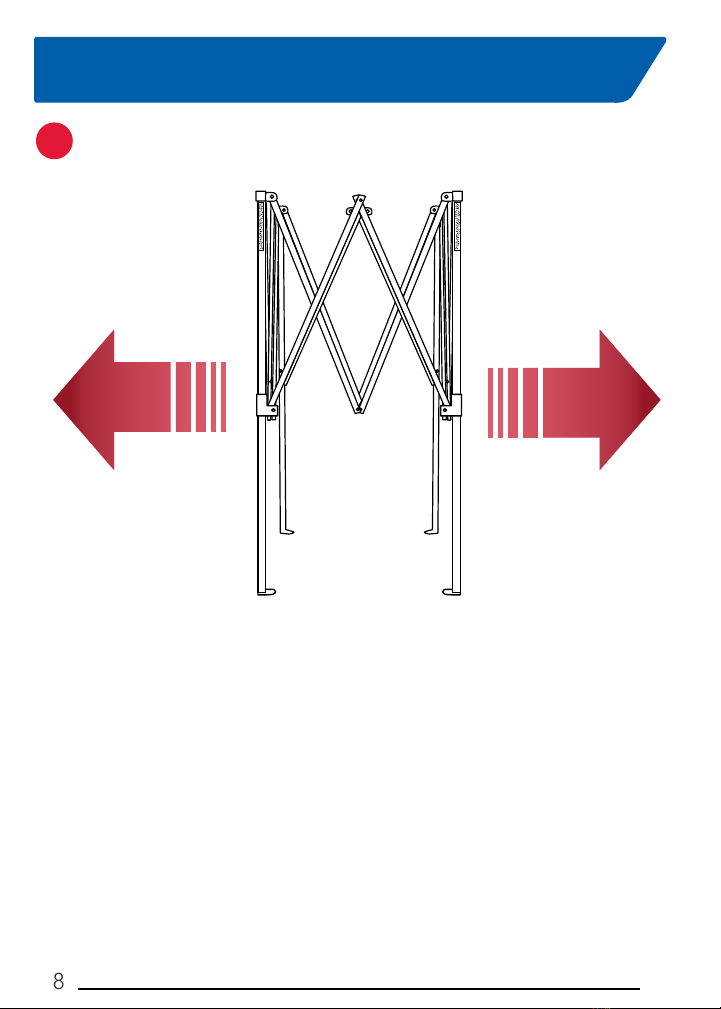

A Place your E-Z UP®frame in the center of the area to be
sheltered.
B With partner on the opposite side of the frame, grasp two outer
legs, lift the frame slightly off the ground, and step backwards
while pulling the frame to open.
C Stop when the frame is approximately 3/4 of its fully-opened size.
D Set the frame back on the ground.
ONE-TIME TOP INSTALLATION
UNPACK AND OPEN
1
88
Vue Owner’s Manual
ONE-TIME TOP INSTALLATION
Hook
and
Loop

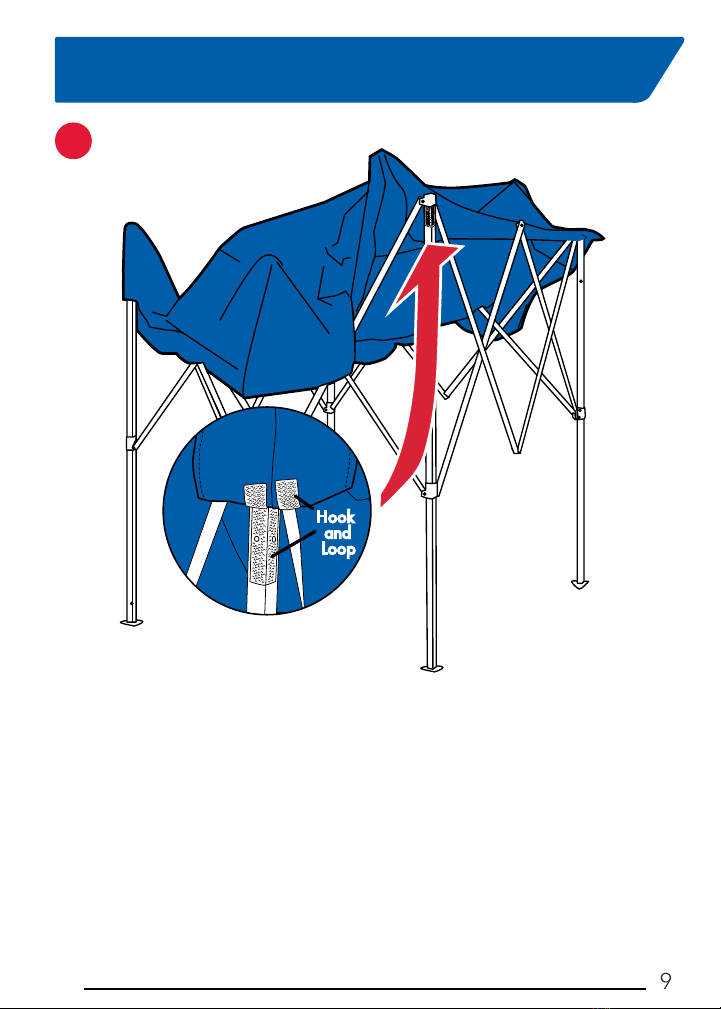

A Gently unfold the fabric top, and place it over the semi-opened
frame.
B Attach the fabric top to the E-Z UP®frame by matching the hook
and loop strips on the inside of the fabric top corners with the
hook and loop strips on each frame corner.
C Pull the fabric top down over the frame corners—pushing the
hook and loop strips firmly together.
Step A
Step B
2ATTACH FABRIC TOP
Vue Owner’s Manual
99
OPEN HERE
OPEN HERE

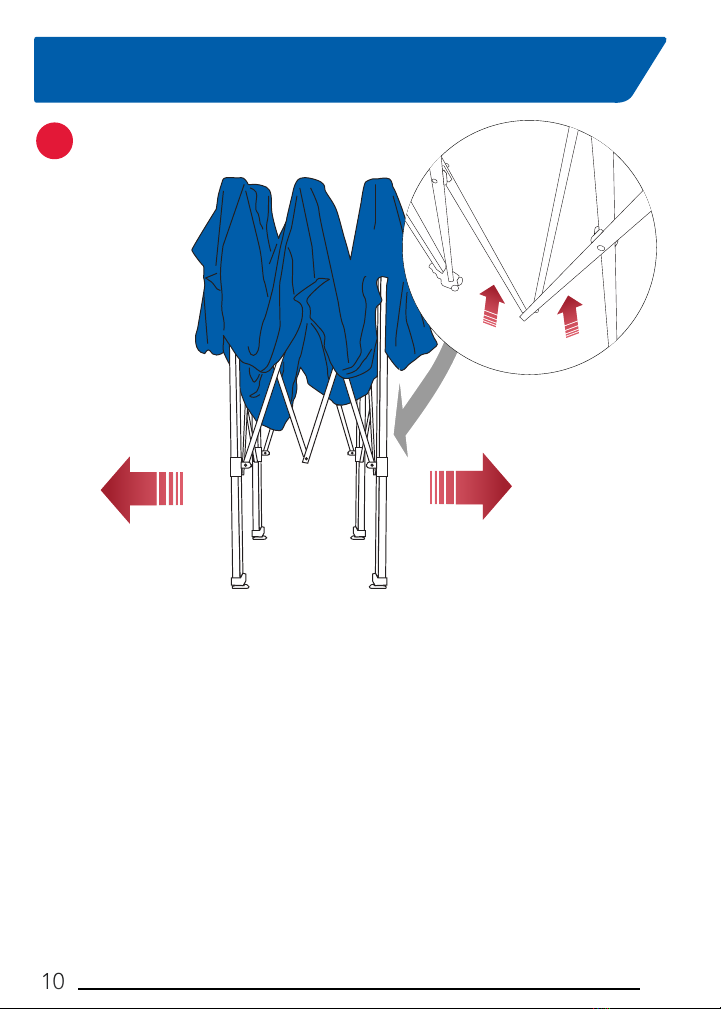

A With a partner on the opposite side, grasp the bottom of the
diamond-shaped area of outer trusses near the “OPEN HERE”
sticker.
B Lift the frame up slightly and step backwards until the shelter is
almost fully opened. Gently shake the shelter while opening. Be
careful not to pinch fingers!
OPEN E-Z UP®SHELTER
SETUP
1
1010
Vue Owner’s Manual
