Eaton TRIPP LITE U442-DOCK8-B Bedienungsanleitung

Owner’s Manual

Español 21

Français 41

Deutsch 61

Italiano 81

Purchased product

may differ from image.

Models:

U442-DOCK8-B

U442-DOCK8-BINT

Triple-Display USB-C

Docking Station

• HDMI and DisplayPort connectors each support single-

monitor 4K applications up to 3840 x 2160 @ 60 Hz*

• Extends 1080p desktop image across 3 external screens at

the same time at resolutions up to 1920 x 1080 @ 30 Hz*

• Extends 1080p desktop image across 2 external screens at

the same time at resolutions up to 1920 x 1080 @ 60 Hz*

• RJ45 port supports true 10/100/1000 Mbps (1 Gbps) network

speeds when Wi-Fi is weak or unavailable

• USB-C PD 3.0 port supports 85W power output for charging

host device

• USB-A hub ports support USB 3.2 Gen 2 speeds up to

10 Gbps; one dedicated port supports up to 5V 1.5A (7.5W)

for charging mobile devices, 2.4A for Apple®devices

• USB-C hub port supports USB 3.2 Gen 2 speeds up to 10

Gbps for reading, writing and transferring data

• 3.5 mm microphone/speaker combo port supports

2.1-channel audio

• Plug-and-play operation with no software required for easy,

immediate installation

*Maximum resolution is determined by what your connected device can

support. See Cable Matrix for resolution breakdown.

Product Features

• U442-DOCK8-B or U442-DOCK8-BINT

• USB-C to USB-C Cable, 1m (3.3 ft)

• External Power Supply

(Input: 100 -240V, 50/60 Hz, 2A; Output: 20V 5A)

U442-DOCK8-B: C5 to NEMA 5-15P Cord

U442-DOCK8-BINT: International Power Cords

(BS 1363 UK, CEE 7/7 EU)

• Owner’s Manual

• N201-Series Cat6 Gigabit Snagless Patch Cables

• P312-Series 3.5 mm Mini Stereo Audio Cables

• P569-Series High-Speed HDMI Cables

• P580-Series DisplayPort Cables with Latches

• U420-Series USB 3.2 Gen 2 C/C Cables

• U428-Series USB 3.2 Gen 1 A/C Cables

• M100-Series USB Sync/Charge A/Lightning Cables

Package Contents

Optional Accessories

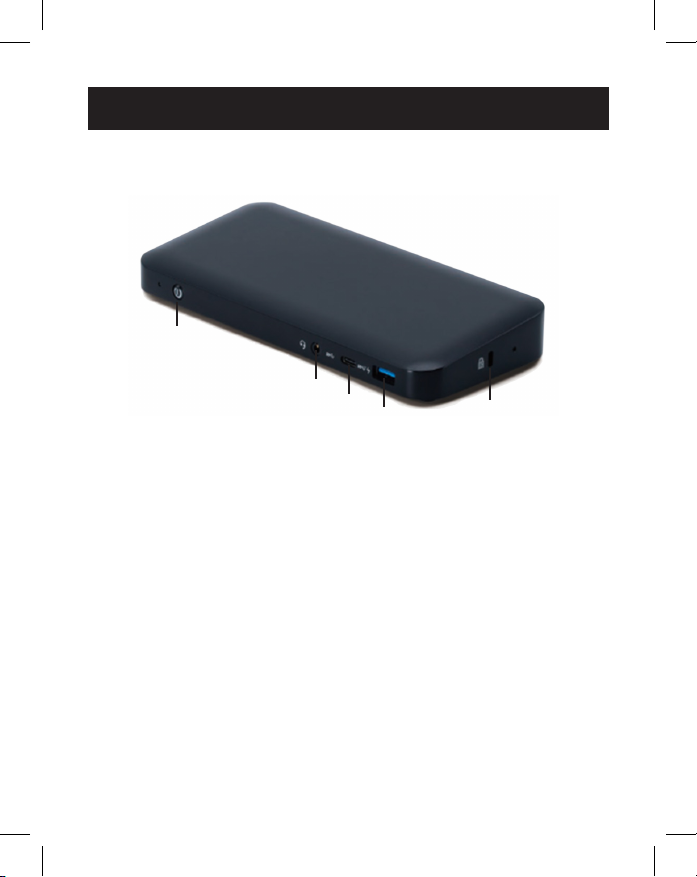

1Power: Turns the unit o and on.

Blue LED indicates when power is turned on.

23.5 mm Mini Stereo Combo Port: Connects

user-supplied speaker or microphone.

3USB-C Data Port: Transmits data at USB 3.2

Gen 2 speeds up to 10 Gbps.

4USB-A Charging Port: Supports 5V 1.5A (7.5W)

charging for mobile devices, 2.4A for Apple devices.

5Anti-Theft Lock: Connects your computer/laptop

security-cable chain lock.

Product Overview

Front

Product Overview

Rear

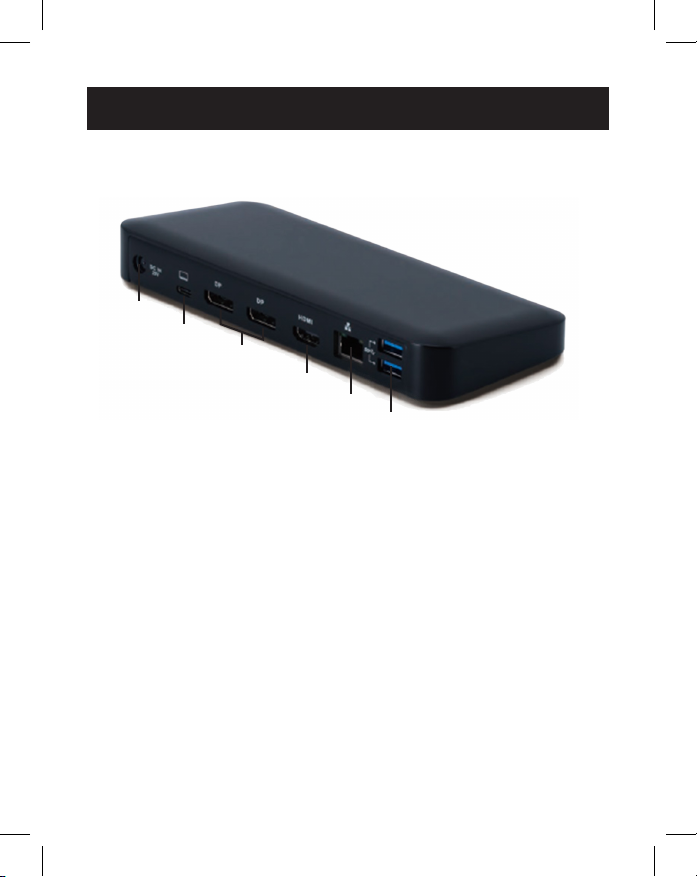

6DC Power Jack: Connect the included external

power supply to both this port and an AC outlet.

7USB-C PD Charging Port: Connects to the host

device with the included USB-C cable.

8(2x) DisplayPort Outputs: Connect to DisplayPort

monitors with user-supplied cables.

9HDMI Output: Connects to HDMI monitor with

user-supplied cable.

JRJ45 Port: Connects to Gigabit Ethernet network

with user-supplied Cat6 cable.

K(2x) USB-A Hub Ports: Connects USB peripherals

or devices at USB 3.2 Gen 2 speeds up to 10 Gbps.

Cable Matrix

DP1.2 HBR2 Platform

Ports HDMI DP1 DP2

1 External Display Connected 4K/30 Hz N/A N/A

N/A 4K/30 Hz N/A

N/A N/A 4K/30 Hz

2 External Displays Connected 1080p/60 Hz 1080p/60 Hz N/A

1080p/60 Hz N/A 1080p/60 Hz

N/A 1080p/60 Hz 1080p/60 Hz

3 External Displays Connected 1080p/30 Hz 1080p/30 Hz 1080p/30 Hz

DP1.4 HBR3 Platform

Ports HDMI DP1 DP2

1 External Display Connected 4K/60 Hz N/A N/A

N/A 4K/60 Hz N/A

N/A N/A 4K/60 Hz

2 External Displays Connected 1440p/60 Hz 1440p/60 Hz N/A

1440p/60 Hz N/A 1440p/60 Hz

N/A 1440p/60 Hz 1440p/60 Hz

3 External Displays Connected 1080p/60 Hz 1080p/60 Hz 1080p/60 Hz

DP1.4 HBR3 Platform with DSC Support

Ports HDMI DP1 DP2

1 External Display Connected 4K/60 Hz N/A N/A

N/A 4K/60 Hz N/A

N/A N/A 4K/60 Hz

2 External Displays Connected 4K/60 Hz 4K/60 Hz N/A

4K/60 Hz N/A 4K/60 Hz

N/A 4K/60 Hz 4K/60 Hz

3 External Displays Connected 4K/30 Hz 4K/30 Hz 4K/30 Hz

Installation

Installation Notes

• After all devices are connected to the unit, be sure the power

adapter is properly connected and the power button is turned

on.

• Connect the host computer or laptop to the U442-DOCK8-B

or U442-DOCK8-BINT USB-C PD Charging port using the

included USB-C cable. This cable will charge and power the

host device.

• Screenshots may vary based on operating system.

• The computer or laptop will keep your previous display

settings every time you power on/o.

• Check your computer or laptop’s display settings and set up in

Extend Mode for normal installation.

• If you change monitors, you may need to reset the display

settings.

• Some 4K monitors will occupy the entire 4K bandwidth and

cause the third connected display to function incorrectly.

•

If your system runs Mac OS, external monitors connected

will only support Mirror Mode (all displays will have the same

output).

• If your system is a Windows system and supports MST Mode,

refer to below MST installation notes.

Installation

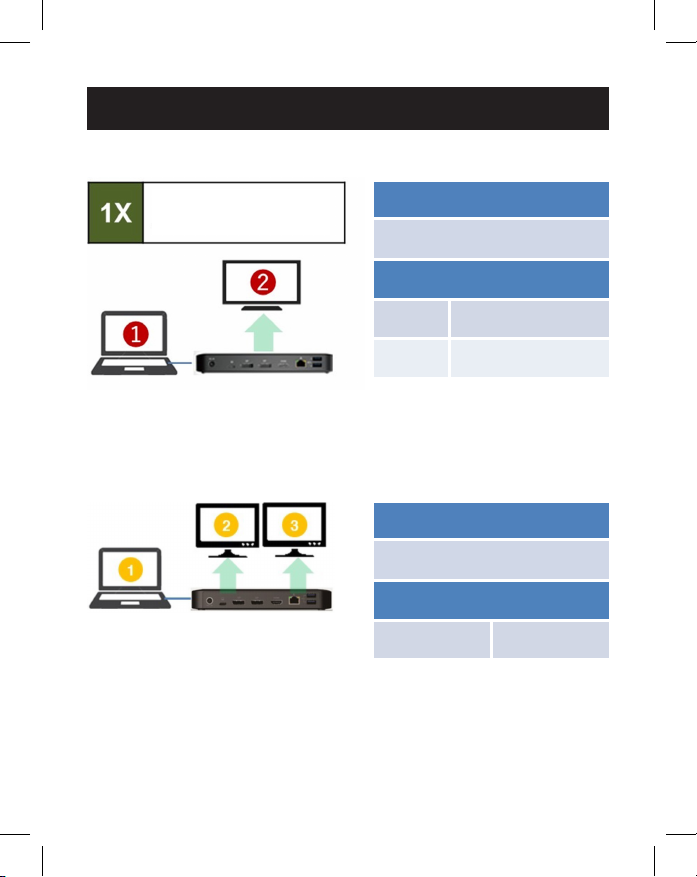

Single External Display Installation

A. Connect an HDMI or DisplayPort cable (see Optional Accessories)

between the U442-DOCK8-B and a compliant display.

Double Extended External Display Installation

A. Connect either both DisplayPort

outputs or one DisplayPort and

one HDMI port to compliant displays.

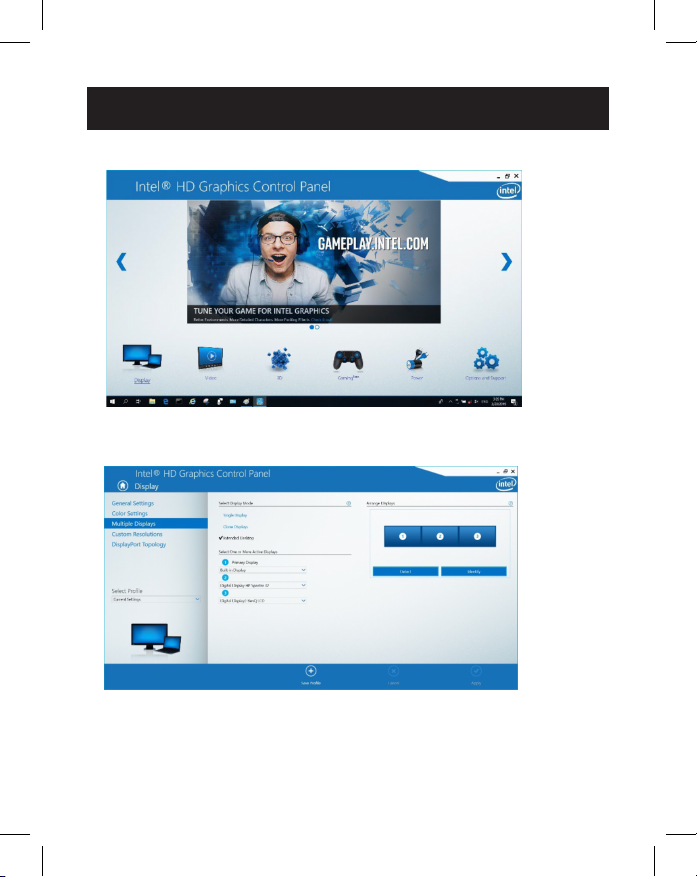

B. In desktop mode, right-click the desktop and select Graphics

Properties.

1x External displays

+ 1x NB screen Resolution (NB)

1080p @ 60 Hz

Resolution (Monitor)

HBR2 2160p @ 30 Hz

HBR3 2160p @ 60 Hz

Resolution (NB)

1080p @ 60 Hz

Resolution (Monitor)

1080p @ 60 Hz

Installation

C. Click Display Settings.

D. In Multiple Displays, click Identify Your Monitors.

Installation

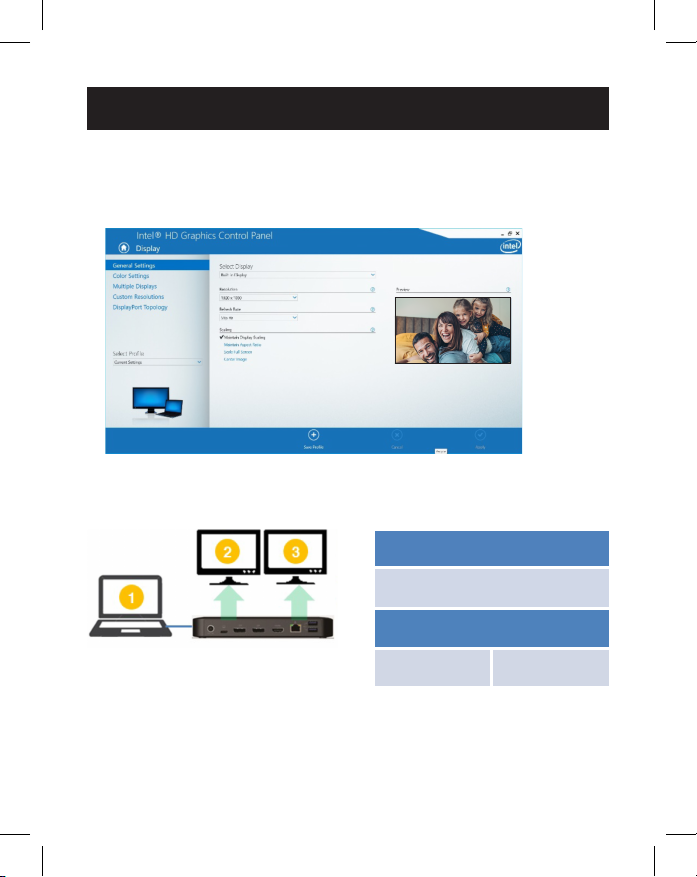

E. In General Settings, adjust the extended monitor resolution to

1920 x 1080 and the refresh rate to 60 Hz. Click Apply to save settings.

Note: The primary display default is the laptop screen. Displays 2 and 3

should be extended monitor.

F. In Dual Extended mode, a 4K monitor will automatically downgrade to

1080p @ 60 Hz to provide the best video quality.

Resolution (NB)

1080p @ 60 Hz

Resolution (Monitor)

1080p @ 60 Hz
