Eaton I-P65 Handbuch

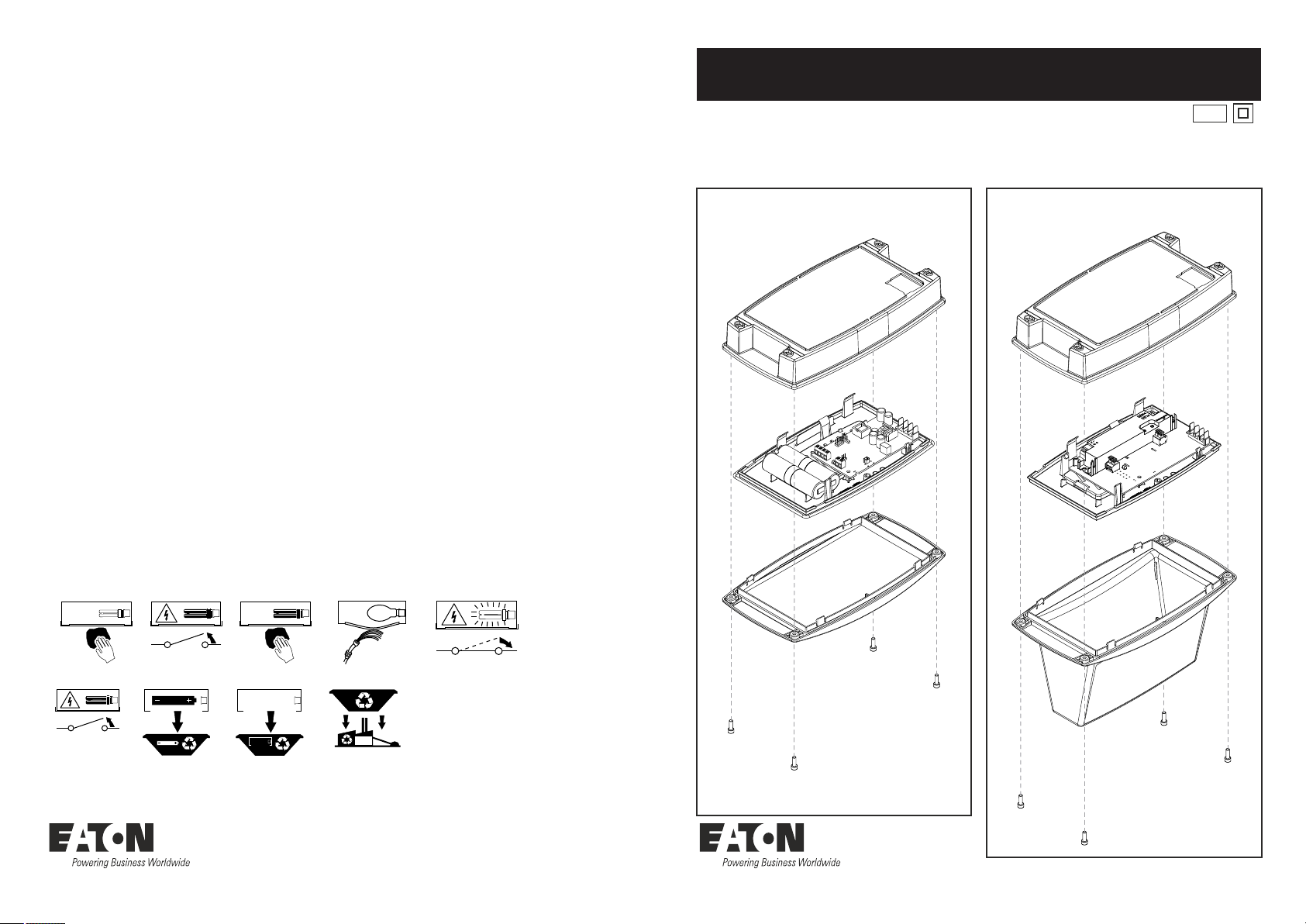

Standard Fitting Double Sided Legend Fitting

Safe Operation

1. Check the rating label for voltage and frequency before connecting this luminaire to the electrical

supply.

2. Ensure that the mains supply is switched off when working on this luminaire, whether installing or

carrying out any other servicing.

3. To prevent damage to driver, do not mix with conventional magnetic ballasts on the same electrical

circuit.

4. Where use in more onerous situations is required, e.g. In part-completed buildings before “drying-out” is

completed, or areas where ambient temperatures are outside the normal temperature range, then

consult our Sales Office.

5. Ensure the fixing is adequate for the luminaire weight.

6. The change mode of operation from mains to emergency is automatically changed to emergency mode by the

integral PCB control gear

Servicing and Disposal

1. At commissioning and handing over of installation ensure that a copy of these instructions is presented

to the authority responsible for the operation and maintenance of the luminaries.

2. Servicing, e.g. cleaning, must only be carried out after the electricity supply has been switched off. It

must not be assumed that luminaries with lamps not lit are switched off-always check before servicing.

3. Cleaning should be carried out at regular intervals to ensure that dirt does not accumulate to an extent

that will impair the thermal safety or optical performance of the luminaire. Regular cleaning will also

ensure that the optical performance of the luminaries is maintained.

4. Avoid touching the LED. To clean - Blow surface with either dry air or nitrogen gas.

5. At the end of life the luminaire is classed as WEEE under directive 2002/96/EC and should be disposed

of in accordance with local legislation.

Battery Life

Performance of the luminaire is dependent on the use of the correct type of high temperature Nickel Cadium

battery.

Battery life may be impaired if the luminaire is mounted in an ambient temperature greater than 25 C. Store the

o o

luminaire or battery between O C and 25 C. Replace with high temperature Nickel Cadium battery to the

manufacturer's recommended part number. Take care not to damage the sleeving. The battery should be replaced

when the rated duration is no longer achieved.

Warning: When disposing of the battery do not pierce, incinerate or short circuit. The battery should be disposed

of in accordance with recognised disposal methods.

Note: The LEDs are non-replaceable but the batteries can be replaced by a competent person.

Luminaire Cleaning

End of Life and Components Disposal

WEEE

IP65

 Product luminaires comply with EN60598-2-22 and are suitable for use in normal interior and exterior conditions,

o o

 For self contained variants - This luminaire has an ambient temperature range of -5 C to 25 C

o o

 For slave variants - This luminaire has an ambient temperature range of -15 C to 40 C

Instruction Leaﬂet K905V7

i-P65

June 2017

K905V7

Eaton

Wheatley Hall Road, Doncaster, South Yorkshire, DN2 4NB

Sales

T: +44 (0)1302 303303

F: +44 (0)1302 367155

E: sales@cooper-ls.com

General

+44 (0)1302 321541

+44 (0)1302 303220

technical@cooper-ls.com

International Sales

+44 (0)1302 303250

+44 (0)1302 303251

export@cooper-ls.com

Instruction Manual - K905V7

June 2017

i-P65

230.0mm

Cable Entry

Cable Entry with

Besa entry available

80.0mm

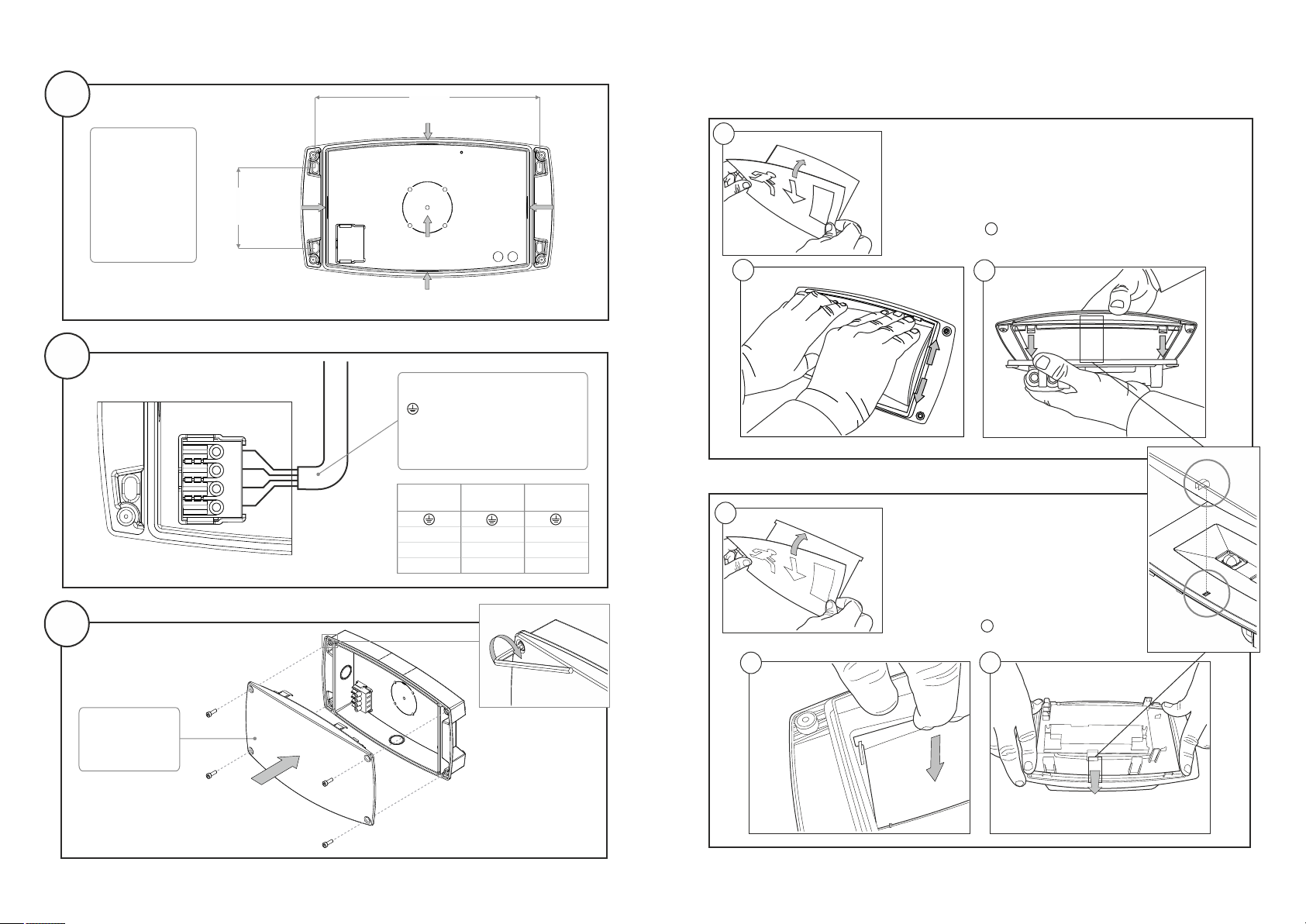

Mounting

Fitting Legend Panel(s) (If Required - ordered seperately)

Wiring

Fixing

Standard Fitting

Double Sided Legend Fitting

Take base of fitting,

knock through the

preferred cable entry

point, Note: centre

cable entry requires

drilling.

Then use 4 x suitable

mounting screws

(not supplied) and

secure fitting to

mounting surface

Fit LED geartray

and diffuser into

fitting base and

secure using

4 x allen key screws

NOTE: If using legend panel, refer to

next page before completing this step

Wire mains cable into terminal block on

fitting base as shown in table below

Ensure mains supply is turned off

- Earth (Green/Yellow)

- Neutral (Blue)

- Unswitched Live (Black)

- Switched Live (Brown)

a. Take required legend with self adhesive backing and attach to

removable legend panel.

b. Fit legend panel into lens by squeezing sides in and releasing

when flush against lens face.

c. Click the geartray, LED side into lens, ensuring light pipe in

the lens is alligned with the LED in the geartray and follow

installation step 3 to complete installation.

a. Take required legend with self adhesive backing

and attach to removable legend panel.

b. Slide removable panel into on side of the double

sided lens, ensuring it is supported by clips.

Repeat this process with second legend panel

on other side of lens.

c. Click the geartray, LED side into double

sided lens, ensuring light pipe in the lens is

alligned with the LED in the geartray and follow

installation step 3 to complete installation.

L2 --

L1 L1 L1

NNN

Self

Contained Slave Ceag

Maintaining IP Rating - Take care when mounting to retain the

IP rating. This can be acheived by using the outboard mounting

holes and appropriate cable gland.

Maximum Torque 2.5Nm
