Eaton MFD-AC-CP4 Bedienungsanleitung

09/10 MN05013011Z-EN

replaces 10/04 AWB2528-1548GB

User Manual

MFD-AC-CP4, MFD-CP4, MFD-80

Power Supply/Communication Module

All brand and product names are trademarks or registered

trademarks of the owner concerned.

Emergency On Call Service

Please call your local representative:

http://www.eaton.com/moeller/aftersales

Hotline After Sales Service:

+49 (0) 180 5 223822 (de, en)

AfterSalesEGBonn@eaton.com

Original Operating Instructions

The German-language edition of this document is the

original operating manual.

Translation of the original operating manual

All editions of this document other than those in German

language are translations of the original German manual.

1st published 2004, edition date 10/04

2nd edition 2008, edition date 02/08

3rd edition 2010, edition date 09/10

See revision protocol in the “About this manual“ chapter

Production: Thomas Kracht

Translation: Terence Osborn

No part of this manual may be reproduced in any form

(printed, photocopy, microfilm or any other process) or

processed, duplicated or distributed by means of electronic

systems without written permission of Eaton Industries

GmbH, Bonn.

Subject to alteration without notice.

Before commencing the installation

• Disconnect the power supply of the device.

• Ensure that devices cannot be accidentally

restarted.

• Verify isolation from the supply.

• Earth and short circuit.

• Cover or enclose neighbouring units that

are live.

• Follow the engineering instructions (AWA)

of the device concerned.

• Only suitably qualified personnel in

accordance with EN 50110-1/-2

(VDE 0105 Part 100) may work on this

device/system.

• Before installation and before touching

the device ensure that you are free of

electrostatic charge.

• The functional earth (FE) must be

connected to the protective earth (PE) or

to the potential equalisation. The system

installer is responsible for implementing

this connection.

• Connecting cables and signal lines should

be installed so that inductive or capacitive

interference does not impair the

automation functions.

• Install automation devices and related

operating elements in such a way that they

are well protected against unintentional

operation.

• Suitable safety hardware and software

measures should be implemented for the

I/O interface so that a line or wire breakage

on the signal side does not result in

undefined states in the automation

devices.

• Ensure a reliable electrical isolation of the

low voltage for the 24 volt supply. Only

use power supply units complying with

IEC 60364-4-41 (VDE 0100 Part 410) or

HD 384.4.41 S2.

• Deviations of the mains voltage from the

rated value must not exceed the tolerance

limits given in the specifications, otherwise

this may cause malfunction and dangerous

operation.

•Emergencystopdevices complying with

IEC/EN 60204-1 must be effective in all

operating modes of the automation

devices. Unlatching the emergency-stop

devices must not cause restart.

• Devices that are designed for mounting in

housings or control cabinets must only be

operated and controlled after they have

been installed with the housing closed.

Desktop or portable units must only be

operated and controlled in enclosed

housings.

Eaton Industries GmbH

Safety instructions

Danger!

Dangerous electrical voltage!

• Measures should be taken to ensure the

proper restart of programs interrupted

after a voltage dip or failure. This should

not cause dangerous operating states even

for a short time. If necessary, emergency-

stop devices should be implemented.

• Wherever faults in the automation system

may cause damage to persons or property,

external measures must be implemented to

ensure a safe operating state in the event

of a fault or malfunction (for example, by

means of separate limit switches,

mechanical interlocks etc.).

09/10 MN05013011Z-EN

About This Manual 3

List of revisions 3

Target group 3

Other manuals 3

Writing Conventions 4

Device designation 4

1 About the Display/Operator System 5

Components of the display/operator system 5

Proper use 5

System overview 6

– Display/keypad 7

– Power supply unit/communication module 8

2 Device application 9

Connecting the display/operator system with

a single device 9

Connecting display/operator system with

easyNet station 10

– Connection faulty 11

Graphic mode on the remotely operated MFD 12

3 Installation 13

Mounting 13

– Fitting the protective diaphragm 14

– Mounting the protective cover 15

– Mounting the display/operating unit

(front mounting) 18

– Removing the display/operating unit

(front mounting) 20

– Mount power

supply unit/communication module 21

– Removing the power

supply/communication module 22

Contents

09/10 MN05013011Z-EN

Connections 22

– Terminations 22

– Connecting the power supply 23

– Connecting cable 24

4 Commissioning 27

Switch-on 27

Initial Commissioning 27

5 Setting the properties of the

display/operator system 29

Operating buttons 29

Terminal/local mode 30

– Switching between Terminal/Local mode 30

– Terminal/local mode overview 31

Settings in local mode 33

– Station ID selection 33

– Setting the menu language 34

– Changing the light 35

– Changing the contrast 36

– Special function 36

Appendix 37

Dimensions 37

– MFD-80.. display/operating unit 37

– MFD-80-XM protective diaphragm 37

– MFD-80-XS protective cover 38

– MFD-CP4Power supply/communication module 38

Technical data 39

– General ambient conditions 39

– MFD-80.. display/operating unit 41

– MFD-XM-80 protective diaphragm 42

– MFD-XS-80 protective cover 42

– MFD-..-CP4 power supply unit/communication

module 43

– MFD-AC-CP4… power supply

unit/communication module 44

Alphabetical index 45

09/10 MN05013011Z-EN

About This Manual

This manual describes the installation, commissioning and

operation of the display/operating system.

List of revisions This 02/08 edition has been completely revised compared to

the previous edition of 10/04. This edition now also covers

the easySafetycontrol relay.

The 09/10 edition has been changed to include the Eaton

designations.

Target group This display/operator device must only be mounted and

connected by qualified electrical personnel or a person

familiar with the electrical installation.

A specialist knowledge of electrical engineering is needed

for commissioning. Plant sections may be damaged if the

display/operator system is incorrectly connected or incor-

rectly programmed.

Other manuals The description of the devices that have a terminal for the

display/operator system is provided in separate manuals

(formerly Manual AWB):

• easy500/700 (MN05013003Z-EN;

previous description AWB2528-1508GB)

• easy800 (MN04902001Z-EN;

previous description AWB2528-1423GB)

• MFD-Titan, multi-function display (MN05002001Z-EN;

previous description AWB2528-1480GB)

• easySafety (MN05013001Z-EN;

previous description AWB2528-1599en).

All manuals are available on the Internet for download as

PDF files. Go to http://www.eaton.com ￫Support and

enter the document number in the Quick Search field.

About This Manual

09/10 MN05013011Z-EN

Writing Conventions Symbols used in this manual have the following meanings:

Xindicates actions to be taken.

For greater clarity, the name of the current chapter is shown

in the header of the left-hand page and the name of the

current section in the header of the right-hand page. This

does not apply to pages at the start of a chapter and empty

pages at the end of a chapter.

Device designation The following short names for equipment types are used in

this manual, as far as the description applies to all of these

types:

• MFD-…-CP4 for

–MFD-AC-CP4

–MFD-CP4

• MFD-…-CP4-500 for

– MFD-AC-CP4-500

– MFD-CP4-500

• MFD-…-CP4-800 for

– MFD-AC-CP4-800

– MFD-CP4-800

hCaution!

Warns of a hazardous situation that could result in

damage to the product or components.

iWarning!

Warns of the possibility of serious damage and slight

injury.

jDanger!

Indicates the risk of major damage to property, or serious

or fatal injury.

hDraws your attention to interesting tips and supplemen-

tary information.

09/10 MN05013011Z-EN

1 About the Display/Operator

System

Components of the

display/operator system

The display/operator system described here consists of the

MFD-CP4 power supply/communication module, the

MFD-80.. display/operator unit and the MFD-CP4-...-CAB

connecting cable.

The following tables shows the individual components of the

display/operator system with their type designations.

Table 1: Components of the display/operator system with type

designation

Proper use The display/operator system must only be run if it is properly

mounted and installed:

• The installation must comply with regulations for electro-

magnetic compatibility (EMC).

• MFD-CP4 is designed to be installed in an enclosure,

switch cabinet or distribution board.

• If the display/operator system is switched on, the

controlled devices should not respond in an uncontrolled

manner, e.g. uncontrolled motor startups.

• To display graphics use the CP4 together with the

MFD-..-CP8-…/CP10…

Display/oper-

ator unit

Power supply

unit/communica-

tion module

Connecting cable Connected device

MFD-80

MFD-80-B

MFD-..-CP4-500 MFD-CP4-500-CAB5 easy500, easy700

MFD-..-CP4-800 MFD-CP4-800-CAB5 easy800, easySafety,

MFD-..CP8-…/CP10…

About the Display/Operator

System

09/10 MN05013011Z-EN

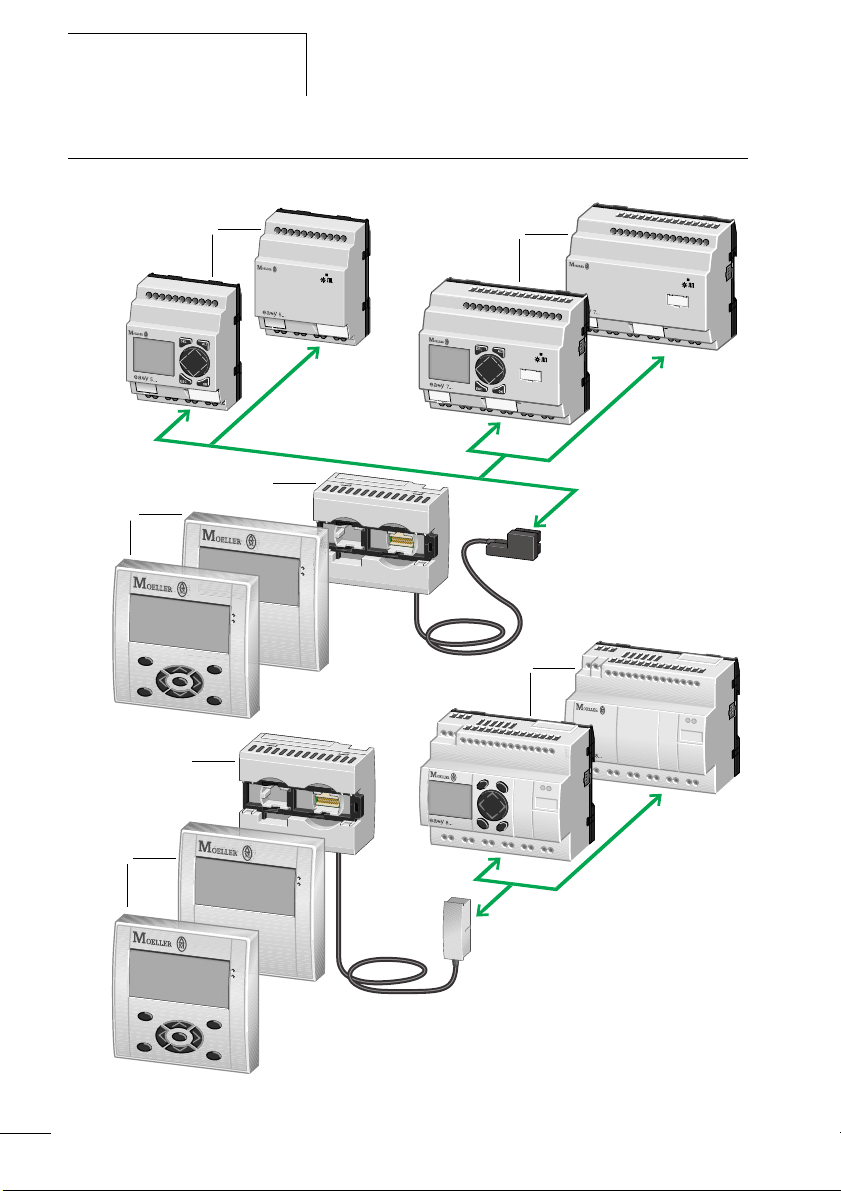

System overview

Figure 1: System overview ( Legend apage 7)

DEL

ALT

ESC

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Eaton Stromversorgung Handbücher

Eaton

Eaton xComfort CDAE-01/02 Bedienungsanleitung

Eaton

Eaton MTL 9492-PS-PLUS Bedienungsanleitung

Eaton

Eaton APS3-300 Betriebsanleitung

Eaton

Eaton Crouse-hinds series Bedienungsanleitung

Eaton

Eaton Extended Battery Module (EBM) 9140 Bedienungsanleitung

Eaton

Eaton Crouse-hinds series Bedienungsanleitung

Eaton

Eaton APS3-330 Series Betriebsanleitung

Eaton

Eaton MTL 9491-PS Bedienungsanleitung

Eaton

Eaton PSG120F24RM Bedienungsanleitung

Eaton

Eaton PSG120E Bedienungsanleitung

Eaton

Eaton Power Xpert Series Bedienungsanleitung

Eaton

Eaton Pulsar Series Bedienungsanleitung

Eaton

Eaton SPS-24V-1A5/BNS Bedienungsanleitung

Eaton

Eaton MTL 9493-PS Series Bedienungsanleitung

Eaton

Eaton APS6-600 Series Betriebsanleitung

Eaton

Eaton 9PX8KSP Bedienungsanleitung

Eaton

Eaton Power Xpert 9395 UPS Bedienungsanleitung

Eaton

Eaton Crouse-hinds series Bedienungsanleitung

Eaton

Eaton DV2-C16-3 Series Betriebsanleitung

Eaton

Eaton Crouse-hinds series Bedienungsanleitung

Eaton

Eaton easyPower EASY POW Series Handbuch

Eaton

Eaton ELC-PS01 Bedienungsanleitung

Eaton

Eaton Z-FW-LPS Handbuch

Eaton

Eaton EASY POW Series Handbuch

Beliebte Stromversorgung Handbücher anderer Marken

Monacor

Monacor PS-12CCD Bedienungsanleitung

VOLTIMA

VOLTIMA MagicBox 15 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6032A Bedienungsanleitung

Miller

Miller Auto Deltaweld 452 Bedienungsanleitung

BCP

BCP PUOUBK Merkblatt

HC 2210 Bedienungsanleitung

Puls

Puls CT5.241 Bedienungsanleitung

OCZ

OCZ ZX1250W Bedienungsanleitung

iseg

iseg ECH 238 Bedienungsanleitung

Power

Power XXL A Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6631B Bedienungsanleitung

Renogy

Renogy PHOENIX 300 Bedienungsanleitung

HP 6200B Service-Handbuch

Epson

Epson Stylus Scan 2500 Betriebsanleitung

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Bedienungsanleitung

Puls

Puls MiniLine ML50.100 Bedienungsanleitung

Puls

Puls AS-Interface SLA4.100 Bedienungsanleitung

Kenwood

Kenwood PS-60 Bedienungsanleitung
