DESCRIPTION

The VRM12 is engineered for superior performance as a oor

monitor and as a stand-mounted portable PA speaker.

The low-prole, dual-angle enclosure houses a 12-inch coaxial

driver that cuts through stage volume with high output capability.

Coherent point source reproduction helps deliver crisp speech for

meetings and presentations, while the 12-inch LF driver delivers full

range musical sound.

The cross-ply laminated birch enclosure includes loop-thru Neutrik

NL4 Speakon jacks on either side to minimize cable runs and clutter

on stage. Rubber feet stabilize the enclosure on the oor. A pole

mount cup and integral handle are included for

stand-mounting and transport.

The VRM12 is available in either black or white nish. A foam-

backed powder-coated steel grill protects the driver. The entire

loudspeaker is fully tested at the time of manufacture and is

warranted to be free from defects in materials and workmanship for

a period of ve years from the date of purchase.

VRM12

TWO-WAY COAX MONITOR/PA LOUDSPEAKER

• Coaxial 12-inch/1-inch full range driver

• Wide-angle 90° x 90° (nominal) HF beamwidth

• Enclosure has both 30° and 45° wedge angles

• Pole mount cup allows use as portable PA

• Integral passive crossover network allows economical

single-amplier powering

Features

• Houses of Worship • TV studios

• Theaters • Audiovisual

• Presentation • Performing Arts

• Portable PA • Classrooms

Applications

Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404

TEL outside US 425.892.6503 | FAX 425.485.1152 | Page 1 of 4

VRM12 DIMENSIONS

Part No. 0012698 Rev. F 05/07

VRM12

TWO-WAY COAX MONITOR/PA LOUDSPEAKER

Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404

TEL outside US 425.892.6503 | FAX 425.485.1152 | Page 2 of 4

SPECIFICATIONS

PRODUCT DATA

Model Name VRM12

Part Number Black: 0010102 White: 0011351

File creation date 7/29/2004

SPECIFICATION SHEET TABULAR DATA

Descriptive Data

Ways Type Mode

2-way Full-Range Single Amp

CONFIGURATION

SubsystemTransducer Loading

LF 1x12 in cone — Sealed

HF 1x1 in exit compression driver — Horn-loaded

PERFORMANCE

Operating Range 73 Hz to 20000 Hz

Nominal Beamwidth

Horizontal 90°

Vertical 90°

Axial Sensitivity (whole space SPL)

94 dB 73 Hz to 20000 Hz

Peak Sensitivity (whole space SPL)

97 dB 20 Hz to 20 kHz

Input Impedance (ohms) Nominal Minimum

8 6.6 @ 200 Hz

Recommended High-Pass Filter

High Pass => 60 Hz, 24 dB/octave Butterworth

Power Handling

300 W 49 V @ 8 ohms

Calculated Maximum SPL

Average Peak

119 dB 125 dB

VRM12 FREQUENCY RESPONSE ON-AXIS

120

110

100

360

100

10 100 1000 20000

100 1000 20000

dB SPL

Degrees

Frequency (Hz)

Ohms

Horizontal

Vertical

VRM12 BEAMWIDTH VS. FREQUENCY

120

110

100

360

100

10 100 1000 20000

100 1000 20000

dB SPL

Degrees

Frequency (Hz)

Ohms

Horizontal

Vertical

VRM12 IMPEDANCE VS. FREQUENCY

120

110

100

360

100

10 100 1000 20000

100 1000 20000

dB SPL

Degrees

Frequency (Hz)

Ohms

Horizontal

Vertical

Part No. 0012698 Rev. F 05/07

VRM12

TWO-WAY COAX MONITOR/PA LOUDSPEAKER

Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404

TEL outside US 425.892.6503 | FAX 425.485.1152 | Page 3 of 4

VRM12 VERTICAL POLARS

Part No. 0012698 Rev. F 05/07

VRM12

TWO-WAY COAX MONITOR/PA LOUDSPEAKER

Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404

TEL outside US 425.892.6503 | FAX 425.485.1152 | Page 4 of 4

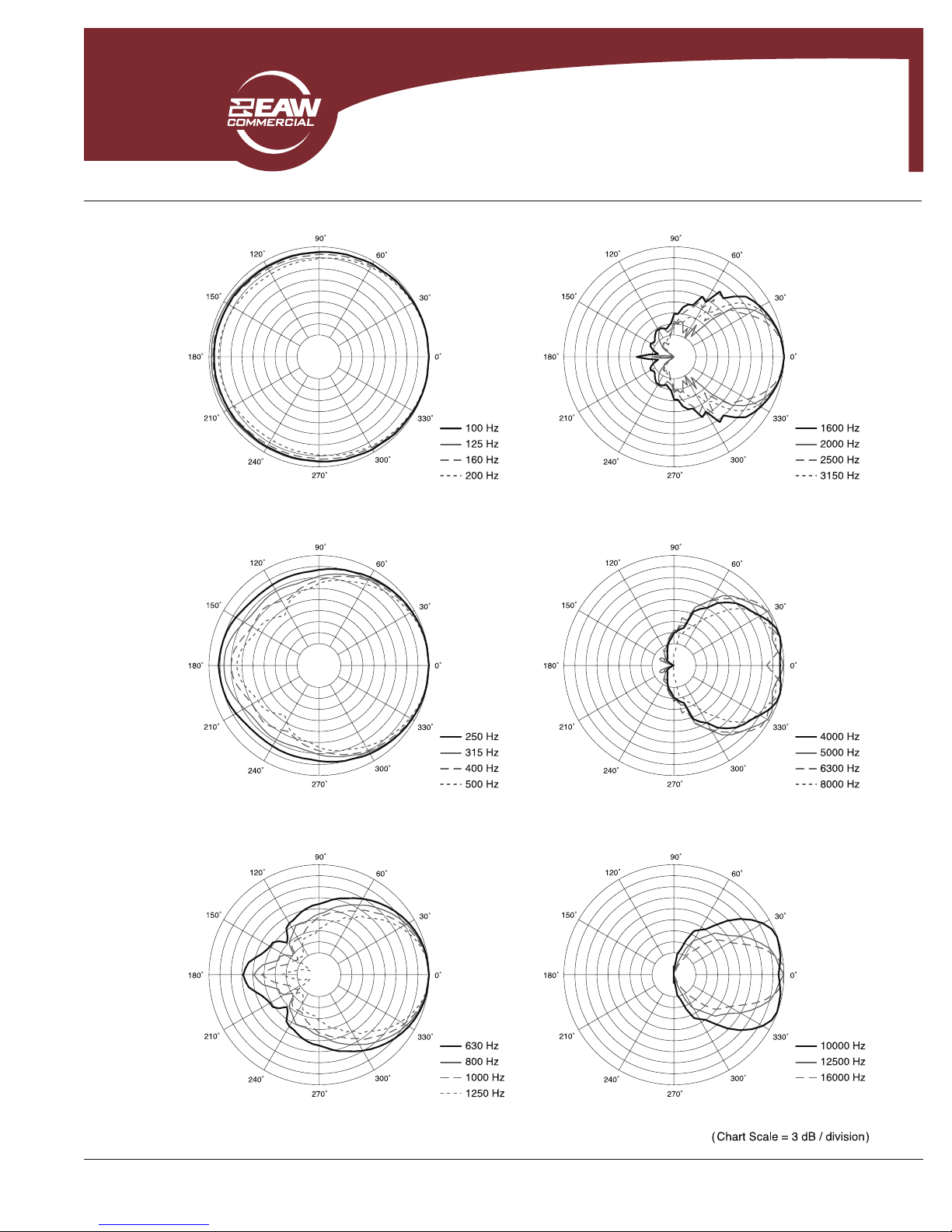

VRM12 HORIZONTAL POLARS
