1. Overview

1.1 Brief introduction

E19-868M20S is a small-sized 868MHz LoRaTM SMD wireless

module, based on the original imported RF chip SX1276 from SEMTECH.

Due to the use of the imported SX1276 as the core of the module, with

its stable and reliable characteristics, it is favored by the majority of users.

Compared with the FSK、GFSK products, it has made great progress in

receiving current, receiving sensitivity, transmitting power, receiving rate

range and anti-interference ability. The module is aimed at smart home,

wireless meter reading, scientific research and medical, and medium and

long distance wireless communication equipment. Since RF performance

and component selection are in accordance with industrial standards, and the

product has obtained FCC, CE, RoHS and other international authoritative certification reports, users do not need to worry

about its performance. High precision 32MHz crystal is used.

Since the module is a pure RF transceiver module, you need to use the MCU driver or a dedicated SPI debug tool.

1.2 Features

Communication distance tested is up to 5km

Maximum transmission power of 100mW, software multi-level adjustable；

Support the global license-free ISM 868MH band；

Support air date rate of 0.018kbps~37.5kbp in LoRaTM；

The maximu m data transmission rate 300kpbs in FSK mode；

Support multiple modulation methods, LoRaTM/FSK/GFSK/MSK/GMSK/OOK；

Large capacity FIFO, supports 256Byte data buffer；

Support 2.5V~3.6V power supply, power supply over 3.3V can guarantee the best performance；

Industrial grade standard design, support -40 ~ 85 °C for working over a long time；

Stamp hole, good for secondary development and integration.

1.3 Application

Home security alarm and remote keyless entry；

Smart home and industrial sensors；

Wireless alarm security system；

Building automation solutions ；

Wireless industrial-grade remote control；

Health care products；

Advanced Meter Reading Architecture(AMI)；

Automotive industry applications.

Chengdu Ebyte Electronic Technology Co., Ltd. E19 -868M20S User Manual

2.Specification and parameter

2.1 Limit parameter

Main parameter

Performance

Remark

Min.

Max.

Power supply（V）

3.6

Voltage over 3.6V will cause permanent damage to module

Blocking power（dBm）

Chances of burn is slim when modules are used in short distance

Operatingtemperature（℃）

-40

2.2 Operating parameter

Main parameter

Performance

Remark

Min.

Typ.

Max.

Operatingvoltage（V）

1.8

3.3

3.6

≥3.3V ensures output power

Communication level（V）

3.3

For 5V TTL,it may be at risk of burning down

Operatingtemperature（℃）

-40

Industrial design

Operatingfrequency（MHz）

862

868

893

Support ISM band

Power

consumpti

TX current（mA）

630

Instant powerconsumption

RX current（mA）

Sleep current （μA）

1.0

Software is shut down

MaxTx power（dBm）

Receiving sensitivity（dBm）

-145

-147

-148

Sensitivity test conditions：

air data rate: 0.3 kbps, Coding rate4/5, Spread Spectrum

Factor 12.

Air data rate（bps）

1.2

300

Kbps

FSK

0.018

37.5

Kbps

LoraTM

Main parameter

Description

Remark

Distance for reference

5000m

Test condition：clear and open area, antenna gain: 5dBi，antenna

height: 2.5m，air data rate: 0.3kbps

FIFO

256Byte

Maxlength transmittedeach time

Crystalfrequency

32MHz

Modulation

LoRaTM (recommended)

FSK/GFSK/MSK/GM SK/OOK

Package

SMD

Connector

1.27mm

Communication interface

SPI

0-10Mbps

Size

17.6*25.2 mm

Antenna

Stamp hole

50 ohm impedance

Chengdu Ebyte Electronic Technology Co., Ltd. E19 -868M20S User Manual

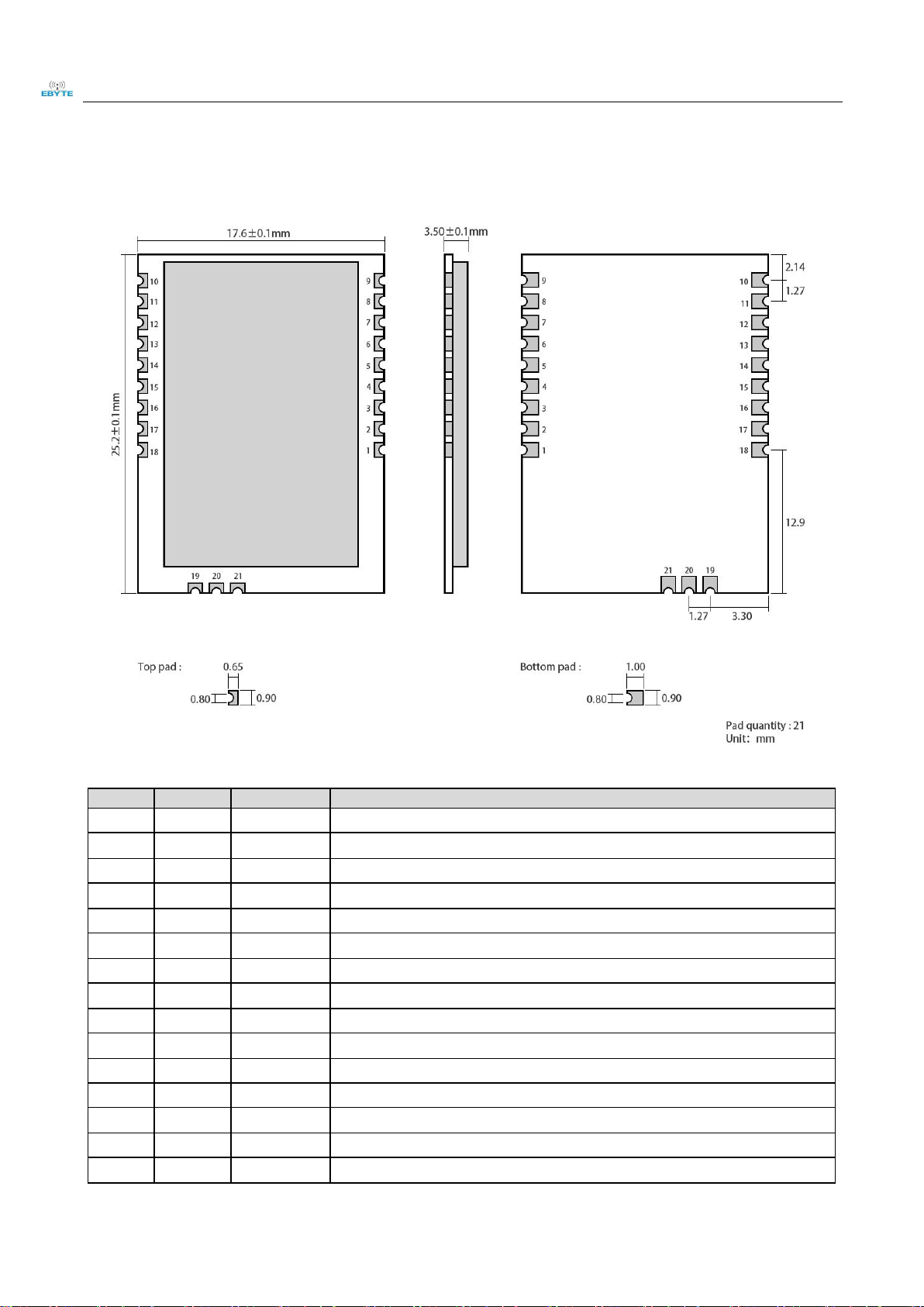

3.Size and pin definition

Pin No

Pin item

Pin direction

Pin application

GND

Input

Ground electrode, connected to the power reference ground

DIO5

Input/Output

Configurable IO port（Please find more on SX1278 datasheet）

DIO4

Input/Output

Configurable IO port（Please find more on SX1278 datasheet）

DIO3

Input/Output

Configurable IO port（Please find more on SX1278 datasheet）

DIO2

Input/Output

Configurable IO port（Please find more on SX1278 datasheet）

DIO1

Input/Output

Configurable IO port（Please find more on SX1278 datasheet）

DIO0

Input/Output

Configurable IO port（Please find more on SX1278 datasheet）

RST

Input

Reset

Not connect

GND

Input

Ground electrode, connected to the power reference ground

VCC

Input

Power supply: 1.8~3.6V (3.3V Ceramic filter capacitor is advised to add)

SCK

Input

SPI clock

MISO

Output

SPI clock

MOSI

Input

SPI clock

NSS

Input

Chip select

Chengdu Ebyte Electronic Technology Co., Ltd. E19 -868M20S User Manual

TXEN

Input

Radio frequency switch control, make sure the TXEN pin is in high level, RXEN pin is

in low level when transmitting.

RXEN

Input

Radio frequency switch control, make sure the TXEN pin is in high level, RXEN pin is

in low level when transmitting

GND

Ground electrode, connected to the power reference ground

GND

Ground electrode, connected to the power reference ground

ANT

Output

Antenna

GND

Ground electrode, connected to the power reference ground

4. Basic operation

4.1Hardware design

It is recommended to use a DC stabilized power supply. The power supply ripple factor is as small as possible, and

the module needs to be reliably grounded.；

Please pay attention to the correct connection of the positive and negative poles of the power supply. Reverse

connection may cause permanent damage to the module；

Please check the power supply to ensure it is within the recommended voltage otherwise when it exceeds the

maximu m value the module will be permanently damaged；

Please check the stability of the power supply, the voltage can not be fluctuated frequently；

When designing the power supply circuit for the module, it is often recommended to reserve more than 30% of the

margin, so the whole machine is beneficial for long-term stable operation.；

The module should be as far away as possible from the power supply, transformers, high-frequency wiring and other

parts with large electromagnetic interference.；

High-frequency digital routing, high-frequency analog routing, and power routing must be avoided under the module.

If it is necessary to pass through the module, assume that the module is soldered to the Top Layer, and the copper is

spread on the Top Layer of the module contact part(well grounded), it must be close to the digital part of the module

and routed in the Bottom Layer；

Assuming the module is soldered or placed over the Top Layer, it is wrong to randomly route over the Bottom Layer

or other layers, which will affect the module's spurs and receiving sensitivity to varying degrees ；

It is assumed that there are devices with large electromagnetic interference around the module that will greatly affect

the performance. It is recommended to keep them away from the module according to the strength of the interference.

If necessary, appropriate isolation and shielding can be done；

Assume that there are traces with large electromagnetic interference (high -frequency digital, high-frequency analog,

power traces) around the module that will greatly affect the performance of the module. It is recommended to stay

away from the module according to the strength of the interference.If necessary, appropriate isolation and shielding

can be done.

If the communication line uses a 5V level, a 1k-5.1k resistor must be connected in series (not recommended, there is

still a risk of damage)；

Try to stay away from some physical layers such as TTL protocol at 2.4GHz , for example: USB3.0；

Chengdu Ebyte Electronic Technology Co., Ltd. E19 -868M20S User Manual

The mounting structure of antenna has a great influence on the performance of the module. It is necessary to ensure

that the antenna is exposed, preferably vertically upward. When the module is mounted inside the case, use a good

antenna extension cable to extend the antenna to the outside；

The antenna must not be installed inside the metal case, which will cause the transmission distance to be greatly

weakened.

4.2 Software editing

SX1278/SX1276+PA+LNA，same drive way as SX1278/SX1276，user can refer to SX1278/SX1276 datasheet.

DIO0、DIO1、DIO2、DIO3、DIO4、DIO5 are configurable I/O ports for various application，see more in SX1276

datasheet. It can be floated when not used.

RST、TXEN、RXEN must be connected,among which RST control chip reset，TXEN, RXEN are for controlling

RF switch.

Make it ground well with large space for grounding and small power ripple. Filter capacitor is necessary and make

sure it is close to pin VCC and GND.

SPI communication rate should not be set too high, usually around 1Mbps.

In transmitting，set TXEN as high communication level，RXEN pin is low level; In receiving, set RXEN as high

communication level,TXEN is low level; Before powering off, set TXEN、RXEN as low level.

Re-initialize register configuration when the chip is idle for higher stability.

5.Basic application

5.1 Basic circuit diagram

Chengdu Ebyte Electronic Technology Co., Ltd. E19 -868M20S User Manual

6.FAQ

6.1 Communication range is too short

The communication distance will be affected when obstacle exists.

Data lose rate will be affected by temperature, humidity and co-channel interference.

The ground will absorb and reflect wireless radio wave, so the performance will be poor when testing near groun d.

Sea water has great ability in absorbing wireless radio wave, so performance will be poor when testing near the sea.

The signal will be affected when the antenna is near metal object or put in a metal case.

Power register was set incorrectly, air data rate is set as too high (the higher the air data rate, the shorter the

distance).

The power supply low voltage under room temperature is lower than 2.5V, the lower the voltage, the lower the

transmitting power.

Due to antenna quality or poor matching between antenna and module.

6.2 Module is easy to damage

Please check the power supply source, ensure it is 2.0V~3.6V, voltage higher than 3.6V will damage the module.

Please check the stability of power source, the voltage cannot fluctuate too much.

Please make sure antistatic measure are taken when installing and us ing, high frequency devices have electrostatic

susceptibility.

Please ensure the humidity is within limited range, some parts are sensitive to humidity.

Please avoid using modules under too high or too low temperature.

6.3 BER(Bit Error Rate) is high

There are co-channel signal interference nearby, please be away from interference sources or modify frequency and

channel to avoid interference;

Poor power supply may cause messy code. Make sure that the power supply is reliable.

The extension line and feeder quality are poor or too long, so the bit error rate is high;

7.Production guidance

7.1 Reflow soldering temperature

Chengdu Ebyte Electronic Technology Co., Ltd. E19 -868M20S User Manual

Profile Feature

Curve characteristics

Sn-Pb Assembly

Pb-Free Assembly

Solder Paste

Solder paste

Sn63/Pb37

Sn96.5/Ag3/Cu0.5

Preheat Temperature min （Tsmin）

Min preheating temp.

100℃

150℃

Preheat temperature max (Tsmax)

Mx preheating temp.

150℃

200℃

Preheat Time (Tsmin to Tsmax)(ts)

Preheating time

60-120 sec

Average ramp-up rate(Tsmax to Tp)

Average ramp-up rate

3℃/second max

Liquidous Temperature (TL)

Liquid phase temp.

183℃

217℃

Time（tL）Maintained Above（TL）

Time below liquid phaseline

60-90 sec

30-90 sec

Peak temperature（Tp）

Peak temp.

220-235℃

230-250℃

Aveage ramp-down rate（Tp to Tsmax）

Aveage ramp-down rate

6℃/second max

Time 25℃ to peak temperature

Time to peak temperature

for 25℃

max 6 minutes

max 8 minutes

7.2 Reflow soldering curve

Chengdu Ebyte Electronic Technology Co., Ltd. E19 -868M20S User Manual

8. E19 Series

Model No.

Frequency

(Hz)

Tx power

(dBm)

Test distance

Package

Antenna

Model No.

E19-433M20S2

SX1278

433M

SMD

15 * 15

Stamp hole

E19-915M30S

SX1276

915M

SMD

25 * 40

Stamp hole /IPEX

E19-868M30S

SX1276

868M

SMD

25 * 40

Stamp hole /IPEX

E19-868M20S

SX1276

868M

SMD

17.6*25.2

Stamp hole

E19-433M30S

SX1278

433M

SMD

25*37

Stamp hole

E19-915M20S

SX1276

915M

SMD

17.6*25.2

Stamp hole

E19-433M20SC

SX1278

433M

SMD

17.6*25.2

Stamp hole

9. Antenna guidance

9.1 Antenna recommendation

The antenna is an important role in the communication process. A good antenna can largely improve the

communication system. Therefore, we recommend some antennas for wireless modules with excellent performance and

reasonable price.

Model No.

Type

Frequency

Interface

Gain

dBi

Height

Cable

Function feature

TX868-XP-100

Sucker

868M

SMA-J

3.5

29cm

100cm

Sucker antenna, High gain

TX868-JK-20

Rubber

868M

SMA-J

200mm

Flexible &omnidirectional

TX868-JZ-5

Rubber

868M

SMA-J

50mm

Short straight &omnidirectional

Inhaltsverzeichnis

Andere Ebyte Steuereinheit Handbücher

Ebyte

Ebyte E70-433TBL-NW01 Bedienungsanleitung

Ebyte

Ebyte TLSR8253F512 Serias Bedienungsanleitung

Ebyte

Ebyte E30-TTL-100 Bedienungsanleitung

Ebyte

Ebyte E103-W02 Bedienungsanleitung

Ebyte

Ebyte E22-900M30S Bedienungsanleitung

Ebyte

Ebyte E19-915M20S Bedienungsanleitung

Ebyte

Ebyte E180-Z5812SP Bedienungsanleitung

Ebyte

Ebyte E18 Series Bedienungsanleitung

Ebyte

Ebyte E840-TTL-4G02E Bedienungsanleitung

Ebyte

Ebyte E73-2G4M08S1E Bedienungsanleitung

Ebyte

Ebyte E108-GN02D Bedienungsanleitung

Ebyte

Ebyte E22 Series Bedienungsanleitung

Ebyte

Ebyte E28-2G4T12S Bedienungsanleitung

Ebyte

Ebyte E107-SC01 Series Bedienungsanleitung

Ebyte

Ebyte E104-BT51 Bedienungsanleitung

Ebyte

Ebyte E72-2G4M20S1C Bedienungsanleitung

Ebyte

Ebyte E31-400M17S Bedienungsanleitung

Ebyte

Ebyte E31-433T30S Bedienungsanleitung

Ebyte

Ebyte E51 Series Bedienungsanleitung

Ebyte

Ebyte E73-2G4M08S1EX Bedienungsanleitung

Ebyte

Ebyte E104-BT5032A Bedienungsanleitung

Ebyte

Ebyte E220-400M30S Bedienungsanleitung

Ebyte

Ebyte E22-900M22S Bedienungsanleitung

Ebyte

Ebyte E104-BT06 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
