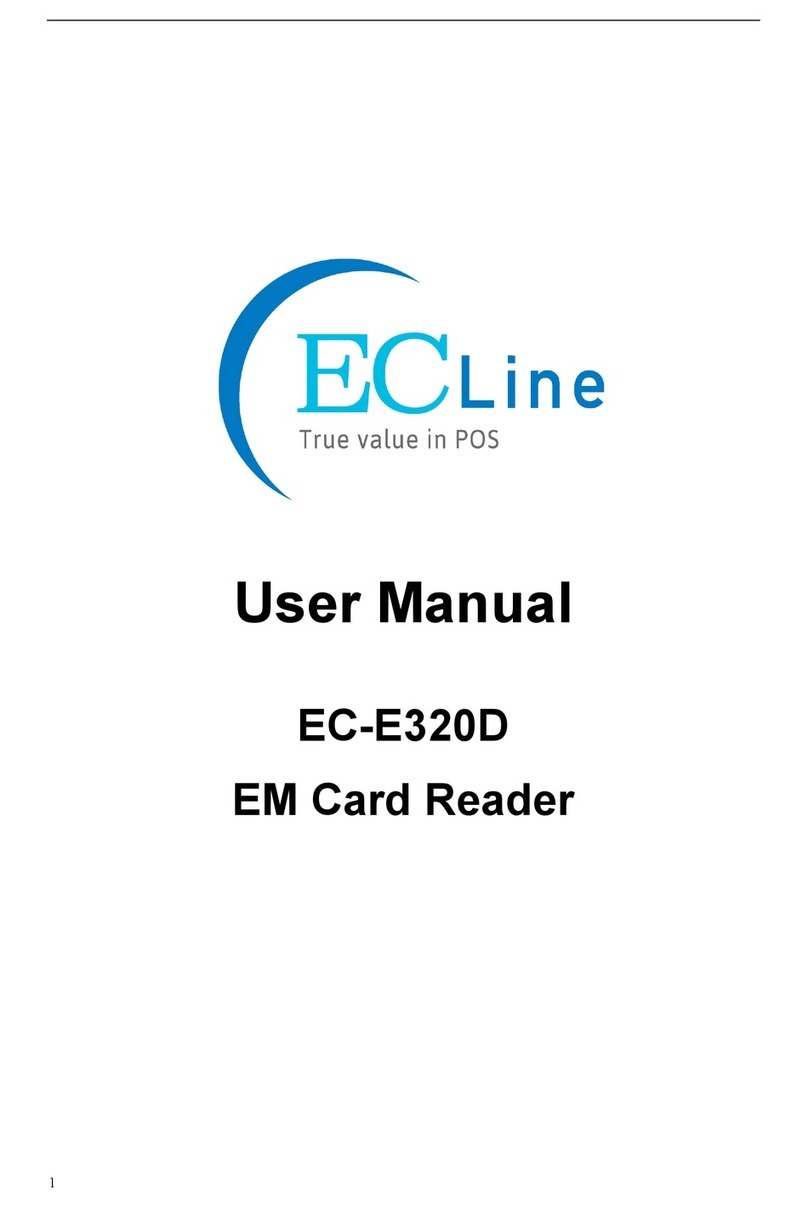

User Manual
EC-E302D
EM Card Reader
2/ 6
Chapter I: Overview
1Introduction：
The EC-E302D is an advanced EM Card Reader. It Reads the EM card
identification number and transmits it to connected access control
software. It has a slim and attractive design and is built for convenience
and portability. With its USB computer interface, it is quick and easy to
install and runs without any additional power source. Designed to sit
safely on any desktop, the EC-E302D is sturdily built, with surface
gripping rubber feet.
1.1 Features
Reads EM Card ID
Support EM4001, EM4100 or its compatible RFID, ID Card.
Read first 10 digits of the RFID / Proximity Card
Bi-Colored LED
Supports USB 2.0 Standard (compatible with USB 1.1), meets the
EIA Standard.
Support Windows 95 / 98 / 2000 / 2003 / XP / Vista / 7
Plug and Play, Driverless Device
3/ 6
Chapter II: Technical Specifications
2.1 Electrical Characteristics:
Operating Voltage Range
5 VDC (USB Powered)
Standby Current
70 mA
Max. Operation Current
90 mA
Supported Transponders
EM Cards
Read Card Distance
5 - 8 cm
Operation Frequency
125 kHz
Communication Speed
106 Kbit/s
2.2 Environmental Characteristics:
Operating Environment
Indoor Use
Operating Temperature Range
-10℃to 70℃
Storage Temperature Range
-20℃to 83℃
Relative Humidity Range
0 to 90% (non-condensing)
2.3 Physical Characteristics:
Weight
140g (with USB Cable)
Dimensions (L x W x H)
105 x 70 x 11.8 (4.2 x 2.8 x 0.5 in.)
4/ 6
Chapter III: Product Illustrations
3.1 The Card Reader Interface
Interface
Mini USB
5/ 6
Chapter IV: Installation Instruction
4.1 Connect USB Cable with Card Reader and Computer
Mini USB port connect to the card reader and the USB port connect to
the computer.
4.2 Card Reader Successful Connection
After the ‘drip’ sound and the LED light flash, if card reader connects
successful.
4.3 Plug and Play (Driverless) on Windows OS
The card reader was self–test successful when the LED light flash. The
device without install any driver, windows will automatically recognize it.
4.4 Finish Installation
Open MS Excel or World, the card number would be input by self.
