ECO MODE CONFIGURATION INSTRUCTION
ECO Mode Configuration
This hob can be connected to a 13,16 or 32Amp supply and configured to work on any of
these power settings.
Before configure the ECO mode, Read the Installation Manual especially the “Safety
Warnings” section.
The induction hob must be connected to the mains supply only by a suitably
1. Remove the screw and lift the top cover up.
To change the cable before configuring ECO Mode
IMPORTANT: PART FOR QUALIFIED INSTALLERS ONLY.
The hob is preset to be connected to a 13Amp supply, all four zones are selected at the same
time the hob will limit the maximum power consumed so that the 2.8kW power supply cannot
be exceeded. In a similar way, when the hob is connected and configured to a 16/32Amp
supply, the hob will limit the maximum power at 3.5/7.0kW.
Ensure the hob is completely disconnected from the electrical supply!
2. Replace the preset 13Amp cable with the 32A cable supplied. (Refer to “Connecting
the hobto the mains power supply” in Installation Manual.)
qualified electrician.
When selecting a power supply greater than 2.8kW the factory fitted cable must be
replaced with the 32Amp bablc supplied.
WARNING:If the hob is configured to work at 3.5 /7.0kW mode and the pre-assembled
13Amp cable & plug is not replaced the power consumption will exceed 2.8kW and will blow
the fuse. This may damage the hob & cause other issues.

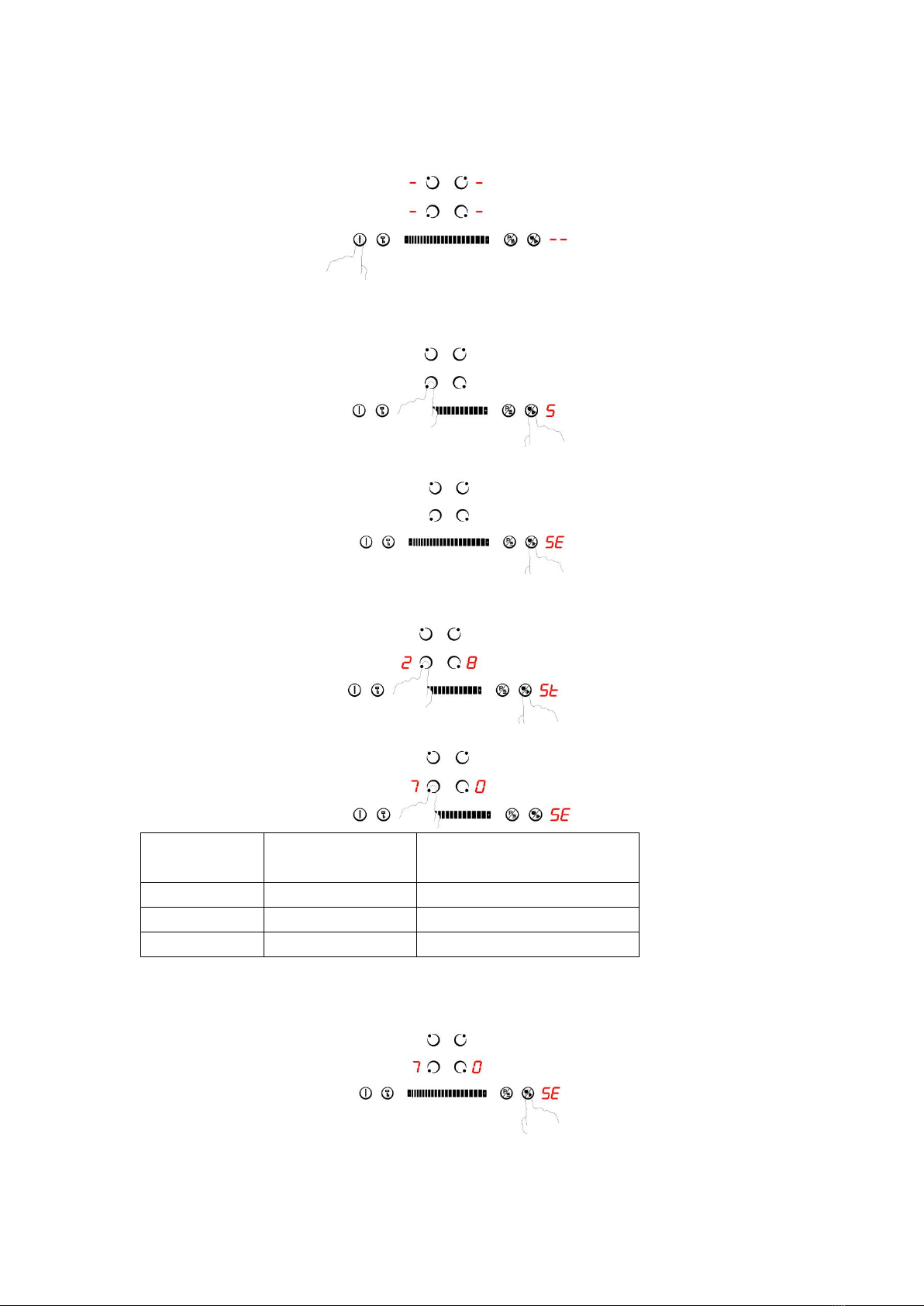

To configure the hob into ECO Mode
1.Touch ON/OFF key to switch on the power supply. The buzzer beeps once, all displays
show “– “and “– – “.
2.Touch front left zone key and timer key simultaneously for 3 seconds. The buzzer beeps
indicating that the induction hob enters selection of ECO Mode.At the same time,the timer
indicator will display“5”
3.Touch timer key, then timer indicator will display“5E”.
4.Touch front left zone key and timer key simultaneously.The cooking zone A and D
indicator will display the current total power.
5.Touch front left zone key to switch the total power.
The display zone
ECO power level
Power supply (Fuse protection
required)
28
2.8kW
13Amp (BS plug available)*
35
3.5kW
16Amp
70
7.0kW
32Amp
* On first use the power setting is factory set to 2.8kW.
6.Touch the timer key to complete the setting.
