Preface

This publication, including all photographs, illustrations and software, is protected un-

of the material contained herein, may be reproduced without written consent of the au-

thor.

Version 2.0

Disclaimer

The information in this document is subject to change without notice. The manufac-

turer makes no representations or warranties with respect to the contents hereof and

specifically disclaims any implied warranties of merchantability or fitness for any par-

ticular purpose. The manufacturer reserves the right to revise this publication and to

make changes from time to time in the content hereof without obligation of the manu-

facturer to notify any person of such revision or changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel

Corporation.

Other product names used in this manual are the properties of their respective owners

and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digi-

tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not in-

stalled and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not oc-

cur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

− Reorient or relocate the receiving antenna.

− Increase the separation between the equipment and the receiver.

− Connect the equipment onto an outlet on a circuit different from that to which

the receiver is connected.

− Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and a shielded AC power cable must be employed with

this equipment to ensure compliance with the pertinent RF emission limits governing

this device. Changes or modifications not expressly approved by the system's manu-

facturer could void the user's authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the follow-

ing conditions:

− This device may not cause harmful interference, and

− This device must accept any interference received, including interference

that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-

causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement

sur le matériel brouilieur du Canada.

About the Manual

The manual consists of the following:

Chapter 1

Introducing the Motherboard

Describes features of the motherboard,

and provides a shipping checklist.

Go to ⇒page 1

Chapter 2

Installing the Motherboard

Describes installation of motherboard

components.

Go to ⇒page 7

Chapter 3

Using BIOS

Provides information on using the BIOS

Setup Utility.

Go to ⇒page 28

Chapter 4

Using the Motherboard Software

Describes the motherboard software.

Go to ⇒page 53

Preface i

CHAPTER 1 1

Introducing the Motherboard 1

Introduction.................................................................................................1

Checklist.....................................................................................................1

Standard Items................................................................................................. 1

Features .....................................................................................................2

Choosing a Computer Case .......................................................................4

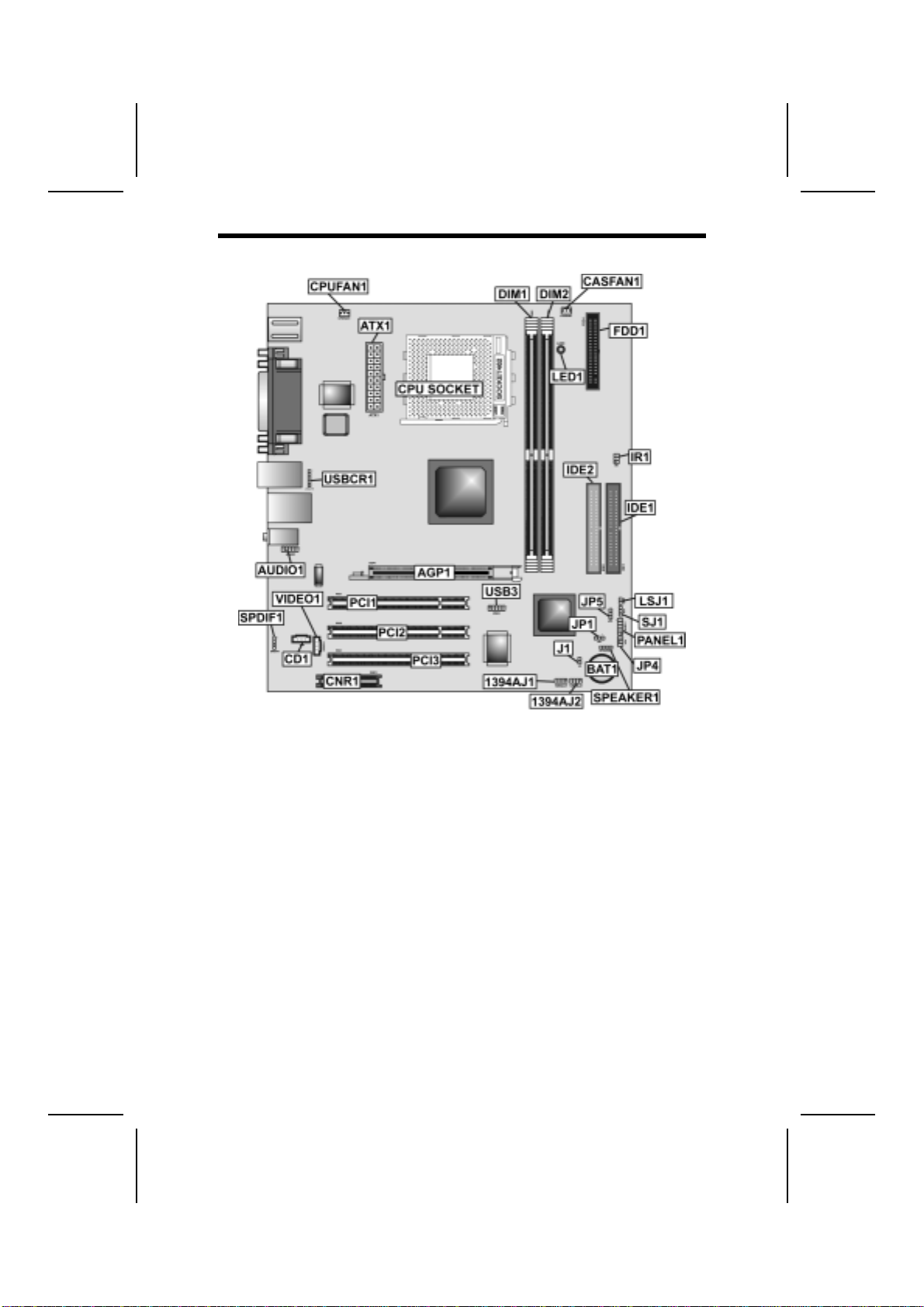

Motherboard Components..........................................................................5

CHAPTER 2 7

Installing the Motherboard 7

Safety Precautions......................................................................................7

Quick Guide................................................................................................7

Installing the Motherboard in a Case..........................................................8

Checking Jumper Settings..........................................................................8

Setting Jumpers ............................................................................................... 8

Checking Jumper Settings............................................................................... 9

Jumper Settings ............................................................................................... 9

Connecting Case Components....................................................................... 10

Front Panel Connector................................................................................... 12

Installing Hardware...................................................................................13

Installing the Processor.................................................................................. 13

Installing Memory Modules .......................................................................... 16

Installing a Hard Disk Drive/CD-ROM......................................................... 17

Installing a Floppy Diskette Drive................................................................. 19

Installing Add-on Cards................................................................................. 20

Connecting Optional Devices........................................................................ 22

Connecting I/O Devices............................................................................26

External Connector Color Coding ................................................................. 27

CHAPTER 3 28

Using BIOS 28

About the Setup Utility..............................................................................28

The Standard Configuration .......................................................................... 28

Entering the Setup Utility.............................................................................. 29

Updating the BIOS........................................................................................ 29

Using BIOS...............................................................................................30

Standard CMOS Feature................................................................................ 31

Advanced BIOS Features .............................................................................. 33

Advanced Chipset Features........................................................................... 35

Integrated Peripherals.................................................................................... 39

iii

Power Management Setup............................................................................. 43

PNP/PCI Configurations................................................................................ 48

PC Health Status............................................................................................ 49

Frequency/Voltage Control............................................................................ 50

Load Fail-Safe Defaults................................................................................. 51

Load Optimized Defaults............................................................................... 51

Set Supervisor/User Password....................................................................... 51

Save & Exit Setup ......................................................................................... 52

Exit Without Saving ...................................................................................... 52

CHAPTER 4 53

Using the Motherboard Software 53

About the Software CD-ROM ...................................................................53

Auto-installing under Windows 98/ME/2000/XP .......................................53

Running Setup............................................................................................... 54

Manual Installation....................................................................................56

Utility Software Reference ........................................................................56

Introducing the Motherboard

Thank you for choosing the L7VMM2 motherboard. The L7VMM2 is designed

to fit the advanced AMD Athlon processors in the 462-pin package. Based on

the micro-ATX form factor featuring the VIA KM266: VT8375 Northbridge and

VT8235 Southbridge chipsets. This motherboard provides the standard

100/133MHz front side bus with extra capability.

Taking advantage of the highly integrated chipsets, the VT8375 Northbridge

provides superior performance between the CPU, DRAM, V-Link bus and in-

ternal AGP 4x graphics controller. It also incorporates the S3 Graphics’ 128-bit

ProSavage8™ graphics accelerator to bring mainstream graphics perform-

ance to the Value PC with leading-edge 2D, 3D and DVD video acceleration.

The VT8235 Southbridge supports standard intelligent peripheral controllers

such as USB v2.0/1.1 and Universal HCI v2.0/1.1 compliant, real time clock

with 256 byte extended CMOS, integrated bus-mastering dual full-duplex di-

rect-sound AC97 link compatible sound system and full System Management

Bus (SMBus) interface.

The L7VMM2 is equipped with advanced full set of I/O ports, such as dual

channel IDE interfaces, a floppy controller, a high-speed serial port, a VGA

port, an EPP/ECP capable bi-directional parallel port connector, four USB

(Universal Serial Bus) connector, a PS/2 keyboard, mouse and 1394a (optional)

connectors. One AGP slot, three PCI local bus slots and one communication

and networking riser (CNR) slot provide expandability for add-on peripheral

cards.

Compare the motherboard’s package contents with the following checklist:

Standard Items

• One motherboard

• One diskette drive ribbon cable

• One IDE drive ribbon cable

• One auto-install software support CD

• One I/O shield

• This user’s manual

Processor The motherboard uses an AMD 462-pin Socket A that has the

following features:

• Supports 100/133 MHz frontside bus (FSB)

• Accommodates AMD Athlon Duron, Athlon, and Athlon XP

processors.

Chipset The chipset on L7VMM2 includes the VT8375 Northbridge and

VT8235 Southbridge which are based on an innovative and scal-

able architecture with proven reliability and performance. A few of

the chipset’s advanced features are:

• Integrated VIA Apollo KM266 and S3 Graphics’ ProSav-

age8TM 128-bit 2D/3D graphics controller with equivalent

4x AGP performance in a single chip

• Built-in Phase Lock Loop circuitry for optimal skew control

within and between clocking regions

• Supports 66MHz V-Link Host interface with peak band-

width of 266MB/sec

• AGP specification v2.0 compliant

• Inter-operable with VIA Host to Vlink Host Controller

• Integrated Fast Ethernet Controller with 1/10/100 Mbit

capability

• PCI to system memory data streaming up to 132 Mb/sec

(data sent to north bridge via high speed V-Link Interface)

• Transfer rate up to 133MB/sec to cover PIO mode 4,

multi-word DMA mode 2 drivers, and UltraDMA-33 inter-

face

• USB v2.0 and Enhanced Host Controller Interface (EHCI)

v1.0 compatible

Additional features include support for six USB ports, an AC 97

link for audio and modem, hardware monitoring, and

ACPI/OnNow power management.

Memory • Supports DDR up to 200/266MHz DDR SDRAM memory

module

• Accommodates two unbuffered 2.5V 184-pin slots

• Each slot supports up to 1 GB with a total maximum ca-

pacity of 2 GB

VGA The L7VMM2 includes an AGP slot that provides four times

the bandwidth of the original AGP specification. AGP technol-

ogy provides a direct connection between the graphics sub-

system and the processor so that the graphics do not have to

compete for processor time with other devices on the PCI bus.

AC’ 97 Audio

Codec The AC’ 97 Audio codec is compliant with the AC’ 97 2.2

specification, and supports 18-bit ADC (Analog Digital Con-

verter) and DAC (Digital Analog Converter) resolution as well

as 18-bit stereo full-duplex codec with independent and vari-

able sampling rates. Further features include support for four

analog line-level stereo inputs.

Expansion

Options L7VMM2 has three 32-bit PCI slots, an AGP slot and CNR

(Communications and Networking Riser) slot.

The L7VMM2 supports Ultra DMA bus mastering with transfer

rates of 33/66/100/133 MB/sec.

Onboard LAN

The Realtek’s RTL8201BL is a Fast Ethernet Phyceiver with

MII interface to MAC chip. It provides the following features:

• Support MII interface

• Support 10/100Mbps operation

• Support half/full duplex operation

• 3.3V operation with 5V signal

• Low operation power consumption

1394a (optional) • VT6306 PCI 1394a integrated host controller

• Compliant with 1394 open HCI specifications v1.0 and

v1.1

• Supports provisions of IEEE 1394-1995 standard for high

performance serial bus and the P1394a supplement 4.0

• 32 bit CRC generator and checker for receive and trans-

mit data

• Compliant with PCI specification v2.2

• High-performance bus mastering support

• Provides three 1394a fully compliant cable ports at

100/200/400 Mbit per second

Integrated I/O The motherboard has a full set of I/O ports and connectors:

• Two PS/2 ports for mouse and keyboard

• One serial port

• One VGA port

• One parallel port

• Four USB ports

• One LAN port (optional)

• One 1394a port (optional)

• Audio jacks for microphone, line-in and line-out

BIOS

Firmware This motherboard uses Award BIOS that enables users to

configure many system features including the following:

• Power management

• Wake-up alarms

• CPU parameters

• CPU and memory timing

The firmware can also be used to set parameters for different

processor clock speeds.

Some hardware specifications and software items are subject to change

without prior notice.

There are many types of computer cases on the market. The motherboard

complies with the specifications for the Micro ATX system case. Some fea-

tures on the motherboard are implemented by cabling connectors on the

motherboard to indicators and switches on the system case. Ensure that your

case supports all the features required. The motherboard can support one or

two floppy diskette drives and four enhanced IDE drives. Ensure that your

case has sufficient power and space for all the drives that you intend to install.

Most cases have a choice of I/O templates in the rear panel. Make sure that

the I/O template in the case matches the I/O ports installed on the rear edge

of the motherboard.

This motherboard has a Micro ATX form factor of 244 mm x 230 mm. Choose

a case that accommodates this form factor.

Table of Motherboard Components

Label Component

1394AJ1/1394AJ2* IEEE 1394A header

AGP1 Accelerated Graphics Port

ATX1 Standard 20-pin ATX power connector

AUDIO1 Front audio connector

BAT1 Three volt realtime clock battery

CASFAN1 Case fan connector

CD1 Primary CD-in connector

CNR1 Communications Networking Riser slot

CPU SOCKET Socket A for AMD Athlon/Duron CPUs

CPUFAN1 Cooling fan for CPU

DIM1 ~ DIM2 Two 184-pin DDR SDRAM

FDD1 Floppy disk drive connector

IDE 1 Primary IDE channel

IDE 2 Secondary IDE channel

IR1 Infrared port

J1* System Management Interrupt

JP1 Clear CMOS jumper

JP4* Serial IRQ header

JP5 CPU Frequency jumper

LED11Memory module LED

LSJ1* Single color LED header (for OEM customers only)

PANEL1 Connector for case front panel switches and LED indicators

PCI1 ~ PCI3 Three 32-bit add-on card slots

SJ1 Single color LED header

SPEAKER1 Speaker connector

SPDIF1 SPDIF out header

USB3 Connector for front panel USB ports

USBCR1* USB Card Reader header

VIDEO1* Video In header

*Optional component

This concludes Chapter 1. The next chapter explains how to install the moth-

erboard.

1The red indicator LED1 turns on if your system is still powered, at which

time memory modules cannot be installed or uninstalled.

Inhaltsverzeichnis

Andere ECS Hauptplatine Handbücher

ECS

ECS Motherboard Bedienungsanleitung

ECS

ECS A31G Series Bedienungsanleitung

ECS

ECS P6VEMT Bedienungsanleitung

ECS

ECS B75H2-M3 Bedienungsanleitung

ECS

ECS K7S5A Bedienungsanleitung

ECS

ECS H61H2-M7 Bedienungsanleitung

ECS

ECS P965T-A Bedienungsanleitung

ECS

ECS Elitegroup P4M8OOPRO Bedienungsanleitung

ECS

ECS 945GZT-M Bedienungsanleitung

ECS

ECS GS7610 Bedienungsanleitung

ECS

ECS Z270-LIGHTSABER Bedienungsanleitung

ECS

ECS A75F-M Bedienungsanleitung

ECS

ECS TIGD2-I Bedienungsanleitung

ECS

ECS Z77H2-A4 Bedienungsanleitung

ECS

ECS A960M-M2 Bedienungsanleitung

ECS

ECS 760GX-M Bedienungsanleitung

ECS

ECS GF7100PVT-M3 Bedienungsanleitung

ECS

ECS H61H2-M16 Bedienungsanleitung

ECS

ECS 945GCD-CI Bedienungsanleitung

ECS

ECS G41T-M13 Bedienungsanleitung

ECS

ECS P41G Series Bedienungsanleitung

ECS

ECS IC55H-A Bedienungsanleitung

ECS

ECS H61H2-M17 Bedienungsanleitung

ECS

ECS 661GX/800-M7 (V3.0) Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
