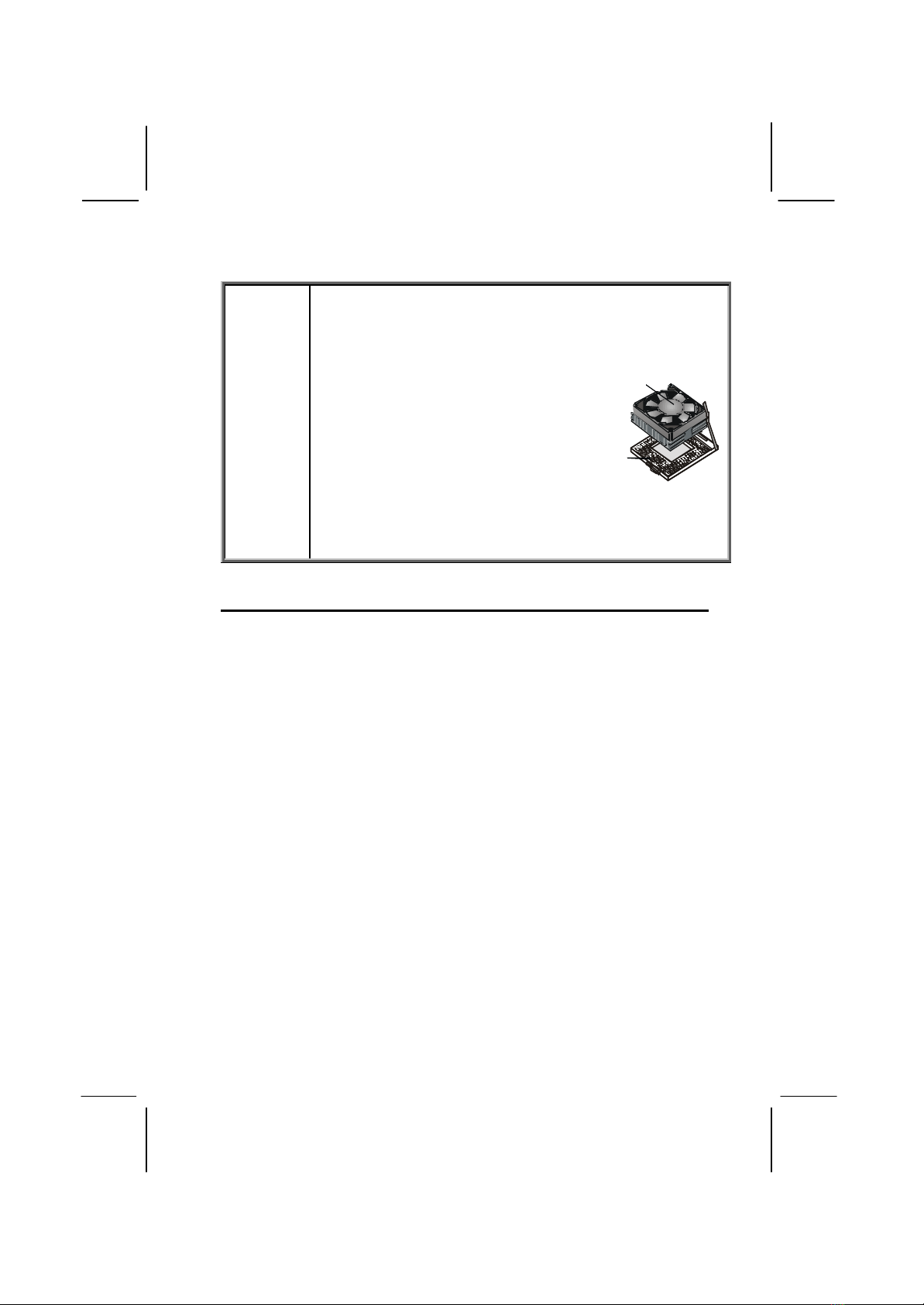

Caution! When installing a CPU heatsink and

cooling fan make sure that you DO NOT

scratch the motherboard or any of the

surface-mount resistors with the clip of

the cooling fan. If the clip of the cooling

fan scrapes across the mainboard, you

may cause serious damage to both the

mainboard and the processor.

On most mainboards, there are small

surface-mount resistors near the proces-

sor socket, which may be damaged if the

cooling fan is carelessly installed.

Avoid using cooling fans with sharp

edges on the fan casing and the clips.

Also, install the cooling fan in a well-lit

work area so that you can clearly see the

mainboard and processor socket.

Cooling fan and

heat sink

CPU socket

Important Information

This publication, including all photographs, illustrations and

software, is protected under international copyright laws, with all

rights reserved. Neither this manual, nor any of the material con-

tained herein, may be reproduced without the express written

consent of the manufacturer.

Version 1.0

Disclaimer

The information in this document is subject to change without

notice. The manufacturer makes no representations or warran-

ties with respect to the contents hereof and specifically disclaims

any implied warranties of merchantability or fitness for any par-

ticular purpose. Further, the manufacturer reserves the right to

revise this publication and to make changes from time to time in

the content hereof without obligation of the manufacturer to no-

tify any person of such revision or changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of

Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered

trademarks of Intel Corporation.

Other product names used in this manual are the properties of

their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the lim-

its for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency en-

ergy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communica-

tions. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is en-

couraged to try to correct the interference by one or more of the

following measures:

qReorient or relocate the receiving antenna.

qIncrease the separation between the equipment and the

receiver.

qConnect the equipment onto an outlet on a circuit differ-

ent from that to which the receiver is connected.

qConsult the dealer or an experienced radio/TV technician

for help.

Shielded interconnect cables and a shielded AC power cable

must be employed with this equipment to ensure compliance

with the pertinent RF emission limits governing this device.

Changes or modifications not expressly approved by the sys-

tem’s manufacturer could void the user’s authority to operate the

equipment.

iii

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is

subject to the following conditions:

qThis device may not cause harmful interference, and

qThis device must accept any interference received, in-

cluding interference that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Ca-

nadian Interference-causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exi-

gences du Réglement sur le matériel brouilieur du Canada.

About the Manual

The manual consists of the following chapters:

Introduction

Use the Introduction Chapter to learn about the features of the

mainboard, and verify the checklist of items that are shipped

with the package.

Installation

Use the Installation Chapter to learn how to install the main-

board and get your system up and running.

Setup

Use the Setup Chapter to configure the mainboard for optimum

performance.

Software

Use the Software Chapter to learn how to install the software

drivers and support programs that are provided with this main-

board.

Contents

Important Information i

Disclaimer i

Trademark Recognition ii

Federal Communications Commission(FCC) ii

Declaration of Conformity iii

Canadian Department of Communications iii

About the Manual iv

CHAPTER 1: INTRODUCTION 1

Welcome 1

Checklist 2

Recommendations 3

Features 4

CHAPTER 2: INSTALLATION 7

Quick Installation Table 7

Before You Begin 8

Static Electricity 8

Choosing a Case 9

Preparing the Mainboard 10

Mainboard Guide 10

I/O Ports Side View 12

How to Set Jumpers 13

Check the Jumper Settings 14

Installing the Mainboard in a Case 18

Connecting Internal Components 19

Installing Other Hardware 21

Installing the Processor 21

Install the Memory Modules 23

Installing a Hard Disk Drive and CD-ROM 25

Installing a Floppy Diskette Drive 28

Using the Expansion Slots 29

Other Options 31

Making External Connections 33

External Connector Color Coding 34

CHAPTER 3: SETUP 35

About the Setup Utility 35

Entering the Setup Utility 36

BIOS Navigation Keys 37

Using BIOS 38

How to Flash a New BIOS 39

Standard CMOS Setup Option 40

Advanced CMOS Setup Option 43

Advanced Chipset Features Option 47

Integrated Peripherals Option 51

Power Management Setup Option 55

PNP/PCI Configuration Option 61

PCI Health Status Option 63

Frequency Control Option 64

Load Fail-Safe Defaults Option 65

Load OptimizedDefaults Option 65

Set Supervisor and User Passwords Options 66

Save & Exit Setup Option 67

Exit Without Saving Option 67

CHAPTER 4: SOFTWARE 69

Auto-installing under Windows 98 70

Folders for this Mainboard 73

Utility Folder Installation Notes 74

Mainboard (P6VXM2) Installation Notes 75

Audio Software 75

IDE Software 76

APPENDIX: JUMPER SETTING REFERENCE 77

Quick Jumper Setting Reference 77

Welcome

Congratulations on purchasing the P6VXM2 mainboard. The

P6VXM2 mainboard is a Micro ATX mainboard that uses a 4-

layer printed circuit board and measures 244 mm x 220 mm.

The mainboard features a Socket 370 that accommodates

PPGA Celeron, FC-PGA Pentium III, and Cyrix III processors

that support frontside bus (FSB) speeds up to 133 MHz.

The P6VXM2 uses the VIA family chipset and features the AC

97 audio codec. The mainboard delivers high-level performance

with a 4xAGP (Accelerated Graphics Port) slot and two PCI Bus

Master Ultra DMA (UDMA) ports that support up to four ATAPI (AT

Attachment Packet Interface) devices. The PCI IDE also supports

PIO Mode 3 and 4, UDMA33/66 IDE (UDMA100 is optional), and

an ATAPI CD-ROM.

Note: The P6VXM2 supports two VIA South Bridge chipsets—the

VIA VT82C686A and the VIA VT82C686B. The VIA VT82C686A

is standard and supports UDMA33/66. The VIA VT82C686B is op-

tional and supports UDMA100.

The mainboard accommodates PC 100/133 SDRAM (Synchro-

nous DRAM) up to 1 GB using two 3.3V unbuffered DIMM

modules. The P6VXM2 also has a full set of I/O ports, such as

dual channel IDE interfaces, a floppy controller, two FIFO serial

port connectors, an EPP/ECP-capable bi-directional parallel port

connector, a dual USB (Universal Serial Bus) connector, and

PS/2 keyboard and mouse connectors.

One AGP slot, three 32-bit PCI local bus slots, and one 8/16-bit

ISA slot provide expandability for add-on peripheral cards.

This chapter contains the following information:

qChecklist comprises a list of the standard and optional

components that are shipped with this mainboard

qRecommendationslists some Do’s and Don’ts from the

manufacturer to help ensure reliability and performance

from this product

qFeatures highlights the functions and components that

make this one of the best value mainboards on the mar-

ket

Checklist

Compare the contents of your mainboard package with the

standard checklist below. If any item is missing or appears dam-

aged, please contact the vendor of your mainboard package.

Standard Items

qOne mainboard

qOne diskette drive ribbon cable and bracket

qOne IDE drive ribbon cable and bracket

qThis user’s manual

qSoftware support CD-ROM disc

Recommendations

This mainboard use jumpers to manually set the CPU clock ratio

for the kind of processor that you install. Refer to jumper settings

(page 14) to set the CPU clock ratio for your processor by short-

ing (placing a shunt over) the pins indicated. We strongly

recommend that you do not overclock the mainboard to run

processors or other components faster than their rated speed.

Warning: Overclockingcomponentscanadversely affectthe reliabil-

ity of the system and introduce errors into your system. Overclocking

can permanently damage the mainboard by generating excess heat

in components that are run beyond the rated limits.

Components on this mainboard can be damaged by discharges

of static electricity. Handle the board carefully holding it by the

edges. Don’t flex or stress the circuit board. Keep the board in

its static-proof packing until you are ready to install it. Follow the

static guidelines given at the beginning of Chapter 2.

Features

The key features of this mainboard are the wide range of proc-

essors that can be installed, and the high level of integration.

Value-class Processors

Functioning as a platform for a value PC, the P6VXM2 features

a Socket 370 that accommodates PPGA Celeron, Pentium III,

and Cyrix III processors. The P6VXM2 supports 66/100/133

MHz FSB speeds.

VIA North Bridge Chipset

This board features the VIA VT82C694X NB (North Bridge)

chipset, enabling synchronous and asynchronous frequency op-

eration between the processor and the memory over a wide

frequency range. The NB chipset is optimized for Pentium III

processors at 66/100/133 MHz Front Side Bus (FSB) frequency

and supports 32-bit processor bus addressing.

The integrated DRAM controller supports up to four double-

sided DIMMs consisting of EDO, SDRAM, or VCM SDRAM. The

NB chipset provides SDRAM with a 64-bit data interface.

The AGP interface is AGP specification Rev 2.0 compliant, and

supports 2x/4x/4x 3.3/1.5V devices. The PCI bus interface com-

plies with PCI Rev. 2.1, and supports 3.3V and power supplies.

Five PCI bus masters are supported in addition to the host and

PCI-to-ISA I/O bridge.

VIA South Bridge Chipset

Note: The P6VXM2 supports two VIA South Bridge chipsets—the

VIA VT82C686A and the VIA VT82C686B. The VIA VT82C686A

is standard and supports UDMA33/66. The VIA VT82C686B is op-

tional and supports UDMA100.

The VIA VT82C686A SB (South Bridge) chipset comes in a 352-pin

BGA package. The PCI to ISA Bridge has an integrated ISA bus

controller with integrated DMA, timer, and interrupt controllers. The

VIA VT82C686A chipset supports UDMA33/66.

Inhaltsverzeichnis

Andere ECS Hauptplatine Handbücher

ECS

ECS P4VXMS Bedienungsanleitung

ECS

ECS P67H2-A4 Bedienungsanleitung

ECS

ECS KM400-M2 Bedienungsanleitung

ECS

ECS SF2/648FX Bedienungsanleitung

ECS

ECS G43T-WM Bedienungsanleitung

ECS

ECS N2U400-A Bedienungsanleitung

ECS

ECS A13G Series Bedienungsanleitung

ECS

ECS L4IBMGL6 1.0 Bedienungsanleitung

ECS

ECS A55F-M2 Bedienungsanleitung

ECS

ECS 662/1066T-M2 Bedienungsanleitung

ECS

ECS Durathon 2 H110M4-C23 Bedienungsanleitung

ECS

ECS BSWI-D Bedienungsanleitung

ECS

ECS PM800-M2 Bedienungsanleitung

ECS

ECS H61H2-M17 Bedienungsanleitung

ECS

ECS L4S5MG3/651 Plus Bedienungsanleitung

ECS

ECS H61H2-M Bedienungsanleitung

ECS

ECS H110T-SI01 Bedienungsanleitung

ECS

ECS A68F2P-M2 Bedienungsanleitung

ECS

ECS H110I-C4P Bedienungsanleitung

ECS

ECS A785GM-AD3 Bedienungsanleitung

ECS

ECS 661GX-M2 V5 Bedienungsanleitung

ECS

ECS A55F-M4 Bedienungsanleitung

ECS

ECS H55H-M Bedienungsanleitung

ECS

ECS BAT-I2 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
