CLASSIC INFRARED ZONE HEATER

OWNER’S MANUAL

Model No. A5893

IMPORTANT

SAVE THESE

INSTRUCTIONS

To ensure you get the best results, please read this manual first

and keep it for future reference. For additional information,

please contact your place of purchase or call 1-800-225-6595.

Thank you for choosing EdenPURE®

Thank you for choosing the EdenPURE®Classic Infrared Heater. This owner’s manual will

provide you with valuable information necessary for the proper care and maintenance of your

new product. Please take a few moments to thoroughly read the instructions and familiarize

yourself with all the operational aspects of your new heater.

IMPORTANT INSTRUCTIONS

WARNING

IMPROPER USE OF THIS HEATER COULD RESULT IN RISK OF FIRE, ELECTRIC SHOCK,

AND INJURY TO PERSONS

WARNING

ANY REQUIRED SERVICE SHOULD ONLY BE

PERFORMED BY AN AUTHORIZED SERVICE REPRESENTATIVE AND ANY

OTHER REPAIRS ATTEMPTED BY ANYONE OTHER THAN AN AUTHORIZED

SERVICE REPRESENTATIVE WILL VOID THE WARRANTY.

FOR AUTHORIZED SERVICE, CALL 1-800-225-6595 OR VISIT WWW.EDENPURESUPPORT.COM

WARNING

RISK OF ELECTRICAL SHOCK. DO NOT OPEN.

NO USER-SERVICEABLE PARTS INSIDE.

1. Read ALL instructions before using the EdenPURE®Classic Infrared Heater.

2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.

3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot

surfaces. If provided, use handles when moving this heater.

4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and

curtains at least 3 ft. from the front of the heater and keep them away from the sides, top,

and rear. DO NOT place towels or other objects on the heater.

5. Extreme caution is necessary when any heater is used by or near children or the disabled,

or when the heater is left operating and unattended.

6. DO NOT operate any heater with a damaged cord or if the heater malfunctions, has been

dropped or damaged in any manner. Return heater to authorized service facility for

examination, electrical or mechanical adjustment, or repair.

7. This heater is not intended for use in bathrooms, laundry areas and similar indoor

locations. NEVER locate heater where it may fall into a bathtub or other water container.

To protect against electrical hazards, DO NOT immerse in water or other liquids.

8. DO NOT touch the control panel or plug with a wet hand.

9. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or

similar coverings. Arrange cord away from traffic area and where it will not be tripped

over.

10. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as

this may cause an electric shock or fire, or damage the heater.

11. To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner. DO

NOT use on soft surfaces, like a bed, where openings may become blocked.

12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where

gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away

from heated surfaces and open flames.

13. Do not plug the unit into any other cord-connected device such as a power strip, surge

protector, multiple outlet adapter, grounding adapter or outlet-type air fresheners. Plug

into a 3-prong 110v 15amp or higher grounded circuit receptacle only. Do not plug the

heater into a loose-fitting or broken receptacle. The heater is for use on 110 volt outlets.

The cord has a plug as shown on Page 4.

14. To avoid fire or shock hazard, plug the unit directly into a 120V AC electrical outlet.

15. To disconnect heater, turn controls to OFF, wait for fan to stop running then remove

plug from outlet. Pull firmly on the plug, DO NOT unplug by pulling on the cord.

16. Always unplug the unit before moving or cleaning, or whenever the heater is not in use.

17. Use only for intended household use as described in this manual. Any other use not

recommended by the manufacturer may cause fire, electric shock, or injury to persons.

The use of attachments not recommended or sold by unauthorized dealers may cause

hazards.

18. Always use on a dry, level surface. Use on floor only.

19. DO NOT use outdoors or on construction sites.

20. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any

solid-state speed control device.

21. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit.

Doing so will void your warranty. The inside of the unit contains no user serviceable

parts. Qualified personnel should perform all servicing only.

22. Connect to properly grounded outlets only.

23. Some EdenPURE®units contain a button battery for the remote. If swallowed, it could

cause severe injury or death in just two hours. Seek medical attention immediately.

24. Save these instructions.

SPECIFICATIONS

Voltage Rating

120V (60Hz)

Power Consumption

1500W

Unit Size

11.4 in. (W) x 14.5 in. (D) x 14.9 in. (H)

Unit Weight

12.7 lbs.

SAFETY FEATURES

Tip-Over Safety Feature

This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal

switch will automatically shut the heater off. Once the heater is restored an upright position, the

heater will reset. To continue operation, turn on the heater using the supplied remote control or

the control panel on the heater.

Overheat Safety Feature

This heater is equipped with an overheat safety feature. When the heaters internal components

reach a certain temperature that could cause it to overheat and a possible fire, the heater will

automatically shut off.

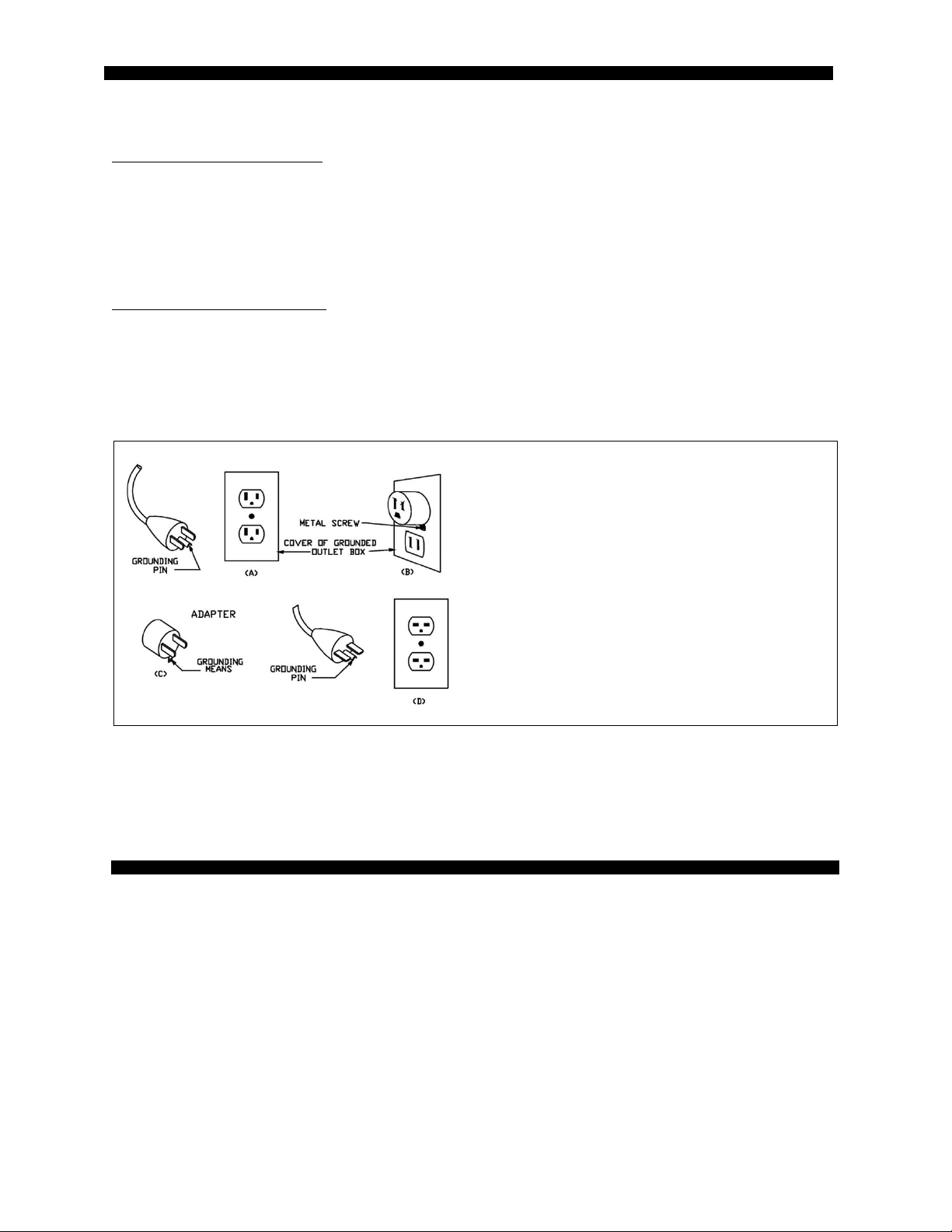

WARNING: This heater has a voltage

rating of 120 volts. The cord has a plug as

shown in A. An adapter as shown in C is

available for connecting three-blade grounding-

type plugs to two-slot receptacles. The

grounding lug extending from the adapter must

be connected to a permanent ground such as a

properly grounded outlet box. The adapter

should not be used if a three-slot grounded

receptacle is available.

DO NOT DEFEAT THE SAFETY PURPOSE

OF THE GROUNDED PLUG.

WARNING: It is normal for the power cord to feel warm to the touch; however, a loose fit

between the outlet and the plug may cause overheating of the plug. If this occurs, try inserting

the plug into a different outlet. Contact a qualified electrician to inspect the original outlet for

damage.

IN THE BOX

·EDENPURE®CLASSIC HEATER

·REMOTE CONTROL

·REMOTE CONTROL BATTERY

·OWNER’S MANUAL

·QUICK START GUIDE

PRODUCT DIAGRAM

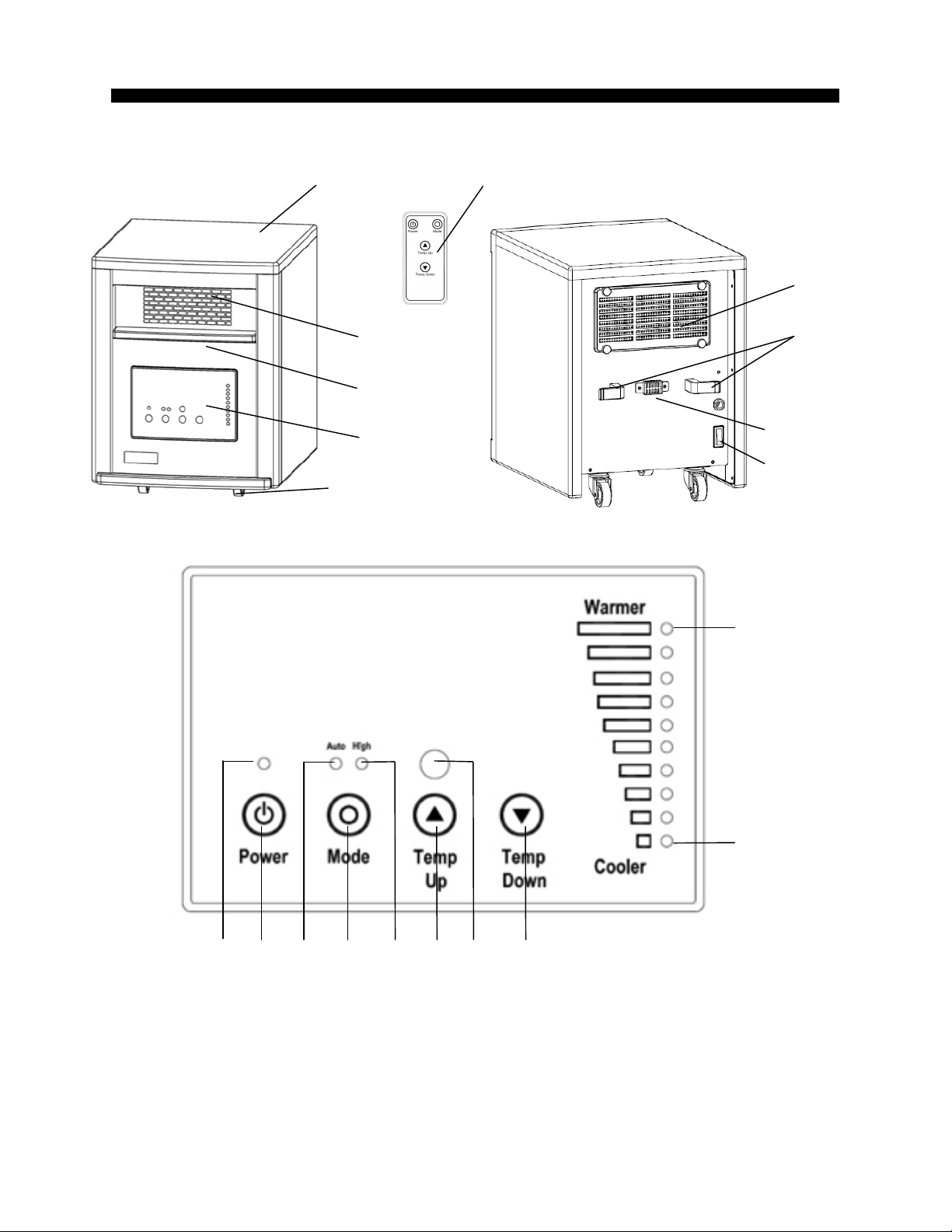

1. Indicating light of highest temp: Light’s on when set at the maximum temp.

2. Indicating light of lowest temp: Light’s on when set at the minimum temp.

3. Temp down button: For setting temp downward.

4. Signal-receiving window: For receiving remote control signal.

5. Temp up button: For setting temp upward.

6. Indicating light of high heat-up mode: Light’s on when you select all-power heat-up mode.

7. Mode button: Used for selecting heat-up mode.

8. Indicating light of auto heat-up mode: Light’s on when you select auto heat-up mode.

Control Panel

Cabinet

Air Outlet

Front Panel

Control Panel

Wheel

Remote Control

Air Intake

Cord Clamp

Heat Sensor

Power Switch

9. Power switch button: For power-on or off.

10. Power indicator light: Indicates that the heater is receiving power from outlet. Will flash

when powered “ON”.

PREPARATION

Unpackage unit. We recommend keeping the packaging for storage and any transporting needs.

Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet, and

turn on the power switch in the rear of the unit. Only operate heater in upright position with

caster wheels attached.

When using remote control, please pull out the insulating film as the following steps.

Mode button: Used for mode selection

ON/OFF button: Used for power-on or power-off

Temp up button: to make set temperature rise

Temp down button: to make set temperature decline

PULL

Remote control

Insulating film

Battery cover

Remote Control

OPERATING INSTRUCTIONS

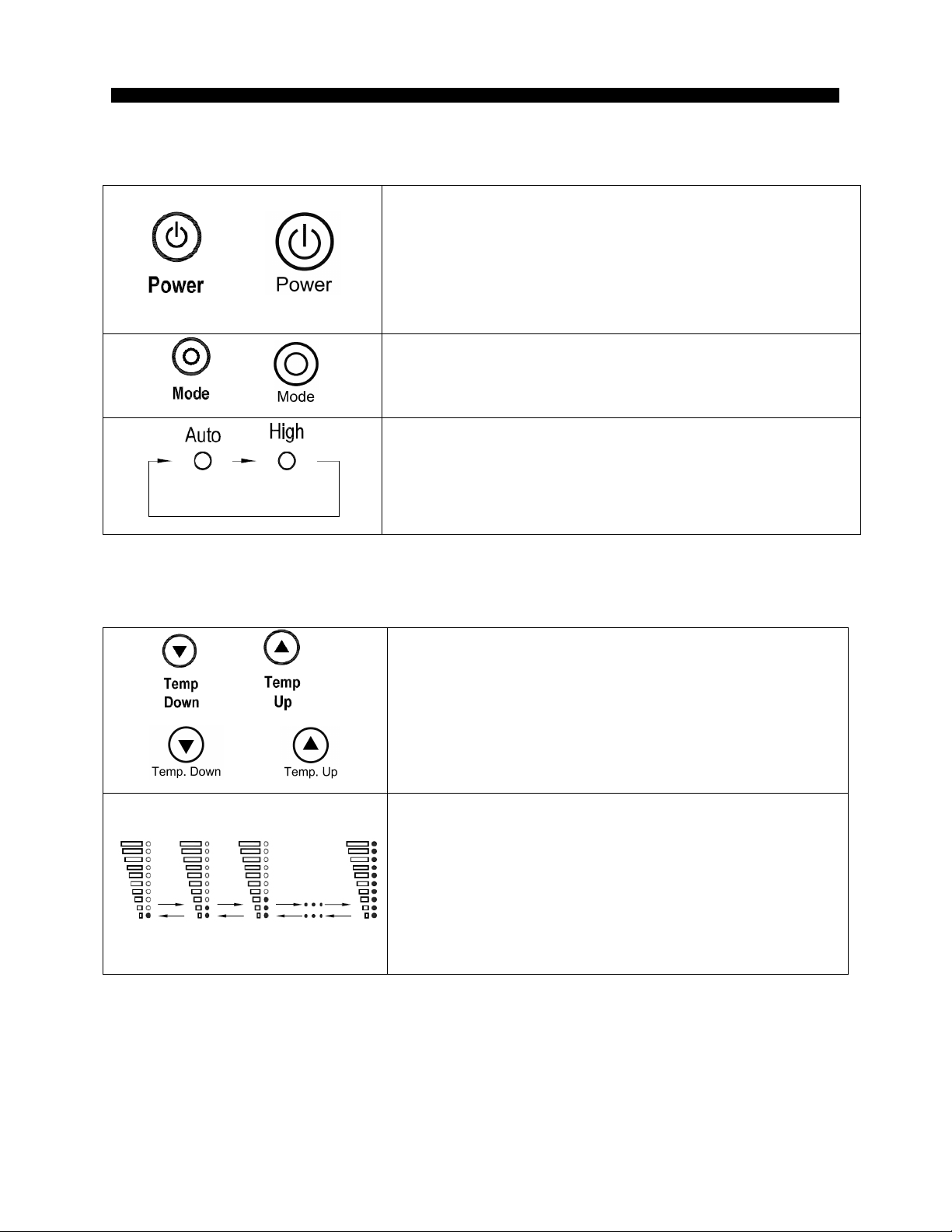

1. Start and select working mode

Turn the heater on by pressing the Power button on the

control panel or by pressing the Power button on the supplied

remote control.

Once power is off, heating element will stop working at first.

The fan will continue to run for approximately three minutes

to emit residual heat inside of the unit.

Select a heat setting.

Press the Mode button to alternate between the two heat

settings.

Under Auto heat-up mode, when the value difference

between set temp and room temp exceeds 5°F or so, the unit

will run at full 1500W, otherwise run at 750W; Under High

heat-up mode, the unit runs at a stable 1500W, when room

temp exceeds 86°F, heat-up stops.

2. Setting room temperature

Caution! Only in Auto heat-up mode can setting temperature be performed.

Or Or

Adjust the thermostat by pressing the arrows on the control

panel or remote control.

Set temperature indication varies from 59°F to 86°F. The

bottom lighting corresponds to the set temperature of 59°F.

The topmost light corresponds to the set temperature of

86°F, totalling 10 lights. Once you have chosen the desired

temperature, the heater will remain on until the room

temperature increases to the temperature on the digital

display. The heater will cycle on and off to maintain the

desired room temperature.

3. Setting electro lock

Function of electro lock can avoid misoperation from children. Locking can be set in both

power-on and power-off modes.

And

Press Temp Up and Temp Down buttons once for 3

seconds. Locking is fulfilled when you hear one beep.

When locked, control panel and remote control failed to

function.

And

When release is needed, please re-press Temp Up and

Temp Down buttons once for 3 seconds. Release is fulfilled

when you hear one beep. Lock indication disappears.

Control panel and remote control return to function.

MAINTENANCE

1. Turn off the power switch in the rear of the unit.

2. Unplug the unit and let it cool completely.

3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You

may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth.

CAUTION: DO NOT let liquid enter the heater.

4. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to

clean the heater. This may cause damage or deterioration to the surface of the heater.

5. DO NOT immerse the heater in water.

6. Wait until the unit is completely dry before use.

7. Air filter needs to be cleaned often. Please take off the filter with the 2 steps in the

drawing below. Flush and clean the filter with water, then dry it out and

re-assemble. If used weekly, check and clean on a weekly basis if dust accumulates on

the filter.

2) Remove Air filter

1) Remove bracket hand screws (4X)

The unit

8. If not using the unit for a long time, please take out the battery in remote control

according to the following steps.

STORAGE

Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the

original packaging to repack the unit.

TROUBLESHOOTING

If the heater will not operate, please check the following before seeking repair of service:

1. Check if the power cord is plugged into an electrical outlet, if not, plug in.

2. Make sure the outlet is getting the proper electrical current to it.

3. Check if the battery in remote control is in good use, and if the insulating film is pulled

out. Check to make sure the master power switch is in the “I” position on the back of the

heater.

NOTE: For the heater to function properly, the desired temperature on the heater must be set a

few degrees higher than the temperature in the room. If the seems to not be heating, increase the

desired temperature on the heater to engage the heat elements.

SERVICE

For repairs of service, please visit your place of purchase, call 1-800-225-6595 or visit

www.edenpuresupport.com.

WARNING:Any required service other than filter maintenance should only be performed by an

Authorized Service representative.

facebook.com/Edenpure instagram.com/ twitter.com/ pinterest.com/

edenpureproducts edenpure_Edenpure

PULL

PUSH

Battery cover

Battery

Inhaltsverzeichnis

Andere EdenPURE Heizung Handbücher

EdenPURE

EdenPURE A5986 Bedienungsanleitung

EdenPURE

EdenPURE A5835 Bedienungsanleitung

EdenPURE

EdenPURE US1000 Bedienungsanleitung

EdenPURE

EdenPURE W1 Bedienungsanleitung

EdenPURE

EdenPURE US1000 Installationsanleitung

EdenPURE

EdenPURE GEN50 Bedienungsanleitung

EdenPURE

EdenPURE Wall-Hugger Installationsanleitung

EdenPURE

EdenPURE Classic A5275-SPI Bedienungsanleitung

EdenPURE

EdenPURE Classic CopperPLUS A5946 Bedienungsanleitung

EdenPURE

EdenPURE 500-XL Installationsanleitung

EdenPURE

EdenPURE Personal model Installationsanleitung

EdenPURE

EdenPURE 500 Bedienungsanleitung

EdenPURE

EdenPURE CopperSMART 1000 Bedienungsanleitung

EdenPURE

EdenPURE Classic EPWSIHCL Benutzerhandbuch

EdenPURE

EdenPURE GEN2 Installationsanleitung

EdenPURE

EdenPURE GEN3 500 Installationsanleitung

EdenPURE

EdenPURE GEN40 Plus Bedienungsanleitung

EdenPURE

EdenPURE A5934 Bedienungsanleitung

EdenPURE

EdenPURE Signature Installationsanleitung

EdenPURE

EdenPURE GEN21 Installationsanleitung

EdenPURE

EdenPURE Quartz Infrared Portable Heater Installationsanleitung

EdenPURE

EdenPURE usa 1000 Bedienungsanleitung

EdenPURE

EdenPURE 360 Super climater Installationsanleitung

EdenPURE

EdenPURE A5955 Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
