AMPLIFIER

INTRODUCTION

This instruction manual is for your safety and must be adhered to at all times. Please read and

ensure that you fully understand the installation and set up procedures as explained. If you

are unclear on the installation or set up of your EDGE speakers please contact your nearest

authorised EDGE dealer.

WARNING

DO NOT EXPOSE THIS PRODUCT TO DAMP OR MOISTURE - doing so may result in re,

shock or damage to the product.

BEFORE WIRING DISCONNECT THE CABLE FROM THE POSITIVE BATTERY TERMINAL -

failure to do so may result in electric shock or injury.

ENSURE GOOD AND CORRECT CONNECTIONS - failure to make the correct connections

may result in re or damage to the product.

DO NOT USE ANY FUNCTIONS OF THIS EQUIPMENT THAT MAY TAKE YOUR

CONCENTRATION AWAY FROM DRIVING YOUR VEHICLE - do not set up your amplier

whilst driving, doing so may result in an accident. For prolonged setting up, make sure that

your vehicle is stationary and in a safe location.

KEEP THE VOLUME AT A LEVEL SO YOU CAN STILL HEAR OUTSIDE NOISE - failure to do

this may result in an accident. EDGE equipment is capable of producing sound levels that can

permanently damage your hearing. EDGE recommends caution when listening at high volume.

For safe and enjoyable listening the sound should be comfortable and clear without distortion.

CAUTION

Never connect any speaker lead to the car chassis. This can cause severe damage to your

speaker /car radio /amplier.

Before drilling or cutting any holes, investigate the layout of your vehicle thoroughly.

Use caution when working near the fuel / hydraulic lines and electrical wiring.

Observe the correct polarity when wiring, improper phasing may cause a loss of bass

response.

Ensure that no moving parts catch on the speaker or grill (e.g. window or door handles, or

window glass inside the door)

Mounting Guidelines

Your EDGE amplier is designed with a swift installation routine in mind. Please mount the

amplier in a dry location on a solid surface. NEVER mount the amplier upside down, this

will cause the amplier to over heat and will eventually damage the amplier. Before xing the

amplier in place please ensure that there is sufcient air ow around the exterior of the casing,

at least two inches is sufcient.

Connections

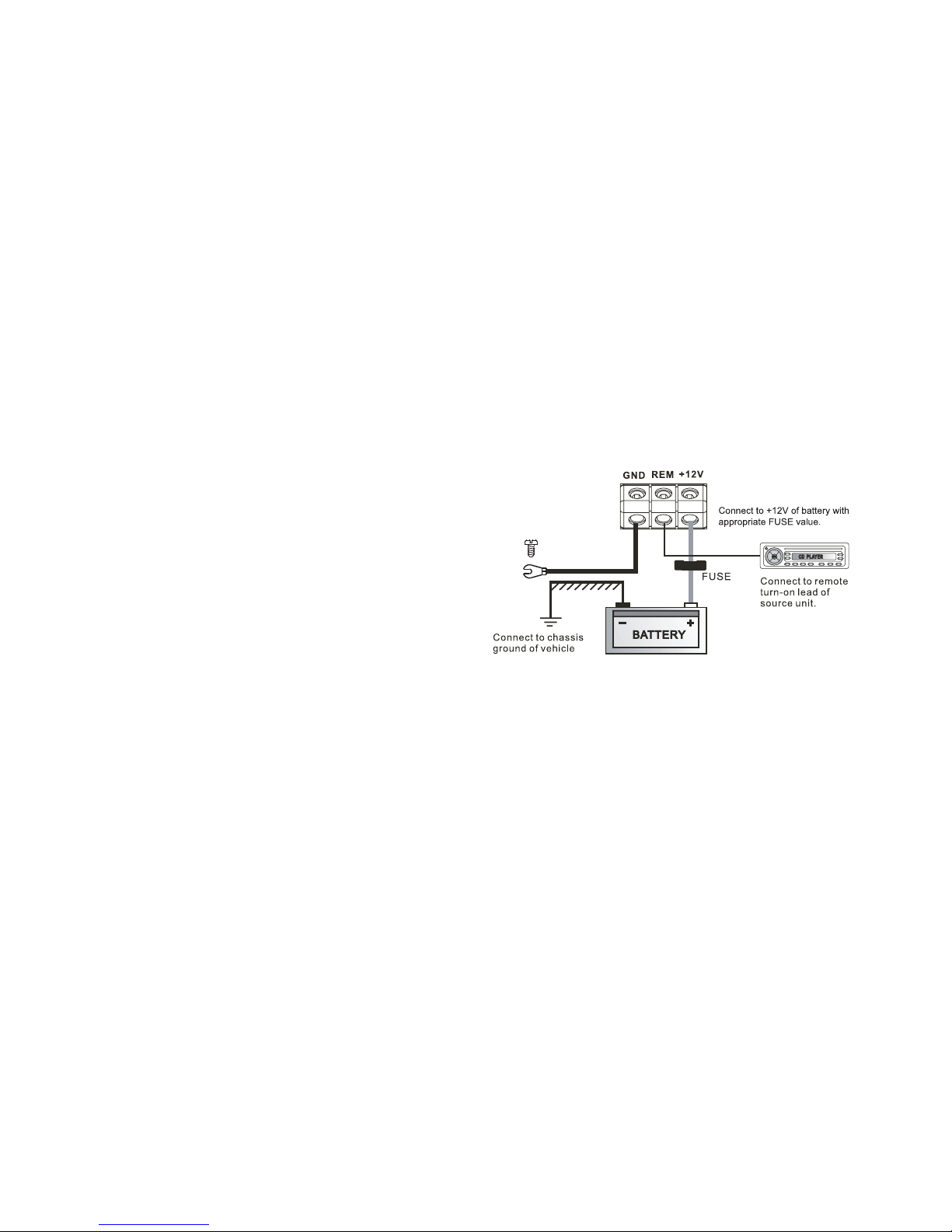

Power / Ground Cable

● The correct gauge cable should be used for both the power and the ground connections to

the amplier.

● The power cable should be taken directly from the battery. Rubber grommets should be used

when passing through any bulkheads to prevent the cable from becoming chaffed or cut.

● The correct size of fuse must be tted within 18” of the battery and before the cable passes

through the bulk head

● It is vital that a fuse / circuit breaker (of at least equal value to the one tted on the amplier)

is placed inline with the power cable and is no further than eighteen inches away from the

battery.

● Please ensure that the fuse is not tted until the entire installation procedure is complete.

● The two tables below are to help you decide on what cable is correct for you. The rst

enables you to select the size of cable depending on the length required. The second will

help you convert the cable size from American Wire Gauge to Metric if you need to.

● The amplier ground should be connected directly to the chassis of the vehicle, to bare metal.

● The cable length should be kept to an absolute minimum.

Model ED204 ED205 ED206 ED209

Type Coaxial Coaxial Coaxial Coaxial

Configuration 4 way 4 way 4 way 4 way

Speaker size 4” (100mm) 5.25” (130mm) 6.5” (165mm) 6x9” (150 x 220mm)

RMS power 40 watts 50 watts 60 watts 100 watts

Peak power 120 watts 150 watts 180 watts 300 watts

Minimum input 20 wRMS 25 wRMS 30 wRMS 50 wRMS

Sensitivity 83.9dB 86.2dB 86.2dB 86.1 dB

Frequency response 100Hz – 20KHz 80Hz – 20KHz 65hz – 20KHz 45Hz- 20KHz

Mounting depth 43mm 47mm 55mm 72mm

Mounting diameter 94mm 118mm 144mm 150x220mm

Recommended ED7400/7800 ED7400/7800 ED7400/7800 ED7400/7800

amplifier ED71600 ED71600 ED71600 ED71600

Model ED305 ED306

Type component component

Configuration 2 way 2 way

Speaker size 5.25” (130mm) 6.5” (165mm)

RMS power 70 watts 80 watts

Peak power 210 watts 240 watts

Minimum input 35 watts RMS 40 watts RMS

Sensitivity 82.2dB 84.4dB

Frequency response 80Hz – 20KHz 65hz – 20KHz

Mounting depth 54mm 57mm

Mounting diameter 114mm 144mm

Recommended ED7400/7800 ED7400/7800

amplifier ED71600 ED71600

Model ED7400 ED7800 ED71600 ED71200 ED72500

Type 2/1 channel 4/3/2 channel 4/3/2 channel Monoblock Monoblock

Class AB AB AB D D

4 ohm stereo 2 x 80 watts RMS 4 x 80 watts RMS 4 x 140 watts RMS N/A N/A

2 ohm stereo 2 x 100 watts RMS 4 x 100 watts RMS 4 x 200 watts RMS N/A N/A

4 ohm mono 1 x 200 watts RMS 2 x 200 watts RMS 2 x 400 watts RMS 1 x 200 watts RMS 1 x 400 watts RMS

2 ohm mono N/A N/A N/A 1 x 400 watts RMS 1 x 800 watts RMS

1 ohm mono N/A N/A N/A 1 x 600 watts RMS 1 x 1250 watts RMS

Max power 400 watts 800 watts 1600 watts 1200 watts 2500 watts

Freq response 20Hz – 20KHZ 20Hz – 20KHz 20Hz – 20KHz 20Hz – 300Hz 20 Hz – 300Hz

Height 66mm 66mm 66mm 66mm 66mm

Width 282mm 332mm 452mm 332mm 416 mm

Depth 245mm 245mm 245mm 245mm 245mm

Model ED510 ED512 ED515

Type subwoofer subwoofer subwoofer

Speaker size 10” (272mm) 12” (324mm) 15” (397mm)

RMS power 250 watts 300 watts 350 watts

Peak power 750 watts 900 watts 1050 watts

Minimum input 125 watts RMS 150 watts RMS 175 watts RMS

Sensitivity 89dB 90dB 90dB

Frequency response 30Hz - 1700Hz 25Hz – 1500KHz 20hz – 850Hz

Mounting diameter 235mm 285mm 350mm

Mounting depth 125mm 144mm 148mm

Voice coil 2 ohm DVC 2 ohm DVC 2 ohm DVC

Recommended ED71200/72500 ED71200/72500 ED71200/72500

amplifier ED7400/7800/71600 ED7400/7800/71600 ED7400/7800/71600

Model EDB10 EDB12 EDB12T EB615

Driver ED510 ED512 2 x ED512 ED515

Enclosure impedance 1 or 4 Ohm 1 or 4 Ohm 1, 4 or 8 Ohm 1 or 4 Ohm

RMS power 250 watts 300 watts 600 watts 350 watts

Peak power 750 watts 900 watts 1800 watts 1050 watts

Recommended ED71200/72500/ ED71200/72500/ ED71200/72500/ ED71200/72500/

amplifier ED7400/7800/71600 ED7400/7800/71600 ED7400/7800/71600 ED7400/7800/71600

Model ED pack 10 ED pack 12 ED pack 12 twin

enclosure ED610 ED612 ED612T

amplifier ED7400 ED7400 ED71200

Speaker size 10” (272mm) 12” (324mm) 15” (397mm)

RMS power 250 watts 300 watts 600 watts

Peak power 750 watts 900 watts 1800 watts

Amplifier wiring kit 10AWG included 10AWG included 8AWG included

Model ED402 ED404 ED405 ED406 ED408

Type bullet tweeter bullet tweeter Midrange Midrange midrange

Configuration 1 way 1 way 1 way 1 way 1 way

Speaker size 2” (50mm) 4” (100mm) 5.25” (130mm) 6.5” (165mm) 8” (200mm)

RMS power 40 watts 50 watts 80 watts 300 watts 450 watts

Peak power 120 watts 150 watts 240 watts 100 watts 150 watts

Minimum input 20 watts RMS 25 watts RMS 40 watts RMS 50 watts RMS 75 watts RMS

Sensitivity 106dB 107dB 96dB 97dB 98dB

Frequency response 5KHz – 20KHz 4.5KHZ – 20KHz 80Hz – 6KHz 65hz – 6KHz 55Hz – 6KHz

Mounting diameter 43mm 90mm 114mm 146mm 183mm

Mounting depth 40mm 70mm 49mm 55mm 82mm

Recommended ED7400/7800/ ED7400/7800/ ED7400/7800/ ED7400/7800/ ED7400/7800/

amplifier ED71600 ED71600 ED71600 ED71600 ED71600

Model ED710 ED712 ED715 ED718

Type woofer woofer woofer woofer

Speaker size 10” (272mm) 12” (324mm) 15” (397mm) 18” (457mm)

RMS power 400 watts 500 watts 600 watts 900 watts

Peak power 1200 watts 1500 watts 1800 watts 2700 watts

Minimum input 200 watts RMS 150 watts RMS 300 watts RMS 450 watts

Sensitivity 97dB 98dB 99dB 02dB

Frequency response 30Hz – 5.5KHz 25Hz – 5.5KHz 20hz – 5KHz 15Hz – 5KHz

Mounting diameter 234mm 284mm 352mm 428mm

Mounting depth 113mm 130mm 128mm 186mm

Voice coil 2 ohm DVC 2 ohm DVC 2 ohm DVC 2 ohm DVC

Recommended ED71200/ED72500 ED71200/72500 ED71200/72500 ED71200/72500

amplifier ED7400/7800/71600 ED71600 ED71600 ED72500

Limited Warranty

All EDGE goods are covered by a full 12 months

manufacturers warranty. Valid from the date of the

original receipt and proof of purchase. In order to

validate this warranty, the warranty card should be

returned to EDGE within seven days of the original

purchase date. The original receipt and packaging

should also be kept for this 12 month period.

If at any stage during the warranty period you have a

problem with the product then it should be returned

to the point of purchase in its original packaging,

complete and with no items missing.

If the store is unable to x the product it may have

to be returned to EDGE this process takes around 7

working days.

A full description of EDGE’s warranty information

can be found on our website:

www.edgecaraudio.com/warranty

A written version can also be obtained from

EDGE warranty department

PO Box 11000

B75 7WG

All content included in this manual such as text, graphics,

logos, icons, images data, the selection and arrangement

thereof, are the property of EDGE Audio (herein referred

to as “EDGE”, “us” or “we”) and its afliate or their

content and technology providers, and are protected by

United Kingdom and International copyright laws. All

rights reserved.

Trademarks

EDGE ED2

, EDGE ED3

, EDGE ED4

, EDGE ED5

EDGE ED6

, EDGE ED7

, EDGE Street

and

EDGE Loud

and all stylised representations of

product names, or the abbreviations of product names,

as logos are all trademarks of EDGE. Graphics and

logos are trademarks or trade dress of EDGE Audio or

its subsidiaries.

EDGE’s trademarks and trade dress may not be used in

connection with any product or service that is not EDGE’s,

in any manner that is likely to cause confusion among

customers or in any manner that disparages or discredits

EDGE. All other trademarks not owned by EDGE or its

subsidiaries that appear in this manual are the property

of their respective owners, who may or may not be

afliated with, connected to, or sponsored by EDGE or

its subsidiaries.

We reserve the right to make needed changes or

improvements to the produc and this manual , without

informing the customer about this in advance

ED7400

● Minimum 10 AWG power / ground cable should be used

ED7800 / 71200 / 71600

● Minimum 8 AWG power / ground cable should be used

ED72500

● Minimum 4 AWG power / ground cable should be used

Remote Turn On

● A minimum of 18 gauge cable should be used for this connection.

● The cable should be run with exactly the same care and attention as the power cable and

taken back to the source (headunit) and joined to the remote cable provided.

● If the source (headunit) does not have a remote turn on cable then a 12v supply should be

used. This will require a switch to be tted inline to enable the amplier to be turned on and

off. Remember that if this switch is left on you will atten the car battery.

RCA Cables

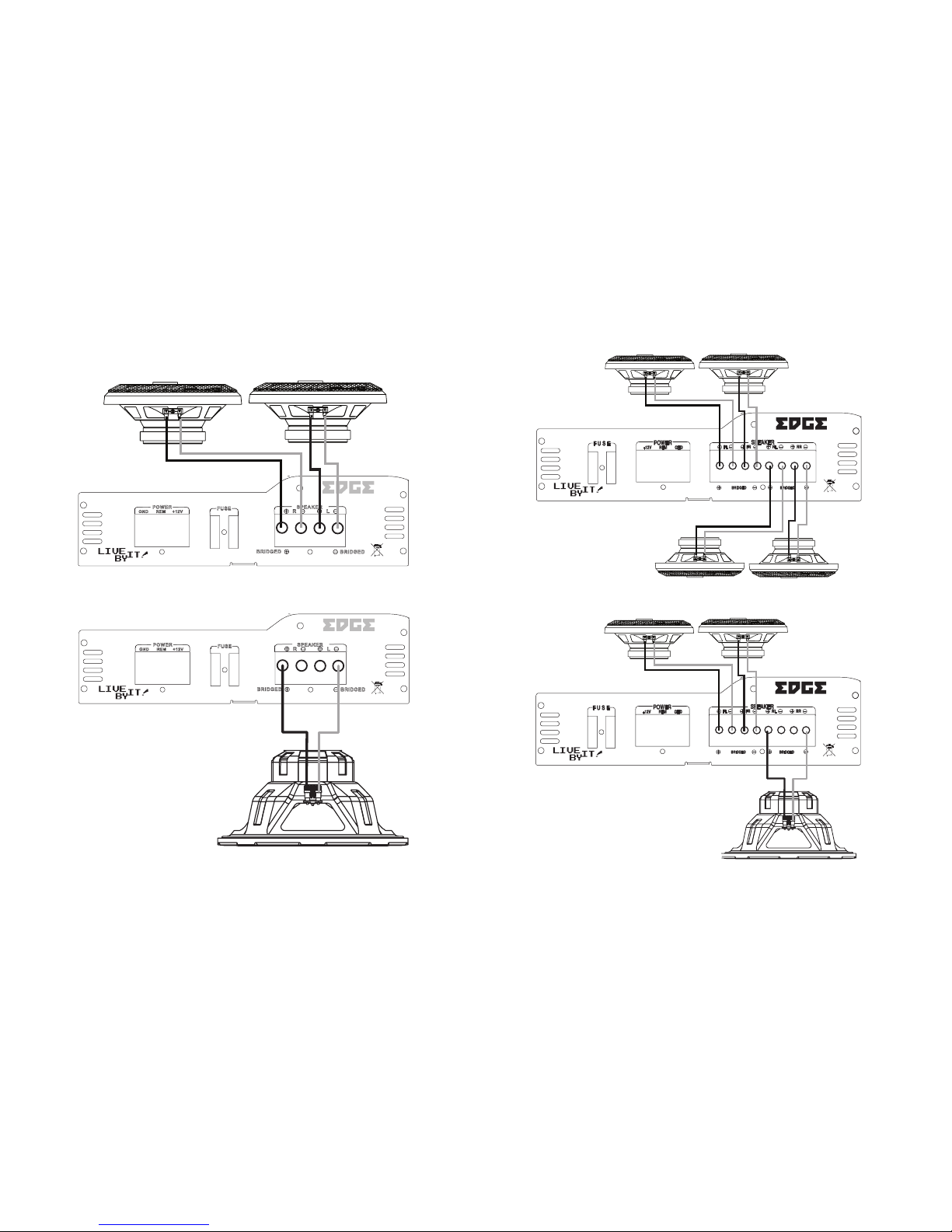

● Depending on the model number of your amplier and the number of speakers you wish to

power you will have to run either one or two RCA cables from the source to the amplier.

● Please take extra care when running these cables from the source to the amplier. Ensure

that they are placed away from all items that can generate any interference, wiring

harnesses etc.

● It is recommended that the RCA cables should be run on opposite sides of the car to the

previously installed power cables if possible, to avoid the cable picking up interference.

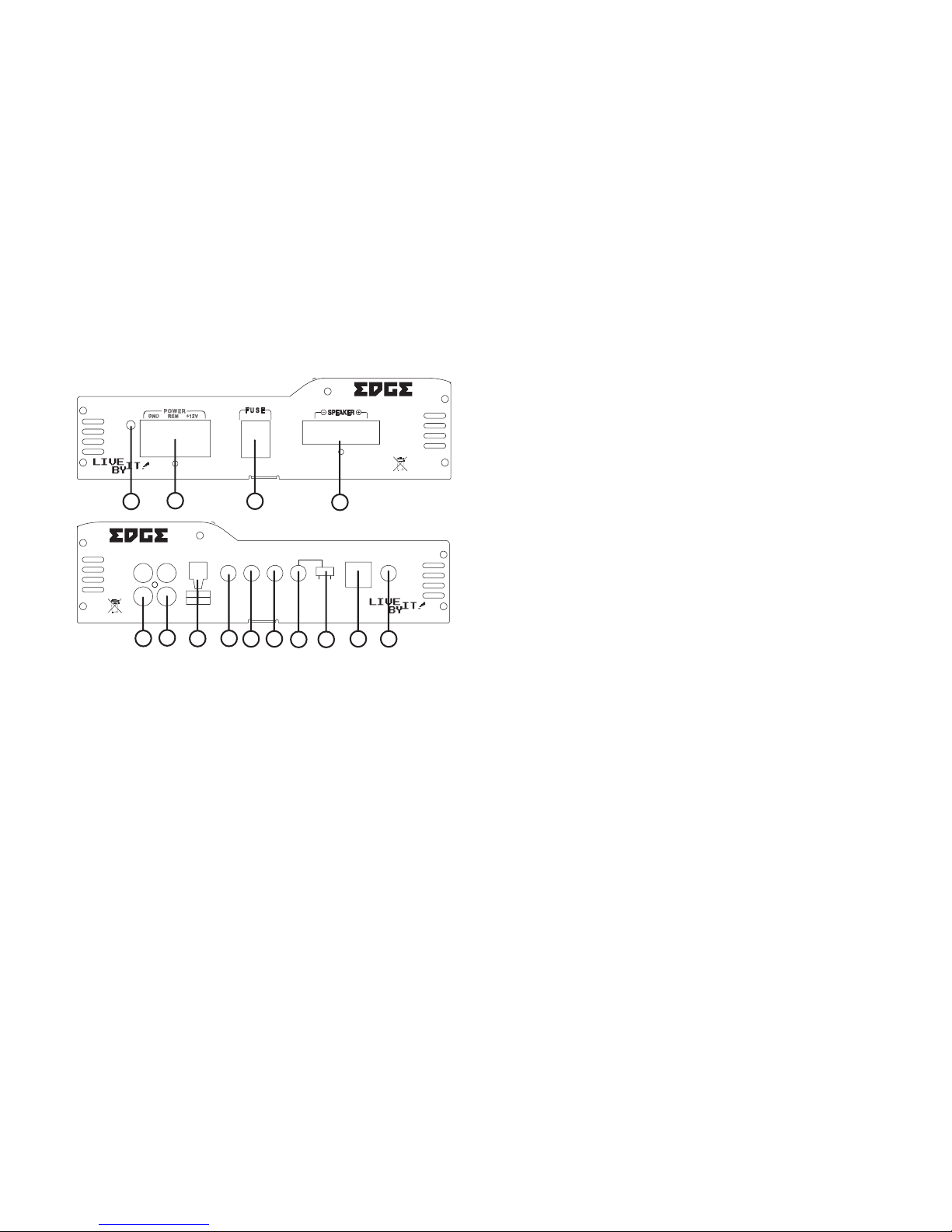

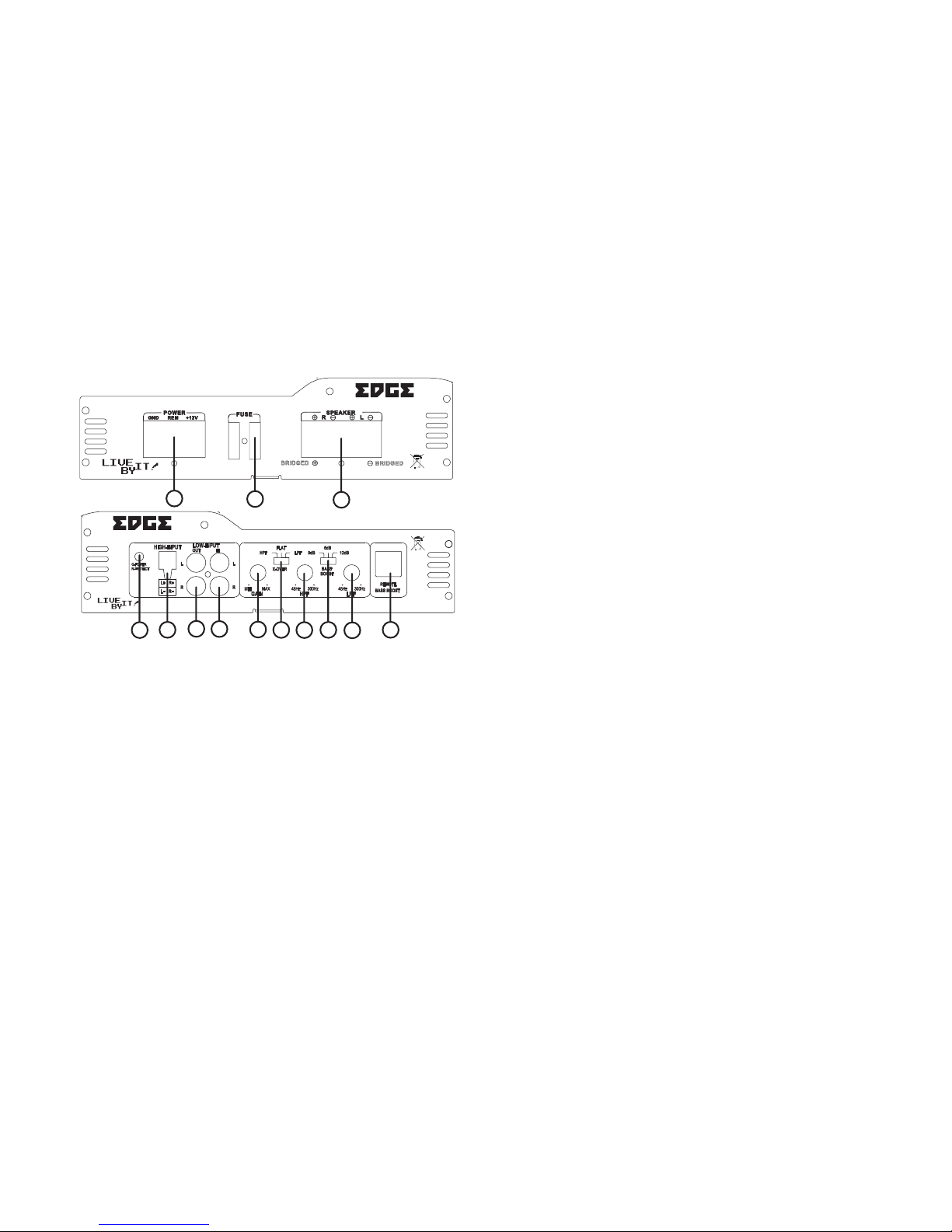

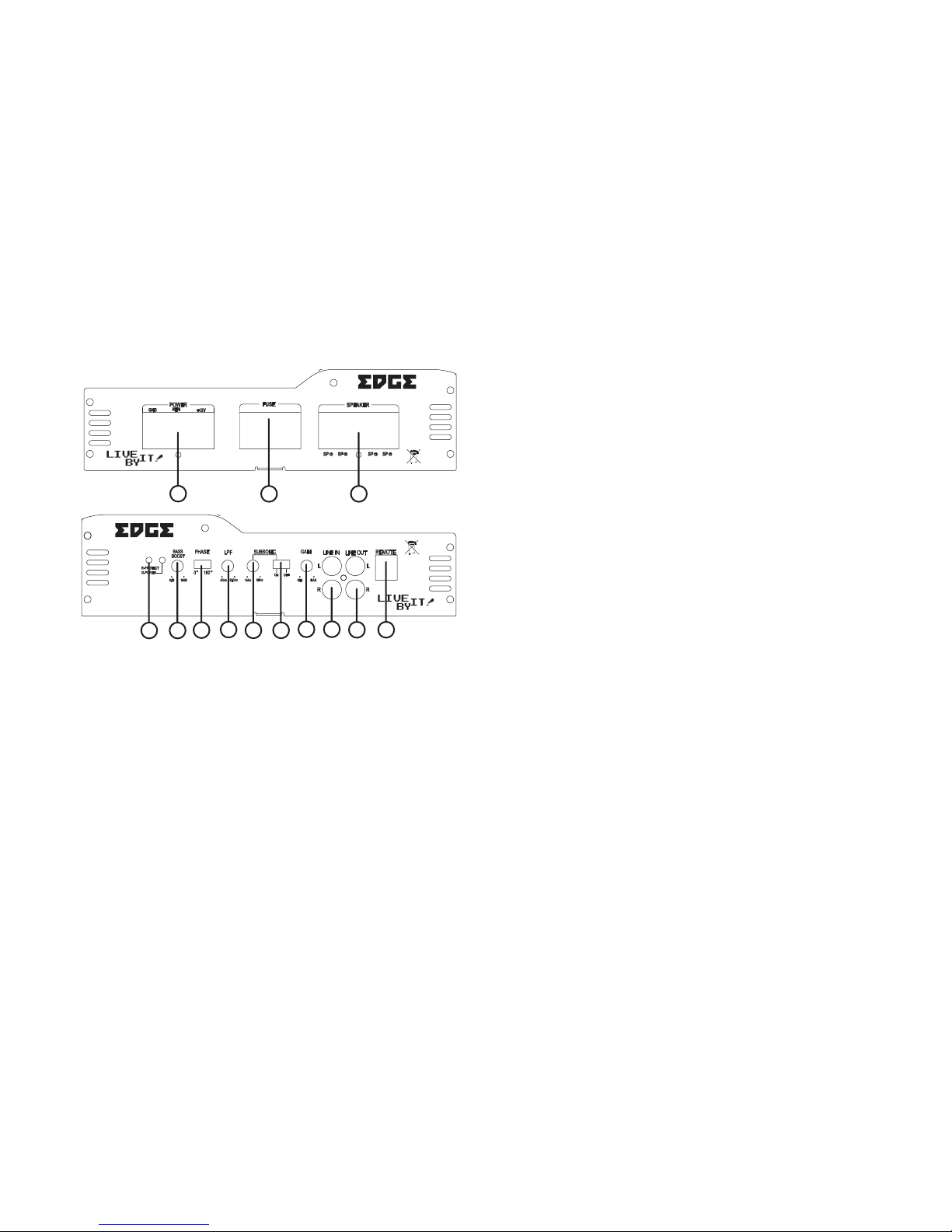

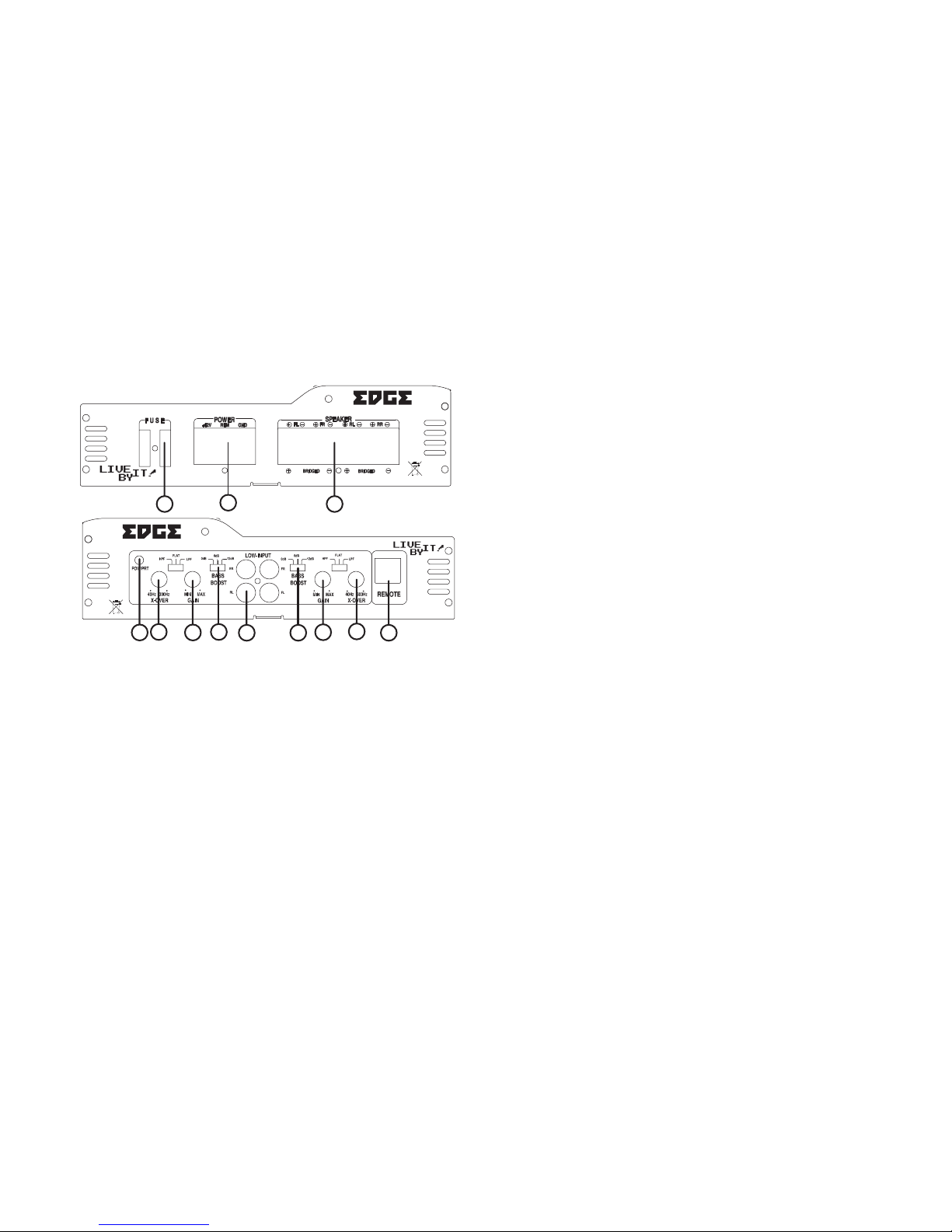

Terminals and Controls ED7400

5. Low Pass Crossover Control

The control is used to select the low pass lter frequency. The frequency ranges are from 45

Hz to 300 Hz.

6. Crossover Control Switch

This switch is used to select high pass, low pass or at (no crossover) operation for the

amplier speaker outputs.

7. High Pass Crossover Control

The control is used to select the High pass lter frequency. The frequency ranges are from 45

Hz to 300Hz.

8. Bass Boost Remote Input Jack

Use to plug in the remote bass controller. (Optional ) see back

9. High Level Input

To be used when no RCA’s are available. Use the provided loom to connect to closest

speakers. The loom connector will only t one way around. Once plugged in you should

connect the wires as below:

Left Positive - White Right Positive - Grey Left Negative - White / Black

Right Negative - Grey / Black

10. Indicator LED

When the amplier is operating correctly the LED will show as green. When the amplier is in

protection mode the LED will show as red.

11. Power Connections

Power connections. See Connections section for details on correct connections.

12. Fuses

Please ensure the following fuse rating is used when replacing fuses: 15 amp x 2

13. Speaker Terminal Output

For connection to the speakers. See Application section for wiring examples.

Power

Protect

SP- SP- SP+SP+

Input

L+ R+

L- R-

L L

Hi LevelLine Out Line In

OFFON

Subsonic

Phase

LPFGain

Min Max 35Hz 250Hz 0° 180° 80Hz16Hz

24dB0dB

Remote

Bass

Boost

ED72500 ED71200

ED71200

ED7800

ED72500

MONOBLOCK AMPLIFIER 1 X 1250 WATTS RMS

ED71600

4 CHANNEL AMPLIFIER 4 X 200 WATTS RMS

ED7400

2 CHANNEL AMPLIFIER 2 X 100 WATTS RMS

MONOBLOCK AMPLIFIER 1 X 600 WATTS RMS

4 CHANNEL AMPLIFIER 4 X 100 WATTS RMS

4 x 35 AMP

3 x 35 AMP

INPUT

2 x 15 AMP

2 x 25 AMP

2 x 20 AMP

125

11 12 13

35786

11 12

2349

6 7

8 10

11 12 13

1234 5 68

10 11 12

456

10 11

13 14

1. Low Level Output

A daisy chain output For connection to another amplier with a low level input using only a

single RCA output from the source (headunit).

2. Low Level Input

For connection to any source (headunit) with a low level output. This is your RCA output from

the source (headunit)

3. Gain Control

Used to match the input signal of the source to the amplier. See the setup section for more

details.

4. Bass Boost Switch

To provide up to an extra +12 dB of bass boost at 45 Hz. Use this boost to increase bass output

from the amplier.

1. Low Level Input

For connection to any source (headunit) with a low level output. This is your RCA output from

the source (headunit).

2. Rear Gain Control

Used to match the input signal of the source to the amplier. See the setup section for more

details.

3. Rear Crossover Control

The switch is used to select between low pass / high pass lter or no lter at all on the

front channels. The frequency ranges on the low pass lter are from 40 Hz to 300 Hz. The

frequency ranges on the high pass lter are from 40 Hz to 300hz.

4. Rear Bass Boost Switch

To provide up to an extra +12 dB of bass boost at 45 Hz. Use this boost to increase bass

output from the amplier.

5. Front Gain Control

Used to match the input signal of the source to the amplier. See the setup section for more

details.

6. Front Bass Boost Switch

To provide up to an extra +12 dB of bass boost at 45 Hz. Use this boost to increase bass

output from the amplier.

7. Front Crossover Control

The switch is used to select between low pass / high pass lter or no lter at all on the

rear channels. The frequency ranges on the low pass lter are from 40 Hz to 300 Hz. The

frequency ranges on the high pass lter are from 40 Hz to 300hz.

8. Front Bass Boost Remote Input Jack

Use to plug in the remote bass controller. (optional)

9. Indicator LED

When the amplier is operating correctly the LED will show as green

When the amplier is in protection mode the LED will show as red.

10. Power Connections

Power connections. See Connections section for details on correct connections.

11. Fuses

Please ensure the following fuse rating is used when replacing fuses: 25 amp x 2

12. Speaker Terminal Output

For connection to the speakers. See Application section for wiring examples.

Terminals and Controls ED7800

Power

Protect

SP- SP- SP+SP+

Input

L+ R+

L- R-

L L

Hi LevelLine Out Line In

OFFON

Subsonic

Phase

LPFGain

Min Max 35Hz 250Hz 0° 180° 80Hz16Hz

24dB0dB

Remote

Bass

Boost

ED72500 ED71200

ED71200

ED7800

ED72500

MONOBLOCK AMPLIFIER 1 X 1250 WATTS RMS

ED71600

4 CHANNEL AMPLIFIER 4 X 200 WATTS RMS

ED7400

2 CHANNEL AMPLIFIER 2 X 100 WATTS RMS

MONOBLOCK AMPLIFIER 1 X 600 WATTS RMS

4 CHANNEL AMPLIFIER 4 X 100 WATTS RMS

4 x 35 AMP

3 x 35 AMP

INPUT

2 x 15 AMP

2 x 25 AMP

2 x 20 AMP

125

11 12 13

35786

11 12

2349

6 7

8 10

11 12 13

1234 5 68

10 11 12

456

10 11

13 14

1. Low Level Input

For connection to any source (headunit) with a low level output. This is your RCA output from

the source (headunit).

2. High Level Input

To be used when no RCA’s are available. Use the provided loom to connect to closest

speakers. The loom connector will only t one way around. Once plugged in you should

connect the wires as below:

Front Speakers

Left Positive - Green Right Positive - Purple

Left Negative - Green / Black Right Negative - Purple / Black

Rear Speakers

Left Positive - White Right Positive - Grey

Left Negative - White / Black Left Negative - Grey / Black

3. Front Gain Control

Used to match the input signal of the source to the amplier. See the setup section for more

details.

4. Front Crossover Control

The switch is used to select between low pass / high pass lter or no lter at all on the

front channels. The frequency ranges on the low pass lter are from 45 Hz to 300 Hz. The

frequency ranges on the high pass lter are from 45 Hz to 300 Hz.

5. Front Bass Boost Switch

To provide up to an extra +12 dB of bass boost at 45 Hz. Use this boost to increase bass

output from the amplier.

6. Rear Gain Control

Used to match the input signal of the source to the amplier. See the setup section for more

details.

7. Rear Bass Boost Switch

To provide up to an extra +12 dB of bass boost at 45 Hz. Use this boost to increase bass

output from the amplier.

8. Rear Crossover Control Switch

The switch is used to select between low pass / high pass lter or no lter at all on the

rear channels. The frequency ranges on the low pass lter are from 45 Hz to 300 Hz. The

frequency ranges on the high pass lter are from 45 Hz to 300 Hz.

9. Front Bass Boost Remote Input Jack

Use to plug in the remote bass controller. (optional)

10. Indicator LED

When the amplier is operating correctly the LED will show as green.

When the amplier is in protection mode the LED will show as red.

11. Power Connections

Power connections. See Connections section for details on correct connections.

12. Fuses

Please ensure the following fuse rating is used when replacing fuses: 35 amp x 3

13. Speaker Terminal Output

For connection to the speakers. See Application section for wiring examples.

14. Input Mode Select Switch

Allows 4 channels to be driven from a single pair of RCA leads

Terminals and Controls ED71600

Power

Protect

SP- SP- SP+SP+

Input

L+ R+

L- R-

L L

Hi LevelLine Out Line In

OFFON

Subsonic

Phase

LPFGain

Min Max 35Hz 250Hz 0° 180° 80Hz16Hz

24dB0dB

Remote

Bass

Boost

ED72500 ED71200

ED71200

ED7800

ED72500

MONOBLOCK AMPLIFIER 1 X 1250 WATTS RMS

ED71600

4 CHANNEL AMPLIFIER 4 X 200 WATTS RMS

ED7400

2 CHANNEL AMPLIFIER 2 X 100 WATTS RMS

MONOBLOCK AMPLIFIER 1 X 600 WATTS RMS

4 CHANNEL AMPLIFIER 4 X 100 WATTS RMS

4 x 35 AMP

3 x 35 AMP

INPUT

2 x 15 AMP

2 x 25 AMP

2 x 20 AMP

125

11 12 13

35786

11 12

2349

6 7

8 10

11 12 13

1234 5 68

10 11 12

456

10 11

13 14

1. Low Level Input

For connection to any source (head unit) with a low level output. This is your RCA output from

the source (headunit).

2. High Level Input

To be used when no RCA’s are available. Use the provided loom to connect to closest

speakers. The loom connector will only t one way around. Once plugged in you should

connect the wires as below:

Left Positive - Brown Right Positive - Black Left Negative - Blue Right Negative - Green

3. Gain Control

Used to match the input signal of the source to the amplier. See the setup section for more

details.

4. Low Pass Filter Control

Low pass frequency control. The frequency ranges from 35 Hz to 250 Hz.

5. Phase Control

Can be used to alter the phase of the subwoofer from 0 - 180 degrees.

IE: the speaker output can be In phase or out of phase with the other speakers in the vehicle.

For best results rotate the dial between the two settings to determine the best sound.

6. Subsonic Filter Control

This is used to lter out unwanted amplier output to the subwoofer. Effectively this will lter

out all the frequencies up to the crossover point set with the control. The range is from 16 Hz to

80 Hz.Frequencies of 80 Hz and below cause the subwoofer to work hard, some subwoofers

can easily be damaged when playing very low frequencies. Using the subsonic lter allows

less distortion, delivers frequencies better suited to the subwoofer prolonging its life.

7. Subsonic Filter Switch

Used to turn the lter on or off.

8. Bass Boost Switch

To provide up to an extra +18 dB of bass boost at 45 Hz. Use this boost to increase bass

output from the amplier.

9. Bass Remote Input Jack

Use to plug in the remote bass controller.

10. Indicator LED

When the amplier is operating correctly the LED will show as greeb. When the amplier is in

protection mode the LED will show as red.

11. Fuses

Please ensure the following fuse rating is used when replacing fuses:

20 amp x 2

12. Speaker Terminal Output

For connection to the speakers. See Application section for wiring examples.

13. Power Connections

Power connections. See Connections section for details on correct connections.

14. Low Level Output

Daisy chain RCA connection to allow easy addition of another amplier.

Terminals and Controls ED71200

Power

Protect

SP- SP- SP+SP+

Input

L+ R+

L- R-

L L

Hi LevelLine Out Line In

OFFON

Subsonic

Phase

LPFGain

Min Max 35Hz 250Hz 0° 180° 80Hz16Hz

24dB0dB

Remote

Bass

Boost

ED72500 ED71200

ED71200

ED7800

ED72500

MONOBLOCK AMPLIFIER 1 X 1250 WATTS RMS

ED71600

4 CHANNEL AMPLIFIER 4 X 200 WATTS RMS

ED7400

2 CHANNEL AMPLIFIER 2 X 100 WATTS RMS

MONOBLOCK AMPLIFIER 1 X 600 WATTS RMS

4 CHANNEL AMPLIFIER 4 X 100 WATTS RMS

4 x 35 AMP

3 x 35 AMP

INPUT

2 x 15 AMP

2 x 25 AMP

2 x 20 AMP

125

11 12 13

35786

11 12

2349

6 7

8 10

11 12 13

1234 5 68

10 11 12

456

10 11

13 14

1. Low Level Input

For connection to any source (head unit) with a low level output. This is your RCA output from

the source (headunit).

2. Gain Control

Used to match the input signal of the source to the amplier. See the setup section for more

details.

3. Low Pass Filter Control

Low pass frequency control. The frequency ranges from 40 Hz to 250 Hz.

4. Phase Control

Can be used to alter the phase of the subwoofer from 0 - 180 degrees.

IE: the speaker output can be Inphase or out of phase with the other speakers in the vehicle.

For best results ick between the two settings to determine the best results.

5. Subsonic Filter Control

This is used to lter out unwanted amplier output to the subwoofer. Effectively this will lter

out all the frequencies up to the crossover point set with the control. The range is from 15 Hz to

50 Hz.Frequencies of 80 Hz and below cause the subwoofer to work hard, some subwoofers

cane easily be damaged when playing very low frequencies. Using the subsonic lter allows

less distortion, delivers frequencies better suited to the subwoofer prolonging its life.

6. Subsonic Filter Switch

Used to turn the lter on or off.

7. Bass Boost control

To provide up to an extra +18 dB of bass boost at 45 Hz. Use this boost to increase bass

output from the amplier.

8. Bass Remote Input Jack

Use to plug in the remote bass controller.

9. Indicator LED

When the amplier is operating correctly the LED will show as green. When the amplier is in

protection mode the LED will show as red.

10. Fuses

Please ensure the following fuse rating is used when replacing fuses:

35 amp x 4

11. Speaker Terminal Output

For connection to the speakers. See Application section for wiring examples.

12. Power Connections

Power connections. See Connections section for details on correct connections.

13. Low Level Output

Daisy chain RCA connection to allow easy addition of another amplier.

Power

Protect

SP- SP- SP+SP+

Input

L+ R+

L- R-

L L

Hi LevelLine Out Line In

OFFON

Subsonic

Phase

LPFGain

Min Max 35Hz 250Hz 0° 180° 80Hz16Hz

24dB0dB

Remote

Bass

Boost

ED72500 ED71200

ED71200

ED7800

ED72500

MONOBLOCK AMPLIFIER 1 X 1250 WATTS RMS

ED71600

4 CHANNEL AMPLIFIER 4 X 200 WATTS RMS

ED7400

2 CHANNEL AMPLIFIER 2 X 100 WATTS RMS

MONOBLOCK AMPLIFIER 1 X 600 WATTS RMS

4 CHANNEL AMPLIFIER 4 X 100 WATTS RMS

4 x 35 AMP

3 x 35 AMP

INPUT

2 x 15 AMP

2 x 25 AMP

2 x 20 AMP

125

11 12 13

35786

11 12

2349

6 7

8 10

11 12 13

1234 5 68

10 11 12

456

10 11

13 14

Terminals and Controls ED72500

Troubleshooting

● Before removing the amplier, refer to the list below and follow the suggested procedures.

● Always test the speakers and conrm that they are wired correctly rst.

● If in any doubt get help from a qualied auto electrician.

Amplier Will Not Power Up

● Check for good ground connections. Ensure Ground cable is connected directly to bare

metal and not a painted surface.

● Using a multimeter check that remote terminal has at least 10V DC.

● Using a multi meter check that there is battery voltage on the positive terminal.

● Check all fuses.

● Check that the protection light is not illuminated. If it is lit, shut off the amplier for thirty

seconds and then turn it back on.

Protection LED Illuminates When Amplier Is Powered Up

● Check for shorts on all speakers wires. (IE no speaker wires should be joined together and

no speaker wires should be touching the cars chassis)

● The amplier is designed to shut down automatically when the units temperature goes

above 80 degrees. If the amplier feels very hot then this may be the reason for the

amplier not starting.

● Remove the speaker wires and reset the amplier. If the protection LED still comes on then

the amplier is faulty. This damage may have been caused by either failure to follow these

setup guidelines or abuse.

Amplier Gets Very Hot

● Check the minimum speaker impedance for the amplier is correct.

● Check for shorts on all speakers wires. (IE no speaker wires should be joined together and

no speaker wires should be touching the cars chassis)

● Check that there is good airow around the amplier. In some applications an external fan

may be required.

Blown Fuse(s)

● Check both positive supply and ground for shorts.

● Check that the positive wire is connected to the positive terminal on the amplier.

● Check that the negative wire is connected to the ground terminal on the amplier.

● Ensure that the correct rated fuse is tted

Distorted Sound

● Check the gain control is not set at too high a level. If the speakers sound distorted turn the

down the gain until the sound is clear.

● Check that all crossover frequencies are correct. See setup section for more details.

● Check for shorts on all speaker wires.

● Check all speakers are wired correctly. With the correct polarity being observed on each

connection.

Set Up Section

To correctly set the gain control of the amplier to match that of the source (headunit) use the

following setup routine:

Turn the gain control to minimum on the amplier.

Ensure the bass boost is set to 0 dB.

On the headunit set all crossovers to at and both bass and treble to zero.

Turn up the source (headunit) to approx 3/4 volume.

Very slowly turn up the gain on the amplier until distortion can be heard in any of the speakers

or until the volume reaches an uncomfortable listening level when this is reached turn down

the gain control slightly.

The gain control is now set.

The setting of the crossover will depend on what kind of speaker you are installing.

For a subwoofer it is recommended that the crossover is set to Low Pass and the frequency is

set to match that of the speakers specications.

For a pair of full range speakers it is recommend that the crossover is set to Flat. The two

frequency controls will then have no effect on the ampliers output and the speaker will receive

a full range signal. However, using the high pass crossovers will allow more control of your

speakers. By removing the bass (low frequencies) the speakers can perform at higher volumes

with less distortion.

Note: The smaller the speaker, the less bass it can handle. Adjust the crossover to get the

most and best sound from your speakers. The easiest was to do this is by limiting the amount

of bass you feed them

For a pair of speakers with a passive crossover it is recommended that the crossover is set to

High Pass and the frequency is set to match that of the speakers specications.

Note:

By using the crossovers correctly you will not only lengthen the life of your speakers but

you will also get better performance from them. To optimise your setup seek the advice of a

professional installation engineer or visit your local EDGE audio dealer.

Power

Protect

SP-SP- SP+SP+

ED71200

ED7800

MONOBLOCK AMPLIFIER 1 X 600 WATTS RMS

4 CHANNEL AMPLIFIER 4 X 100 WATTS RMS

2 x 25 AMP

2 x 20 AMP

ED7400

2 CHANNEL AMPLIFIER 2 X 100 WATTS RMS

2 x 15 AMP

ED7400

2 CHANNEL AMPLIFIER 2 X 100 WATTS RMS

2 x 15 AMP

ED7800

4 CHANNEL AMPLIFIER 4 X 100 WATTS RMS

2 x 25 AMP

Power

Protect

SP-SP- SP+SP+

ED71200

MONOBLOCK AMPLIFIER 1 X 600 WATTS RMS

2 x 20 AMP

Power

Protect

SP-SP- SP+SP+

ED71200

MONOBLOCK AMPLIFIER 1 X 600 WATTS RMS

2 x 20 AMP

Power

Protect

SP-SP- SP+SP+

ED71200

ED7800

MONOBLOCK AMPLIFIER 1 X 600 WATTS RMS

4 CHANNEL AMPLIFIER 4 X 100 WATTS RMS

2 x 25 AMP

2 x 20 AMP

ED7400

2 CHANNEL AMPLIFIER 2 X 100 WATTS RMS

2 x 15 AMP

ED7400

2 CHANNEL AMPLIFIER 2 X 100 WATTS RMS

2 x 15 AMP

ED7800

4 CHANNEL AMPLIFIER 4 X 100 WATTS RMS

2 x 25 AMP

Power

Protect

SP-SP- SP+SP+

ED71200

MONOBLOCK AMPLIFIER 1 X 600 WATTS RMS

2 x 20 AMP

Power

Protect

SP-SP- SP+SP+

ED71200

MONOBLOCK AMPLIFIER 1 X 600 WATTS RMS

2 x 20 AMP

ED7400 in 2 channel conguration connected to a pair of ED209 speakers

ED7400 in bridged conguration connected to an ED512 subwoofer

Minimum impedance 2 Ohms

Minimum impedance 4 Ohms

ED7800 / 71600 in 4 channel conguration connected to 2 pairs of ED209

speakers

ED7800 / 71600 in 3 channel conguration connected to a pair of ED209

speakers and an ED512 subwoofer

Minimum impedance 2 Ohms

Minimum impedance 4 Ohms

Applications

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Edge Auto-Verstärker Handbücher

Edge

Edge DBX Series Bedienungsanleitung

Beliebte Auto-Verstärker Handbücher anderer Marken

Cyfre

Cyfre CHACDMA-819 Bedienungsanleitung

MTX

MTX Thunder Marine TM904 Bedienungsanleitung

MTX

MTX Thunder TA Super TA92001 Bedienungsanleitung

Lanier

Lanier 480-0239 Bedienungs- und Wartungsanleitung

Kenwood

Kenwood KAC-642 Bedienungsanleitung

Pioneer

Pioneer GM-D8500M Bedienungsanleitung

Jensen

Jensen XA4150 Bedienungsanleitung

Sony

Sony XM-405EQX Marketing Specifications Bedienungsanleitung

Audiopipe

Audiopipe AQX-660.2 Bedienungsanleitung

Clarion

Clarion APA2001 APA2001 APA2001 Kurzanleitung

Sony

Sony XM-7547 Bedienungsanleitung

Alpine

Alpine PDX11000 - Amplifier Bedienungsanleitung

Steg

Steg Qx Mos 105.4x Bedienungsanleitung

JL Audio

JL Audio HD900/5 Bedienungsanleitung

Memphis

Memphis 16-MC5.700 Bedienungsanleitung

Audiopipe

Audiopipe APSM-1150 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems Riot GT1000M Bedienungsanleitung

Kenwood

Kenwood KAC-PS811D Bedienungsanleitung
