English Version.

1. Product Introduction

Thank you for purchasing Edimax’s Fast Ethernet/802.11g/b Wireless LAN

MFP server. This MFP server allows your Multi-function, all-in-one printer

(called for short: MFP) to become a sharable device on the network. Unlike

many print servers, it can communicate with MFP as if it is connected directly

to your computer. Because of these features, all users can share printing,

scanning, card reading and fax through the network with minimal

configurations needed. Furthermore, the MFP Server supports bi-directional

communication so important information such as ink levels and paper levels

can be monitored on client machines.

The MFP server supports print, scan, card reader and fax sharing on most of

the popular operating systems: Windows 2000 SP4 above and XP SP1 above.

It also supports Windows XP scanning utility and MFP vendors’ scanning

utilities. Thus providing you with a bigger variety when choosing the right

software for you.

Despite the magnificent functions our MFP server can provide you with, this

MFP Server also act as a traditional print server. It supports TCP/IP network

protocol and LPR, RAW and IPP printing protocols. It can share print function

in the various common network operating systems Windows 98SE /Me /NT

/2000 /XP/2003, Unix, Linux and MAC OS 9.x above.

This MFP Server provides IEEE 802.11g/b wireless LAN (up to 54Mbps data

transfer rate), an Ethernet network port (10/100Mbps Ethernet) and a USB

2.0/1.1 port for MFP or printer. The MFP Server can be connected to your

802.11g/b wireless network or wired network. Thus providing you with more

flexibility when setting up your MFP server in your network.

The MFP server is the best solution for users to share MFP easily. It offers

flexible and manageable printing on your Local Area Network at a low cost

and with minimal setup and maintenance required.

2. Product Package

This package contains the following components:

 One MFP Server

 One Antenna (only for Wireless MFP Server)

 One Power Adapter

 One Quick Installation Guide

 One CD-ROM (Including all the software utilities, drivers, Multi-language

QIG and User’s Manual)

3. Getting Started

Before you start, you should have:

 One computer with Windows 2000 SP4 above and Windows XP SP1

above

 One MFP or printer with USB port and an installation CD

 One Category 5 Ethernet Cable

 One USB Cable

3.1 Hardware Installation Procedure

1. Unpack the MFP Server package and verify that all the items listed in the

previous section are provided.

2. Plug the USB cable to the MFP Server with the MFP or printer that you

want to share on the network.

3. Connect the MFP Server to your network by attached the network cable to

the network port of the MFP server.

4. Connect the power adapter to the MFP Server. The MFP Server will

perform the Power-On-Self-Test (POST) after it is powered on. When the

Status LED is unlighted, the MFP Server is ready.

Note:

1. You must use the power adapter shipped along with the MFP Server,

do NOT use any other power adapter from other sources.

2. To avoid unnecessary compatibility issue, please power on the print

server before the printer.

3.2 Software Installation Procedure

Before you start, you should check your computer’s operating system. This

program can be run in Windows 2000 SP4 above and Windows XP SP1

above. Please follow the steps below to start installation. For the installation

procedures in Windows 98SE/ME/NT and other operating systems, please

refer to the manual of the MFP Server.

Tip: You have to uninstall all the MFP server drivers and utilities if you have

installed the previous version.

1. Insert the CD shipped along with the MFP Server into your CD-ROM drive.

The Autorun.exe program should be executed automatically. If not, run

Autorun.exe manually from CD-ROM drive’s root directory

2. The following screen will be displayed. Click “Setup Utility”.

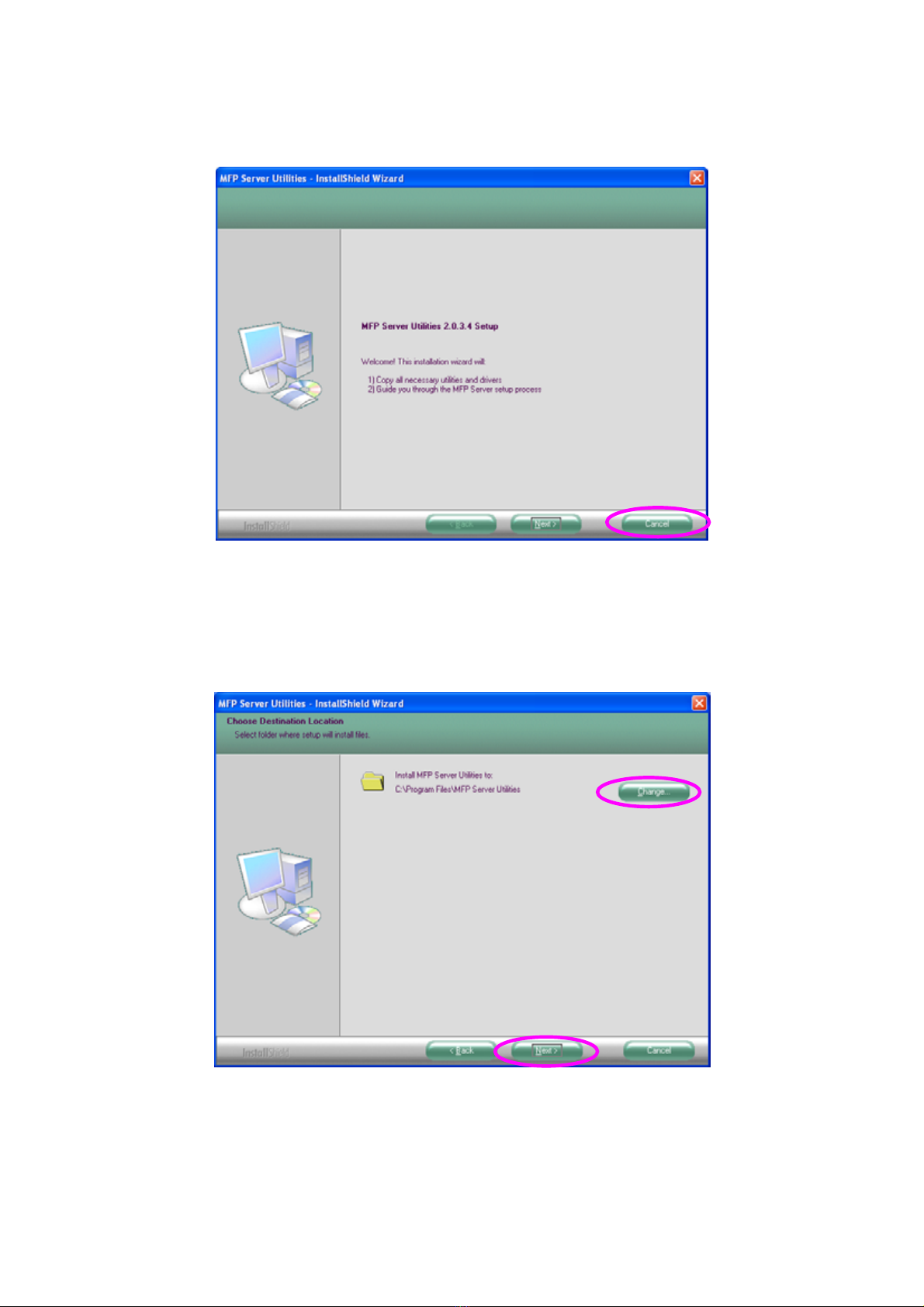

3. The “MFP Server Utilities – InstallShield Wizard” is displayed, click "Next".

4. Click “Next” to install the MFP Server utilities in the default folder or click

“Change” to specify the destination where you would like to install the MFP

Server utilities.

5. The system starts installing the MFP Server Utilities.

6. The MFP Server is installing the MFP Server utilities. When you find the

following screen, please click “Continue Anyway”.

7. The MFP Server is installing the MFP Server drivers. When you find the

following screen, please click “Continue Anyway”.

8. The “MFP Server Configuration” screen is displayed. If you want to

configure the MFP Server, please click “”Next”. Or you can select “No, I

will configure the MFP Server later” and click “Next” to complete the

installation.

The following steps are for MFP Server Configuration.

9. The MFP Server List will automatically search for the MFP Servers in the

network. Select the MFP Server you to setup and click “Next” to continue.

10.Enter the User Name and Password of the MFP Server you have selected

to login the MFP Server. The default User Name is “admin”; default

Password is “1234.”

11.Set the “Alias Name” and the “MFP Server Description” to the MFP Server

here. Click on “Next”.

Note: You can define the location or other information of the MFP

Server for easy to find the MFP by filling “MFP Server Description”.

12.Please set the network settings for the MFP Server manually. By default,

the network settings are as follows.

IP Address: 192.168.2.2

Subnet Mask: 255.255.255.0

The MFP Server IP Address must set to have the same network segment

within your network environment or connected computer. If the network IP

address setting is incorrect, then print server will not be able to

communicate throughout the network. For example, if your router/gateway

is using IP address 192.168.1.1, then you need to give a unique manual

IP to your print server with IP range 192.168.1.x

Please note: Above IP address setting is only an example, please do not

follow exactly!
