Edimax ES-3305P V2 Betriebsanleitung

5-Port Fast Ethernet Desktop Switch

ES-3305P V2

Description

The ES-3305P V2 is a 10/100 Mbps unmanaged Ethernet desktop switch designed to enhance network

performance. It’s compact, sleek design offers outstanding performance and high efficiency, using store and

forward packet-switching technology to provide reliable data transfers, ideal for network connectivity in the

SOHO environment.

To extend home networks or meet online gaming, multimedia transfer or streaming requirements the ES-3305P

V2 is a cost-effective Fast Ethernet solution. The plug-and-play design ensures users can easily connect network

devices such as PCs, network-attached storage or print servers to a home network with no manual configuration

necessary.

Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.

Supports Auto-Negotiation

Each of the ES-3305P V2’s ports automatically detect

whether connected network devices are running at

10Mbps or 100Mbps and half-duplex or full-duplex

mode, and adjusts the speed and mode accordingly

ensuring easy and hassle-free operation.

Supports Non-Blocking Wire Speed

The ES-3305P V2 forwards and receives traffic

seamlessly with its non-blocking wire-speed. Every port

of the ES-3305P V2 supports speeds up to 200Mbps in

full-duplex mode simultaneously, providing full wire

speed to connected devices and allowing you to run a

high speed network smoothly.

ES-3305P V2

www.edimax.com

5-Port Fast Ethernet Desktop Switch

Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.

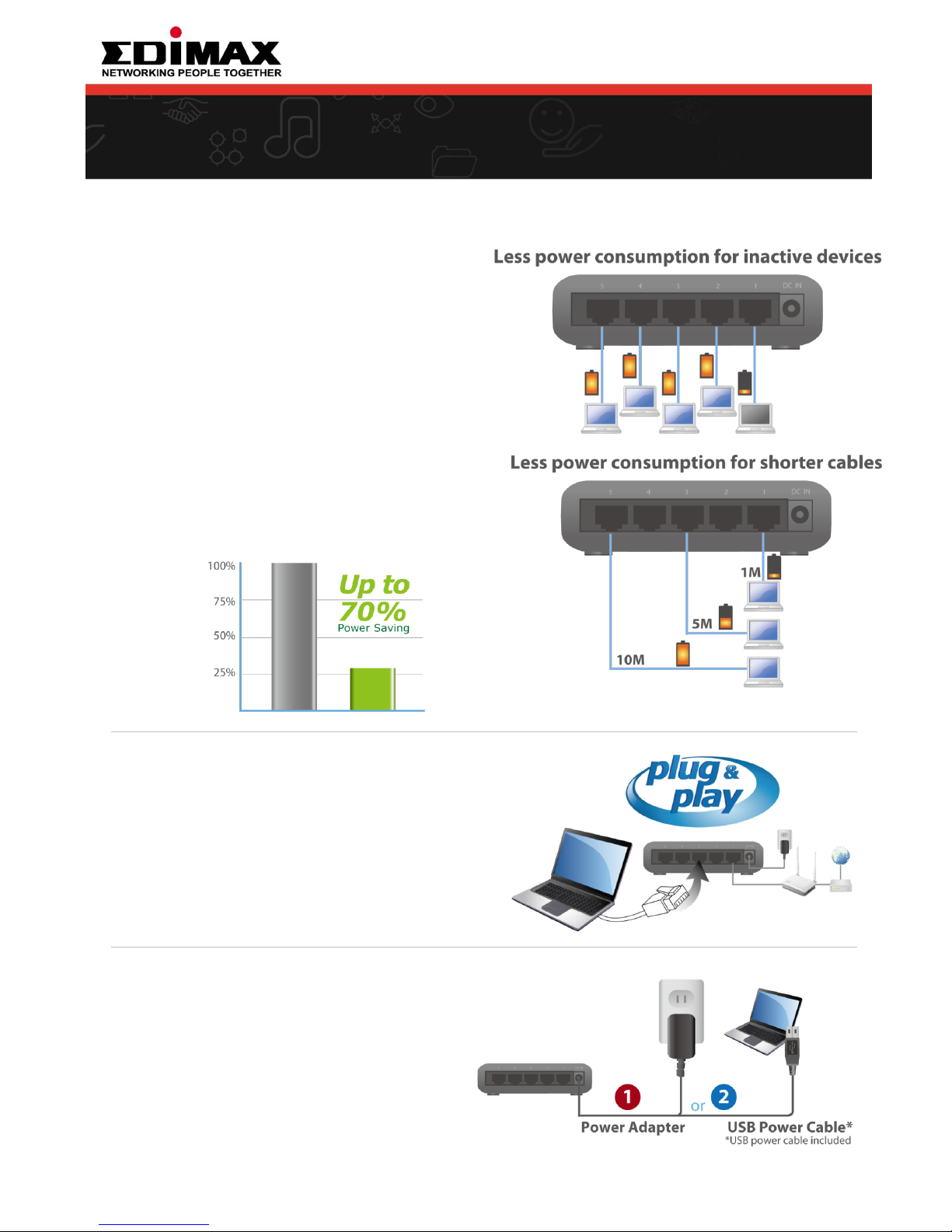

IEEE Energy Efficient Ethernet (EEE) Compliance

Along with the Fast Ethernet speeds critical for next-

generation network applications, the ES-3305P V2 offers

environmental efficiency . To comply with the

IEEE802.3az standard, the ES-3305P V2 provides power

saving functionality to reduce energy consumption and

save costs:

•Inactive Link Detection

When a network device is shut down and/or an inactive

link is detected, the power usage adjustment feature

automatically reduces power usage. The switch’s power

consumption will be dynamically adjusted according to

the link status and the number of active network devices.

•Cable Length Detection

Devices equipped with this feature automatically detect

the length of connected Ethernet cables and adjust

power usage accordingly. The shorter the cable length,

the less power it consumes.

Optional Power Supply

The ES-3305P V2 can be powered either through a

PC’ s or any other devices’ USB port to eliminate

the need for an additional power outlet, or

through the AC power supply. (*USB power cable

included.)

Easy to Use

The ES-3305P V2 is plug-and-play and supports a wide

range of network protocols. Installation and network

management is quick and straightforward, and clear and

convenient LED indicators display easy to read port and

switch status.

ES-3305P V2

www.edimax.com

5-Port Fast Ethernet Desktop Switch

Standards Features Filtering / Forwarding Rates

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control

IEEE 802.3az Energy Efficient

Ethernet

RJ-45 Port: 5

MAC Address: 1K

Buffer Memory: 56K

Transmission Method: Store and

Forward

100Mbps Port –148,800pps

10Mbps Port –14,880pps

Transmission Media LED Indicators Power Requirement

10BASE-T Cat. 3, 4, 5 UTP/STP

100BASE-TX Cat. 5 UTP/STP

Per Port: Link/Act

Per Unit: Power

DC 5V 0.6A

Temperature Humidity Power Consumption

Operating: 0 to 40℃

Storage: -20 to 70℃

Operating: 10 to 90% RH (Non-

condensing)

Storage: 5 to 90% RH (Non-

condensing)

1.07 Watts (Max)

Dimensions Weight Certifications

98×71 ×25.5 mm (L x W x H) 92 g CE

FCC Class B

APPLICATION DIAGRAM

• Connect the ES-3305P V2 to your router or cable/xDSL modem

• Connect a print server, NAS, smart TV, laptop, media player, game console and/or IP Camera to the ES-3305P V2.

Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.

ES-3305P V2

FEATURES

•Complies with IEEE802.3, IEEE802.3u standards

•Supports auto MDI/MDI-X crossover detecting and auto correction

•Wire-speed packet filtering and forwarding rate

•Store-and-forward architecture filters fragment & CRC error packets

•Supports IEEE802.3az energy efficient Ethernet function

TECHNICAL SPECIFICATIONS
