Edimax Technology (UK) Limited | Quick Installation Guide (AR-7284WnA)

www.edimax.co.uk

Edimax AR-7284WnA

Wireless 11n ADSL 2+ Modem Router

Quick Installation Guide

2

Edimax Technology (UK) Limited | Quick Installation Guide (AR-7284WnA)

www.edimax.co.uk

1. Hardware Setup

Step 1. Connect the ADSL line

Connect the RJ-11 (the telephone cable supplied) from the telephone socket to the WAN

port of the router

Step 2. Connect the router to your PC

Connect the router to your PC with an ethernet cable to one of the LAN port of the router.

Step 3. Connect the power adapter to the router

Connect the power adapter to the power jack on the rear panel of router.

Step 4. Check ADSL light status

Please check on the ADSL Led on the front panel of the router. The router will detect the

ADSL-capable telephone line. If the ADSL light is on solid, your broadband is active. However,

if the light is flashing, please call your internet service provider to confirm your broadband

status.

Note: Please use the power adapter provided with the router, do NOT use any other power

adapter from other sources.

3

Edimax Technology (UK) Limited | Quick Installation Guide (AR-7284WnA)

www.edimax.co.uk

2. Router Configuration

To configure the router to the internet, open Internet Explorer, type http://192.168.2.1'

into the address bar and press Enter.

At the Login page, select ‘'admin', Password, type '1234'. Click 'login'.

Step 1 –Click Setup Wizard.

4

Edimax Technology (UK) Limited | Quick Installation Guide (AR-7284WnA)

www.edimax.co.uk

Step 2 –Click Next.

Step 3 –Tick on Automatically synchronize with Internet time servers. Select GMT time Zone.

Click Next.

5

Edimax Technology (UK) Limited | Quick Installation Guide (AR-7284WnA)

www.edimax.co.uk

Step 4 –Enter your ISP information. Below is the standard PPPoA connection type used by most

of the UK ISPs. If you are not sure what protocol to use, please contact your ISP for their settings.

Protocol = PPPoA

Encapsulation Mode = VC-Mux

VPI = 0

VCI = 38

Then, enter your ISP broadband’s username and password. Click Next to continue.

6

Edimax Technology (UK) Limited | Quick Installation Guide (AR-7284WnA)

www.edimax.co.uk

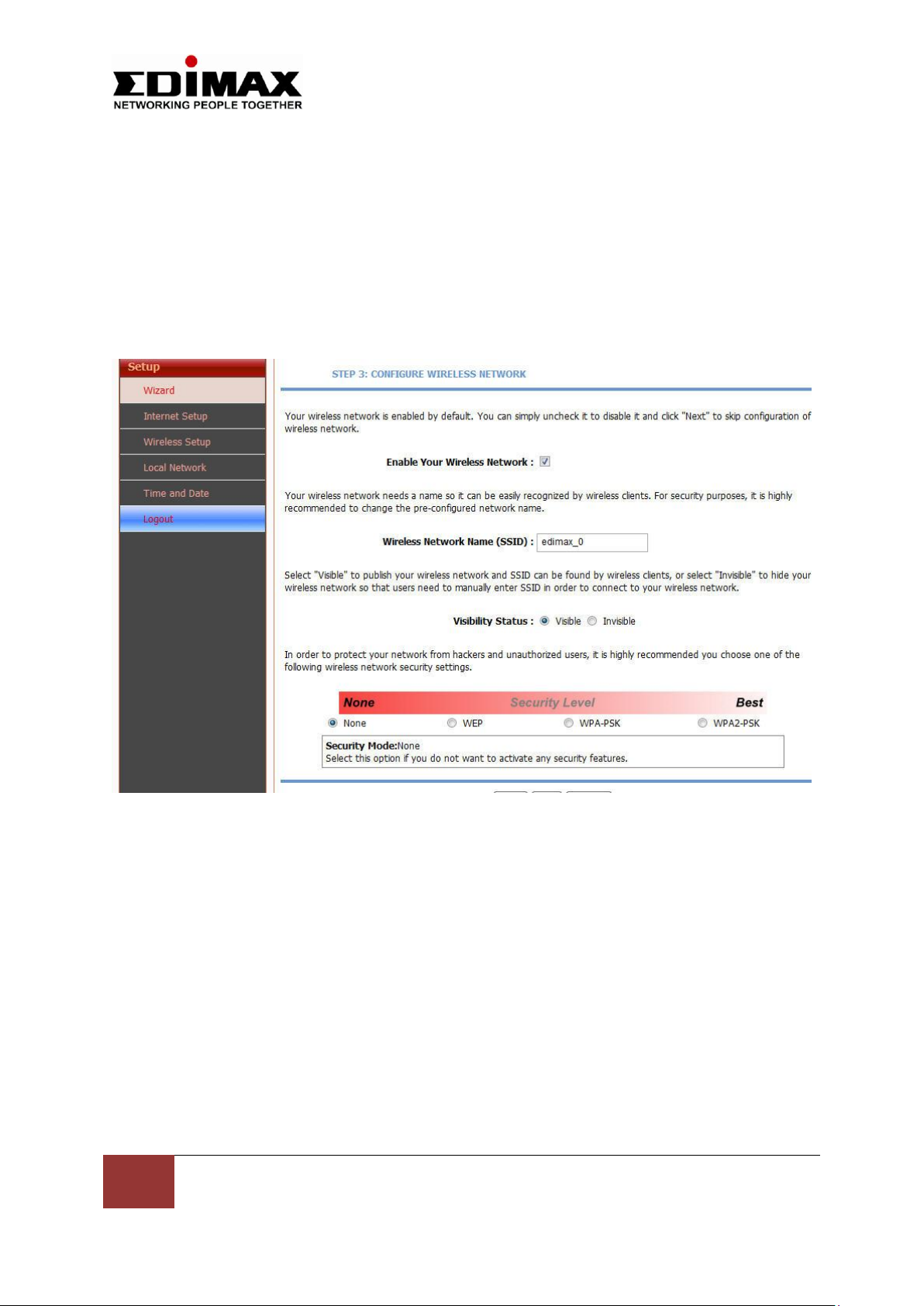

Step 5

-Tick the ‘Enable Your Wireless Network’to enable the wireless connection.

-SSID –by default is edimax_0. This is the default name of your wireless.

-Select Visible.

-For Security Level, by default the wireless is unsecure. You can secure the wireless with

WPA-PSK.

7

Edimax Technology (UK) Limited | Quick Installation Guide (AR-7284WnA)

www.edimax.co.uk

-Select WPA-PSK and enter your own password into WPA Pre-shared key. Please

remember this WPA Pre-shared key. You will need this key to connect to the router

wirelessly.

-Click Next.

8

Edimax Technology (UK) Limited | Quick Installation Guide (AR-7284WnA)

www.edimax.co.uk

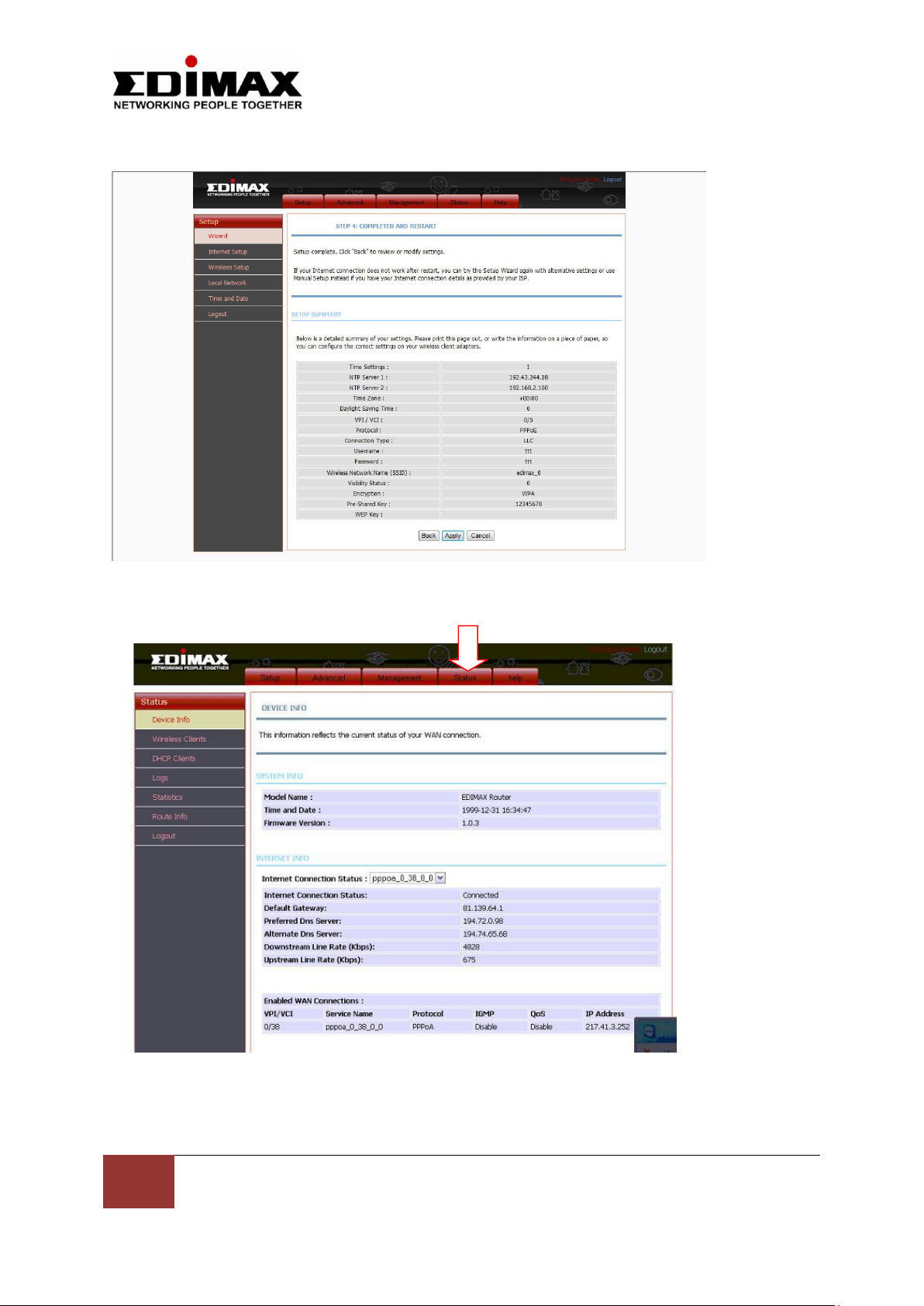

Step 6 –Click Apply to finish the setup.

Step 7 –Internet will be connected and you can check the status by clicking on Status>Internet

Info.

If the Internet is not connected, repeat the setup wizard. Check your ISP settings and username

and password in Step 4.
