The BR-6228nS V2 is a 150Mbps high-speed multi-function Wi-Fi solution which supports IEEE 802.11b/g/n
standards and provides significantly improved coverage with a 5dBi antenna. Operating as a router, access point
or range extender, the BR-6228nS V2’s flexibility meets the demands of any networking applications. The smart
iQ Setup wizard makes setup and installation as easy as a few clicks. Impressive performance and a competitive
price make the BR-6228nS V2 a cost-effective solution for home or small office environments.
N150 Multi-Function Wi-Fi Router
Three Essential Networking Tools in One
BR-6228nS V2
3-in-1 Router, Access Point and Range Extender
The BR-6228nS V2 can work as router, access point or
range extender. Just configure the mode you need for
your network environment using the smart iQ Setup
wizard and enjoy surfing the web.
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.
Copyright © 2013 Edimax Technology Co. Ltd. All rights reserved. www.edimax.com
Smart iQ Setup
Features iQ Setup for smart, automatic and quick
installation with no CD required.
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.
Copyright © 2013 Edimax Technology Co. Ltd. All rights reserved. www.edimax.com
Guest Network*
Supports a guest network to provide connectivity while
isolating guests from your primary network.
*Router mode only
www.edimax.com
BR-6228nS V2
Green Technology
Designed with the latest green technology, the BR-
6228nS V2 uses 30% less power compared to other
standard 150Mbps routers.
Wireless Internet Service Provider (WISP)
Connection Mode
With WISP support, the BR-6228nS V2 is able to
share an Internet connection from a wireless ISP
access point and convert it into a wired or wireless
network for multiple users in your home or office.
N150 Multi-Function Wi-Fi Router
Three Essential Networking Tools in One
5dBi High Gain Antenna
Employs a 5dBi high gain antenna to enhance wireless
range and coverage, providing powerful penetration
through walls and floors.
FUNCTIONS HARDWARE INTERFACE MANAGEMENT
Supports router, access point &
range extender modes
Port triggering for special
applications
DDNS and SIP
Guest network
Virtual server and DMZ hosting
MAC/IP filter and URL blocking
Static routing
UPnP architecture
VPN pass-through (IPSec/PPTP)
Wi-Fi schedule control
1 x RJ-45 Fast Ethernet WAN
port
4 x RJ-45 Fast Ethernet LAN
ports
LED Indicators: power, wireless,
WAN, LNK/ACT for LAN
1 x 5dBi fixed antenna
WPS/Reset button
Intuitive user interface
System status and security log
(web interface)
Firmware upgradeable
WAN SECURITY OUTPUT POWER & RECEIVE
SENSITIVITY
Supports WISP connection mode
Supports RJ-45 cable/xDSL modem
WAN protocol: PPPoE, static IP,
dynamic IP, PPTP, L2TP
NAT/NAPT IP sharing
WEP, WPA & WPA2 encryption
DHCP server/client
QoS for critical operations
SPI anti-DoS firewall
E.I.R.P: < 20dBm
11b (11Mbps) : -82dBm±2dBm
11g (54Mbps) : -70dBm±2dBm
11n (20MHz) : -67dBm±2dBm
11n (40MHz) : -63dBm±2dBm
MEMORY INSTALLATION KIT HUMIDITY & TEMPERATURE
4MB NOR Flash
16MB SDRAM
Smart iQ Setup, no CD required
Supports smartphone, tablet or
laptop setup. (iOS 4 or Android 4
and above are required for
smartphone or tablet setup.)
10 –90% (Non-condensing)
0 –40oC
POWER ADAPTER DIMENSIONS & WEIGHT CERTIFICATIONS
5V DC, 1A 135(W) x 110(D) x 28 (H) mm
151g (antenna weight included) CE, FCC
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.
Copyright © 2013 Edimax Technology Co. Ltd. All rights reserved. www.edimax.com
www.edimax.com
BR-6228nS V2
TECHNICAL SPECIFICATIONS
N150 Multi-Function Wi-Fi Router
Three Essential Networking Tools in One

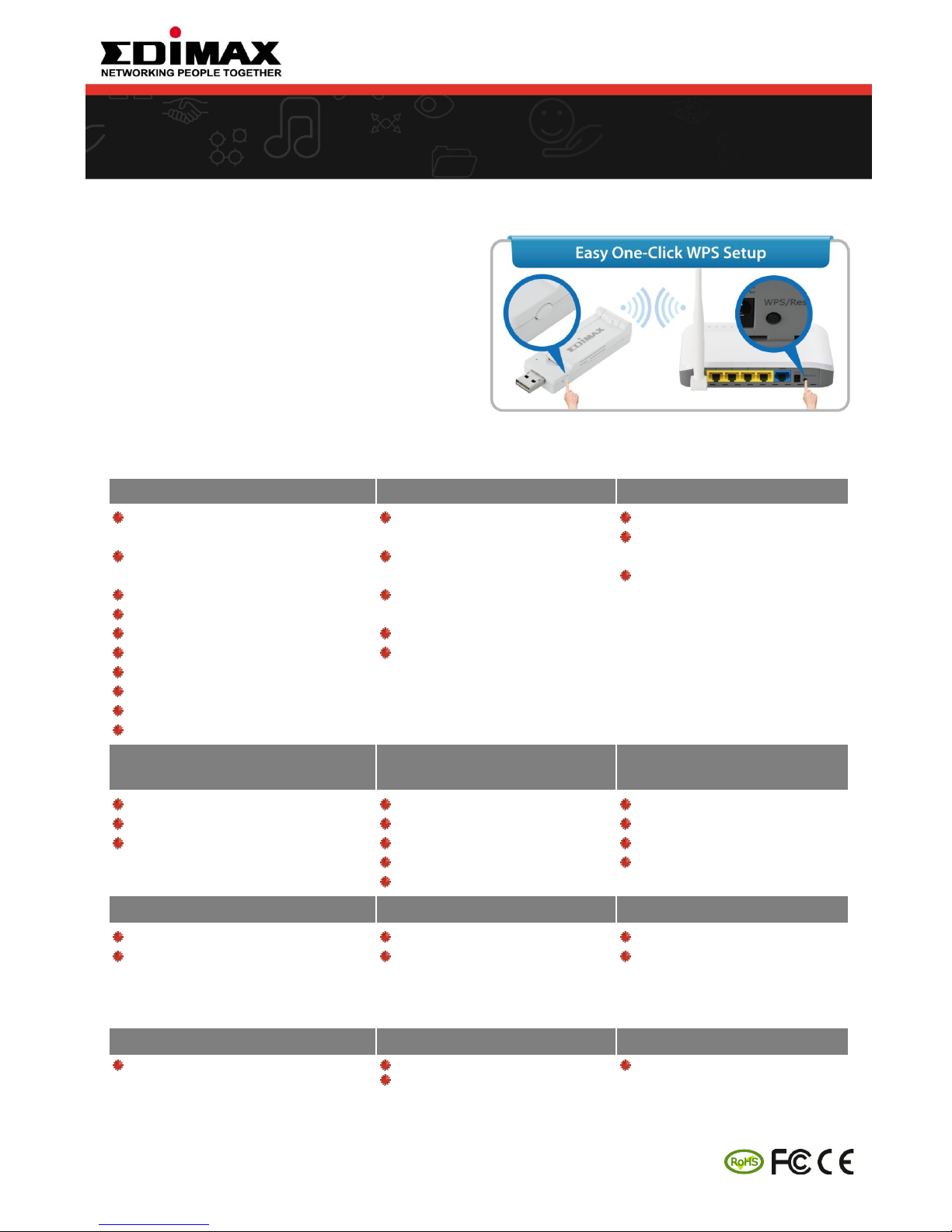

Wi-Fi Protected Setup (WPS) Button
The BR-6228nS V2 has a one-click Wi-Fi Protected
Setup (WPS) button to help you set up and activate a
secure wireless network in a snap.
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.
Copyright © 2013 Edimax Technology Co. Ltd. All rights reserved. www.edimax.com
www.edimax.com
N150 Multi-Function Wi-Fi Router
Three Essential Networking Tools in One
BR-6228nS V2
