EDST Quext iot Bedienungsanleitung

Installation

Manual

Quext Smart Thermostat and Lock 2 Installation Guide

Contents

Thermostat Installation .......................................................................... 4

General Information........................................................................................... 4

What’s in the Box .............................................................................................. 4

Tools and Documents Required .............................................................................. 4

Thermostat overview.......................................................................................... 4

Indicators ....................................................................................................... 5

Thermostat Installation Steps................................................................................ 6

Wiring Connections ............................................................................................ 8

Troubleshooting and FAQs ....................................................................... 9

Steps to Test Quext Smart Thermostat .................................................................... 9

Heating Output..............................................................................................9

Cooling Output ..............................................................................................9

Fan Output...................................................................................................9

Regulatory Information ......................................................................................10

Quext Smart Thermostat and Lock 3 Installation Guide

Thermostat

Installation

Quext Smart Thermostat and Lock 4 Installation Guide

Thermostat Installation

General Information

This guide is for Quext technicians who install Quext Smart Thermostats into resident units. Read these instructions

carefully. If you need help at any time during the installation, escalate to Quext.

What’s in the Box

There are 4 Quext Smart thermostat sets to a box. Each box has 4 of each of the following:

Quext

Thermostats (x4)

Mounting Plates

(x4)

AA Batteries

(x8)

Screws

(x4)

Drywall

Anchors (x8)

Tools and Documents Required

Pencil Level Flathead

Screwdriver

#2 Phillips

Screwdriver

Smartphone Volt Meter Temperature

Gun

Community

Installation Plan

IoT Resident

User Manual

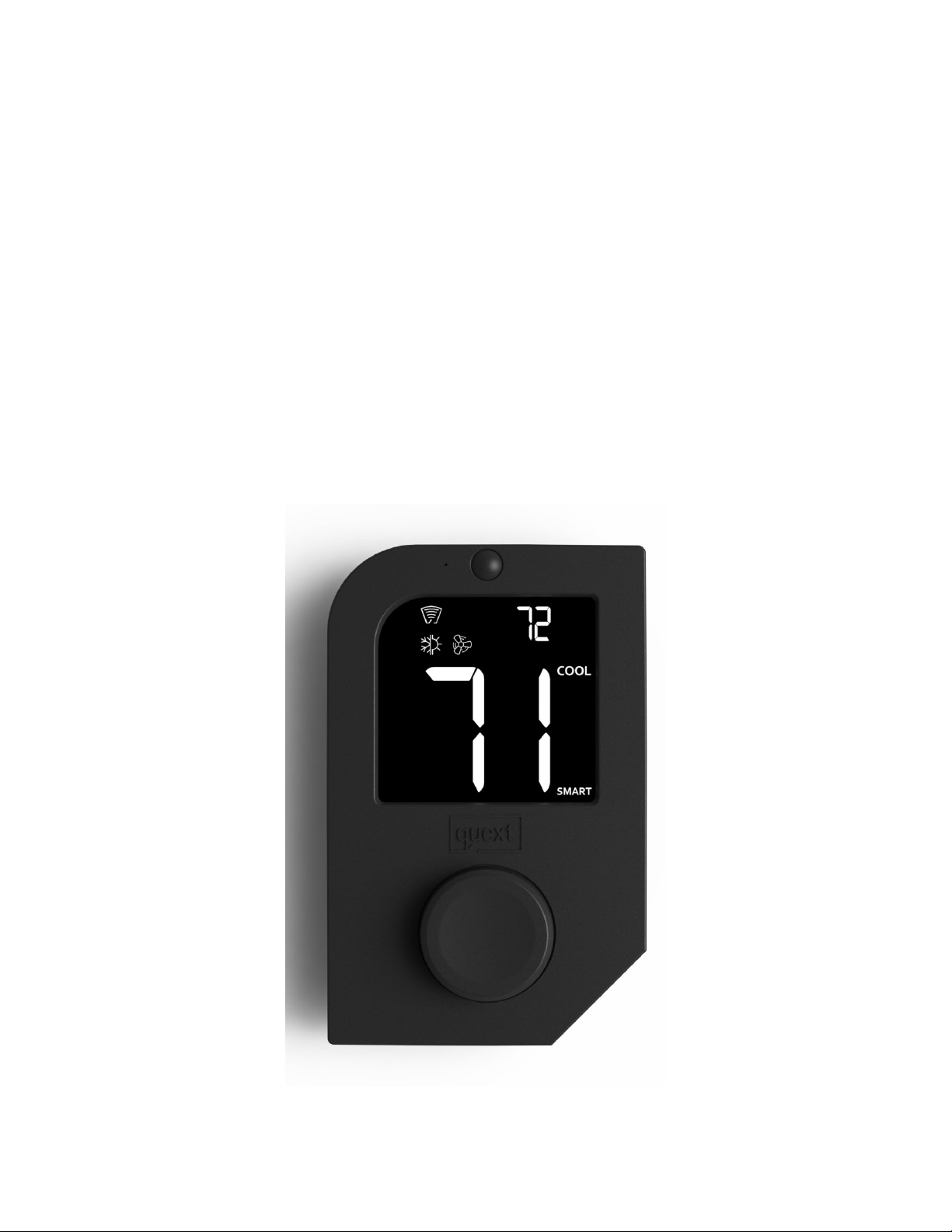

Thermostat overview

The thermostat dial lets you adjust the current temperature setting and access menus of additional features.

The LED screen displays temperature set points, override durations, menus, and indicators.

Item Description

A Network connection

B Infrared sensor

C Temperature set point

D Thermostat mode

E Fan mode

F Control method

G Dial

H Current room temperature

See next page for full list of indicators

Quext Smart Thermostat and Lock 5 Installation Guide

Indicators

The table below describes each indicator on the thermostat display.

Indicator Description Indicator Description

▪Solid: Connected to the network

▪Flashing: Attempting to connect

▪Dark: No network connection

Thermostat mode

▪COOL: The system cools to the set

temperature

▪HEAT: The system heats to the set

temperature

▪AUTO: The system maintains the

temperature between the upper

and lower set points

▪OFF: The system is turned off

Property control mode; contact

Property Management

Power issue; contact Property

Management

▪Solid: AA batteries low

▪Flashing: 24V power not present

System mode Fan mode

▪AUTO: The fan operates only while

the system is cooling or heating

▪CIRC: The fan operates for a set

amount of time every hour to keep

air circulating

▪ON: The fan operates continuously

Fan active; also menu option to

change fan mode

To set the control method (Smart/

Local)

Operation not allowed

Delay in progress

System error; contact Property

Management

The number displayed is the duration

in hours of the temporary override

The current setting is a temporary

override of the scheduled operation

Quext Smart Thermostat and Lock 6 Installation Guide

Thermostat Installation Steps

1. Greet the Resident

A. Approach the resident’s unit.

B. Knock twice and announce, “Maintenance.”

C. Greet the resident and explain to them that you are there to replace their thermostat. Don’t forget to

smile!

2. Validate the Current Unit Environment

A. Locate the existing thermostat in the unit and write down the temperature that is displayed.

B. Verify the unit is maintaining temperature.

C. Document if the temperature does not match.

D. Turn on the heat and verify that warm air is coming out of the vents. If it is not, make a note of it. Turn on

the air conditioning and verify that cool air is coming out of the vents. If it is not, make a note of it.

3. Turn Off the Power

A. Locate the unit’s breaker panel. Refer to the Community Installation Plan for direction.

B. Disconnect the power to the HVAC system at the breaker panel. If you cannot determine which breakers

belong to the HVAC system, notify the resident, if home, then turn off the main circuit breaker.

C. Conrm that the power is off by attempting to activate the HVAC system using the existing thermostat. Test

with volt meter to verify.

4. Remove the Existing Thermostat

A. Pull the existing thermostat off of its base/mounting plate.

B. Document the wiring connections.

C. Disconnect all the wiring from the thermostat.

D. Remove the existing thermostat and set it aside. Do not throw the thermostat away.

E. Remove the existing mounting plate.

5. Install the Mounting Plate

A. Referring to the Community Installation Plan, identify where the Quext Smart Thermostat is to be installed.

B. Install the new mounting plate.

C. Using a level, ensure that the mounting plate is level.

D. Wire the air handler, if required. Refer to the air handler wiring diagrams from the manufacturer’s manual.

*Do not mount thermostat until completion of Step 7. See Install the Batteries on page 7.

6. Turn the Power Back On

A. Go back to the breaker panel and turn on the power.

Quext Smart Thermostat and Lock 7 Installation Guide

B. Using a volt meter, test the power to the mounting plate between R and C terminals. The power must be

between 24V and 30V. If it’s not between 24V and 30V, perform a pull test to conrm that the common wire

is connected and troubleshoot accordingly.

7. Install the Batteries

A. Put the AA batteries in the Quext Smart Thermostat.

B. Conrm that the Quext Smart Thermostat is powered by the batteries.

The unit should show temperature and LoRa start to connect. The

network connection icon will begin to ash on the thermostat.

8. Install and Test the Quext Smart Thermostat

A. Secure the Quext Smart Thermostat on the mounting plate. Do not

press hard, it should easily snap into place.

B. Turn the Quext Smart Thermostat to heat mode at two or more degrees below the measured point, and

verify that warm air is coming out of the vents. Turn the Quext Smart Thermostat to AC mode at two or

more degrees below the measured point, and verify that cool air is coming out of the vents. If the air is not

warm or cold, check for possible loose connection with the wiring (refer to Troubleshooting FAQs.

C. Conrm that the LoRa symbol displays on the Quext Smart Thermostat.

If it does not, there may be a connection issue.

Refer to Troubleshooting FAQs.

D. Look at the face and observe the power.

▪ If no battery symbol is displayed either ashing or solid: 24V is present

and batteries are good.

▪ If a ashing battery symbol is present: 24V is not present, but

the batteries are good. To troubleshoot the 24V power, refer to

Troubleshooting FAQs.

▪If solid battery symbol is present: 24V is present, but the batteries are

low and need to be replaced.

9. Set the Quext Smart Thermostat

A. Set the thermostat to the temperature you recorded at Step 2A. If you need help, refer to the IoT Resident

User Manual.

10. Assign the Thermostat in the Database

A. Go to the Quext IoT Web App.

B. Select the Site Management tab, then select Thermostats.

C. Select the desired thermostat (Dev UI/serial number should

match the number in the database).

D. In the detailed view, select Select Location.

E. Select the desired building and the desired unit, then select Done.

F. Select Save.

Quext Smart Thermostat and Lock 8 Installation Guide

Wiring Connections

Terminal Conventional 1 Stage Heating, 1 Stage Cooling

R24VAC Power from Heating Transformer

Rc Not Used

YCompressor Relay

C24VAC Common Wire

W Heat Relay

GFan Relay

Aux Not Used

NC Not Used

Quext Smart Thermostat and Lock 9 Installation Guide

Troubleshooting and FAQs

The Quext Smart thermostat manages the HVAC system via an AC voltage-powered solid-state interface. Upon demand,

it sources +24vac (R/Rc) to the Heating (W), Cooling (Y), and Fan (G). The solid-state interface does not operate in the

same manner as conventional open-contact relays and thus cannot be function tested in the same manner.

The Quext Smart Thermostat can be powered by either 24 volts AC or by internal batteries. The solid-state interface

does not operate when the thermostat is operating on internal batteries only. For testing, the Quext Smart

Thermostat must be powered by 24 volts AC.

Steps to Test Quext Smart Thermostat

Heating Output

Note: This is when powered by 24 volts AC

A. Turn the rotary knob counterclockwise. Check to ensure the Mode icon in the upper left quadrant of display

is ashing

B. Press the knob one time. A list should appear on the right side of the screen.

C. Rotate the knob counterclockwise until the ashing selection has moved to the HEAT selection.

D. Press the knob one time. The display will then show the setpoint temperature for the Heating output.

E. Rotate the knob as required to select the desired setpoint temperature and press the knob one time

▪Note: the desired setpoint temperature should be set a minimum of 2 degrees above the ambient

temperature for the Heating cycle to be initiated.

F. The Mode icon should then appear in the upper left quadrant of the display. After a period of 15 seconds

the Fan icon will also appear.

▪A multitest meter can now be used to test the thermostat heat control output.

G. Set the meter to read AC voltage.

H. Measure voltage between W(heat) and C(common).

▪This measurement should nominally measure as 24 volts.

Cooling Output

A. Turn the rotary knob counterclockwise. The Mode icon in the upper left quadrant of the display should

begin ashing.

B. Press the knob one time. A list should appear on the right side of the screen.

C. Rotate the knob counterclockwise until the ashing selection has moved to the COOL selection.

D. Press the knob one time. The display will then show the setpoint temperature for the Cooling output.

E. Rotate the knob as required to select the desired setpoint temperature and press the knob one time.

▪Note: the desired setpoint temperature should be set a minimum of 2 degrees below the ambient

temperature for the Cooling cycle to be initiated.

F. The Mode and Fan icons should then display in the upper left quadrant of the display.

▪A multitest meter can now be used to test the thermostat cooling control output.

G. Set the meter to read AC voltage.

H. Measure voltage between Y(cool) and C(common).

▪This measurement should nominally measure as 24 volts.

Quext Smart Thermostat and Lock 10 Installation Guide

Fan Output

A. Turn the rotary knob counterclockwise. The Mode icon in the upper left quadrant of the display should

begin ashing.

B. Rotate the knob one click clockwise. The Fan icon should begin ashing.

C. Press the knob one time. A menu displaying AUTO, ON and CIRC will appear in the lower right quadrant of

the display.

D. Rotate the knob one click clockwise. The ON icon will begin ashing.

E. Press the knob one time.

▪A multitest meter can now be used to test the thermostat fan control output.

F. Set the meter to read AC voltage.

G. Measure voltage between G(Fan) and C(common).

▪This measurement should nominally measure as 24 volts.

Regulatory Information

Per FCC 15.19(a)(3) and (a)(4), this device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

The FCC regulations provide that changes or modications not expressly approved by Quext LLC could void your

authority to operate this equipment. Maintain a distance of 20 cm (8 inches) from your body to be consistent with how

the device is tested for compliance with RF exposure requirements.

Inhaltsverzeichnis

Andere EDST Hausautomation Handbücher

EDST

EDST Quext Smart Thermostat Bedienungsanleitung

Beliebte Hausautomation Handbücher anderer Marken

Truth Hardware

Truth Hardware Sentry II Bedienungsanleitung

FIBARO

FIBARO FGWPA-111 Bedienungsanleitung

Hezborg

Hezborg BGR8016B Bedienungsanleitung

MYDLINK

MYDLINK Pro Series Bedienungsanleitung

Panasonic

Panasonic KX-HNA101FX Bedienungsanleitung

GamaBit

GamaBit Houseper Bedienungsanleitung

nedis

nedis WIFILRF10C37 Bedienungsanleitung

Veho

Veho TA45 Bedienungsanleitung

Nexa

Nexa ZPR-111 Bedienungsanleitung

Vimar

Vimar 00801 Bedienungsanleitung

Leviton

Leviton 47604-F6 Bedienungsanleitung

EVERSPRING

EVERSPRING AN180 Bedienungsanleitung

Coltech

Coltech 18-1339 Bedienungsanleitung

IDS

IDS NXT vegas Leitfaden

Vimar

Vimar 03975 Bedienungsanleitung

iNels

iNels RFIM-20B Bedienungsanleitung

EVA Logik

EVA Logik ZW30 Bedienungsanleitung

Leviton

Leviton ODCØP-S0W Bedienungsanleitung

EDST quext iot Bedienungsanleitung

Beliebte Hausautomation Handbücher anderer Marken
