EF EFCH 9211HM SS Bedienungsanleitung

ULTRA SLIM HOOD EFCH 9211 HM SS

THE BEAUTY OF SIMPLICITY

USER MANUAL

Table of Content

•From the Manufacturer 3

•Specifications 3

•Description of Parts 4

•Safety Regulations 4-5

•Control switch operation 5

•Operating mode-Recirculating 6

•Installation Instruction 7-9

•Electrical Connection 9

•Cleaning & Maintenance 10

•Troubleshooting 11

•Schematic Diagram 12

Dear Customer,

Thank you for having purchased and given your preference to our product. This manual provides a

means to make full use of the features of this product. We recommend that you read this manual

for best performance and to extend the life of your appliance.

Please preserve this manual for future use, in the event that doubts arise relating to the operation

From the Manufacturer

•

This appliance and the packaging are produced by processes that minimize waste and friendly

to the environment.

•

Please dispose the packaging in an environmentally friendly manner

Safety !

•

Please do not allow young children to play with the plastic film and packaging as this may

result in suffocation.

•

Before disposing of any old appliances, be sure to cut off the power cord so that others will not

be endangered by a defective electric appliance

Specifications

Input : 220-240V/50Hz

Motor : 170 motor

LED light : 2×1W

Total Power : 172W

Product Dimension : 900 x 420 x 120mm (L x D x H)

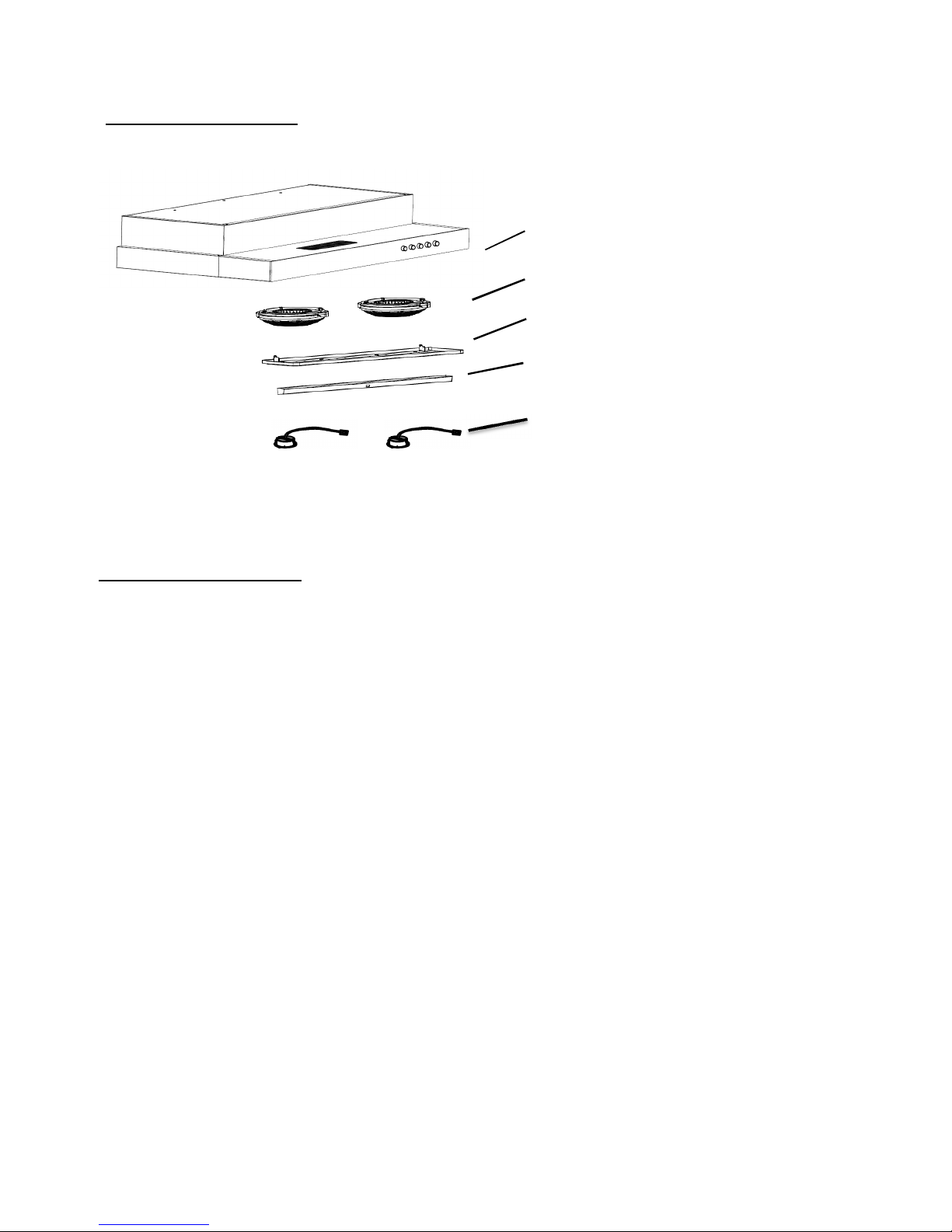

Description of Parts

SAFETY Regulations

•

Do not connect the appliance if there are obvious signs of transportation damage.

•

Read this user manual thoroughly before attempting to use this appliance.

•

Installation and repair should be attempted only by qualified technical personnel.

•

Do not modify any part of this appliance

•

Ensure the location in which this appliance is installed has good, permanent ventilation.

•

The distance between the "cooking appliance” to the lower part of the hood must not less

than 65 cm or higher than 75cm.

•

Check that the main voltage in your area corresponds to the voltage of the appliance before

pugging in.

•

The electrical connection of this appliance must be connected to earth.

Green & Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

•

Multiple plugs and extension cables must not be used. Overload is dangerous and

may cause a fire.

Control Switch

Charcoal Filters

Rectifier Panel

Oil Tray

LED Light

•

Ensure that the power supply cord is free from any heat source or sharp objects.

•

The appliance should be switched off and the electrical supply has to be

disconnected before any cleaning or maintenance work can be carried out.

•

The company declines all responsibilities in case of failure to adopt proper safety

measures stated in this manual.

Operation

The hood is equipped with 3 speed control.

Use the low speed for simmering,medium speed for light cooking.

Use the high speed for frying or heavy cooking.

It is also equipped with a light bulb to illuminate you cooking area when needed.

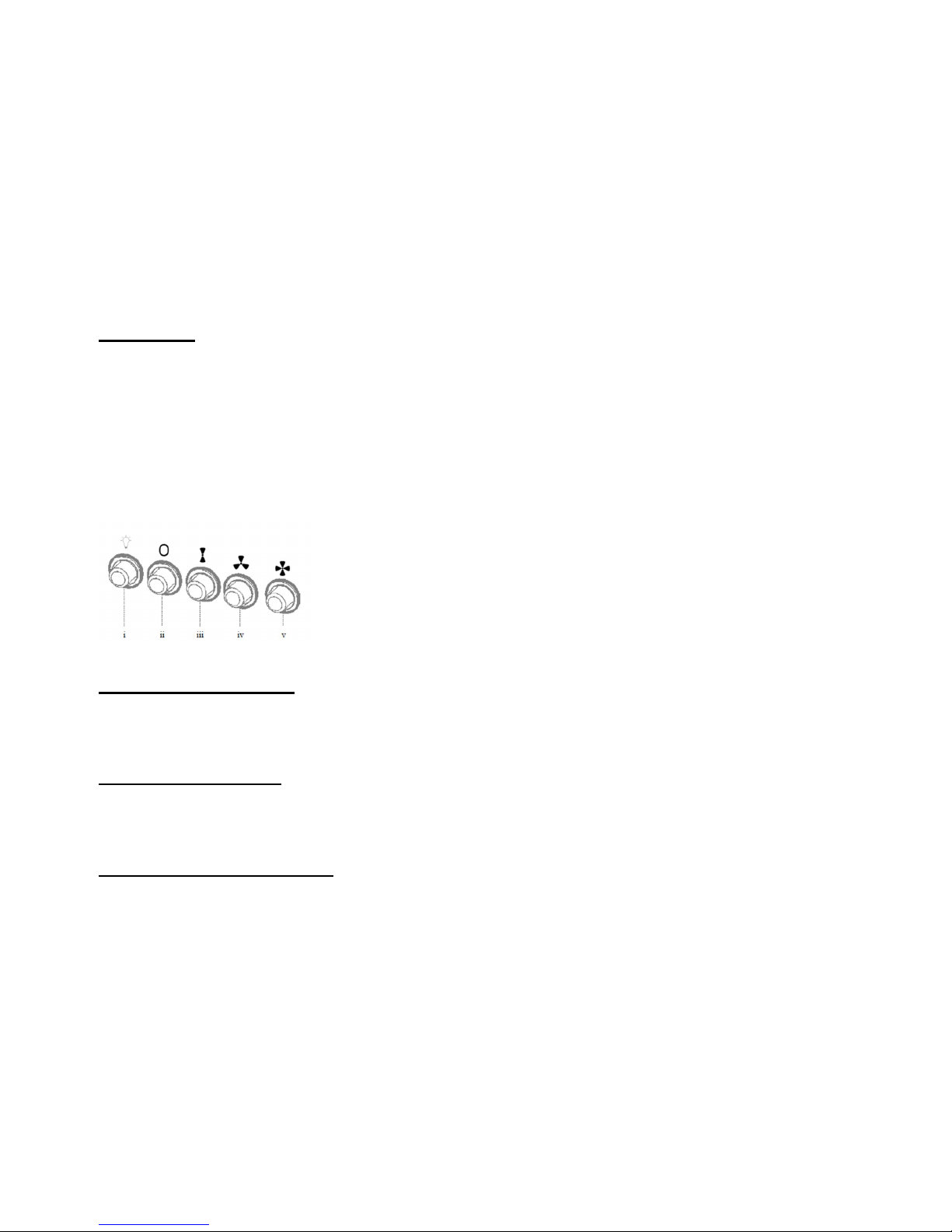

Light On/Off Button(ⅰ)

On/Off switch for the light. Push the button in to turn the light ON,push again to turn the light OFF.

Blower Off Button(ⅱ)

Off switch for the blower. Push the button in to turn the blower OFF.

Blower Off Button(ⅲ,ⅳ&ⅴ)

Button(ⅲ) operates the blower on LOW speed.

Push button(ⅳ) for MEDIUM speed.

Push button(ⅴ) for HIGH speed.

It is advisable to switch on the appliance a few minutes before cooking and leave it on for

approximately 15min after cooking is finished.

Re-circulating Mode

This appliance is configured to operate in e-circulating mode ONLY

RE-CIRCULATING MODE

•

The cooking smells and odours are passed through a cleaning filter. Once filtered, the air is

recirculated into the kitchen through the grille on the upper part of the front on the appliance.

Caution:

In recirculating mode, charcoal filter is to be fitted.

Please remove the oil tray and rectifier panel before removing the charcoal filter! (Refer to

the picture on the page 8 – Installation Instructions)

Installation Instructions

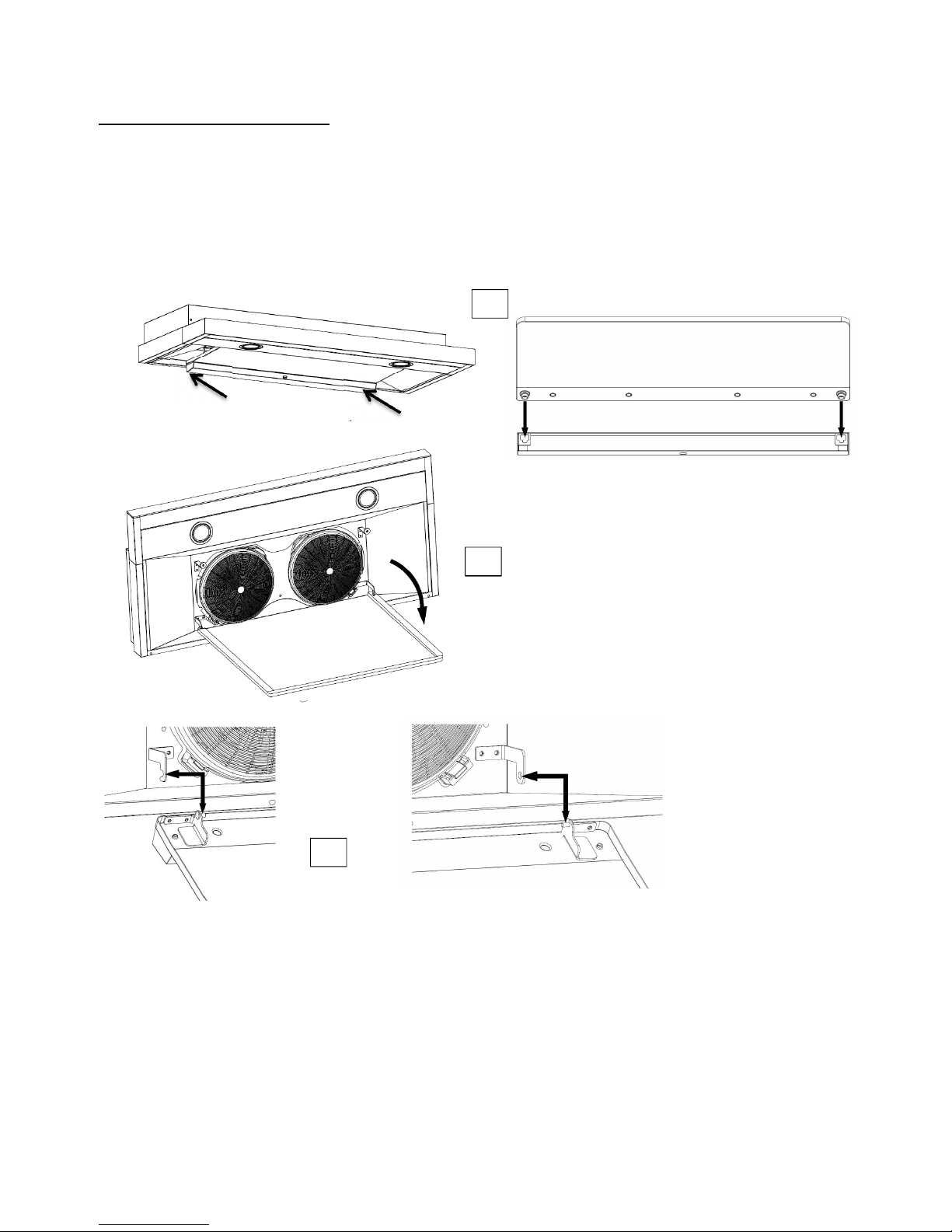

Step 1: Remove oil tray and rectifier panel from the appliance

To remove the oil tray, push backwardly the oil tray to free the tray from the catch (A). Next, open

the rectifier panel by pulling it down (B), remove the panel by lifting the panel slightly up to release

the pin on the left from the main body. Slide the panel to the right to release another pin on the right

side (C).

Push backward to take

out oil tray

Slide the panel to the right

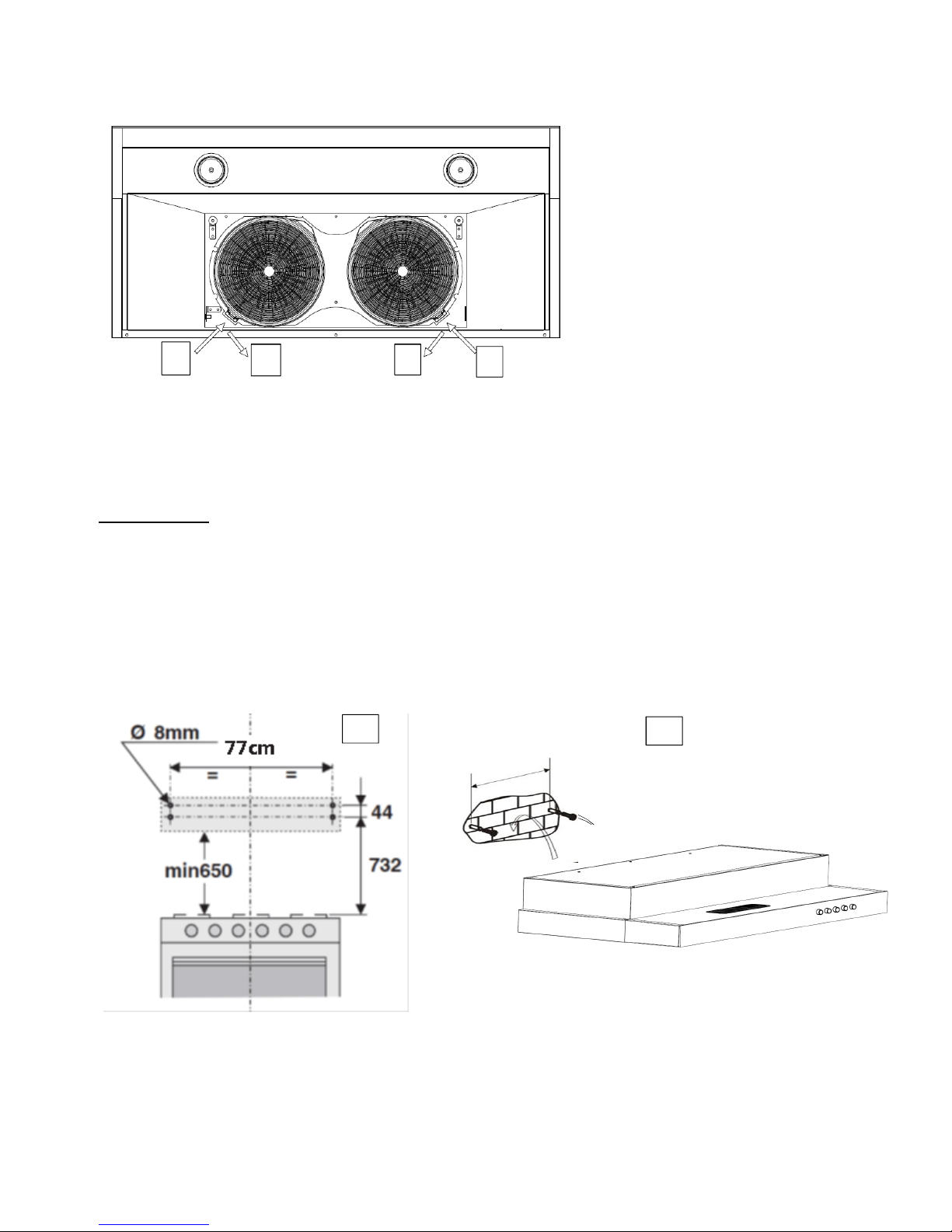

Step 2: Remove Charcoal Filters

-Press the buckle (D)

-Pull the charcoal filter (E)

Step 3:

Wall Mounting

- The appliance should be placed at a distance of 65-75cm from the cooking surface for best

effect.

- Drill 2 x Ø8mm holes on the wall with the distance of 77cm for 90cm cookerhood.

- Insert the nut into the holes (F).

- Insert the screws into the nuts and leaving 5mm untightened.

- Put up the cooker hood onto the screws till the screws are engaged in a narrow end of the

holes. Tighten screws completely (G)

- Assemble the cooker hood in reverse procedure as step 1 & 2

- Make the electrical connection

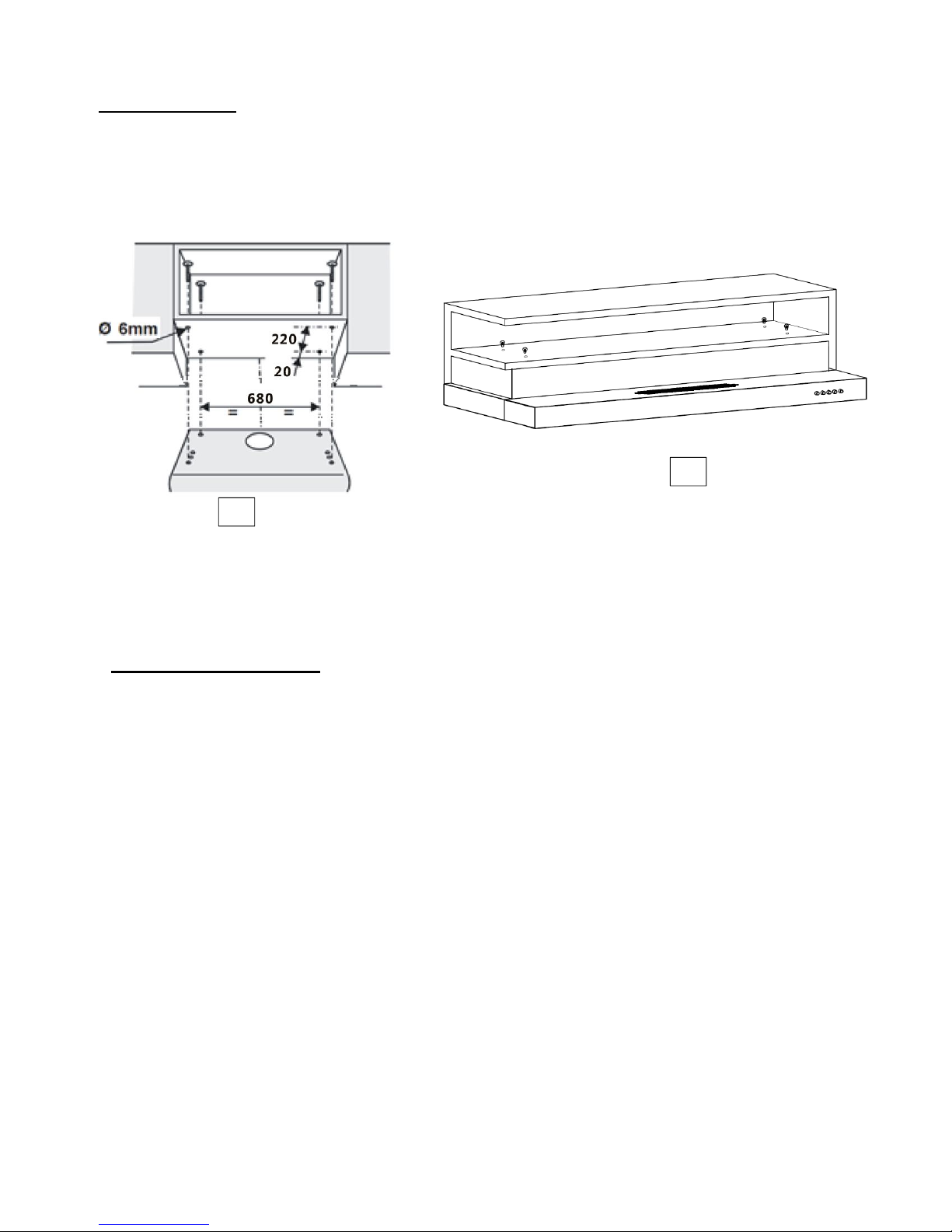

Cabinet Mounting

- Drill 4 holes of Ø 6mm at the bottom of the cabinet according to the positions of the screw holes

on top of the cooker hood (H)

- Put the one-way valve on the cooker hood screw holes and lift the cooker hood to the bottom of

the cabinet.

- Tighten the hood with the 4 screws provided to the four holes at the bottom of the cabinet (I)

- Assemble the cooker hood in reverse procedure as step 1 & 2

- Make the electrical connection

Electrical Connection

Before completing any connection, make sure the house voltage corresponds to the voltage

indicated on the label affixed inside the appliance

It is advisable to call a qualified technician to make the electrical connection.

Appliance fitted with plug

Connect it to a socket which conforms to current regulations. If you intend to connect it directly

to the electric mains, remove the plug and fit an approved bipolar switch with a minimum

contact opening of not less than 3mm.

If the plug is not accessible once it has been inserted in the socket, it will however be

necessary to fit an approved bipolar switch with a minimum contact opening of no less than

3mm.

Appliance without plug

Fit an approved plug or an bi-polar switch with a minimum contact opening of no less than 3mm.

The company is not liable for any problems caused by the user’s failure to comply with the above

instructions

Cleaning & Maintenance

Regular maintenance and cleaning ensures good performance and reliability, while

extending the working-life of the appliance.

SURFACE :

Wash with warm soapy water and a soft sponge. Never use abrasive detergent, scouring

pads, steel wool or solvents on any part of this appliance as this will cause irreparable

damage.

RECTIFIER PANEL AND OIL CUP

The rectifier panel and oil cup should be cleaned regularly, e.g. once a month. Always use

both hands to carefully hold on to the parts upon removing to prevent oil dripping out.

Wash with warm or hot soapy water and a soft sponge. Avoid using abrasive detergent and

scouring pads as these will cause scratch on the stainless steel finishing.

Warning: An excess of grease on the panel or oil cup will not only affect the performance of

the appliance, it is also a possible fire risk.

Please see page 8 on the removing procedure

CHARCOAL FILTERS:

Charcoal filters cannot be reused. They must be replaced once every 6 months or depending on

the frequency of appliance usage to ensure good performance

LED LIGHT REPLACEMENT:

Before attempting to replace the light bulb, make sure that the light switch is turned off and

disconnect the appliance from power supply. Remove the damaged LED light and replace with an

LED light maximum 1 W
