eFOLDi HBLD3-D
Electric Wheelchair
Instruction Manual
SunTech UK Ltd (t/a eFOLDi)
Thank you for purchasing our eFOLDi HBLD3-D electric wheelchair. This
ultra- light electric wheelchair has been carefully researched and
developed to be light, energy efficient and easy to operate. Please read
this manual carefully before use, so that you are familiar with all the various
functions, and understand the required maintenance, this will ensure that
the wheelchair remains in good condition and is safe to use.
Persons with mobility difficulties, but with complete behavioural ability, or
with access to care and assistance.
Weight limit of 135kg (21st).
Cannot be driven on the road.
Do not operate your electric wheelchair until you have read and fully
understood this manual.
Do not operate your wheelchair until assembly and inspection is complete. It
is suggested that people with mental abnormality, slow reactions and
difficulty in handling should not use this electric wheelchair.
Do not get on or off the electric wheelchair when the power is on, or when
the wheelchair is on free wheel mode or there is no carer to provide
assistance.
Do not drive your electric wheelchair in violation of national and local traffic
regulations.
Do not make sharp turns at high speed. Do not park the electric wheelchair
on a ramp. Never make turns on a slope.
Introduction:
Suitable for:
Safety Precautions:
Do not use electric wheelchairs on sandy or soft ground.
Avoid driving on slopes greater than 8 degrees or over obstacles greater
than 4 cm in height.
Do not disassemble or change parts of the electric wheelchair or replace
parts not manufactured by the manufacturer without manufacturer’s
permission.
This electric wheelchair meets the requirements of electromagnetic
compatibility of YY0505 and GB/T 18029.21 standards.
This is a Class A product. In a domestic environment, this product might
cause radio interference in which case the user might be required to take
adequate measures.
Except for approved items sold by the manufacturer, do not use
accessories or charging leads from 3rd party suppliers. This could result in
damage and will void the warranty of the electric wheelchair.
Warning. Should not be opened by non-professionals
High voltage
Type BF
Environmental protection
Level of water resistance
EMC Warning Statement:
Warning:
According to the classification of medical devices, this electric wheelchair
belongs to the ward nursing equipment and appliances (6856) management
category for class 2.
Classified by operation mode: continuous operation.
According to the number of users: single use of equipment.
Classification by anti-electric shock: internal power supply.
Classification according to the degree of anti-electric shock: BF application
part. Classification according to the degree of protection against liquid
injection: IP3X. According to the classification of electric wheelchairs: electric
outdoor wheelchairs.
!
Classification:
Diagram:
Armrest!
Push!handle!
Handbrake!
Rear!wheel!
Front!wheel!
Anti-tilting!
wheel!
Joystick!
Footrest!
Seat!
Folding!mechanism!
!
Product type: indoor
Use ambient temperature: - 25°- + 50°
Weight capacity: 135kg (21st)
Power supply: 24 V ,5.2 AH
Maximum speed: ≤6km/h
Motor power: 300W x 2
Full power range: 20km
Noise: < 65DB
Maximum gradient: 8°
Dynamic stability: ≥6 °
Minimum radius of rotation: ≤1.2m
Horizontal road braking sliding
distance: ≤1.5m
Climbing obstacle height: ≥40mm
** The performance will vary according to the weight of the driver, road
surface condition and battery usage.
Weight (kg): 15
Seat width (mm): 430
Packaging size (mm):
580*340*920
Seat depth (mm): 440
Rear wheel diameter (inch):
12
Solid tyres
Front wheel diameter (inch):
8
(Pneumatic tyres)
Motor power (W): 300WX2
Battery charging current (A): 1.8
Motor voltage (V) : 24DC
Charger input (V): 220AC
Battery voltage (V): 24DC
Maximum output current of the
controller (A): 45
Battery capacity (AH): 5.2
HBLD3-D performance configuration
HBL D3-D electrical parameters
HBLD3-D structure
1. Once removed from the packaging, place the wheelchair on a stable
surface. Place your hands on either side of the folded seat and push
apart until the seat is open at 90 degrees and you hear a distinct
"click" sound.
2. Unfold the footplate and place the cushion onto the seat.
3. Installation and disassembly of anti-tilting wheel:
Installation:
Press the ball of anti-tilting wheel with finger and insert it into the
pipe hole until it clicks, and the ball is locked.
Disassembly:
Push and hold the ball with one hand to hold the tilting wheel with
the other hand and pull it out backwards. The anti-tilting wheel must
be installed before using the chair.
How to open the wheelchair:
4. Insert the joystick into the fixing frame and insert the wire into the
wire clips.
5. When in use, please press the " l " switch (“ l “ means POWER ON.
If not in use, please press the " O " switch (" O "means POWER
OFF).
Insert!
point!
Before getting into an electric wheelchair, please check the following:
Make sure the manual brake is working.
Make sure the battery is installed correctly.
Make sure the joystick is working.
After you get into the electric wheelchair, please fasten your seat belt first
then switch on the power by pushing the power button. The indicator light
will be ON and the joystick should be in the middle position.
The joystick controls the direction and speed at the same time, slowly
push the joystick towards the driving direction then the electric
wheelchair will start to move, push the joystick further away from you
and you will notice greater acceleration.
To stop the moving electric wheelchair, just release the joystick and use
the manual brake to park.
Power!display!
Horn!
Speed!adjustment!--!
Control!handle!
Speed!adjustment!+!
Speed!display!
Power!button!
When parking on a ramp, the electromagnetic brake may not always be
strong enough, always use the manual brake in conjunction with the
electromagnetic brake.
The user should choose the speed of the electric wheelchair according
to his/her physical condition and road condition.
Free wheel mode:
After turning off the power switch button on the controller, press the black
circular button on the controller box, and an indicator light will appear on the
controller panel to indicate the switch to free wheel mode. When the power
switch of the controller is turned on, it will automatically switch to electric
mode.
This electric wheelchair is suitable for driving on flat road, driving on muddy,
potholed and uneven road could cause damage to the transmission
mechanism and control system of electric wheelchair.
Before getting off, first turn off the power on the controller, press down the
manual brake, return the footplate to it's upright position, and then get off.

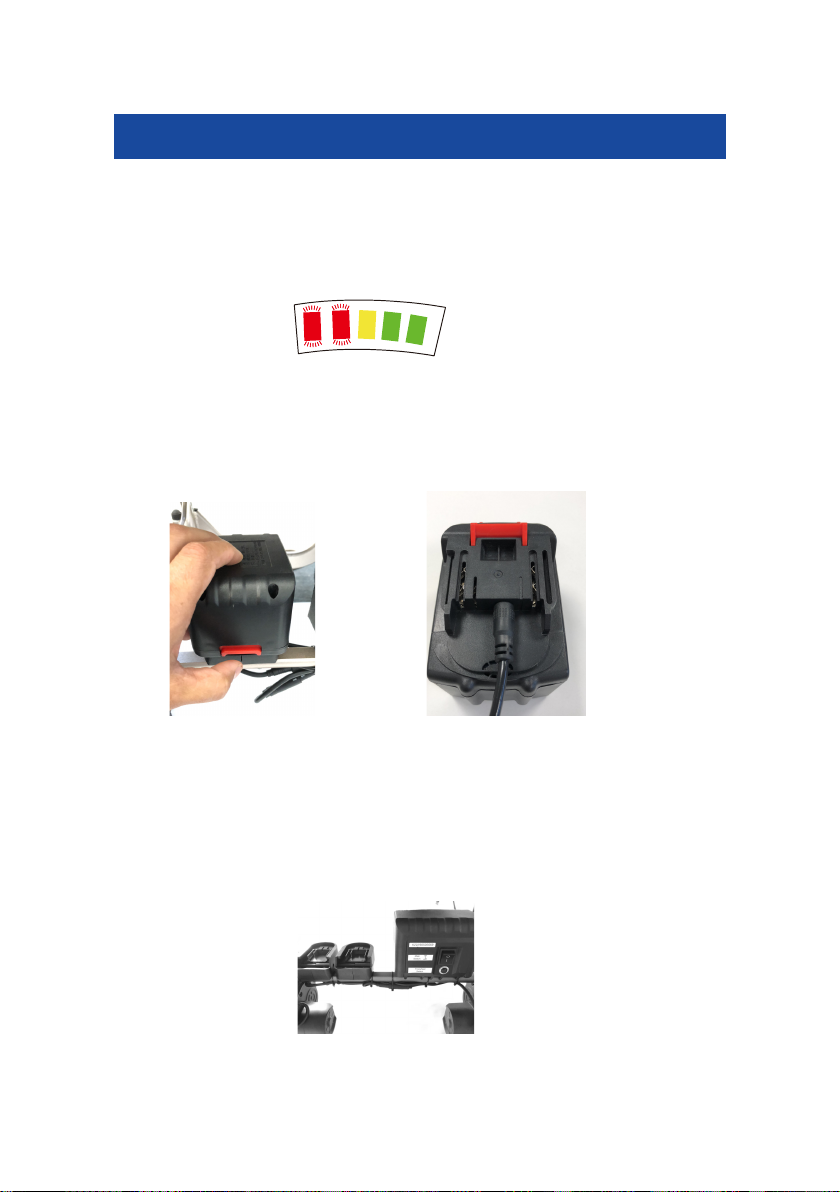

Switch on the power, the power indicator light in the front row will be on, full
power will show 5 lights (2 red, 1 yellow, 2 green). When the two red lights
are flashing, this indicates that the battery requires charging.
Remove the battery and plug the charger into the battery charging port.
To remove the battery for charging, push the red button down, hold the
battery on the outside, and release from the wheelchair. To put it back, slide
the battery into the battery guide slot, push it until you hear a click, then the
battery is inserted securely.
Please remove the battery and charge it once a month if not in use. (Electric
wheelchair batteries ideally should not be stored in the wheelchair)
Charging:
Spare battery slot
