REPAIR GUIDELINE

Bike Handle Line Trimmer _BC1500E-F

Version:1

Issue Data

：

12/02/2016

Table of Contents

NO.

Contents

Page

Troubleshooting

Tool list

Part1: Replacing the Connecting Tube

5-12

Part2: Replacing the Motor Assembly

13-34

Part3: Replacing the PCB Assembly

35-48

BC1500E-F Bike Handle Line Trimmer

Troubleshooting

BC1500E-F Bike Handle Line Trimmer

Problem

Possible Cause

Fault

Position

Test & Solution

Not feeding line

Poor cutting line

Trimmer line

Replace the cutting line. (e.g. 2.4mm

nylon line)

Unable to wind up line

Support of the lower housing

assembly is worn

Lower

housing

assembly

Replace the lower housing assembly

Line not being cut

Blade on the guard assembly is worn

Guard

assembly

Replace the guard assembly

Fail to start

The cables that connect to the motor

are loose.

Motor

Open the motor housing, check the

cable connection with motor.

Motor is burned

Motor

If the cables are well connected, check

the motor and test with a new motor.

PCBA is broken

PCBA in rear

housing

If the cables are well connected, and

motor is functional, replace the PCBA in

the rear housing.

The battery pack is not

locked on the trimmer

properly; or hard to remove

from the trimmer.

The locking mechanism is worn.

Rear housing

Replace the rear housing set.

The motor speed varies up

and down when the

trimmer works.

Motor was burned due to overload

Motor

Replace the motor

Tool List For Repair

NO.

Tool List

SPEC

Remark

Phillips

PH2

Socket wrench

14mm

Torx screwdriver

T-15

Hex wrench

Electric soldering iron

Heat gun

Heat shrinkable sleeves

Scissors

To remove the shrinkable sleeve

BC1500E-F Bike Handle Line Trimmer

Part 1: Replacing the Connecting Tube

1. Stop the motor and remove the battery pack from the line trimmer.

2. Rotate the wing bolt counterclockwise to separate the connecting tube base set from the shaft

base set and put the connecting tube aside.

Replacing the Connecting Tube

Shaft base set

Connecting

tube base set

Wing bolt

Connecting tube

BC1500E-F Bike Handle Line Trimmer

Description

Part number

Qty.

Right handle

housing set

5610032004

Replacing the Connecting Tube

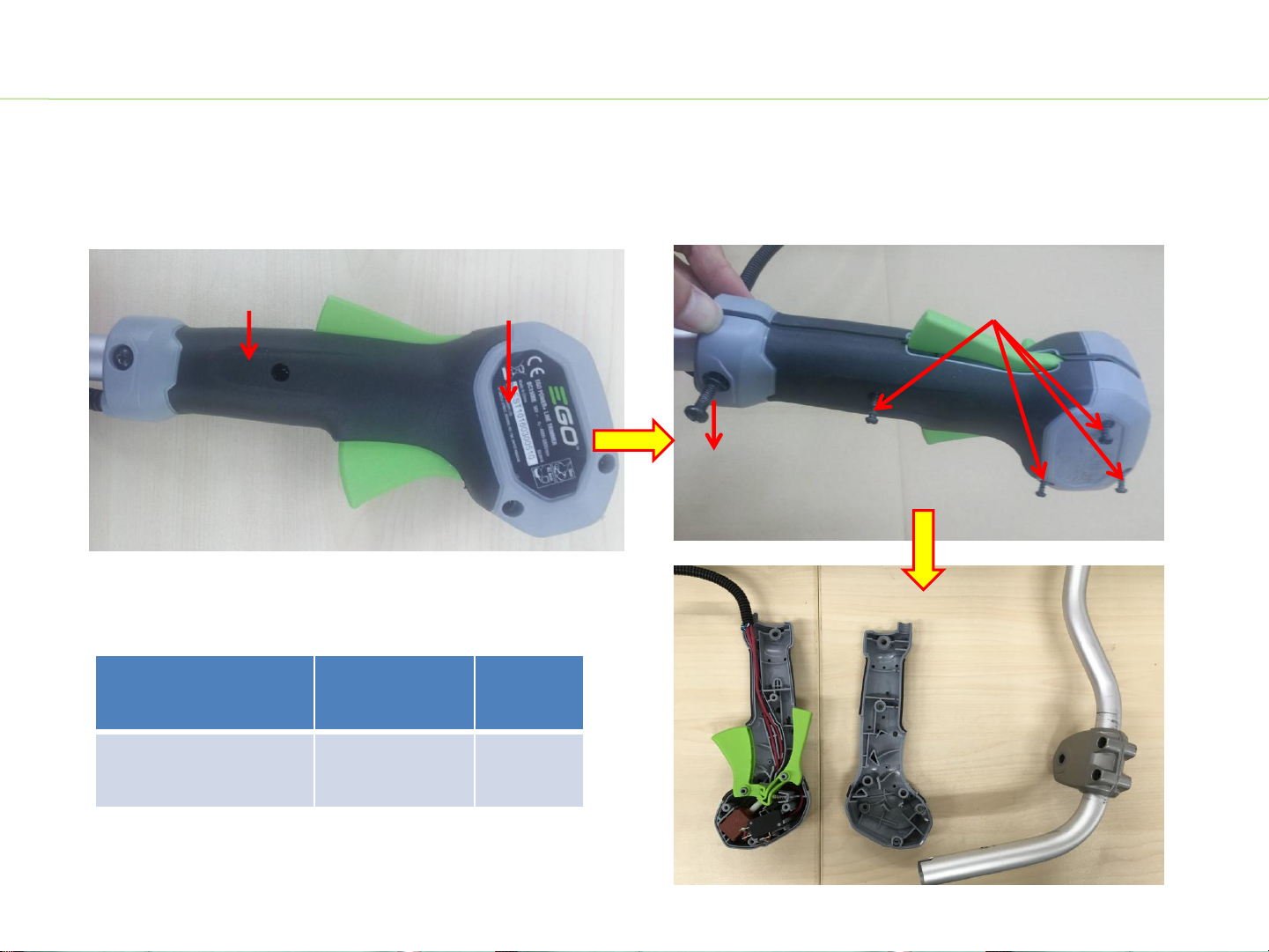

3. Remove the label on the right handle housing to expose the screw which is beneath it and

continue to loosen the 4 screws and 1 bolt on the right handle housing to open it.

Label

Right handle housing set

Bolt

4 screws

BC1500E-F Bike Handle Line Trimmer

Replacing the Connecting Tube

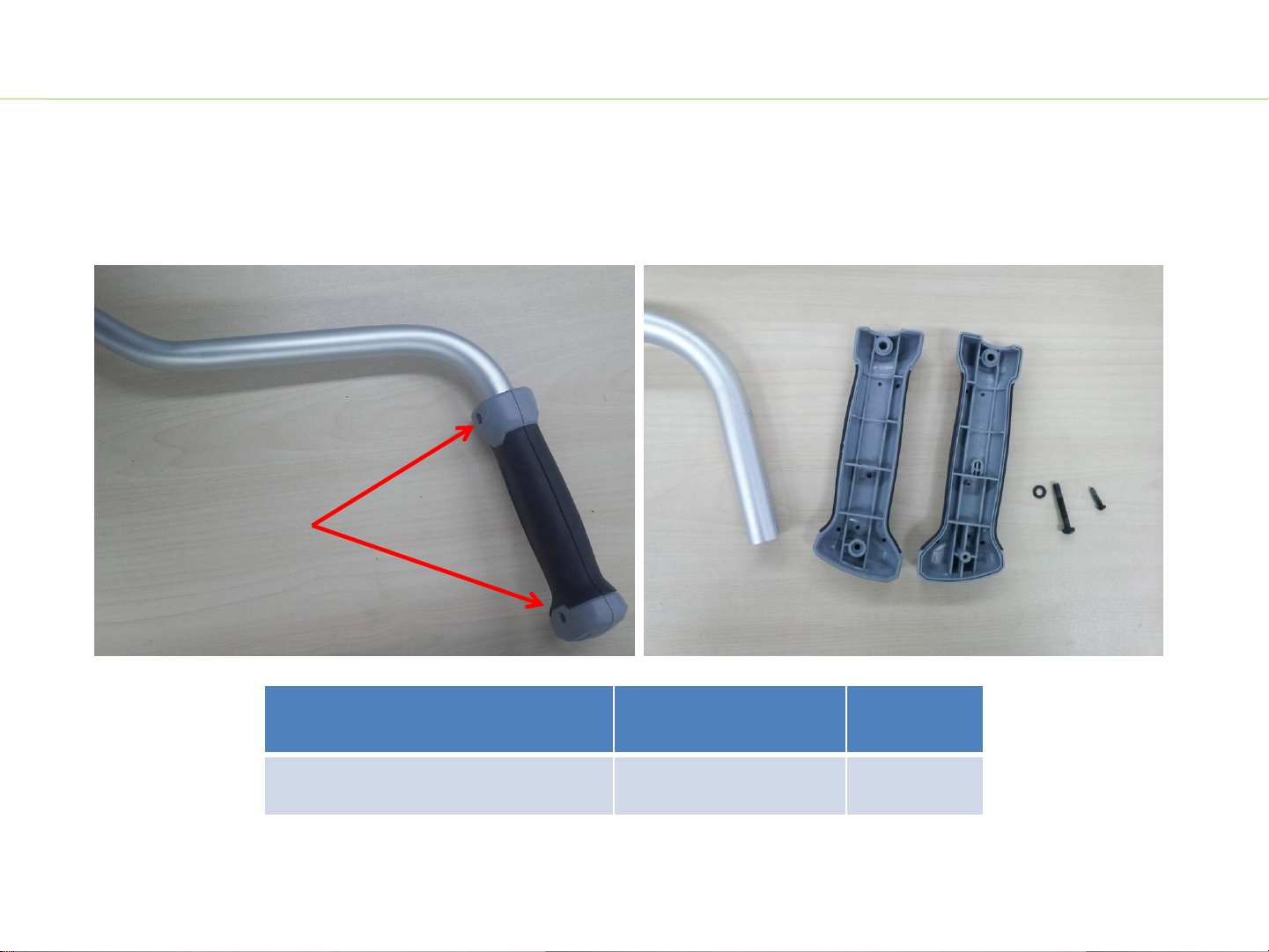

4. Loosen the two screws on the left handle housing set to separate it from the connecting tube.

NOTICE: if the left handle housing set is broken or worn replace it with a new one.

Description

Part Number

Qty.

Left handle housing set

2824570001

2 screws

BC1500E-F Bike Handle Line Trimmer

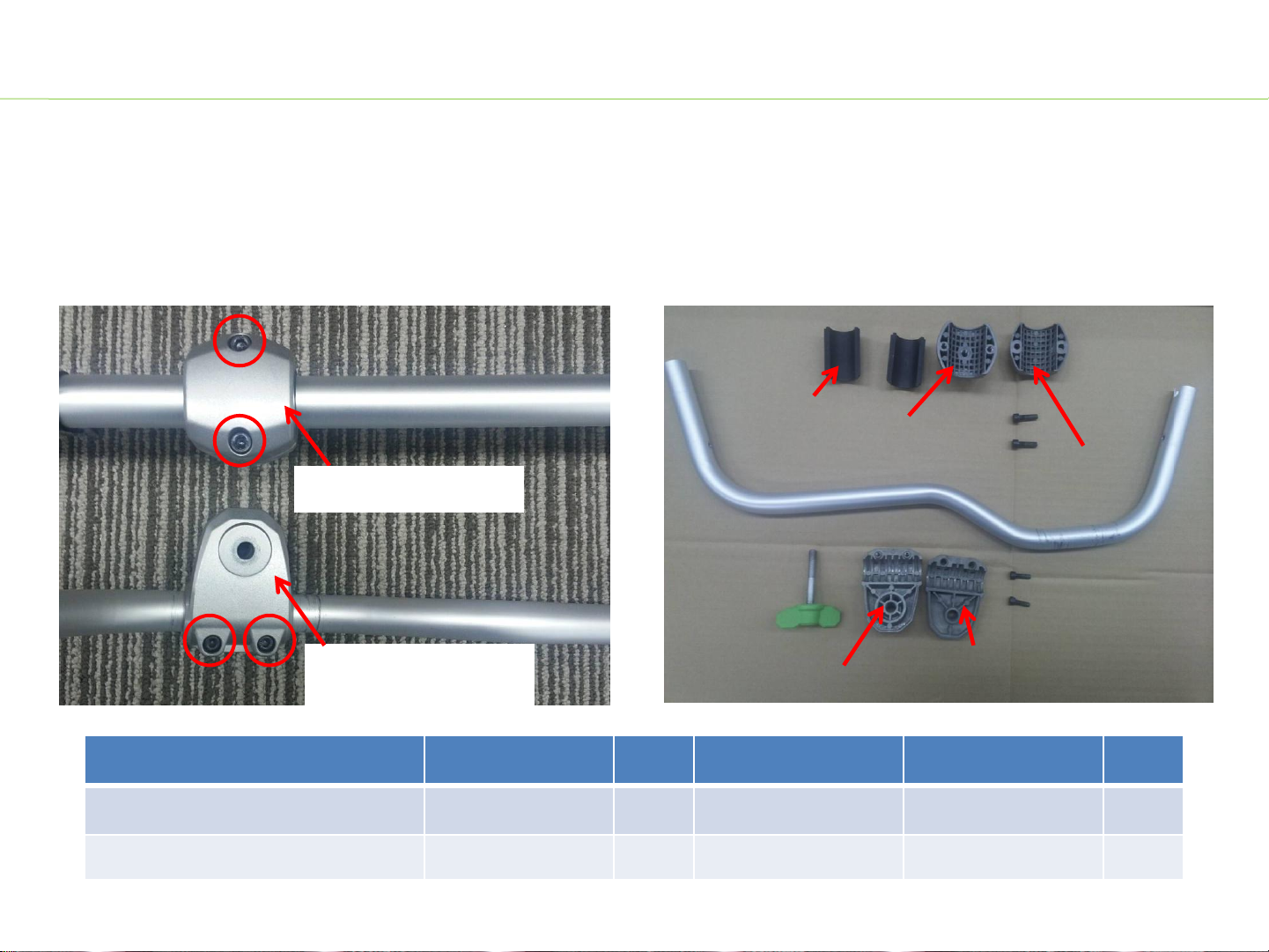

5. Loosen screws on the shaft base set and connecting tube base set and disassemble them. Replace the

connecting tube with a new one.

NOTICE: If the connecting tube base set or the shaft base set is worn or broken replace it with a new one.

Replacing the Connecting Tube

Description

Part Number

Qty.

Description

Part Number

Qty.

Upper connecting tube base

3421812001

Upper shaft base

3421813001

Lower connecting tube base

3421811001

Lower shaft base

3421810001

Upper shaft base

Lower shaft base

Lower connecting tube base

Upper connecting tube base

Rubber gasket

Shaft base set

Connecting tube

base set

BC1500E-F Bike Handle Line Trimmer

Replacing the Connecting Tube

6. Assemble the connecting tube base set and connecting tube as well as assembling the shaft base set

and shaft with screws.

7. Align the slot on the connecting tube with the rib on the left handle housing as well as aligning the

hole on the connecting tube with the pole on the left handle housing. Fix the left handle housing set

with screws.
