Eiki 392 Bedienungsanleitung

392

Overhead Projector

IMPORTANT SAFEGUARDS

When using your EIKI 392 overhead projector, basic safety precautionsshould always be

followed, including the following:

1. Read the following instructions carefully before operating the EIKI overhead projector.

2. Make sure that the operating voltage of the overhead projector corresponds to your

local voltage.

3. Care must be taken to ensure the smooth airflow of the cooling system. Immediately

switch off the machine if the fan is not functioning properly.

4. To avoid the potential electric shock and to ensure the stability of the optical parts, do

not disassemble this projector unless you are a qualified electrician and technician.

5. Tilt up the projection mirror before switching on the overhead projector.

6. Disconnect the power plug from the power source when examining or repairing the

interior of the projector.

7. Only qualified service personnel should perform the maintenance and repair work.

8. To avoid the potential electrical shock, do not expose this overhead projector to rain,

moisture, or other liquids.

9. Let overhead projector cool completely before putting away. Store the power cord

properly in the storage area provided.

10.Do not let cord hang over edge of table or counter or touch hot surfaces.

11.For Pluggable equipment, the socket-outlet shall be installed near the equipment and

shall be easily accessible.

A Safety Interlock is located on the edge of the cabinet. When the platen of

the overhead projector is opened, the power supply will cut off. Please

make sure the platen is opened during repair to avoid electric stock

TABLE OF CONTENTS

Page

Name of Parts 3

Specificationsand Technical Data 4

Operation Procedure 5

Maintenance & Repair 6

Stage Lock

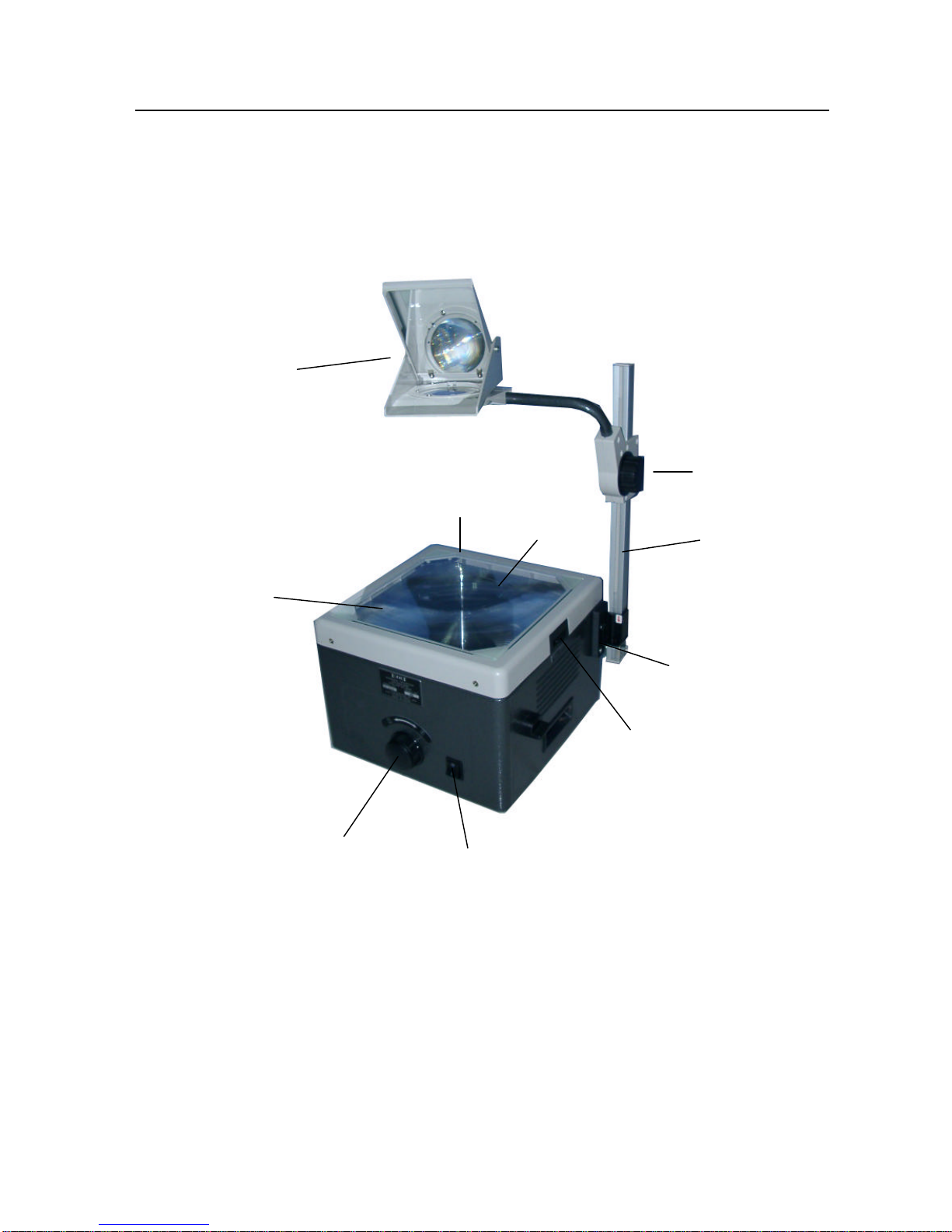

NAME OF PARTS

Head

Mirror

Fresnel Lens

Stage Glass

Focus

Knob

Post

Lock Lever

Power Switch

Lamp Change

Knob

Safety Interlock

(at the edge of

the cabinet)

SPECIFICATIONSAND TECHNICAL DATA

Lamp EYB 360 watt

Voltage 120V/60Hz

Lamp changer Provides space and ability to switch between lamps. Single

Lamp Provided

Safety switch Automatic Power Shut Off

Working stage 10” X 10”

Projection angle360°rotation and tilting angle up to 60°

Focal length Single Element lens f=285mm

Light output 2200 Lumens

Packing dimensions 20.7”X18.7”X13.3”

Gross Weight 21.12 lbs.

OPERATION PROCEDURE

1. Be sure the voltage of AC outlet corresponds to the projector before connecting the AC

power cord.

2. Pull up the post to set up the Head Mirror to an up-right position until the post is

locked automatically. (See fig.1)

fig. 1 fig. 2

3. Tilt up the projection mirror.

4. Turn the switch on the projector.

5. Adjust the projection mirror horizontally and vertically to center the light on the screen.

6. Place transparency on the projection stage and adjust the focus knob to obtain a sharp

image.

7. After projection, press down the Lock Lever to fold down the post to the stopper. (See

fig.2)

MAINTENANCE AND REPAIR

1. Replacing the lamp

a) Disconnect the power before replacing the lamp.

b) Wait until the lamp is cooled down.

c) Pull the stage lock to open the projection stage.

d) Push the lever to open the condenser lens frame. (See fig.3)

e) Remove the defective lamp and replaced it with a new lamp. Adjust the filament to

the center of the reflector. (See fig.4)

f) Place the condenser lens frame to original position and close the projection stage.

fig. 3 fig. 4

2. Cleaning and assembling of the Fresnel Lens

Remove the Fresnel Lens to wash with water and detergent. Do not use spirit solvent.

fig. 5

3. To assemble the Fresnel Lens, make sure the “UP” side faced the stage glass. (See

fig.5)

Limited 3 Year Warranty

Eiki International warrants this product when sold to the original purchaser from an

authorized Eiki dealer, to be free from defective materials and workmanship for a period of

3 years. (Lamp and fuses excluded) Eiki agrees to repair any defect or furnish a new or

equal part through an authorized Eiki Service Dealer or Service Center without charge

within this period.

It shall be the obligation of the purchaser to provide proof of purchase and cover all

transportation charges to and from the service facility. Damage or loss to the product

during transit is not covered by this warranty.

This warranty does not apply to appearance items nor to any product whose exterior has

been damaged or defaced, not to any product subjected to misuse, abnormal service or

handling, nor to any product altered or repaired by other than an Authorized Eiki Service

Dealer or Service Center. The provisions of this warranty does not apply to any products

purchased or serviced outside the United States, its territories or possessions, except

Canada.

This shall be the exclusive written warranty to the original purchaser and neither this

warranty nor any other warranty expressed or implied shall extend beyond the period of

the time listed. In no event shall Eiki be liable for consequential economic damage to

property. Some states do not allow a limitation or exclusion of implied warranties or

consequential damages, so the above limitation and exclusion may not apply to you.

This warranty gives you specific legal rights and you may have other rights which vary

from state to state.

For questions concerning this warranty or to obtain the name and address of the nearest

authorized Eiki Service Dealer or Service Center call or write Eiki International Inc. at one

of the following:

EIKI International, Inc.

30251 Esperanza

Rancho Santa Margarita

CA 92688-2132

(949) 457-0200

EIKI International, Inc.

2-310 First St. –Unit 2,

Midland, Ontario, Canada

L4R 3N9

(705)-527-4084

Printed in China Ver. 01 May 2003
