INSTALLATION INSTRUCTIONS
WMC-2C-50K-U
WMC-3C-50K-U
LED Wallpack Cube
SAFETY PRECAUTION:
• CAUTION: This product uses an input 120-277VAC wide range driver and photocell.
• WARNING: To avoid the risk of re, explosion, or electric shock, this product should be installed, inspected, and
maintained by a qualied electrician only, in accordance with all applicable electrical codes
• WARNING: To avoid electric shock be certain electrical power is OFF before and during installation and maintenance.
• WARNING: To avoid electric shock luminaire must be connected to a wiring system with an equipment-grounding
conductor.
• WARNING: Make sure the supply voltage is the same as the rated luminaire voltage.
• WARNING: Do not operate in ambient temperatures above those indicated on the luminaire nameplate.
SUITABLE FOR USE IN WET LOCATIONS
FOR SUPPLY CONNECTIONS USE WIRE RATED FOR AT LEAST 90°C.
AMBIENT TEMP: -20-+40°C
INSTALLATION:
ALWAYS TURN OFF THE POWER SUPPLY FROM MAIN CIRCUIT BREAKER FIRST!
EiKO Global, LLC • 23220 W. 84th St, Shawnee, KS 66227 • (P) 1-800-852-2217 • (F) 1-800-492-8975 • eiko.com
EiKO Canada • 81 King St, Barrie, Ontario L4N 6B5 • (P) 1-705-721-5189 • (F) 1-705-721-7855 • order[email protected]
Rev. 1/31/2017
1. Remove the two screws on both sides of
the lamp shade, then take off the lamp
shade. (See Fig. 1)
2. Remove the two screws as shown in the
picture, take off the driver box. (See Fig. 2)
3. Attach the xture back plate to the junction
box. (See Fig. 3)
4. Reattach the driver box. (See Fig. 4)
5. Install shade. (See Fig. 5)
1 2
34 5
INSTALLATION (cont.):

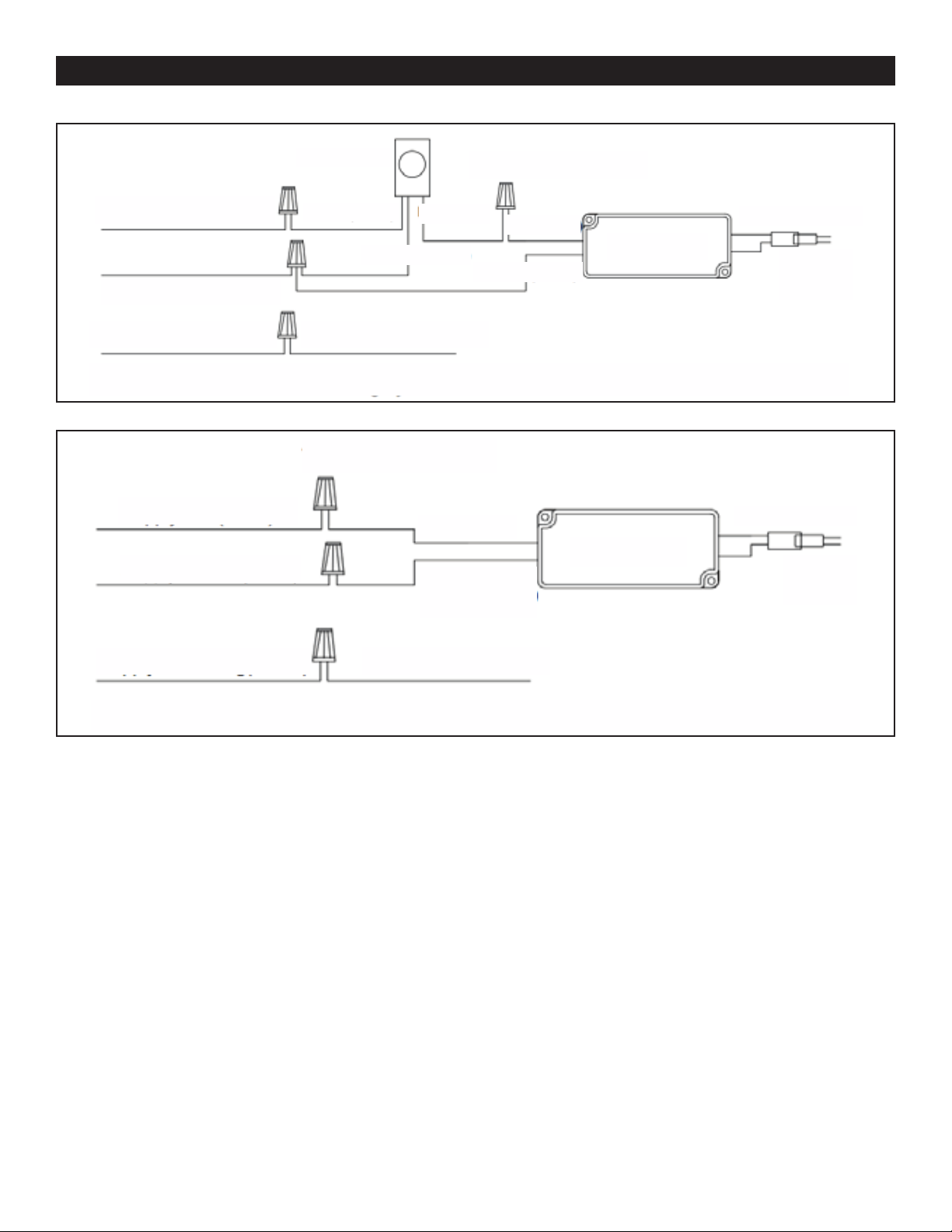

WIRING DIAGRAMS
LED DRIVER
TWIST-ON WIRE CONNECTOR
SUPPLY LINE (BLACK)
SUPPLY NEUTRAL (WHITE)
SUPPLY GROUNDING (GREEN) BOX GROUNDING (GREEN)
NEUTRAL (WHITE)
LINE (BLACK) CONNECTOR TO LED
LED DRIVER
TWIST-ON WIRE CONNECTOR
SUPPLY LINE (BLACK)
SUPPLY NEUTRAL (WHITE)
SUPPLY GROUNDING (GREEN) BOX GROUNDING (GREEN)
NEUTRAL (WHITE)
NEUTRAL (WHITE)
LINE (BLACK)
LINE (BLACK)
LOAD (RED)
PHOTOCELL
CONNECTOR TO LED
WIRING DIAGRAM WITH PHOTOCELL
(COMES WITH 120-277V ALREADY INSTALLED.)
WIRING DIAGRAM WITHOUT PHOTOCELL
EiKO Global, LLC • 23220 W. 84th St, Shawnee, KS 66227 • (P) 1-800-852-2217 • (F) 1-800-492-8975 • eiko.com
EiKO Canada • 81 King St, Barrie, Ontario L4N 6B5 • (P) 1-705-721-5189 • (F) 1-705-721-7855 • order[email protected]
Rev. 1/31/2017
