SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read them carefully.

WARNING

Failure to abide by the information in a WARNING may result in serious injury and can be life

threatening.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury and/or property

or product damage.

Indicates a prohibited action.

Indicates to ground for safety.

system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the

prior written permission of EIZO NANAO CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information

confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt of

said information. Although every effort has been made to ensure that this manual provides up-to-date

information, please note that EIZO monitor specifications are subject to change without notice.

ENERGY STAR is a U.S. registered

mark.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards Association.

Windows is a registered trademark of Microsoft Corporation.

PowerManager is a trademark of EIZO NANAO CORPORATION.

ScreenManager, FlexScan and EIZO are registered trademarks of EIZO NANAO CORPORATION.

As an ENERGY STAR® Partner, EIZO NANAO CORPORATION has determined that this product

meets the ENERGY STAR guidelines for energy efficiency.

is a trademark of SRS labs, Inc.

WOW technology is incorporated under license from SRS Labs, Inc.

PRECAUTIONS

IMPORTANT!

●This product has been adjusted specifically for use in the region to which it was originally shipped.

If operated outside the region to which it was originally shipped, the product may not perform as

stated in the specifications.

●To ensure personal safety and proper maintenance, please read this section and the caution

statements on the unit (refer to the figure below).

[Location of the Caution Statements]

If the unit begins to emit smoke, smells like something is burning, or makes

strange noises, disconnect all power connections immediately and contact

your dealer for advice.

Attempting to use a malfunctioning unit may result in fire, electric shock, or

equipment damage.

Do not open the cabinet or modify the unit.

Opening the cabinet or modifying the unit may result in fire, electric shock, or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or

removing covers may result in fire, electric shock, or equipment

damage.

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into the cabinet or

spillage into the cabinet may result in fire, electric shock, or equipment damage. If

an object or liquid falls/spills into the cabinet, unplug the unit immediately. Have

the unit checked by a qualified service engineer before using it again.

Place the unit at the strong and stable place.

A unit placed on an inadequate surface may fall and result

in injury or equipment damage.If the unit falls, disconnect

the power immediately and ask your dealer for advice. Do not continue using a damaged unit. Using a

damaged unit may result in fire or electric shock.

Set the unit in an appropriate location.

Not doing so may result in fire, electric shock, or equipment damage.

●Do not place outdoors.

●Do not place in the transportation system (ship, aircraft, trains, automobiles, etc.)

●Do not place in a dusty or humid environment.

●Do not place in a location where the steam comes directly on the screen.

●Do not place near heat generating devices or a humidifier.

To avoid danger of suffocation, keep the plastic packing bags away from babies

and children.

Use the enclosed power cord and connect to the standard power outlet of your

country.

Be sure to remain within the rated voltage of the power cord.Not doing so may

result in fire or electric shock.

To disconnect the power cord, grasp the plug firmly and pull.

Tugging on the cord may damage and result in fire or electric shock.

The equipment must be connected to a grounded main outlet.

Not doing so may cause in fire or electric shock.

Use the correct voltage.

●The unit is designed for use with a specific voltage only. Connection to

another voltage than specified in this User's Manual may cause fire, electric

shock, or equipment damage.

●Do not overload your power circuit, as this may result in fire or electric

shock.

Handle the power cord with care.

●Do not place the cord underneath the unit or other heavy objects.

●Do not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a damaged cord may

result in fire or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

When attaching an arm stand, please refer to the user's manual of the arm

stand and install the unit securely with the enclosed screws.

Not doing so may cause the unit to come unattached, which may result in injury or

equipment damage. When the unit is dropped, please ask your dealer for advice. Do

not continue using a damaged unit. Using a damaged unit may result in fire or

electric shock. When reattaching the tilt stand, please use the same screws and

tighten them securely.

Do not touch a damaged LCD panel directly with bare hands.

The liquid crystal which leaks from the panel is poisonous if it enters the eyes or mouth. If any part of the

skin or body comes in direct contact with the panel, please wash thoroughly. If some physical symptoms

result, please consult your doctor.

Follow local regulation or laws for safe disposal.

The backlight of the LCD panel contains mercury.

Handle with care when carrying the unit.

Disconnect the power cord and cables when moving the unit. Moving the unit with

the cord attached is dangerous. It may result in injury.

When handling the unit, grip the bottom of the unit firmly with both hands

ensuring the panel faces outward before lifting.

Dropping the unit may result in injury or equipment damage.

Do not block the ventilation slots on the cabinet.

●Do not place any objects on the ventilation slots.

●Do not install the unit in a closed space.

●Do not use the unit laid down or upside down.

Blocking the ventilation slots prevents proper airflow and may result in fire, electric shock, or equipment

damage.

Do not touch the plug with wet hands.

Doing so may result in electrical shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case of a problem.

Periodically clean the area around the plug.

Dust, water, or oil on the plug may result in fire.

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result in electric shock.

If you plan to leave the unit unused for an extended

period, disconnect the power cord from the wall socket

after turning off the power switch for the safety and the

power conservation.

LCD Panel

In order to suppress the luminosity change by long-term use and to maintain the

stable luminosity, use of a monitor in lower brightness is recommended.

The screen may have defective pixels. These pixels may

appear as slightly light or dark area on the screen. This is

due to the characteristics of the panel itself, and not the

product.

The backlight of the LCD panel has a fixed life span. When the screen becomes

dark or begins to flicker, please contact your dealer.

Do not press on the panel or edge of the frame strongly, as

this may result in damage to the screen. There will be prints

left on the screen if the pressed image is dark or black. If

pressure is repeatedly applied to the screen, it may

deteriorate or damage your LCD panel. Leave the screen

white to decrease the prints.

When the screen image is changed after displaying the same image for extended

periods of time, an afterimage may appear. Use the screen saver or timer to avoid

displaying the same image for extended periods of time.

When the monitor is cold and brought into a room or the

room temperature goes up quickly, dew condensation may

occur inside and outside the monitor. In that case, do not

turn the monitor on and wait until dew condensation

disappears, otherwise it may cause some damages to it.

Do not scratch or press on the panel with any sharp objects, such as a pencil or pen

as this may result in damage to the panel. Do not attempt to brush with tissues as

this may scratch the LCD panel.

1. Introduction

Thank you very much for choosing an EIZO Color Monitor.

1-1. Features

●Dual inputs compliant (DVI-D and D-Sub mini 15 pin connecters)

●DVI Digital input (TMDS) compliant

●[Horizontal scanning frequency]

Analog: 24.8 - 80 kHz

Digital: 31 - 64 kHz

[Vertical scanning frequency]

Analog: 50 - 75 Hz

Digital: 59 - 61 Hz (VGA text: 69 - 71 Hz)

[Resolution]

1280 dots x 1024 lines

●Auto Screen Adjustment function incorporate

●FineContrast modes, to select the most suitable mode for screen display

●The EIZO LCD Utility Disk enclosed (See readme.txt in the CD-ROM for details.)

❍The utility software "ScreenManager Pro for LCD" (for Windows) to control a monitor form a PC

with a mouse and a keyboard

●Build-in speaker system

●The ArcSwing Stand enables to adjust the monitor height and monitor angle freely

●USB supported

●BrightRegulator function incorporated

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or damaged.

●LCD Monitor

●User's Manual (in the CD-ROM)

●Power Cord

●Setup Guide

●Signal Cable (FD-C39)

●ScreenManager Quick Reference

●Signal Cable (MD-C87)

●LIMITED WARRANTY

●EIZO USB Cable (MD-C93)

●Mounting Screws (M4 x 12 mm, 4 pcs)

●EIZO LCD Utility Disk

●Stereo mini-jack Cable (2 pcs)

●Please retain the packing materials for future transference.

1-3. Controls & Connectors

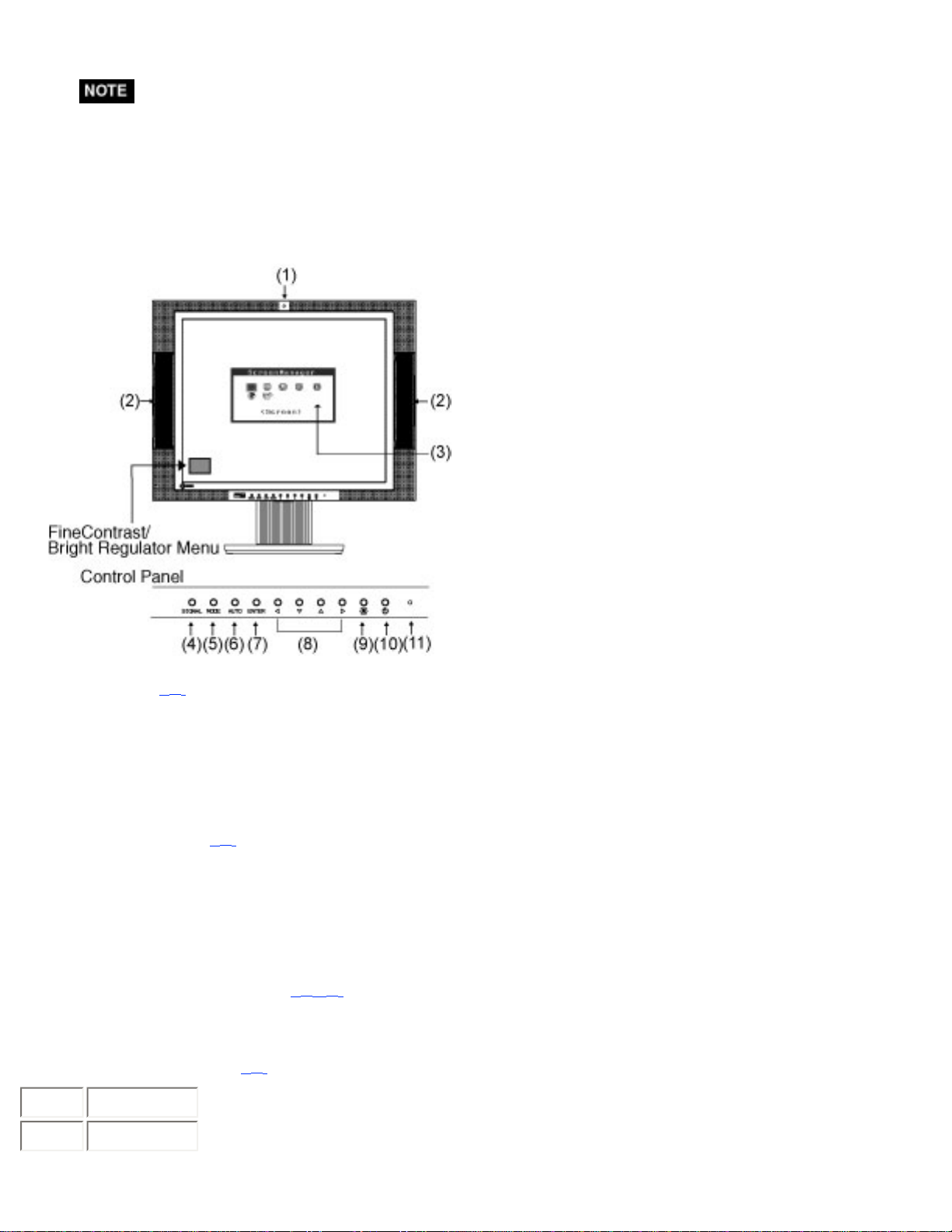

Front

(1) Sensor*1

(2) Speaker

(3) ScreenManager ®

(4) Input Signal Selection Button

(5) Mode Button*2

(6) Auto Adjustment Button

(7) Enter Button

(8) Control Buttons (Left, Down, Up, Right)

(9) BrightRegulator Button*1 * 2

(10) Power Button

(11) Power Indicator*3

Blue Operation

Yellow Power saving

Andere Handbücher für FlexScan L578

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Eizo Monitor Handbücher

Eizo

Eizo FlexScan EV2795 Bedienungsanleitung

Eizo

Eizo RadioForce RX650 Bedienungsanleitung

Eizo

Eizo FlexScan S1701 Bedienungsanleitung

Eizo

Eizo FlexScan EV2480 Bedienungsanleitung

Eizo

Eizo RadiForce GS320 - CL Bedienungsanleitung

Eizo

Eizo FlexScan L985EX Bedienungsanleitung

Eizo

Eizo FlexScan MX-Series Bedienungsanleitung

Eizo

Eizo ColorEdge CG2420 Bedienungsanleitung

Eizo

Eizo RadiForce GX530-CL Bedienungsanleitung

Eizo

Eizo Radiforce GX550 Bedienungsanleitung

Eizo

Eizo FlexScan EV2495-WT Bedienungsanleitung

Eizo

Eizo FlexScan L 461 L461 L461 Bedienungsanleitung

Eizo

Eizo 23" Full-HD monitor EIZO Foris FS2333 Bedienungsanleitung

Eizo

Eizo FlexScan MX300W Bedienungsanleitung

Eizo

Eizo ColorEdge CS230 Bedienungsanleitung

Eizo

Eizo FLEXSCAN F520 - Bedienungsanleitung

Eizo

Eizo ColorEdge CG223W Bedienungsanleitung

Eizo

Eizo FlexScan M1900 Bedienungsanleitung

Eizo

Eizo ColorEdge CG319X Bedienungsanleitung

Eizo

Eizo ColorEdge CG247X Bedienungsanleitung

Eizo

Eizo FlexScan HD2442W Bedienungsanleitung

Eizo

Eizo RadioForce RS110 Bedienungsanleitung

Eizo

Eizo ColorEdge CS2731 Bedienungsanleitung

Eizo

Eizo RadiForce GX240-CL Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
