User’s Manual

T561

FlexScan

Color Display Monitor

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please

read them carefully.

WARNING

Failure to abide by the information in a WARNING may result in serious

injury and can be life threatening.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate

injury and/or property or product damage.

Indicates a prohibited action.

Indicates to ground for safety.

this manual may be reproduced, stored in a retrieval system, or transmitted, in any form

or by any means, electronic, mechanical, or otherwise, without the prior written

permission of Eizo Nanao Corporation.

Eizo Nanao Corporation is under no obligation to hold any submitted material or

information confidential unless prior arrangements are made pursuant to Eizo Nanao

Corporation's receipt of said information. Although every effort has been made to ensure

that this manual provides up-to-date information, please note that EIZO monitor

specifications are subject to change without notice.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics

Standards Association.

Windows is a registered trademark of Microsoft Corporation.

ScreenManager, PowerManager, QuickSet and

i·Sound are trademarks of

Eizo Nanao Corporation.

FlexScan, SuperErgoCoat and EIZO are registered trademarks of Eizo Nanao

Corporation.

As an ENERGY STAR® Partner, Eizo Nanao Corporation has determined that

this product meets the ENERGY STAR guidelines for energy efficiency.

CONTENTS 3

ENGLISH

CONTENTS

PRECAUTIONS ............................................................................. 4

1. INTRODUCTION ............................................................................ 9

1-1. Features ....................................................................................................... 9

1-2. Package Contents ........................................................................................ 9

1-3. Controls & Connectors ................................................................................ 10

2. INSTALLATION ........................................................................... 11

2-1. Connecting the monitor to the PC ............................................................... 11

2-2. Getting Ready for Operation ....................................................................... 13

3. SCREEN ADJUSTMENT ............................................................ 14

3-1. How to use the ScreenManager .................................................................. 14

3-2. Adjustments and Settings ........................................................................... 15

3-3. Special Function ......................................................................................... 20

4. CONNECTING TWO PCs TO THE MONITOR .............................. 21

5. TROUBLESHOOTING ................................................................. 22

6. CLEANING ................................................................................... 26

7. SPECIFICATIONS ....................................................................... 27

8. GLOSSARY.................................................................................. 29

9. INDEX .......................................................................................... 31

4PRECAUTIONS

IMPORTANT!

•This product has been adjusted specifically for use in the region to which it was

originally shipped. The performance of the product, (i.e. picture geometry, picture

positioning and color convergence and purity in the case of color monitors) is

optimally adjusted to the earth’s magnetic field of the specific destination. If operated

outside the region to which it was originally shipped, the product may not perform as

stated in the specifications.

•To ensure personal safety and proper maintenance. Please read this section and the

caution statements on the monitor (refer to the figure below).

[Location of the Caution Statements]

The equipment must be connected to a grounded main outlet.

Jordet stikkontakt skal benyttes når apparatet tilkobles datanett.

Apparaten skall anslutas till jordat nätuttag.

PRECAUTIONS

WARNING

•If the monitor begins to emit smoke, smells like something is

burning, or makes strange noises, disconnect all power connections

immediately and contact your dealer for advice.

Attempting to use a malfunctioning monitor can be dangerous.

•Do not dismantle the cabinet or modify the monitor.

Dismantling the cabinet or modifying the monitor may result in electric

shock or burn.

•Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing

covers may expose you to dangerous voltage or other hazards.

ENGLISH

PRECAUTIONS 5

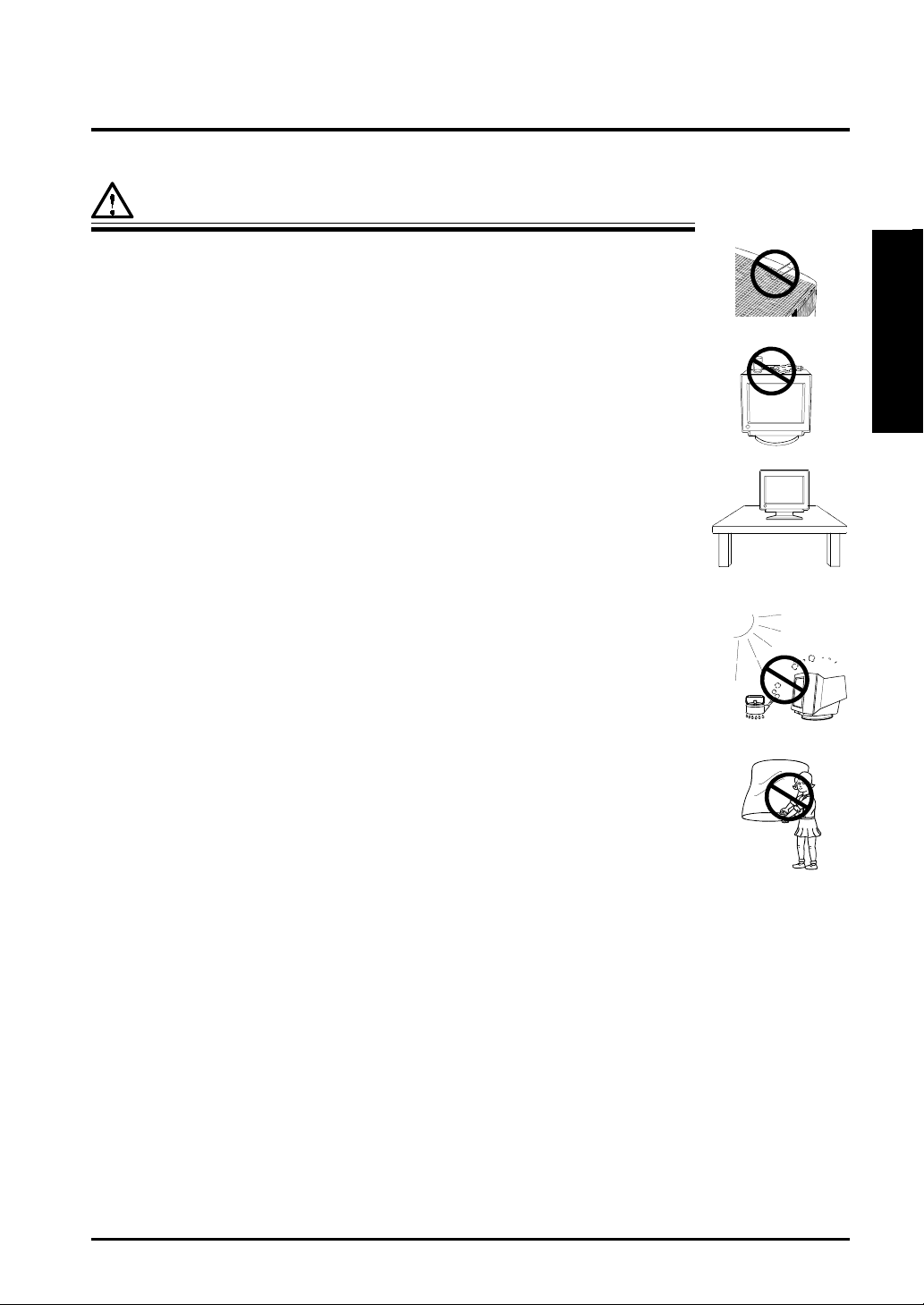

WARNING

•Keep small objects away from the monitor.

Small objects may accidentally fall through the ventilation slots into the

cabinet, leading to fire, shock, or equipment damage.

•Keep liquids away from the monitor.

Spillage into the cabinet may result in fire, electric shock, or equipment

damage. If an object or liquid falls/spills into the cabinet, unplug the

monitor immediately. Have the unit checked by a qualified service

engineer before using it again.

•Place the monitor on a strong, stable surface.

A unit placed on an inadequate surface may fall, resulting in injury or

equipment damage. If the monitor falls, disconnect the power immediately

and have the unit checked by a qualified service engineer before using it

again. Using a monitor after it has been dropped may result in fire or

electric shock.

•Set the monitor in an appropriate location.

* Do not install in a dusty or humid environment.

* Do not place in a location where the steam comes directly on the screen.

* Do not place near heat generating devices or a humidifier.

•Keep the plastic packing bags away from children and infants.

Plastic bags can be dangerous. To avoid danger of suffocation, keep the

bag away from babies and children.

•Keep power terminal covers for the optional i·Sound™sound unit

away from children and infants.

Children and infants may accidentally swallow the covers and choke. If

swallowed, consult a doctor immediately.

6PRECAUTIONS

WARNING

•Use the enclosed power cord. If using the power cord other than the

enclosed one, use the following cord.

[USA and Canada]

Use a UL LISTED/CSA LABELED or CERTIFIED power cord set meeting

the following specifications.

* Rating: min. 125 V, 10 A

* Length: max. 2.0 m

* Plug type: NEMA 5-15P, Parallel blade, Grounding type, 125 V, 10 A

* Type: SVT

[Europe]

Use a proper European standard approved power cord meeting the

following specifications.

* Rating: min. 250 V, 10 A

* Length: max. 2.0 m

* Type: H05VV-F 3G 1 mm2

Use a plug type approved by the country where you reside. Failure to do so

may cause fire or electric shock.

•To disconnect the power cord, grasp the plug firmly and pull.

Never tug on the cord, doing so may cause damage and could result in fire

or electric shock

•The equipment must be connected to a grounded main outlet.

•Use the correct voltage.

* The monitor is designed for use with a specific voltage only. Connection

to a different voltage may cause fire, electric shock, or other damage.

* Do not overload your power circuit, as this may result in fire or electric

shock.

* For proper connections of the power cord, be certain to plug the power

cord to the provided monitor connector and directly to a wall outlet. By

not doing so may result in fire or electric shock.

•Handle the power cord with care.

* Do not place the cord underneath the monitor or other heavy objects.

* Do not pull on the cord.

* Do not attempt to repair a damaged cord.

If the power cord becomes damaged, stop using it. Use of a damaged cord

may result in fire or electric shock.

•Never touch the plug and power cord if it begins to thunder.

If it begins to thunder, do not touch the plug, power cord and cable.

Touching them may result in electric shock.

ENGLISH

PRECAUTIONS 7

CAUTION

•Handle with care when carrying the monitor.

* Disconnect the power cord, signal cables and remove the optional

i·Sound™sound unit (if applicable). Moving the monitor with the cord

attached or lifting it by the i·Sound™sound unit is dangerous. It may

result in injury or equipment damage.

* Note that the monitor is heavier at the front than at the rear. Do not

move it alone. Always work with another person.

* The screen is optically coated to reduce glare. Keep hard objects (such

as buttons, tiepins, and other clothing accessories) away from the screen

surface to prevent scratches.

•Do not block the ventilation slots on the cabinet.

* Do not place books or any other papers on the ventilation slots.

* Do not install the monitor in a closed space.

* Do not use the monitor laying down or upside down.

* Do not remove the tilt-swivel stand.

Using the monitor in this way block the ventilation slots and prevents

proper airflow, leading to fire or other damage.

•Do not sit on the cabinet or place any heavy objects on the cabinet.

A unit with heavy objects on it may fall or be damaged and result in injury.

•When adjusting the viewing angle of the monitor, do not do so by

handling i·Sound™sound unit (if applicable).

Adjusting the monitor in this way may break the unit or cause bodily

injury.

•At the end of the day or if you plan to leave the monitor unused for an

extended period, after turning off the power switch disconnect the

power cord from the wall socket so that no power connections are

made.

8PRECAUTIONS

CAUTION

•Do not touch the plug with wet hands.

Touching the plug with wet hands is dangerous and can cause electrical

shock.

•Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case of a

problem.

•Unplug the monitor before cleaning it.

Cleaning the monitor while it is plugged into a power outlet may result in

electric shock.

•Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl

alcohol), abrasive cleaners, or other strong solvents, as these may

cause damage to the cabinet or CRT.

•Periodically clean the area around the plug.

Buildup of dust, water, or oil on the plug may result in fire.

1. INTRODUCTION 9

ENGLISH

1. INTRODUCTION

Thank you very much for choosing EIZO FlexScan T561.

1-1. Features

•High contrast natural flat type CRT.

•Dual inputs with individual color configuration.

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or

damaged.

•Monitor •Signal Cable

(MD-C87/MD-C100)

•Power Cord •User’s Manual

•EIZO CRT Utility Disk •Warranty Registration Card

•Please retain the packing materials for future transference.

10 1. INTRODUCTION

1-3. Controls & Connectors

Front

(1) ScreenManager™

(2) BNC/D-SUB Selection Button

(3) AUTO-SIZING Button

(4) Power Terminal Covers for the Optional

i·Sound Sound Unit. (Bottom side)

(5) QuickSet™Control Pad

(Hereinafter “Control Pad”)

(6) Power Indicator

Indicated color Power-on status

Green Power is on (Normal mode)

Flashing Green Power save mode 1

Advance notice of monitor’s

off timer (See page 18)

Yellow Power save mode 2

FlashingYellow Power save mode with

monitor’s off timer

(See page 18)

Rear

(7) Power Switch

(8) Power Connector

(9) D-Sub Mini 15 Pin Input Connector

(10)BNC Input Connector

(11)Maintenance Port

(11)(8)(9) (10)

(6)

(2)

(3) (5)

(7)

(1)

(4)

Andere Handbücher für FLEXSCAN T561 -

Inhaltsverzeichnis

Andere Eizo Monitor Handbücher

Eizo

Eizo COLOREDGE CG2730 Bedienungsanleitung

Eizo

Eizo FlexScan SX3031W Bedienungsanleitung

Eizo

Eizo FLEXSCAN L767 Bedienungsanleitung

Eizo

Eizo FlexScan EV2023W Bedienungsanleitung

Eizo

Eizo FlexScan L350 Bedienungsanleitung

Eizo

Eizo ElexScan EV2480 Bedienungsanleitung

Eizo

Eizo FLEXSCAN L771 - Bedienungsanleitung

Eizo

Eizo FlexScan EV3240X Bedienungsanleitung

Eizo

Eizo FlexScan SX2461W-BK Benutzerhandbuch

Eizo

Eizo ColorEdge CG242W Bedienungsanleitung

Eizo

Eizo FlexScan L351 Bedienungsanleitung

Eizo

Eizo FlexScan SX3031W Bedienungsanleitung

Eizo

Eizo FlexScan EV2333WH Bedienungsanleitung

Eizo

Eizo FlexScan S2401W Bedienungsanleitung

Eizo

Eizo FlexScan EV2480 Bedienungsanleitung

Eizo

Eizo RadiForce MX194 Bedienungsanleitung

Eizo

Eizo FlexScan EV2781 Bedienungsanleitung

Eizo

Eizo FLEXSCAN F520 - Bedienungsanleitung

Eizo

Eizo FlexScan EV2485-WT Bedienungsanleitung

Eizo

Eizo FlexScan S2411W-M Bedienungsanleitung

Eizo

Eizo DuraVision FDV1002 Bedienungsanleitung

Eizo

Eizo RadiForce MX243W Bedienungsanleitung

Eizo

Eizo FLEXSCAN T960 - Bedienungsanleitung

Eizo

Eizo DuraVision FDSV1201T Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
