SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please

read them carefully.

WARNING

Failure to abide by the information in a WARNING may result in serious

injury and can be life threatening.

CAUTION

Failure to abide by the information in a CAUTION may result

in moderate injury and/or property or product damage.

Indicates a prohibited action.

Indicates to ground for safety.

of this manual may be reproduced, stored in a retrieval system, or transmitted, in

any form or by any means, electronic, mechanical, or otherwise, without the prior

written permission of Eizo Nanao Corporation.

Eizo Nanao Corporation is under no obligation to hold any submitted material or

information confidential unless prior arrangements are made pursuant to Eizo Nanao

Corporation's receipt of said information. Although every effort has been made to

ensure that this manual provides up-to-date information, please note that EIZO

monitor specifications are subject to change without notice.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics

Standards Association.

Windows is a registered trademark of Microsoft Corporation.

ScreenManager, PowerManager, QuickSet and

i·Sound are trademarks of

Eizo Nanao Corporation.

FlexScan, SuperErgoCoat and EIZO are registered trademarks of Eizo Nanao

Corporation.

As an ENERGY STAR® Partner, Eizo Nanao Corporation has determined

that this product meets the ENERGY STAR guidelines for energy efficiency.

CONTENTS 3

ENGLISH

CONTENTS

PRECAUTIONS ............................................................................. 4

1. INTRODUCTION ............................................................................ 8

1-1. Features ....................................................................................................... 8

1-2. Package Contents ........................................................................................ 8

1-3. Controls & Connectors ................................................................................ 9

2. INSTALLATION ............................................................................ 10

2-1. Connecting the monitor to the PC .............................................................. 10

2-2. Getting Ready for Operation ...................................................................... 12

3. SCREEN ADJUSTMENT .............................................................. 13

3-1. How to use the ScreenManager ................................................................ 13

3-2. Color .......................................................................................................... 15

3-3. Fine Contrast ............................................................................................. 16

3-4. Power Save ................................................................................................ 17

3-5. Adjustment Lock ........................................................................................ 18

3-6. Connecting Two PCs to The Monitor .......................................................... 18

4. MAKING USE OF USB (Universal Serial Bus) .......................... 19

5. TROUBLESHOOTING .................................................................. 21

6. CLEANING ................................................................................... 25

7. SPECIFICATIONS ........................................................................ 26

8. GLOSSARY .................................................................................. 28

9. INDEX ........................................................................................... 30

4PRECAUTIONS

IMPORTANT!

• This product has been adjusted specifically for use in the region to which it was

originally shipped. If operated outside the region to which it was originally shipped,

the product may not perform as stated in the specifications.

• To ensure personal safety and proper maintenance. Please read this section and the

caution statements on the monitor (refer to the figure below).

[Location of the Caution Statements]

The equipment must be connected to a grounded main outlet.

Jordet stikkontakt skal benyttes når apparatet tilkobles datanett.

PRECAUTIONS

• If the unit begins to emit smoke, smells like something is burning, or

makes strange noises, disconnect all power connections immediately

and contact your dealer for advice.

Attempting to use a malfunctioning unit can be dangerous.

• Do not dismantle the cabinet or modify the unit.

Dismantling the cabinet or modifying the unit may result in electric shock or

burn.

• Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing

covers may expose you to dangerous voltage or other hazards.

• Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into the cabinet

or spillage into the cabinet may result in fire, electric shock, or equipment

damage. If an object or liquid falls/spills into the cabinet, unplug the unit

immediately. Have the unit checked by a qualified service engineer before

using it again.

WARNING

ENGLISH

PRECAUTIONS 5

• Place the unit on a strong, stable surface.

A unit placed on an inadequate surface may fall, resulting in injury or

equipment damage. If the unit falls, disconnect the power immediately and

have the unit checked by a qualified service engineer before using it again.

Using a unit after it has been dropped may result in fire or electric shock.

• Set the unit in an appropriate location.

Not doing so may cause damage and could result in fire or electric shock.

* Do not place in outdoors.

* Do not place in the transportation system (ship, aircraft, trains,

automobiles, etc.)

* Do not install in a dusty or humid environment.

* Do not place in a location where the steam comes directly on the screen.

* Do not place near heat generating devices or a humidifier.

• To avoid danger of suffocation, keep the plastic packing bags away

from babies and children.

• Use the enclosed power cord and connect to the standard power outlet

of your country. Be sure to remain within the rated voltage of the power

cord.

Not doing so may cause fire or electric shock.

• To disconnect the power cord, grasp the plug firmly and pull.

Never tug on the cord, doing so may cause damage and

could result in fire or electric shock.

• The equipment must be connected to a grounded main outlet.

Not doing so may cause fire or electric shock.

WARNING

6PRECAUTIONS

• Use the correct voltage.

* The unit is designed for use with a specific voltage only. Connection to

another voltage than specified in this User’s Manual may cause fire,

electric shock, or other damage.

* Do not overload your power circuit, as this may result in fire or electric

shock.

* For proper connections of the power cord, be certain to plug the power cord

to the provided unit connector and directly to a wall outlet. Not doing so may

result in fire or electric shock.

• Handle the power cord with care.

* Do not place the cord underneath the unit or other heavy objects.

* Do not pull on or tie the cord.

If the power cord becomes damaged, stop using it.

Use of a damaged cord may result in fire or electric shock.

• Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

WARNING

ENGLISH

PRECAUTIONS 7

• Handle with care when carrying the unit.

Disconnect the power cord and signal cables and remove the optional

unit.

Moving the unit with the cord or the option attached is dangerous. It may result

in injury or equipment damage.

• Do not move it alone. Always work with another person.

Moving it alone may cause lower back pain. Also note that the unit is heavier

at the front than at the rear.

• Do not block the ventilation slots on the cabinet.

* Do not place books or any other papers on the ventilation slots.

* Do not install the unit in a closed space.

* Do not use the unit laying down or upside down.

* Do not remove the tilt-swivel stand.

Using the unit in this way block the ventilation slots and prevents proper

airflow, leading to fire or other damage.

• Do not sit on the cabinet or place any heavy objects on the cabinet.

A unit with heavy objects on it may fall or be damaged and result in injury.

• Do not touch the plug with wet hands.

Touching the plug with wet hands is dangerous and can cause electrical

shock.

• Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case of a

problem.

• Periodically clean the area around the plug.

Buildup of dust, water, or oil on the plug may result in fire.

• Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result in electric

shock.

• If you plan to leave the unit unused for an extended period, disconnect

the power cord from the wall socket after turning off the power switch for

the safety and the power conservation.

CAUTION

81. INTRODUCTION

1. INTRODUCTION

Thank you very much for choosing an EIZO Color Display Monitor.

1-1. Features

• Fully flat screen CRT

• Horizontal scanning frequency of 30-115 kHz

Vertical scanning frequency of 50-160 Hz

• Support to sRGB standard

• Max. Brightness 230 cd/m² bright screen (when the movie mode is selected)

• Fine contrast modes, to adjust the most suitable brightness and contrast of the

screen (See page 16)

• Power saving system and off timer system (See page 17)

• Adjustment lock function, to prevent any accidental changes (See page 18)

• Dual inputs with individual color configuration (See page 18)

• The utility software “ScreenManager Pro for USB” (for Windows) which can

control the monitor from a PC with a mouse or keyboard, is included

(See readme.txt in the CD-ROM).

• USB(Universal Serial Bus) hub supported

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing

or damaged.

• Monitor

•PowerCord

• Signal Cable (MD-C87 or MD-C100)

• User’s Manual

• EIZO Utility Disk

• EIZO USB Cable (MD-C93)

• LIMITED WARRANTY

• Please retain the packing materials for future transference.

1. INTRODUCTION 9

ENGLISH

1-3. Controls & Connectors

Front

(1) ScreenManager™

(2) USB Port*1with a drop down access lid

Downstream port x 1

(3) BNC/D-SUB Selection Button

(4) AUTO/FINE MODE Button

Push the button lightly: Fine Contrast Mode

Selection button

Push the button for more than 2 seconds:

AUTO-SIZING button

(5) QuickSet™ Control Pad

(Hereinafter “Control Pad”)

(6) Power Indicator

Indicated color Power-on status

Green Power is on (Normal mode)

Flashing Green Power save mode 1

Advance notice of

monitor’s off Timer*2

Yellow Power save mode 2

Flashing Yellow Power save mode with

monitor’s off Timer*2

(7) Power Switch

(8) Power Terminal*3 (with a cover)

Rear

(9) Power Connector

(10) D-Sub Mini 15 Pin Input Connector

(11) BNC Input Connector

(12) USB Port*1

Downstream port x 3

Upstream port x 1

*1See page19-20 for further details.

*2Regarding the “Off Timer”, see page 17.

*3Power Terminal can be used with an optional

i·Sound Sound Unit.

Bottom side

(2)

(7)

(6)(5)

(4)

(3)

10 2. INSTALLATION

2. INSTALLATION

2-1. Connecting the monitor to the PC

• Be sure that the power switches of both of the PC and the monitor are OFF.

1. Plug the signal cable into the connector at the rear of the monitor

and the other end of the cable into the video connector on the PC.

After connecting, secure the connection with the screw-in fasteners.

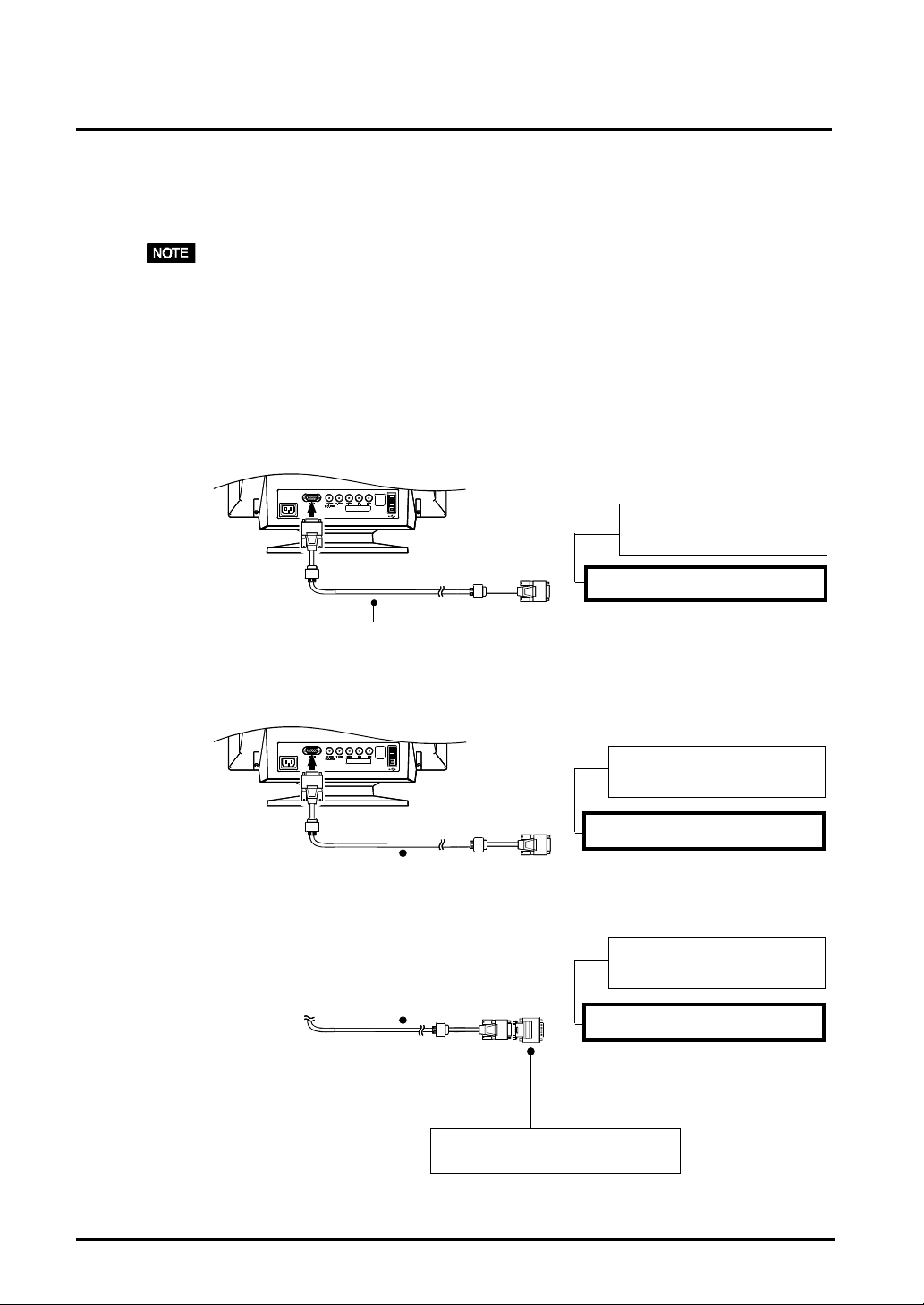

• Standard graphics board

• Macintosh

Signal Cable (Enclosed)

Macintosh Adapter (Optional)

Please consult EIZO dealer.

Signal Cable (Enclosed)

Standard graphics board

Video Output Connector

D-Sub mini 15 pin

Macintosh (Blue & White)

Video Output Connector

D-Sub mini 15 pin

Macintosh

Video Output Connector

D-Sub 15 pin

Andere Handbücher für FLEXSCAN T765 -

Inhaltsverzeichnis

Andere Eizo Monitor Handbücher

Eizo

Eizo DuraVision FDF2711W-IP Bedienungsanleitung

Eizo

Eizo FlexScan EV2780-BK Bedienungsanleitung

Eizo

Eizo RadiForce GS320 - CL Bedienungsanleitung

Eizo

Eizo RadiForce G33 Bedienungsanleitung

Eizo

Eizo ColorEdge CG245W Bedienungsanleitung

Eizo

Eizo RadiForce MX270W Bedienungsanleitung

Eizo

Eizo ColorEdge CX241 Bedienungsanleitung

Eizo

Eizo DuraVision FDF2382WT-A Bedienungsanleitung

Eizo

Eizo FlexScan F35 Bedienungsanleitung

Eizo

Eizo EIZO FlexScan P1700 Benutzerhandbuch

Eizo

Eizo CuratOR EX3241 Bedienungsanleitung

Eizo

Eizo DuraVision FDF4627W-IP Bedienungsanleitung

Eizo

Eizo FLEXSCAN S2232W - Bedienungsanleitung

Eizo

Eizo FlexScan EV2333WH Bedienungsanleitung

Eizo

Eizo FlexScan L362T Bedienungsanleitung

Eizo

Eizo FlexScan SX2461W Bedienungsanleitung

Eizo

Eizo Radiforce GX550 Bedienungsanleitung

Eizo

Eizo RadiForce MX191 Bedienungsanleitung

Eizo

Eizo COLOREDGE CG2730 Bedienungsanleitung

Eizo

Eizo MDF4601WT Benutzerhandbuch

Eizo

Eizo RadiForce GX530-BL Bedienungsanleitung

Eizo

Eizo FlexScan EV2460 Bedienungsanleitung

Eizo

Eizo FLEXSCAN L767 Bedienungsanleitung

Eizo

Eizo ColorEdge CG245W Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
