Eizo RadiForce G11-S Bedienungsanleitung

User’s Manual

Monochrome LCD Monitor

It shall be assured that the final system is in compliance

to IEC60601-1-1 requirements.

English

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read them

carefully.

WARNING

Failure to abide b

the information in a WARNING ma

result in serious in

and

can be life threatening.

Indicates a prohibited action.

Indicates to ground for safety.

Power supplied equipment can emit electromagnetic waves, that could influence, limit or

result in malfunction of the monitor. Install the equipment in a controlled environment,

where such effects are avoided.

x

x This is a monitor intended for use in a medical setting.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards

Association.

VGA is a registered trademark of International Business Machines Corporation.

Windows is a registered trademark of Microsoft Corporation.

PowerManager and RadiCS are trademarks of EIZO NANAO CORPORATION.

RadiForce, ScreenManager and EIZO are registered trademarks of EIZO NANAO

CORPORATION in Japan and other countries.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury

and/or property or product damage.

may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means,

electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO

CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or

information confidential unless prior arrangements are made pursuant to EIZO NANAO

CORPORATION’s receipt of written information. Although every effort has been made to

ensure that this manual provides up-to-date information, please note that EIZO monitor

specifications are subject to change without notice.

English

TABLE OF CONTENTS

PRECAUTIONS ...................................................................................4

1. INTRODUCTION .....................................................................................9

1-1. Features ........................................................................................................9

1-2. Package Contents..........................................................................................9

3. ScreenManager....................................................................................16

3-1. How to use the ScreenManager ..................................................................16

3-2. ScreenManager Adjustments and Settings...................................................17

3-3. Useful Functions .........................................................................................18

4. ADJUSTMENT ......................................................................................20

4-1. Screen Adjustment ......................................................................................20

7.TROUBLESHOOTING........................................................................... 31

8. CLEANING............................................................................................35

9. SPECIFICATIONS.................................................................................36

10. GLOSSARY......................................................................................... 40

MEMO .......................................................................................................42

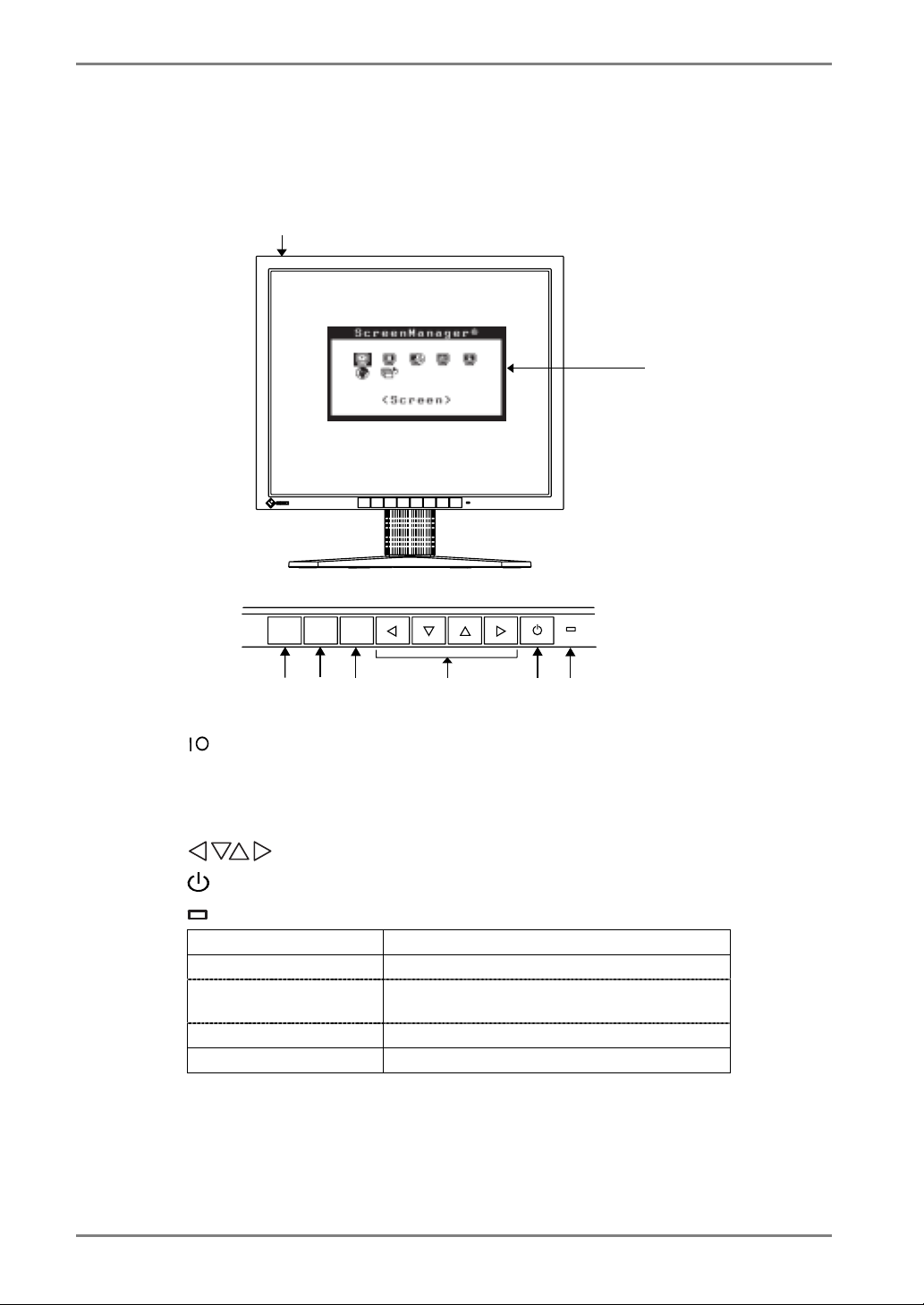

1-3. Controls & Connectors ..............................................................................10

2. CABLE CONNECTION .........................................................................12

2-1. Before connecting .......................................................................................12

2-2. Connecting the signal cable ........................................................................13

4-2. Displaying low resolutions..........................................................................24

4-3. Power-save Setup ........................................................................................26

5. MAKING USE OF USB (Universal Serial Bus) ...................................27

6. ATTACHING AN ARM STAND .............................................................. 29

TABLE OF CONTENTS 3

English

PRECAUTIONS

IMPORTANT!

x This product has been adjusted specifically for use in the region to which it was

originally shipped. If operated outside the region to which it was originally shipped,

the product may not perform as stated in the specifications.

x To ensure personal safety and proper maintenance, please read this section and the

caution statements on the unit (refer to the figure below).

[Location of the Caution Statements]

[Symbols on the unit]

Symbol Location This symbol indicates

Top Main power switch.

Press to turn the monitor’s main power off.

Top Main power switch.

Press to turn the monitor’s main power on.

Front

Control panel

Power button

Press to turn the monitor’s power on or off.

Rear

Name Plate

Alternating current

Rear

Name Plate

Alerting electrical hazard

Rear

Name Plate

Caution

Refer to SAFETY SYMBOLS section in this

manual.

4PRECAUTIONS

English

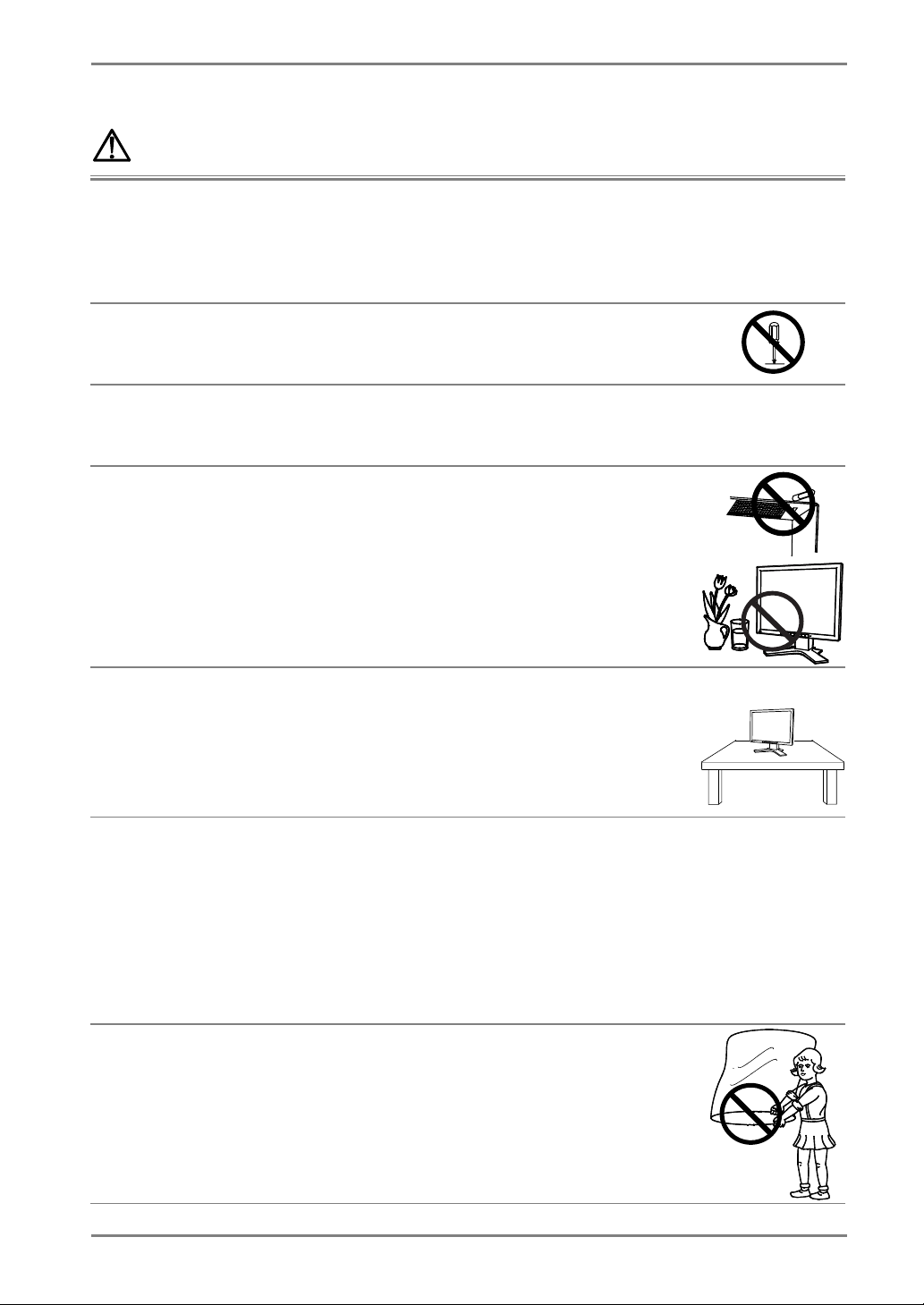

WARNING

If the unit begins to emit smoke, smells like something is burning, or

makes strange noises, disconnect all power connections immediately

and contact your dealer for advice.

Attempting to use a malfunctioning unit may result in fire, electric shock, or

equipment damage.

Do not open the cabinet or modify the unit.

Opening the cabinet or modifying the unit may result in fire, electric shock, or

burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing covers

may result in fire, electric shock, or equipment damage.

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into the cabinet

or spillage into the cabinet may result in fire, electric shock, or equipment

damage.

If an object or liquid falls/spills into the cabinet, unplug the unit immediately.

Have the unit checked by a qualified service engineer before using it again.

Place the unit at the strong and stable place.

A unit placed on an inadequate surface may fall and result in injury or

equipment damage.

If the unit falls, disconnect the power immediately and ask your dealer for

advice. Do not continue using a damaged unit. Using a damaged unit may

result in fire or electric shock.

Set the unit in an appropriate location.

Not doing so may result in fire, electric shock, or equipment damage.

*Do not place outdoors.

*Do not

lace in the trans

ortation s

stem (shi

, aircraft, trains, automobiles,

etc.)

*Do not place in a dusty or humid environment.

*Do not place in a location where the steam comes directly on the screen.

*Do not place near heat generating devices or a humidifier.

*Do not place in an inflammable gas environment.

To avoid danger of suffocation, keep the plastic packing bags away

from babies and children.

PRECAUTIONS

English

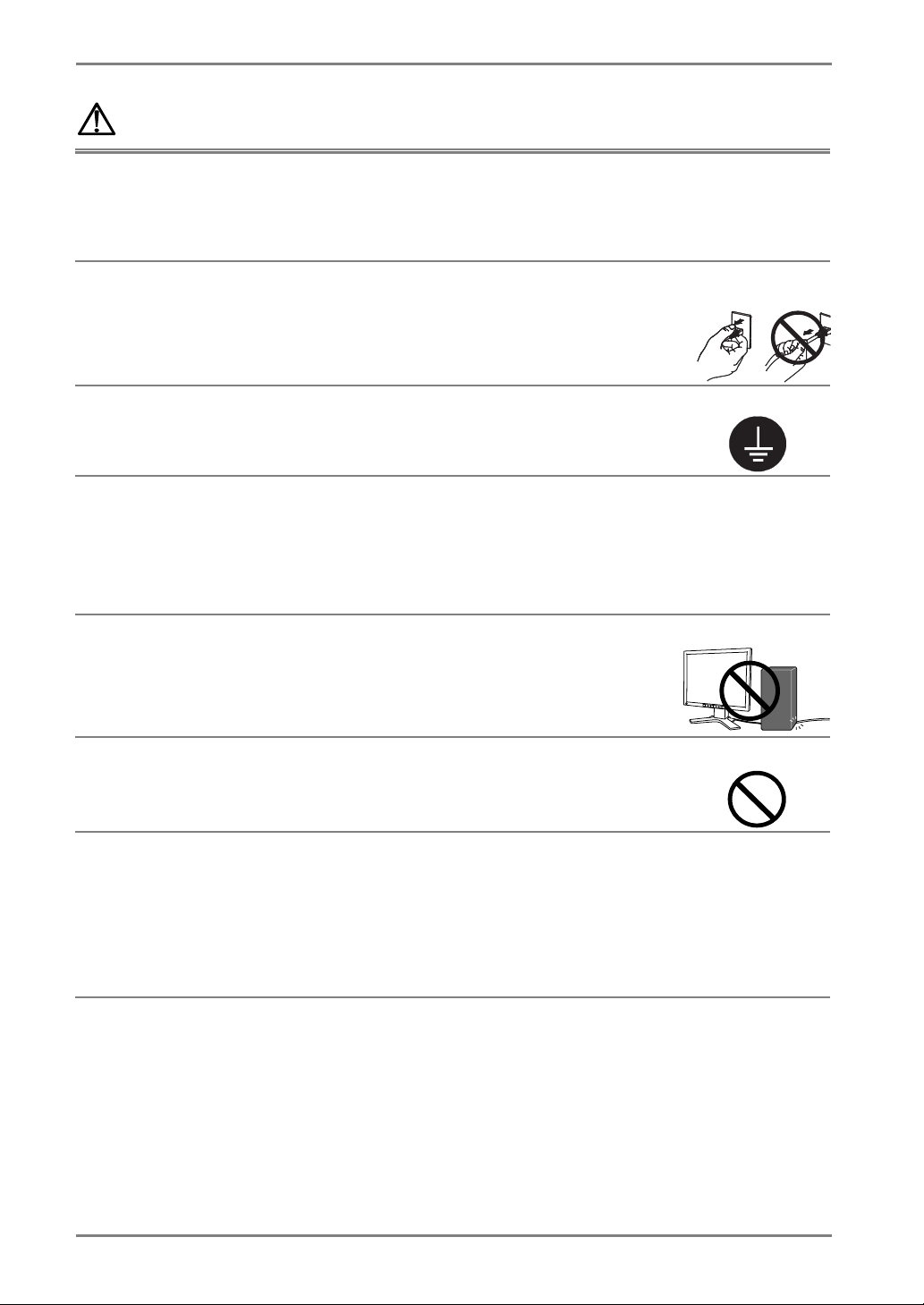

WARNING

Use the enclosed power cord and connect to the standard power outlet

of your country.

Be sure to remain within the rated voltage of the power cord.

Not doing so may result in fire or electric shock.

To disconnect the power cord, grasp the plug firmly and pull.

Tugging on the cord may damage and result in fire or electric shock.

The equipment must be connected to a grounded main outlet.

Not doing so may result in fire or electric shock.

Use the correct voltage.

*The unit is designed for use with a specific voltage only. Connection to

another voltage than specified in this User’s Manual may cause fire, electric

shock, or equipment damage.

*Do not overload your power circuit, as this may result in fire or electric

shock.

Handle the power cord with care.

*Do not place the cord underneath the unit or other heavy objects.

*Do not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a damaged cord

may result in fire or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

When attaching an arm stand, please refer to the user’s manual of the

arm stand and install the unit securely with the enclosed screws.

Not doing so may cause the unit to become unattached, which may result in

or e

ment dama

e. When the unit is dro

ed,

lease ask

our dealer

for advice. Do not continue usin

a dama

ed unit. Usin

a dama

ed unit ma

result in fire or electric shock. When reattaching the tilt stand, please use the

same screws and tighten them securely.

6PRECAUTIONS

English

WARNING

Do not touch a damaged LCD panel directly with bare hands.

The liquid crystal that may leak from the panel is poisonous if it enters the

eyes or mouth.

If any part of the skin or body comes in direct contact with the panel, please

wash thoroughly. If some physical symptoms result, please consult your

doctor.

Follow local regulation or laws for safe disposal.

The backlight of the LCD panel contains mercury.

CAUTION

Handle with care when carrying the unit.

Disconnect the

ower cord and cables when movin

the unit. Movin

the unit

with the cord attached is dangerous. It may result in injury.

When handling the unit, grip the bottom of the unit firmly with both

hands ensuring the panel faces outward before lifting.

Dropping the unit may result in injury or equipment damage.

Do not block the ventilation slots on the cabinet.

Do not place any objects on the ventilation slots.

Do not install the unit in a closed space.

Do not use the unit laid down or upside down.

Blocking the ventilation slots prevents proper airflow and may result in fire,

electric shock, or equipment damage.

Do not touch the plug with wet hands.

Doing so may result in electrical shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case of a

problem.

Periodically clean the area around the plug.

Dust, water, or oil on the plug may result in fire.

PRECAUTIONS 7

English

CAUTION

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result in electric

shock.

If you plan to leave the unit unused for an extended period, disconnect

the power cord from the wall socket after turning off the power switch

for the safety and the power conservation.

LCD Panel

In order to suppress the luminosity change by long-term use and to maintain

the stable luminosity, please use the monitor with the brightness below 400

cd/m2(equal to default setting of Brightness approximately 60 %).

The screen may have defective pixels. These pixels may appear as slightly light

or dark area on the screen. This is due to the characteristics of the panel itself,

and not the product.

The backli

ht of the LCD

anel has a fixed life s

an. When the screen becomes

dark or begins to flicker, please contact your dealer.

Do not press on the panel or edge of the frame strongly, as this may result in

damage to the screen. There will be prints left on the screen if the pressed

image is dark or black. If pressure is repeatedly applied to the screen, it may

deteriorate or damage your LCD panel. Leave the screen white to decrease the

prints.

Do not scratch or press on the

anel with an

shar

ects, such as a

encil or

pen as this may result in damage to the panel. Do not attempt to brush with

tissues as this may scratch the LCD panel.

8PRECAUTIONS

English

1. INTRODUCTION 9

1. INTRODUCTION

Thank you very much for choosing an EIZO Monochrome Monitor.

1-1. Features

x DVI (p. 40) Digital input (TMDS (p. 41)) compliant

x Resolution: 1 M pixels (1280 x 1024)

Horizontal scanning frequency: 27 - 82 kHz (Digital input: 27 - 64 kHz)

Vertical scanning frequency: 50 - 85 Hz (1280 x 1024 ~ 75 Hz)

(Digital input: 60 Hz (VGA text: 70 Hz))

x RGB Color video signal compatibility

x Auto Adjustment compliant

x USB (Universal Serial Bus) hub supported (p.27)

x The height adjustable stand incorporated

x Ultra slim bezel incorporated

x The Portrait/Landscape display capability

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or

damaged.

xLCD Monitor

xPower Cord

xSignal Cable (FD-C16)

xSignal Cable (FD-C04 / FD-C35 / FD-C39)

xEIZO USB Cable (MD-C93)

xUser’s Manual

xLIMITED WARRANTY

NOTE

x Please retain the packing materials for future transference.

English

10 1. INTRODUCTION

1-3. Controls & Connectors

Front

ENTERAUTO

SIGNAL

1 - 2

(4)

(2)

(5) (6)

(3) (7) (8)

(1)

(1) ScreenManager

(2) Main Power Switch

(3) SIGNAL 1-2 Signal selection button (Color/Monochrome) *1

(4) AUTO Auto Adjustment Button

(5) ENTER Enter Button

(6)

Control Buttons (Left, Down, Up, Right)

(7)

Power Button

(8) Power Indicator*3

Green Operation

Orange Power saving

Flashing orange (2 times

for each) Power save mode Digital only

Flashing orange slowly Power is off (Main power is on)

Off Power off

*1 Select color or monochrome for the graphics board of use (p.14).

*2 These buttons are changed to Down, Right, Left, Up in case of selecting “Portrait”

for <Orientation> of ScreenManager <Others> (p.17).

*3 Green lighting, when the screen is displayed (Operation mode), is made to non-light,

see page 17.

Regarding the power indicator for the off timer, see page 18.

Control Panel

Inhaltsverzeichnis

Andere Eizo Monitor Handbücher

Eizo

Eizo DuraVision FDS1903-A Bedienungsanleitung

Eizo

Eizo FlexScan SX2761W Bedienungsanleitung

Eizo

Eizo DuraVision FDF4627W-IP Bedienungsanleitung

Eizo

Eizo FlexScan S1934 Bedienungsanleitung

Eizo

Eizo FlexScan L760T-C Bedienungsanleitung

Eizo

Eizo COLOREDGE CG301W Bedienungsanleitung

Eizo

Eizo FlexScan L362T Bedienungsanleitung

Eizo

Eizo DURAVISION FDH3601 Bedienungsanleitung

Eizo

Eizo FLEXSCAN T1721 Bedienungsanleitung

Eizo

Eizo RadiForce MX216 Bedienungsanleitung

Eizo

Eizo RadiForce R22 Bedienungsanleitung

Eizo

Eizo DuraVision MDU5501WT Benutzerhandbuch

Eizo

Eizo FlexScan EV2313W Bedienungsanleitung

Eizo

Eizo FlexScan EV2451 Bedienungsanleitung

Eizo

Eizo FlexScan L 362T L362T L362T Bedienungsanleitung

Eizo

Eizo FLEXSCAN EV2315W - Bedienungsanleitung

Eizo

Eizo FlexScan S2133 Bedienungsanleitung

Eizo

Eizo FlexScan S2111W Bedienungsanleitung

Eizo

Eizo FlexScan EV2781 Bedienungsanleitung

Eizo

Eizo FlexScan T57S Bedienungsanleitung

Eizo

Eizo DuraVision FDX1501-A Benutzerhandbuch

Eizo

Eizo DuralVision FDF2304W-IP Bedienungsanleitung

Eizo

Eizo FlexScan EV3240X Bedienungsanleitung

Eizo

Eizo Radiforce MX240W Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
