EJEAS MS20 Bedienungsanleitung
MS20
User Manual
Mesh Group Intercom System
More
Languages
MS20 Intercom Bluetooth Intercom Music Share Auto Phone Answering
Voice Assistant FM Radio Support EUC Remote Support Mobile App
M Button Volume - Phone/
Power Button
USB
Charging
Interface/
Headphone
Jack
Volume +
Blue
LED Light
Antenna
Red
Green
Product Details
Battery Inquiry: After connecting to the phone via Bluetooth, you can see the power icon on the phone side.
Reset: It will automatically power off while charging and can be used while charging after powering on.
2s 5s
Product Operation
Operation Diagram
Click Double-click Long-press Long press
for 2 seconds
Long press
for 5 seconds
Power ON/OFF Please charge it before using
Basic Operation
ON
Long press <Phone/Power Button > for 1 second,
until the blue light flashes with a voice prompt.
Long press <Phone/Power Button > + <
MButton >, until the voice prompt
says "Power off"
Blue light flashes slowly Indicator light off
OFF
Low Battery Indication Charging Indication
When the battery is low, the red light
flashes twice with a voice prompt “Low
Battery”.
When the battery is extremely low,
the device will automatically power off.
The red light is always on when
using USB charging.
1s 1s
When using Mesh Intercom, you can mute the
microphone with a short press of the < M Button >,
so that the sound of your own voice will not be sent
to others.
Press <M Button> to unmute.
When using Mesh intercom, the system will enter a sleep mode when there is no speech detected.
Speaking will immediately activate the system and start the intercom. Users can adjust the voice
activation sensitivity to suit their own voice and avoid false activations or the need for excessively loud
sounds to activate the system.
There are 5 levels of sensitivity settings, default level 3. Level 5 has the highest sensitivity
and is the easiest to activate the system, level 1 has the lowest sensitivity.
After turning on Mesh intercom, press and hold the<M
Button>+<Volume +>to cycle through sensitivity.
1->5->1 cycle switching.
“Microphone Mute”
“Microphone unmute”
“{VOX n}（n is 1~5, indicating 5 levels）”
Mesh Intercom
Features: Intercom with up to 20 people, 5 channels in
total. Voice can be relayed and teams have a maximum
communication distance of about 2 kilometers. If
participating in campaign mode as a listener, there is no
limit to the number of people who can join the intercom
in a listen-only manner.
Microphone Mute
VOX Voice Sensitivity
When entering the Mesh network, Bluetooth music can be
played at the same time .When someone speaks, it will
automatically switch to Mesh intercom, no one speaks after
a period of time will automatically playback the music.
1s
Mesh intercom is a multi-hop technology mesh network
intercom (Communication frequency 470-488MHz). On
account of large number of participants and unrestricted
location, people are able to move at will within the effective
range. It is not only superior to the traditional Bluetooth
chain intercom, but has a longer transmission distance and
better anti-interference ability.
If the device is powered off without turning the intercom off, the intercom will be automatically
restored upon the next power-on.
4
Intercom Reconnection
Press and hold the <M Button>
(about 1s) to turn off Mesh Intercom .
The voice prompts "Mesh Close".
Turn off MESH Intercom
Take one of them as the paired server, press
<M Button> , you will hear a beep and the red
light and green light will flash alternately.
Wait for a moment and hear "Pairing
Successful" from all devices, which
means the pairing is successful.
All devices first enter the intercom pairing
state, long press <M Button> (about 5s) until
you hear a prompt and the red light and green
light flash alternately.
Red light and green light flash alternately
“Mesh Pairing”
Red light and green light flash alternately
“Bi”
“Pairing Successful”
Paired Server
Wait a few moments and you hear the prompt "Channel n, xxx.x megahertz"
from all the intercoms, you can start communicating and hear each other's voices.
Pairing Steps as Members：
When you power on the intercom for the
next use, short press the <M Button>.
You will hear the prompt "Join
the Mesh." Wait for a moment, and you
will hear the , prompt " Channel n, xxx.x
megahertz", you can talk to each other.
5s
5s
1s
5

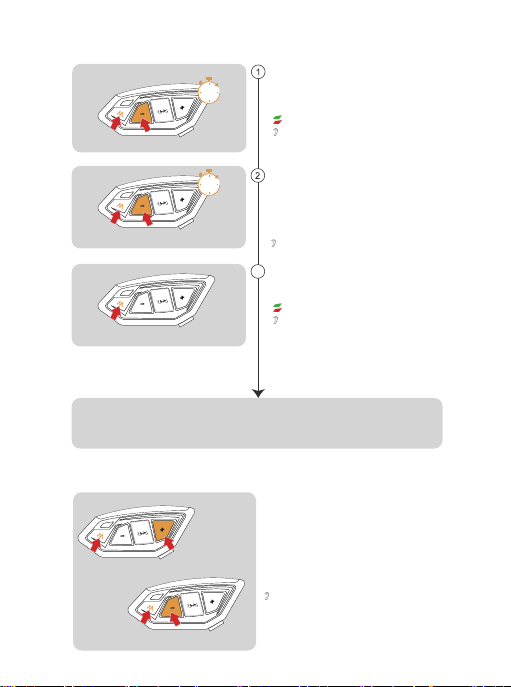

To become a team listening role, the prerequisite is that the other intercoms have been
paired to form a team simultaneously. The pairing steps is taken as followed.
Take an intercom that has been paired as a
paired server, entering listening mode pairing,
and press and hold <M Button> + <Volume ->
(about 5s) to prompt "Listen Mesh Pairing".
Note: Unjoined machines can only be joined again
through the server.
Take the intercom to be paired, enter listening mode
pairing, long press <M Button> + <Volume -> (about
5s), and prompt "Listen Mesh Pairing", the red light
and green light will flash alternately.
“Listen Mesh Pairing”
Red light and green light flash alternately
“Du”
“Channel n，xxx.x MHz”
“Listen Mesh Pairing”
Wait a moment and hear "Pairing Successful" from all intercoms. Wait a few more minutes and
hear "Channel n, xxx.x MHz". This means that you have joined the
intercom network and can communicate with others.
Pairing Steps as Listeners：
There are 5 channels in total, short press <M Button> + <
Volume ->/<Volume +> to switch channels
forward or backward. Note that the whole team needs
to keep the same channel to talk to each other.
Intercom Channel Switching
Short press the <M Button>, you will hear a
beep and the red light and green light will flash
alternately.
3
Red light and green light flash alternately
5s
5s
Paired Server
Paired Server
6
or
Simultaneously press and hold <Phone/Power
Button> + <Volume +> + <M Button> for
approx. 5 seconds to start pairing (red and blue
lights flash alternately).
For older models (V6/V4) follow the instructions to enter
the search and wait for successful pairing.
Red light and blue light flash alternately
After powering on the device, press and hold
<Phone/Power Button> + <Volume +> (about 5s)
until the red and blue lights flash alternately, and the
pairing voice prompts "Intercom Pairing". Wait for
connection to other intercoms.
Red light and blue light flash alternately
The other intercom enters the pairing state using the
same operation. After the two intercoms discover each
other, one of them will initiate the pairing connection.
B
A
FM
Bluetooth Intercom
How To Pair With The Device
Pairing with The Old Models
The connection is successful and the intercom begins.
5s
5s
5s
When both Mesh intercom and Bluetooth intercom
are enabled, when no one is speaking on the Mesh
network (including oneself), it will automatically
switch to Bluetooth intercom.
When someone is speaking on the Mesh network
(excluding oneself) while in Bluetooth intercom,
Mesh will automatically preempt and switch to Mesh
Intercom status, Bluetooth intercom is not working.
When you are in Bluetooth intercom and want to
speak to others on the Mesh network, simply press
the<M Button> to switch to Mesh intercom.
3
7
Pairing With Headsets or Other Branded Bluetooth Intercoms Search
Intercom Connection
Blue light flashes rapidly
Intercom Disconnection
Long press <Phone/Power Button> + <Volume +>
(approx. 5s) until the red and blue lights flash
alternately and the prompt "Intercom pairing" is
displayed.
Click again on <Phone/Power Button> + <Volume +>.
The voice prompts "Intercom Searching". The red
and blue lights flash alternately.
At this point the intercom is searching for other
intercoms in the pairing state, and when it finds
another intercom, it will initiate the pairing.
Successful Pairing
Red light and blue light flash alternately
“Intercom Pairing”
“Intercom Searching”
Red light and blue light flash alternately
Note: It is not guaranteed to be compatible with all Bluetooth headsets or
intercoms on the market.
HFP-enabled
intercoms
Others
5s
8
This intercom supports connection to mobile phones for playing songs ,making calls, and waking
up voice assistants. Up to 2 mobile phones can be connected at the same time.
After powering on the device, press and hold (approx. 5s)
the <Phone/Power Button> until the red and blue lights
flash alternately and the voice prompts "Phone Pairing".
Red light and blue light flash alternately
The phone searches for the device named "MS20" using
Bluetooth. Click on it to connect.
MS20
Connection
successful
Bluetooth Reconnection With Mobile Phones
Call Answering
When a call comes in,
click on the <Phone/Power Button>
After switching on, it automatically connects
back to the last connected phone Bluetooth.
When there is no connection, click on the <
Phone/Power Button > to reconnect with the
last mobile device that was connected to
Bluetooth.
Current battery level is displayed on the
phone's Bluetooth icon
（Mobile phone HFP connection required）
Blue light double flashes slowly
Mobile Phone Pairing
Mobile Control
9
Call Rejection
Phone Priority
When a call come,press
the <Phone/Power Button>
for about 2s
During a call ,click on
the <Phone/Power
Button>
When a call comes in, it will interrupt Bluetooth music, FM
radio, intercom, and resume after hanging up.
Voice Assistant
Music Control
When in standby/playing music, press and hold <Phone/Power Button>,
it depends on your mobile phone.
Play/Pause Previous Song Next Song
Music Playing Volume - Volume +
Incoming Calls Interruptions End Resume
Music Intercom Music IntercomFM FM
When standby/playing
music,quickly double-
click the <Phone/Power
Button>.
During redial,click on
<Phone/Power Button>
Hang Up Call Redial Cancel Redial
Voice
Assistant
“Open Music”
“Previous Song”
“Next Song”
“Call EJEAS”
“Open Navigation”
Press and hold <Phone/Power Button> to wake
up voice assistant.
