USER GUIDE

BACKPL AT E

EK-Quantum

Vector FTW3 RTX 3070 Ti Backplate

This product is intended for installation only by expert users. Please

consult with a qualiﬁed technician for installation. Improper installation

may result in damage to your equipment. EK Water Blocks assumes

no liability whatsoever, expressed or implied, for the use of these

products, nor their installation. The following instructions are subject

to change without notice. Please visit our web site at www.ekwb.com

for updates.

Before you start using this product, please follow these basic guidelines:

Please carefully read the manual thoroughly before beginning

with the installation process!

Please remove your graphics card from the computer to

assure safest mounting process in order to prevent any

possible damages to your GPU and/or graphics card circuit

board (PCB).

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

BACKPLATE DIMENSIONS 5

REQUIRED TOOLS 5

INSTALLING THE BACKPLATE 6

PREPARING THE GRAPHICS CARD 6

CUTTING AND PLACING THERMAL PADS 6

ATTACHING THE BACKPLATE 7

TESTING THE LOOP 8

WARRANTY 8

SUPPORT AND SERVICE 9

SOCIAL MEDIA 9

- 4 -

BOX CONTENTS

M2.5x8 AX1 Screw (8 pcs) Nickel

EK-Quantum Vector FTW3 RTX 3070 Ti Backplate

M2.5x8 AX1 Screw (8 pcs) Black

Thermal PAD G 1.5 mm - (120x24mm) (2 pcs)

120 mm

24 mm

120 mm

24 mm

Thermal PAD G 2.0 mm - (120x24mm) (1 pcs)

8 mm8 mm

Mounting mechanism - You may not need all

the screws, mounting mechanism is universal!

- 5 -

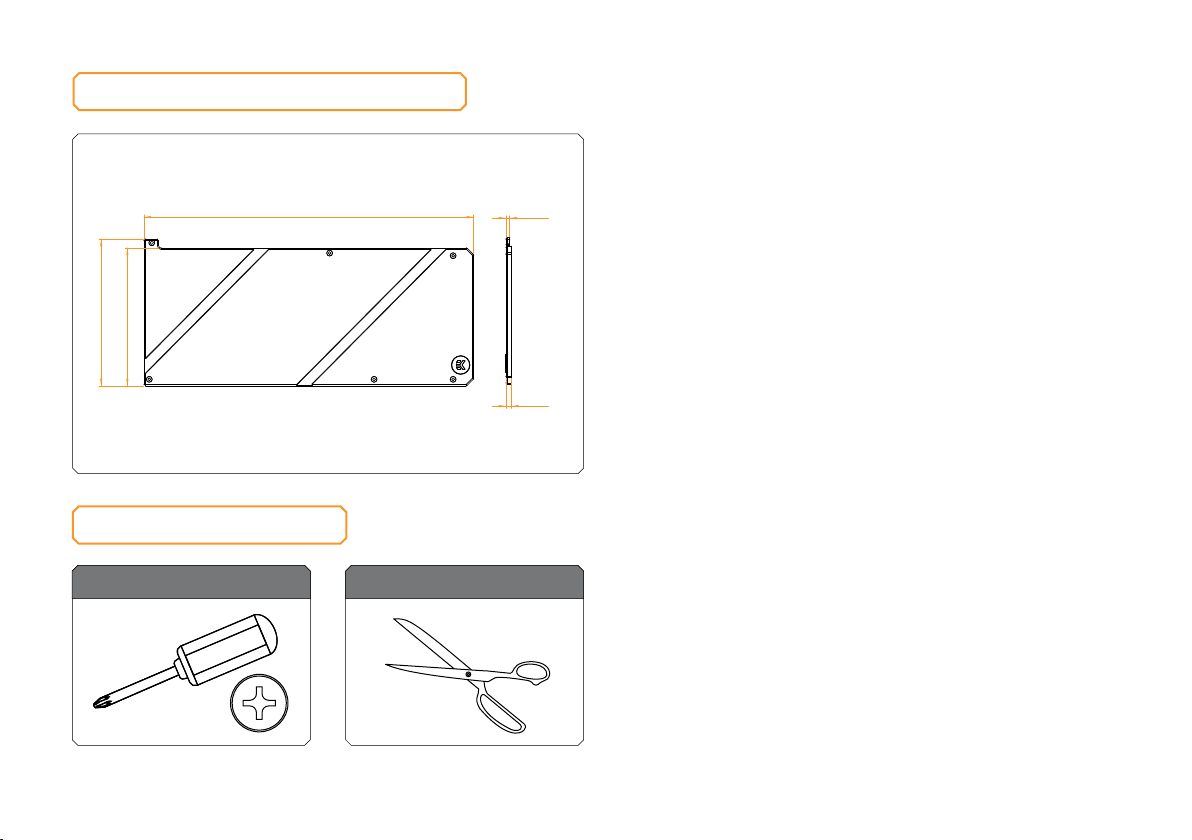

BACKPLATE DIMENSIONS

302.6 mm

133.8 mm

125.7 mm

5.2 mm

3.6 mm

Phillips Head Screwdriver Scissors

REQUIRED TOOLS

- 6 -

INSTALLING THE BACKPLATE

STEP 1

PREPARING THE GRAPHICS CARD

First complete the installation of your EK-Quantum Vector FTW3

RTX 3070 Ti water block according to its installation manual.

If water block is already installed, remove the six (6) AX1 screws and

their PVC washers(marked on the picture).

STEP 2

CUTTING AND PLACING THERMAL PADS

Your backplate is supplied with thermal pads that needs to be cut

into smaller pieces in order to cover all VRM components. EK made

sure to provide customers with more than adequate quantity of

thermal pads to complete this step.

PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH

SIDES OF THETHERMAL PADS PRIOR TOINSTALLATION!

Replacement thermal pads:

2x Thermal PAD G 1.5 mm - (120 x 24 mm) – EAN: 3830046996787

1x Thermal PAD G 2.0 mm - (120 x 24 mm) – EAN: 3830046996794

STEP 1

120 mm

24 mm

1.5 mm

Thermal PAD G 1.5 mm (120 x 24 mm)

120 mm

24 mm

2 mm

Thermal PAD G 2.0 mm (120 x 24 mm)

STEP 2

- 7 -

STEP 3

Once cut to size thermal pads should be applied to the backplate as

shown in the image.

STEP 3

Thermal Pad G 2.0 mm

Thermal Pad G 1.5 mm

STEP 4

ATTACHING THE BACKPLATE

Place the backplate on to the PCB aligning all of the holes. Position

an M2.5 x 8 AX1 screw in each of the six (6) mounting holed marked

below and then tighten them evenly using a Phillips head screwdriver.

Do not use excessive force!

For this Step, you will need:

STEP 4

M2.5 x 8 AX1

Screw (6 pcs)

8 mm

M2.5 x 8 AX1 Screw

Phillips Head

Screwdriver

- 8 -

TESTING THE LOOP

To ensure the installation of EK components was successful, we

recommend you perform a 24-hour leak test.

When your loop is complete and ﬁlled with coolant, connect the

pump to a PSU outside your system. Do not connect power to any

of the other components. Turn on the PSU and let the pump run

continuously. Inspect all parts of the loop, and in case the coolant

leaks, ﬁx the issue and repeat the testing process.

To prevent possible damage, please ensure that all hardware is dry

before the system is powered on.

WARRANTY

Our products are warranted against defects of materials and quality for

a period of 24 months, starting with the date of delivery to the end-user.

During this period, products will be repaired or have parts replaced at

our discretion, provided that 1) the product is returned to the agent from

whom it was purchased; 2) the product has been purchased by the end-

user and has not been used for commercial purposes; 3) the product has

not been misused, handled carelessly, or used in a manner other than the

way described in the instructions manual. This warranty does not confer

rights other than those expressly set out above and does not cover any

claims for consequential loss or damage. This warranty is offered as an

extra beneﬁt and does not affect your statutory rights as a consumer.

This warranty is voided if the product comes in contact with aggressive

UV additives or other improper liquids. EK water blocks are sealed with a

warranty-voiding circular label, proving the water block has withstood a

pressure leak test. Removing the label will void the leak-free guarantee,

but not the guarantee on the product itself. Any other RMA issues can

be reported to EK Customer Support at www.ekwb.com/support for

further analysis.

In case you need assistance, please contact:

https://www.ekwb.com/customer-support/

EKWB d.o.o.

Pod lipami 18

1218 Komenda

Slovenia - EU

EKWaterBlocks

@EKWaterBlocks

ekwaterblocks

EKWBofﬁcial

SUPPORT AND SERVICE

SOCIAL MEDIA
