EKEN M50 Bedienungsanleitung
M50 Smart Wi-Fi
Doorbell Camera
Scan the code
to view the user manual
User Manual 1.0 - Outlet Version
Features
8. Reset Button
9. Micro USB Port (For Battery Charging)
1.
2. Wide-angle Lens
3. Indicator Light
4. Speaker
5. Microphone
6. Infrared Lights
7. Doorbell Button
Motion Sensor
8
4
3
2
15
6
7
9
In the box
Indicator light
Flashing BLUE
The device is recording.
1080p Doorbell Camera
Mounting Bracket Removal Tool
Micro-USB Cable
User Manual
Wireless Chime
1.
2.
3.
4.
5.
Flashing RED
Flashing RED and BLUE Alternately
The device is disconnected from Wi-Fi. It will attempt to
reconnect automatically. If it fails, please reset the
device and pair it again in the app.
Low battery. Please recharge the device.
Indicator
Light
Recharge your doorbell
Remove the mounting bracket
1.
To do this, insert the included mounting bracket
removal tool into the hole at the top of the doorbell.
Push in until the bracket slides off.
Solid RED
The device is charging.
RED Light Turns OFF
When the device is fully charged.
Use a standard micro-USB cable, such as the one
provided in the box. Simply plug it into any 5V1A USB
power source. Your doorbell camera may take
approximately 8-10 hours to fully charge, depending
on whether the USB cable is connected to a USB
port or a wall outlet.
A solid RED light indicates that the doorbell is
charging. When the doorbell is fully charged, the
RED light will turn off.
2. Remove the battery tab
Recharge Your Doorbell Before First3.
Create an account in the Aiwit app
Scan the QR code provided or search for Aiwit in the
Apple App Store or Google Play. Then download and
install the app.
1.
Android/iOS
App Download
2. Open the Aiwit app on your cellphone and tap Sign up.
Login Sign up
v2.7.4 (3752)
Enter your email address, set a password, and tap
Sign up.
3.
:HOFRPH
6LJQXS
(PDLO$GGUHVV
&RQILUP(PDLO$GGUHVV
3DVVZRUG
6LJQXS
/RJLQ
Tap Please log in. (Note: You will also receive an
email containing an activation link. Access this
email and tap on the Activate Account link to verify.)
4.
:HKDYHVHQWDQHPDLOWR
[[[[[[[[[#[[[FRP2SHQ\RX
HPDLODQGWDSWKHOLQNWRYHULI\
,I\RXGRQŇWVHHWKHHPDLOFKHFN\RXU
VSDPRUWDSʼn5HVHQGHPDLOŊEHORZ
3OHDVH/RJLQ
5HVHQGHPDLOV
Set up your doorbell in the Aiwit app
Re-open the Aiwit app, enter your email address and
password, and tap Log in.
5.
:HOFRPH
/RJLQ
(PDLO$GGUHVV
3DVVZRUG
)RUJHW3DVVZRUG
5HPHPEHUPH
/RJLQ
6LJQXS
Open the Aiwit app and sign in to your account.
1.
To add your camera, tap the Add device icon (+).
2.
Choose Video Doorbell and then select the M50 model.
3.
Press and hold the doorbell button until the red light
starts flashing. You will hear Entering pairing mode.
4.
The device supports only the 2.4GHz Wi-Fi network.
Navigate to your cellphone's Wi-Fi settings, connect to
a 2.4GHz Wi-Fi network, and tap “Yes.” (Note: 5GHz
Wi-Fi is not supported).
5.
For Connection Setup: Select your 2.4GHz Wi-Fi
network name, input the password, and tap Next.
6.
Tap Confirm.
7.
8.
Use the device’s camera to scan the QR code on your
phone.
9.
Once you hear Device registration successful, you are
all set.
10.
Before setting up the camera, ensure your cellphone's
Bluetooth（）is turned on
Install your doorbell
Remove the mounting bracket1.
To do this, insert the included mounting bracket
removal tool into the hole at the top of the doorbell.
Push in until the bracket slides off.
Prepare for mounting2.
Mark the drill holes and use a bit to drill into your
wall. Insert the anchors and secure your back plate
with the provided mounting and screws.

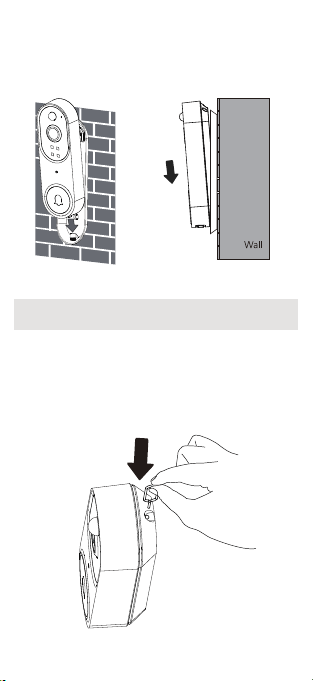

How to reset your doorbell
Remove the mounting bracket1.
To do this, insert the included mounting bracket
removal tool into the hole at the top of the doorbell.
Push in until the bracket slides off.
Reattach the doorbell3.
Place the doorbell back on by slotting it in at the
bottom and clicking it into place.
