EKF PC5-LARGO Bedienungsanleitung

User Guide

PC5-LARGO • CompactPCI ® PlusIO CPU Card

5th Generation Intel®Core™ Processor (Broadwell)

Document No. 8556 • Edition 5 • 3rd July 2020

PC5-LARGO • CompactPCI®PlusIO • 5th Generation Intel®Core™-5xxx Processor

Contents

AboutthisManual ........................................................... 5

EditionHistory......................................................... 5

RelatedDocuments ..................................................... 6

Nomenclature ......................................................... 7

TradeMarks .......................................................... 7

Legal Disclaimer - Liability Exclusion ......................................... 7

Standards ............................................................ 8

Overview............................................................. 9

TechnicalFeatures .......................................................... 11

FeatureSummary ..................................................... 11

PerformanceRating.................................................... 16

PowerRequirements ................................................... 16

BlockDiagram........................................................ 17

TopViewComponentAssembly .......................................... 18

BottomViewComponentAssembly........................................ 19

Front Panel Connectors ................................................. 20

FrontPanelSwitches&Indicators ......................................... 20

On-Board Connectors & Sockets .......................................... 21

PinHeaders .......................................................... 21

Jumpers ............................................................ 21

Microprocessor ....................................................... 22

ThermalConsiderations ................................................. 23

MainMemory ........................................................ 24

GraphicsSubsystem ................................................... 25

LANSubsystem ....................................................... 26

SerialATAInterface(SATA) .............................................. 27

PCI Express®Interface .................................................. 28

UniversalSerialBus(USB) ............................................... 29

Utility Interfaces ...................................................... 30

Real-TimeClock....................................................... 31

SPIFlash ............................................................ 31

Reset............................................................... 32

Watchdog........................................................... 34

FrontPanelLEDs ...................................................... 35

PG(PowerGood)LED ............................................. 35

GP(GeneralPurpose)LED .......................................... 36

HD(HardDiskActivity)LED ......................................... 36

EB(EthernetBackplane)LED ........................................ 37

Hot Swap Detection ................................................... 38

PowerSupplyStatus(PWR_FAIL#)......................................... 38

PC5-LARGO • CompactPCI®PlusIO • 5th Generation Intel®Core™-5xxx Processor

MezzanineSideBoardOptions ........................................... 39

CompactPCI®PlusIO ................................................... 43

InstallingandReplacingComponents............................................ 46

BeforeYouBegin...................................................... 46

InstallingtheBoard .................................................... 47

RemovingtheBoard ................................................... 48

EMCRecommendations................................................. 49

ReplacementoftheBattery .............................................. 50

TechnicalReference ......................................................... 51

LocalPCIDevices ...................................................... 51

LocalSMBDevices ..................................................... 52

Hardware Monitor LM87 ................................................ 53

BoardControlandStatusRegisters(BCSR) ................................... 54

Write/ReadControlRegister0 ....................................... 55

Read/ClearStatusRegister0 ........................................ 56

Read/ClearStatusRegister1 ........................................ 57

ReadPLDRevisionRegister ......................................... 58

GPIOUsage.......................................................... 59

GPIOUsageQM87PCH ........................................... 59

ConfigurationJumpers ................................................. 62

ConfigurationPCIExpressSwitch(DS-P) ............................... 62

Loading UEFI BIOS Setup Defaults/IEEE 1588 Pulse per Second (J-GP) ......... 64

ManufacturerModeJumper(J-MFG) ................................. 65

RTCReset(J-RTC) ................................................ 66

Connectors .......................................................... 67

Front Panel Connectors ............................................ 67

DisplayPort Connectors ...................................... 70

Screw Locking Option for mDP Connectors ....................... 71

VGA Video Connector ....................................... 74

USB Connectors ............................................ 75

Ethernet Connectors ........................................ 76

Mezzanine Connectors ............................................ 77

ExpansionInterfaceP-EXP .................................... 80

High Speed Expansion Connector P-HSE .......................... 81

PCI Express®ExpansionHeaderP-PCIE ........................... 83

DisplayPortExpansionHeaderP-DP3 ............................ 84

PinHeaders&Debug ............................................. 85

FrontPanelHandleMicroswitchHeaderP-FPH ..................... 85

PLDProgrammingHeaderP-ISP ................................ 86

ProcessorDebugHeaderP-XDP ................................ 87

Backplane Connectors ............................................. 88

PC5-LARGO • CompactPCI®PlusIO • 5th Generation Intel®Core™-5xxx Processor

CompactPCIJ1............................................. 88

CompactPCIJ2(PlusIO) ...................................... 89

MechanicalDrawing ................................................... 91

PC5-LARGO • CompactPCI®PlusIO • 5th Generation Intel®Core™-5xxx Processor

About this Manual

This manual describes the technical aspects of the PC5-LARGO, required for installation and system

integration. It is intended for the experienced user only.

Edition History

Ed. Contents/Changes Author Date

1 User Manual PC5-LARGO, english, preliminary edition

Text #8556, File: pc5_ug.wpd

jj 20 June 2017

2 Fixed a mixup regarding external power reset signal via J2 C17 jj 11 August 2017

2.1 Added Intel®AMT support to table 'Feature Summary' jj 6 November 2017

2.2 Warning regarding usage in a 64-bit classic environment also added to

table 'Backplane Connector J2' (was already enclosed in section

'CompactPCI®PlusIO')

jj 7 December 2017

3.0 Removed PR1-RIO (obsolete) jj 8 March 2018

4 Added Power requirements gn 2018-08-03

5 Corrected typo in Status Register CMD_STAT1 Bit 4 gn 2020-07-03

PC5-LARGO • CompactPCI®PlusIO • 5th Generation Intel®Core™-5xxx Processor

Related Documents

Related Information

PC5-LARGO Home www.ekf.com/p/pc5/pc5.html

PC5-LARGO User Guide www.ekf.com/p/pc5/pc5_ug.pdf

Related Documents CompactPCI®Serial & CompactPCI®PlusIO

CompactPCI®Serial & PlusIO Overview www.ekf.com/s/smart_solution.pdf

CompactPCI®PlusIO Home www.ekf.com/p/plus.html

CompactPCI®Serial Home www.ekf.com/s/serial.html

Related Documents Mezzanine Modules and Side Cards

C40 ... C48 Series

Mezzanine Storage Modules

www.ekf.com/c/ccpu/c4x_mezz_ovw.pdf

C48-M2 Dual M.2 SATA SSD

Mezzanine Storage Module

www.ekf.com/c/ccpu/c48/c48.html

PCL-CAPELLA Mezzanine Side Card www.ekf.com/p/pcl/pcl.html

PCS-BALLET Mezzanine Side Card www.ekf.com/p/pcs/pcs.html

SCS-TRUMPET Mezzanine Side Card www.ekf.com/s/scs/scs.html

Ordering Information

For popular PC5-LARGO SKUs please refer to www.ekf.com/liste/liste_21.html#PC5

For popular Mezzanine Side Cards please refer to www.ekf.com/liste/liste_20.html#C40

PC5-LARGO • CompactPCI®PlusIO • 5th Generation Intel®Core™-5xxx Processor

Nomenclature

Signal names used herein with an attached '#' designate active low lines.

Trade Marks

Some terms used herein are property of their respective owners, e.g.

<Core™ i7: ®Intel

<CompactPCI, CompactPCI PlusIO, CompactPCI Serial: ®PICMG

<Windows: ®Microsoft

<EKF, ekf system: ®EKF

EKF does not claim this list to be complete.

Legal Disclaimer - Liability Exclusion

This manual has been edited as carefully as possible. We apologize for any potential mistake.

Information provided herein is designated exclusively to the proficient user (system integrator,

engineer). EKF can accept no responsibility for any damage caused by the use of this manual.

PC5-LARGO • CompactPCI®PlusIO • 5th Generation Intel®Core™-5xxx Processor

Standards

Reference Documents

Term Document Origin

CFast™ CFast™ Specification Rev. 1.0 www.compactflash.org

CompactPCI®CompactPCI Specification, PICMG®2.0 R3.0, Oct. 1,

1999

www.picmg.org

CompactPCI®

PlusIO

CompactPCI PlusIO Specification, PICMG®2.30

R1.0, November 11, 2009

www.picmg.org

CompactPCI®

Serial

CompactPCI Serial Specification, PICMG®CPCI-S.0

R1.0, March 2, 2011

www.picmg.org

DisplayPort VESA DisplayPort Standard Version 1.2

December 22, 2009

VESA Mini DisplayPort Connector Standard Ver. 1

October 26, 2009

www.vesa.org

DVI Digital Visual Interface Rev. 1.0

Digital Display Working Group

www.ddwg.org

Ethernet IEEE Std 802.3, 2000 Edition standards.ieee.org

Precision

Time Protocol

IEEE Std 1588-2008, July 24, 2008 standards.ieee.org

LPC Low Pin Count Interface Specification, Revision 1.1 developer.intel.com/design/

chipsets/industry/lpc.htm

HD Audio High Definition Audio Specification Rev.1.0 www.intel.com/design/chipsets/hdaudio.htm

PCI Express®PCI Express®Base Specification 3.0 www.pcisig.com

SATA Serial ATA 2.5/2.6 Specification

Serial ATA 3.0 & 3.1 Specification

www.sata-io.org

TPM Trusted Platform Module 2.0 www.trustedcomputinggroup.org

UEFI Unified Extensible Firmware Interface

UEFI Specification Version 2.5

ACPI Specification Version 6.0

www.uefi.org

USB Universal Serial Bus 3.0 Specification, Revision 1.0

November 12, 2008

www.usb.org

PC5-LARGO • CompactPCI®PlusIO • 5th Generation Intel®Core™-5xxx Processor

Overview

The PC5-LARGO is a rich featured high

performance 4HP/3U CompactPCI®PlusIO CPU

board, equipped with a 5th generation Intel®

Core™ mobile processor (Broadwell quad-core).

The PC5-LARGO front panel is provided with

two Gigabit Ethernet jacks, two USB 3.0

receptacles, and two mDP connectors

(DisplayPort 1.2 MST, 4k UHD).

Local expansion mezzanine boards (side cards)

are available for additional front panel and/or

rear I/O, resulting in an 8HP front panel width

assembly unit.

The PC5-LARGO can be equipped with up to

24GB DDR3L ECC RAM. Up to 8GB memory-

down are provided for rugged applications, and

another 16GB are available via the SO-DIMM

socket. Low profile SSD mezzanine modules are

available as on-board mass storage solution.

The PC5-LARGO backplane connectors comply

with the PICMG®CompactPCI®PlusIO system

slot specification, suitable for a rear I/O module

or hybrid CompactPCI®Serial system via J2.

Across J1, the PC5-LARGO is backwards

compatible to classic CompactPCI®systems.

PC5-LARGO • CompactPCI®PlusIO • 5th Generation Intel®Core™-5xxx Processor

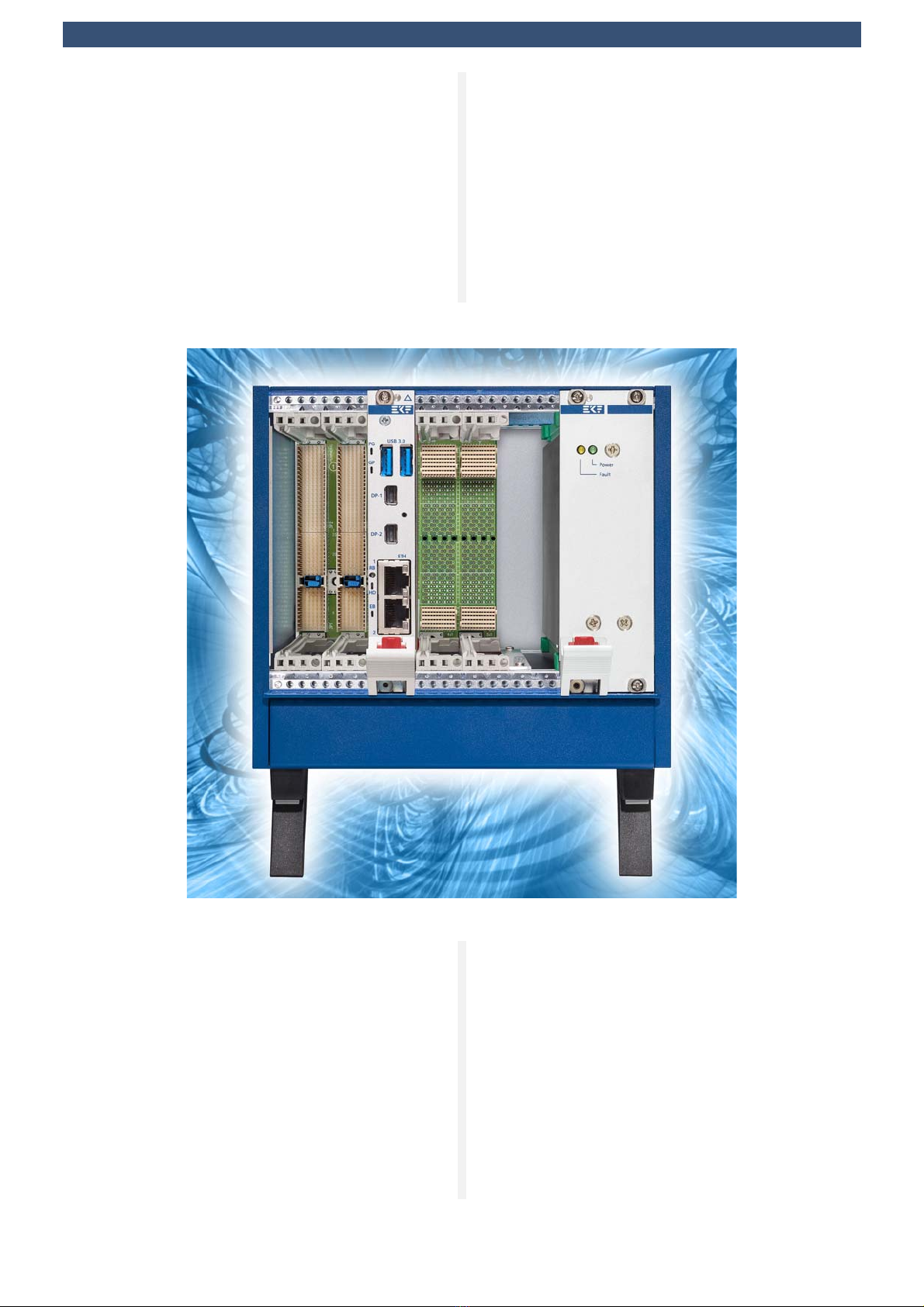

CompactPCI®PlusIO (PICMG 2.30) is a standard

for rear I/O across J2, specified by the PICMG®.

High speed signal lines (PCI Express®, SATA,

Gigabit Ethernet and USB) are passed from the

PC5-LARGO through the special UHM

connector to the backplane, for usage either on

a PlusIO rear I/O transition module, or

CompactPCI®Serial card slots.

CompactPCI®Serial (PICMG CPCIS.0) defines a

completely new card slot, based on PCI

Express®, SATA, Gigabit Ethernet and USB serial

data lines. On a hybrid backplane, both card

styles can reside, CompactPCI®and

CompactPCI®Serial, with the PC5-LARGO in the

middle as system slot controller for both

backplane segments.

The PC5-LARGO is equipped with a set of local

expansion interface connectors, which can be

optionally used to attach a mezzanine side

board. A variety of expansion cards is available,

e.g. providing legacy I/O and additional PCI

Express®based I/O controllers such as SATA,

USB 3.0 and Gigabit Ethernet, or a third video

output. Most mezzanine side cards can

accommodate in addition a 2.5-inch drive.

Typically, the PC5-LARGO and the related side

card would come as a readily assembled 8HP

unit. As an alternate, low profile Flash based

mezzanine storage modules are available that

fit on the PC5-LARGO while maintaining the

4HP profile. The C48-M2 module e.g. is

equipped with two fast M.2 SATA Solid State

Drives (SSD), which is suitable for installation of

any popular operating system.

Inhaltsverzeichnis

Beliebte Einplatinencomputer Handbücher anderer Marken

WIN Enterprises

WIN Enterprises PL-80910 Bedienungsanleitung

AXIOMTEK

AXIOMTEK SBC81206 Series Bedienungsanleitung

Embest

Embest SOM-PH8800 Bedienungsanleitung

SeaLevel

SeaLevel SBC-R9 Bedienungsanleitung

SMART Embedded Computing

SMART Embedded Computing ATCA-8310 Bedienungsanleitung

WinSystems

WinSystems PPM-LX800-G Bedienungsanleitung

GIGAIPC

GIGAIPC QBiX-PPC Series Bedienungsanleitung

OLIMEX

OLIMEX A10S-OLinuXino-MICRO Bedienungsanleitung

Commell

Commell FS-978 Bedienungsanleitung

GIGAIPC

GIGAIPC QBiP-8665A/ Bedienungsanleitung

VersaLogic

VersaLogic Python EBX-11 Bedienungsanleitung

Micro Computer Specialists

Micro Computer Specialists IRV-3702 Bedienungsanleitung

CompuLab

CompuLab SB-A510 Bedienungsanleitung

Boser

Boser HS-7321 Bedienungsanleitung

Premier Farnell

Premier Farnell Embest SBC8530 Bedienungsanleitung

MicroSys Electronics

MicroSys Electronics miriac SBC-LS1043A2 Bedienungsanleitung

Aaeon

Aaeon UP Bedienungsanleitung

Portwell

Portwell WUX Series Bedienungsanleitung
