ELAC DEBUT ConneX Bedienungsanleitung

DEBUT ConneX DCB41DCB41

Batteries

Rubber Foot

Contents

Power Cord Speaker Cable

Remote Control

HDMI Cable

ELAC DEBUT ConneX DCB41 | www.elac.com | Page 2

Connections

4. Connect AC mains

1. Connect speakers together with supplied wire

2. Connect source - TV, Computer, Phono

3. Connect source - Bluetooth

ELAC DEBUT ConneX DCB41 | www.elac.com | Page 3

Model : DCB41

UPDATE ONLY

HDMI (ARC)

1938 N. Batavia St.

Suite K

Orange, CA, 92865

Fraunhofestrabe 16

24118 Kiel, Deutchland

SERIAL NUMBER

USB OPT SUB OUT

PHONO

ON/OFF

CAN ICES-0003(B)/NMB-003(B)

FCC ID: XXX-XXXXX

IC: XXXXX-XXXXX

Desinged by Elac

Made in China

SPEAKER OUT

120-240V~50/60Hz AC

80W

L/R

GND

OUT

SPEAKER

ELAC DEBUT ConneX DCB41 | www.elac.com | Page 4

1. AC Mains Inlet

2. HDMI (ARC) Input

3. Volume/Power/Source

4. L/R switch

7. USB Audio Input

8. Optical Input

9. Subwoofer Output

10. Phono/Line Switch

Controls and Inputs/Output

5. USB for Update

6. Ground Screw Terminal

11. Phono/Line Input

12. Speaker Output

The Volume knob can be used to adjust volume, change input and power on.

Rotate:

Rotating the knob will increase or decrease volume.

Push:

Press to turn on unit.

Press and hold in BT input to initiate pairing.

Press when unit is on to change input.

Front LED colours are: [BT - Blue] [HDMI - Green] [USB - White] [Optical - Red] [Phono - Pink]

Power/Standby:

The unit will standby after 15 minutes of no use. Pressing or rotating the volume knob as well as pressing power

button on remote will wake up unit.

4 5

7 8 9 10 11

Model : DCB41

UPDATE ONLY

HDMI (ARC)

1938 N. Batavia St.

Suite K

Orange, CA, 92865

Fraunhofestrabe 16

24118 Kiel, Deutchland

SERIAL NUMBER

USB OPT SUB OUT

PHONO

ON/OFF

CAN ICES-0003(B)/NMB-003(B)

FCC ID: XXX-XXXXX

IC: XXXXX-XXXXX

Desinged by Elac

Made in China

SPEAKER OUT

120-240V~50/60Hz AC

80W

L/R

GND

OUT

SPEAKER

Audio Out

Ground

Optional

Note: Some turntables have built in phono pre-ampliﬁers that can be disabled. Ensure the turntable pre-ampliﬁer

is set to OFF and DCB41 is set to ON.

If you choose to use the turntable’s Phono pre-ampliﬁer, then ensure its switch is set to ON postion and DCB41 is

set to OFF.

The Ground connection is optional. It is recommended to be used as it can lower residual noise.

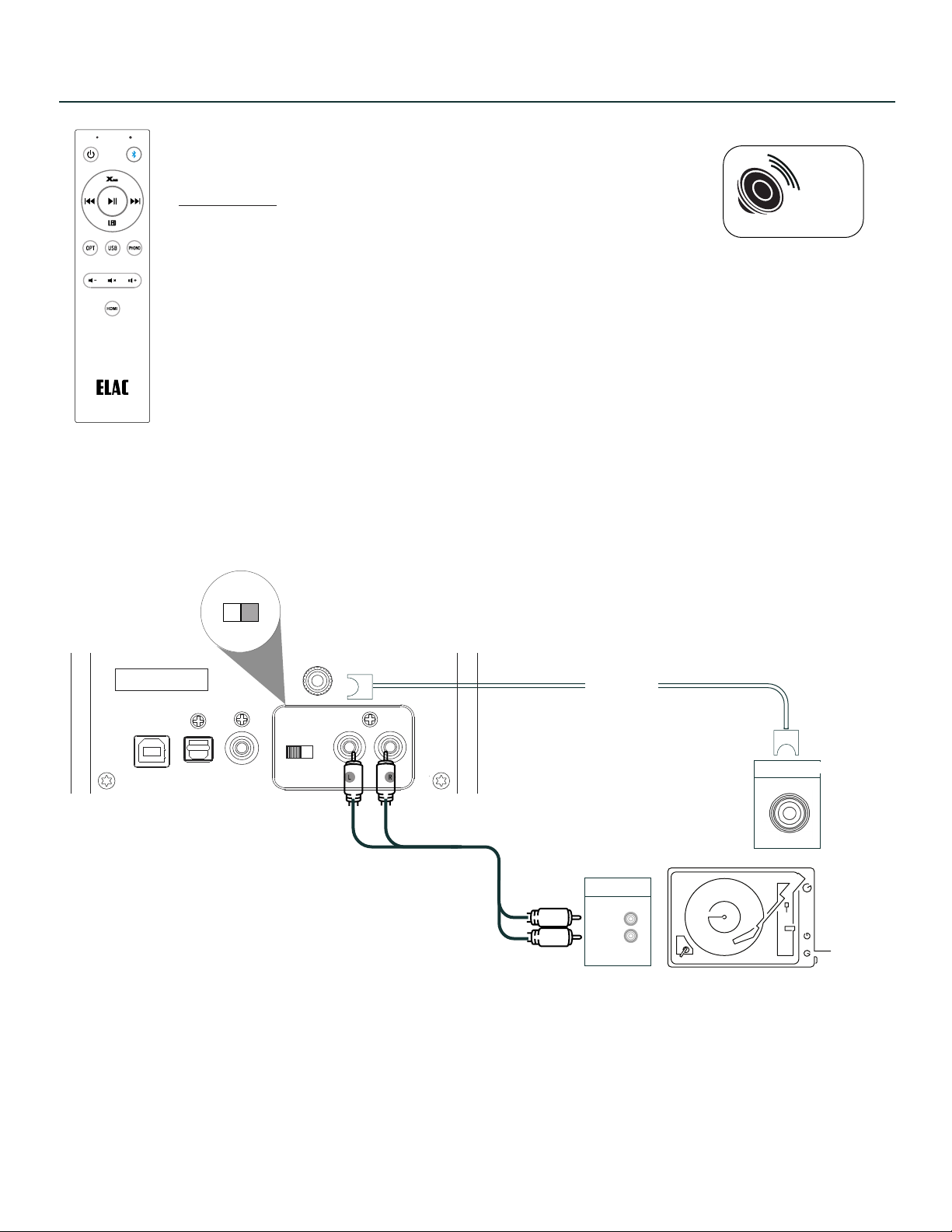

CONNECTIONS - TURNTABLE

ELAC DEBUT ConneX DCB41 | www.elac.com | Page 5

Model : DCB41

UPDATE ONLY

HDMI (ARC)

1938 N. Batavia St.

Suite K

Orange, CA, 92865

Fraunhofestrabe 16

24118 Kiel, Deutchland

SERIAL NUMBER

USB OPT SUB OUT

PHONO

ON/OFF

CAN ICES-0003(B)/NMB-003(B)

FCC ID: XXX-XXXXX

IC: XXXXX-XXXXX

Desinged by Elac

Made in China

SPEAKER OUT

120-240V~50/60Hz AC

80W

L/R

GND

OUT

SPEAKER

ON/OFF Set to ON if plugging into a turntable

XBASS

XBass is a propietary circuit to boost low frequency performace.

Turn ON/OFF

Press and hold XBass button on remote for 2 seconds :

LED display will blink once for ON

LED display will blink twice of OFF

When ON - pressing XBass will cycle XBass setting.

If connecting a subwoofer, XBass can be turned OFF completely.

XBass

Model : DCB41

UPDATE ONLY

HDMI (ARC)

1938 N. Batavia St.

Suite K

Orange, CA, 92865

Fraunhofestrabe 16

24118 Kiel, Deutchland

SERIAL NUMBER

USB OPT SUB OUT

PHONO

ON/OFF

CAN ICES-0003(B)/NMB-003(B)

FCC ID: XXX-XXXXX

IC: XXXXX-XXXXX

Desinged by Elac

Made in China

SPEAKER OUT

120-240V~50/60Hz AC

80W

L/R

GND

OUT

SPEAKER

HDMI-ARC

Optical

Note: HDMI supports eARC and ARC inputs from most televisions.

Your television remote control can also control power, mute and volume of

your DEBUT ConneX.

CONNECTIONS - SUBWOOFER

CONNECTIONS - TELEVISION

ELAC DEBUT ConneX DCB41 | www.elac.com | Page 6

Can be connected via HDMI or Optical cable.

Model : DCB41

UPDATE ONLY

HDMI (ARC)

1938 N. Batavia St.

Suite K

Orange, CA, 92865

Fraunhofestrabe 16

24118 Kiel, Deutchland

SERIAL NUMBER

USB OPT SUB OUT

PHONO

ON/OFF

CAN ICES-0003(B)/NMB-003(B)

FCC ID: XXX-XXXXX

IC: XXXXX-XXXXX

Desinged by Elac

Made in China

SPEAKER OUT

120-240V~50/60Hz AC

80W

L/R

GND

OUT

SPEAKER

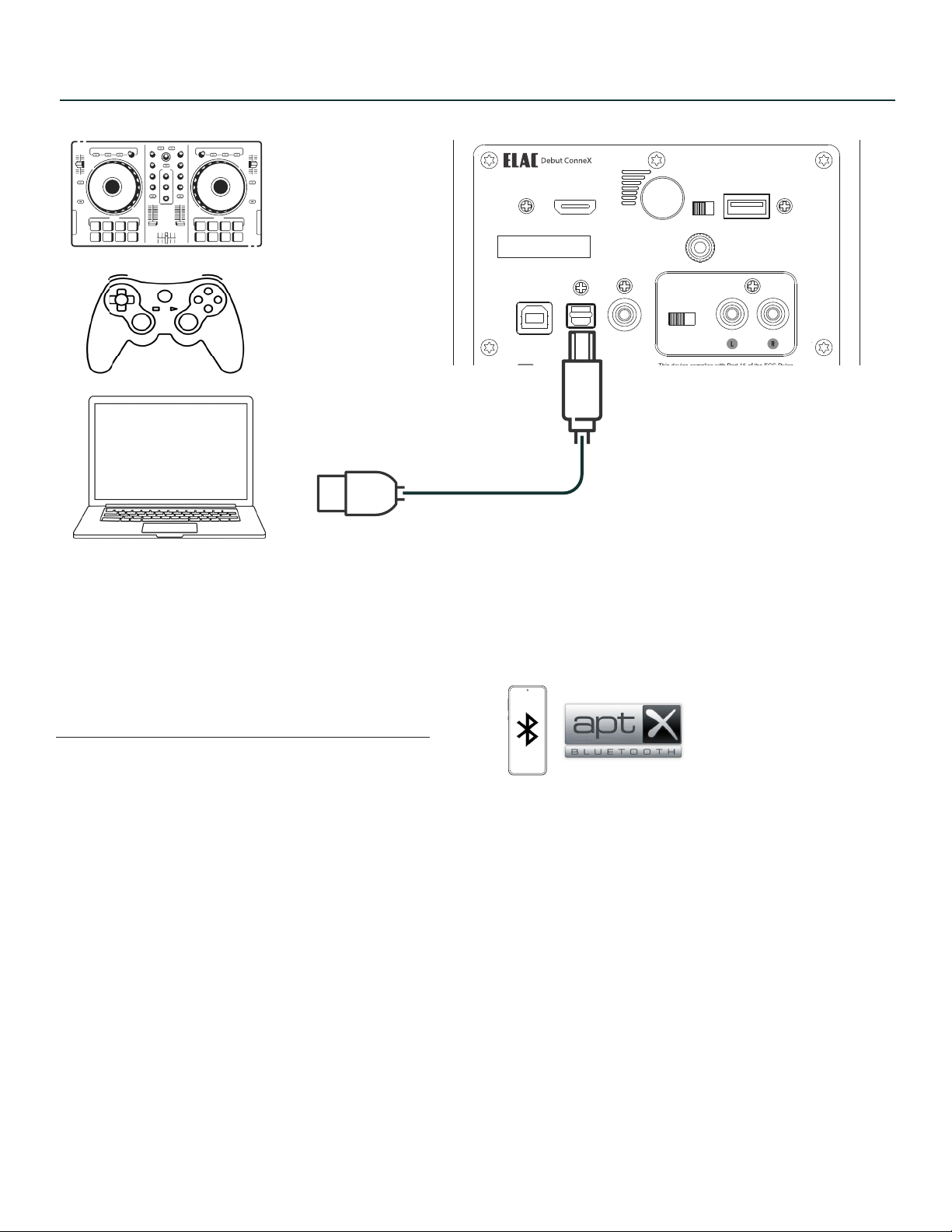

CONNECTIONS - COMPUTER

Connect to your USB devices with USB Type B cable (printer cable).

CONNECTIONS - BLUETOOTH

When initial power up - BT LED will ﬂash if nothing is paired to it.

When LED is ﬂashing, “ELAC DCB41” is visible on your device.

Pairing can also be initiated as follows:

Press and hold BT source on remote until LED ﬂashes.

Press and hold rear volume button on speaker when in BT input until LED ﬂashes.

ELAC DEBUT ConneX DCB41 | www.elac.com | Page 7

Model : DCB41

UPDATE ONLY

HDMI (ARC)

1938 N. Batavia St.

Suite K

Orange, CA, 92865

Fraunhofestrabe 16

24118 Kiel, Deutchland

SERIAL NUMBER

USB OPT SUB OUT

PHONO

ON/OFF

CAN ICES-0003(B)/NMB-003(B)

FCC ID: XXX-XXXXX

IC: XXXXX-XXXXX

Desinged by Elac

Made in China

SPEAKER OUT

120-240V~50/60Hz AC

80W

L/R

GND

OUT

SPEAKER

ELAC DEBUT ConneX DCB41 | www.elac.com | Page 8

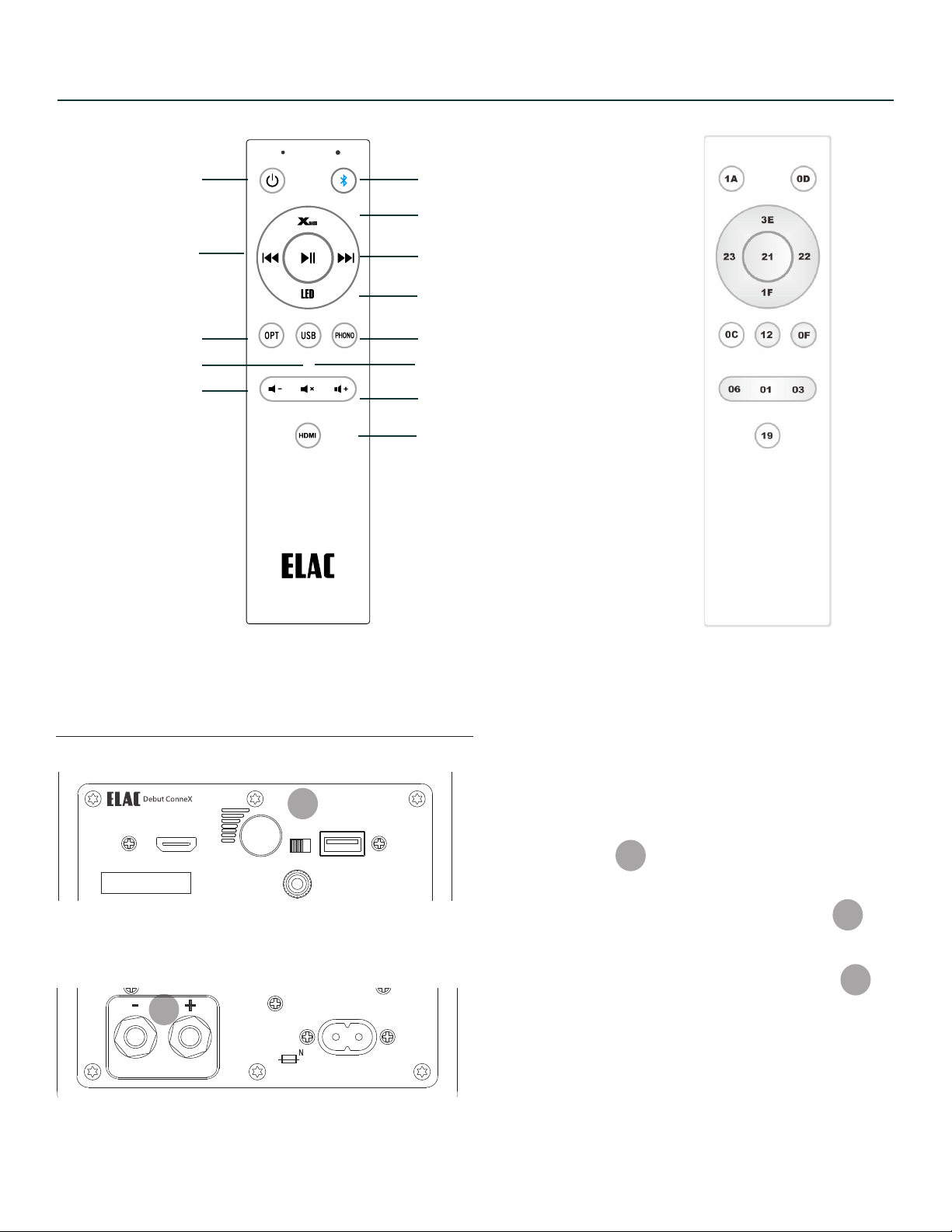

REMOTE CONTROL

Hex CodesRemote Control

BT Source

Next(BT)

Xbass

Phono Source

Volume Up

HDMI Source

Power ON/OFF

Optical Source

Volume Down

Previous (BT)

Adjust LED Intensity

Mute

USB Source

The L/R switch is in reference to speaker

output terminals.

If L/R switch is set to “L” then speaker output

will be the LEFT speaker.

If L/R switch is set to “R” then speaker output

will be the RIGHT speaker.

SETTING LEFT or RIGHT SPEAKER

Model : DCB41

UPDATE ONLY

HDMI (ARC)

1938 N. Batavia St.

Suite K

Orange, CA, 92865

Fraunhofestrabe 16

24118 Kiel, Deutchland

SERIAL NUMBER

USB OPT SUB OUT

PHONO

ON/OFF

CAN ICES-0003(B)/NMB-003(B)

FCC ID: XXX-XXXXX

IC: XXXXX-XXXXX

Desinged by Elac

Made in China

SPEAKER OUT

120-240V~50/60Hz AC

80W

L/R

GND

OUT

SPEAKER

Model : DCB41

UPDATE ONLY

HDMI (ARC)

1938 N. Batavia St.

Suite K

Orange, CA, 92865

Fraunhofestrabe 16

24118 Kiel, Deutchland

SERIAL NUMBER

USB OPT SUB OUT

PHONO

ON/OFF

CAN ICES-0003(B)/NMB-003(B)

FCC ID: XXX-XXXXX

IC: XXXXX-XXXXX

Desinged by Elac

Made in China

SPEAKER OUT

120-240V~50/60Hz AC

80W

L/R

GND

OUT

SPEAKER

ELAC DEBUT ConneX DCB41 | www.elac.com | Page 9

1. General information

• Please read and follow these safety instructions.

• Keep them safe for future reference.

• Observe all warnings on the speaker and in the manual. Please check the speaker for damage before use.

The speaker must be in perfect working condition. Damaged parts may lead to personal injury.

2. Use only as directed

• Connect the speaker(s) according to the instructions in the manual.

• Many ELAC speakers are equipped with spikes and/or anti-slip feet. They are explicitly provided for

leveling the speaker. For leveling on an uneven ﬂoor, unscrew the spikes or anti-slip feet by 2-3 turns of

thread. The speaker should always be in perfect vertical alignment: the stability of the speaker must not be

compromised by using spikes or anti-slip feet as the speaker may tip-over.

3. Location

• Install the speakers on a level surface only.

• When choosing the location of these speakers do not place them in locations that are:

• In direct sunlight

• Very humid

• Prone to vibrations

• Exceptionally hot or cold

• Near CRT Televisions (the speakers are not magnetically shielded and may cause color issues with

a CRT based TV).sa

• Close to magnetic cards (Since the speakers are not magnetically shielded placing magnetic cards

such as credit cards or commuter cards may cause them to fail).

4. WARNING!

Please ensure the product is perfectly stable to avoid injury from tip-over. Please note, that stability can be

increased by using spikes on carpeted surfaces. However, the mounting of spikes must be carried out carefully

due to their very sharp ends which may cause injuries. The stability on slippery ﬂoors can be increased by using

Velcro fastening tape or double-sided adhesive tape. Do not install the speaker near any heat sources such as

radiators, heating valves, stoves, or other apparatus (including ampliﬁers) that produce heat, or in areas where

there is a risk of explosion.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install the speaker in a closed rack or in a closed cupboard.

• Do not put burning candles on or near the speaker.

• Do not install the speaker near transformers because electromagnetic stray ﬁelds can cause hum noise on

woofers.

• In combination with certain materials / lacquers / material surfaces, anti-slip feet or spike washers may

cause colored imprints on the surfaces.

GENERAL INFORMATION

ELAC AMERICAS INC.

1938 N. BATAVIA St. SUITE K

ORANGE, CA 92865

ELAC ELECTROACUSTIC GMBH

FRAUNHOFERSTRAßE 16

D-24118 KIEL, GERMANY
