Elation Design LED 36 Tri-Brick Bedienungsanleitung

Design LED 36

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

FEATURES

• High output LED color changer

• 36 x 1W Luxeon 1 LEDs - (12 each R, G, B)

• High quality Luxeon LEDs manufactured by Lumileds, USA

• Long Life L.E.D. (rated at 100,000 Hours)

• Brilliant light output, innite color possibilities

• Strobe-effect with a maximum ash rate of 18fps

• Dimmer intensity from 0%-100%

• Beam angle: 39° with light frost lter. 25° beam angle

with out light frost lter

• 304 LUX / 28 FC @ 3 M

• Compact Design

• Fits into 12” x 12” truss easily for truss warmer use

• Fan cooled

• Built-in power supply and DMX 512 control

• On/off power switch 120v 60hz

• DMX control via 3 or 6 channel operation

• 12 position binary dip switch

• Master/ Slave auto program and music trigger

• Flicker-free operation for television and lm

• Low power consumption

• Minimal heat emission

The Design LED 36 (DLED 36) by Elation Professional is a high output LED color changer equipped with 36 1W

Luxeon LEDs, 12 red, 12 green and 12 blue, featuring brilliant light output and innite color possibilities. A

standard beam angle of 39° is produced with the light frost lter (304 LUX / 28 FC @ 3M) and 25° beam angle

without the light frost lter. Optional 15° and 45° lens kits are available. The DLED 36 also features built-in macro

channel, 0-100% dimming and a strobe effect of 1-18 ashes per second. The design of the xture is optimized

providing up to 100,000 hours estimated LED life, low power consumption and minimal heat emissions with a

compact case design the DLED 36 can t into a 12” x 12” truss easily for truss warmer use. The DLED 36 is fan

cooled and rated IP 20, ideal for indoor applications. This unit operates at 120V/60hz and has a built-in power

supply and DMX control. DMX control is via 3 or 6 channel operation modes and display is via 12 position

binary dip switch. Control data input is via 3-pin XLR connections and rigging includes installed mounting

bracket and safety eye hook. Safety cable and 3-pin data cable are included.

Design LED 36MH Dimensions

7.05” / 179mm

6.65” / 169mm

6.30” / 160mm

8.98” / 225.5mm

7.83” / 199mm

TECHNICAL SPECIFICATIONS

• DMX Channels: 3 or 6 DMX operation,

built-in macro channel, RGB

• Control: Built-in 3-pin XLR serial data connection

• Dimmer: 0 - 100% dimming

• Strobe: Strobe effect 1-18 ashes per second

• IP Rating: IP 20

• Power Supply: Built-in power supply & DMX-512 control

120V / 60hz

• Power Consumption: 50W

• Lamp: 36 x 1W Luxeon 1 LEDs - (12 each R, G, B)

Long-life L.E.D.s

• Lamp Life: 100,000 hrs.

• Dimensions: (

L x W x H) 7” x 8.75” x 10” /

177.8 x 222.25 x 254 mm

• Weight: 9.5 lbs / 4.31 kg

• Rigging: Mounting bracket and safety I-hook installed,

safety cable & 3-pin data cable included

Design LED 36

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

COLORS

• 36 x 1W Luxeon 1 LEDs - (12 each R, G, B)

• High quality Luxeon LEDs manufactured by Lumileds, USA

• Long Life L.E.D. (rated at 100,000 Hours)

• Brilliant light output, innite color possibilities

DMX TRAITS

3 Channel Mode:

Channel Value Function

1 0 - 255 Red (0-100% red)

2 0 - 255 Green (0-100% green)

3 0 - 255 Blue (0-100% blue)

6Channel Mode:

Channel Value Function

1 0 - 255 Red (0-100% red)

2 0 - 255 Green (0-100% green)

3 0 - 255 Blue (0-100% blue)

4 0 - 255 Internal programs

5 0 - 255 Strobe

6 0 - 255 Dimming (2%-100%)

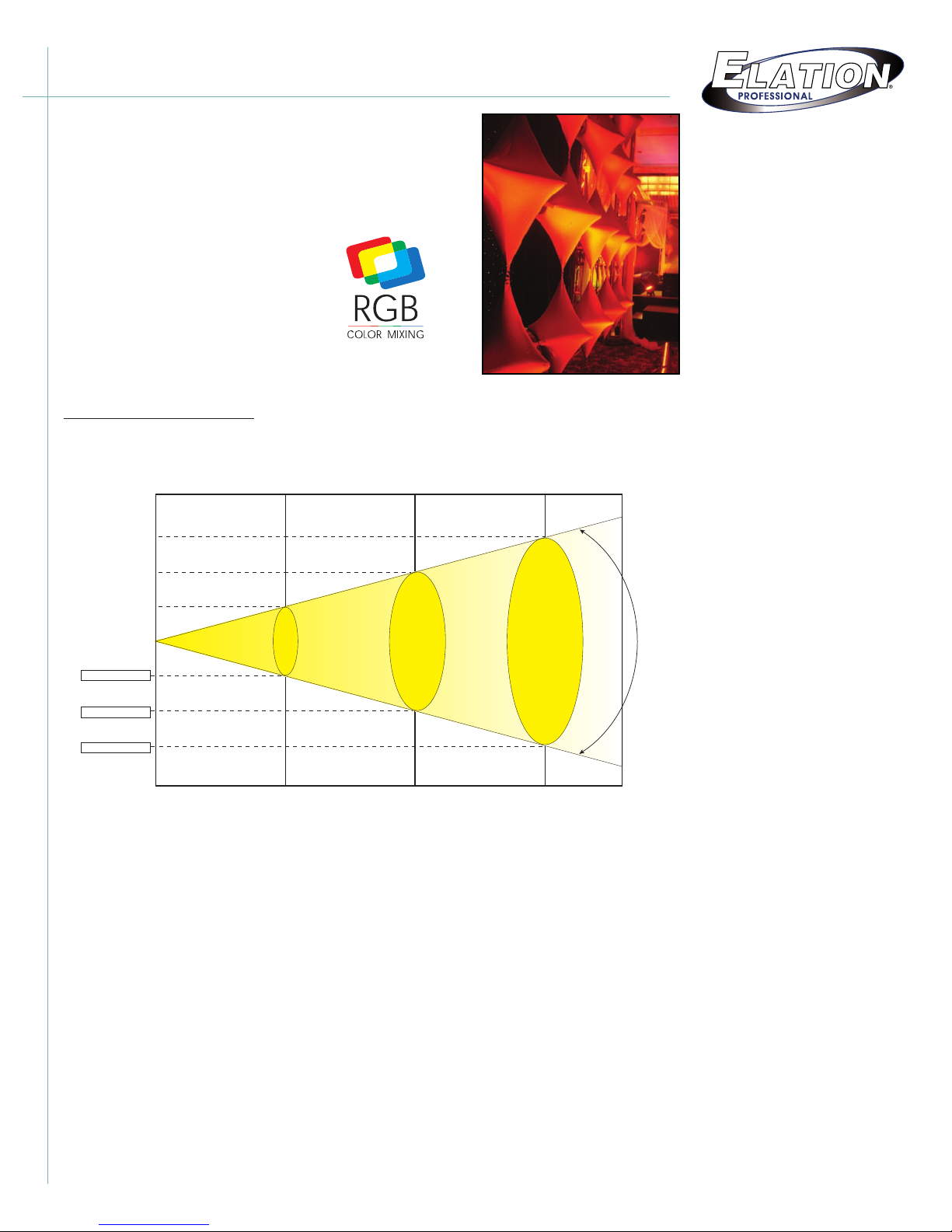

PHOTOMETRICS

Design LED 36

Photometric Beam Angle Data

Beam Angle 39°

LUX x0.0929 = FC

39°

Beam Angle

164 FC

1,768 LUX

80 FC

854 LUX

28 FC

304 LUX

0 m

0 ft

1 m

3.28 ft

3 m

9.8 ft

2 m

6.6 ft

Ø 0.95 m

Ø 3.1 ft

Ø 1.35 m

Ø 4.4 ft

Ø 2.35 m

Ø 7.7 ft

Beam Diameter

Ø 0.95m / Ø 3.1ft

Ø 1.35m / Ø 4.4ft

Ø 2.35m / Ø 7.7ft
