Elation Design Spot 300E Bedienungsanleitung

Design Spot 300E

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

17.67” (449mm) 15.83” (402mm)

4.9” (125mm)

14.25” (362mm)

18.30” (465mm)

20.11” (511mm)

9.09” (231mm)

16.9” (429mm)

The Design Spot 300E by Elation Professional is a 300W CMY spot moving head featuring CMY color mixing

along with 10 interchangeable dichroic ﬁlters allowing for continuous, variable speed, color scrolling in

both directions. There are two gobo wheels with a total of 14 gobos, 7 rotating and 7 ﬁxed with 3 glass and

11 metal. Additional features include a variable iris, mechanical dimmer/ shutter and on a separate effects

wheel, there is a 3 facet rotating prism, 3D glass rotating prism and frost ﬁlter. Control data input is via 3 pin or

5 pin DMX data ﬁrst in and out cables This unit is fan cooled and equipped with Philips “Fast Fit Gold” MSR300

lamp providing up to 1,000 hours estimated lamp life. The Design Spot 300E is rated IP 20 and is ideal for

indoor use only. The unit comes standard with a 22° ﬁxed lens optic system and rigging for this unit includes 2

x 1/4 turn Omega clamps, 3-pin DMX safety cable.

FEATURES

• 300W CMY spot moving head xture

• 8 Interchangeable Dichroic lters (including UV) + White

• CMY color mixing

• 2 Gobo Wheels, 13 Total Gobos, 10 Metal, 3 Glass

• Effect wheel with 3-facet rotating/Indexing

prism & 3D glass prism

• Macro-function for rotating gobos/rotating prisim

combinations

• Hard edge to soft edge frost

• Variable speed iris macros

• High output luminous-parabolic dichroic reector

• Automatic Pan /Tilt position correction

• Pan/Tilt Lock

• Maximum PAN-movement 630° in 2.0 secs (default)

or 540° (user selectable) / 16 bit

• Maximum tILT-movement 265° in 1.5 secs / 16 bit

• Pre-set variable/random strobe and dimming

pulse effect

• Motor driven focus from near to far

• Vector mode with blackout

• Beam Angle 22°

• Full Text LCD Display

• On board menu settings

• ETL approved

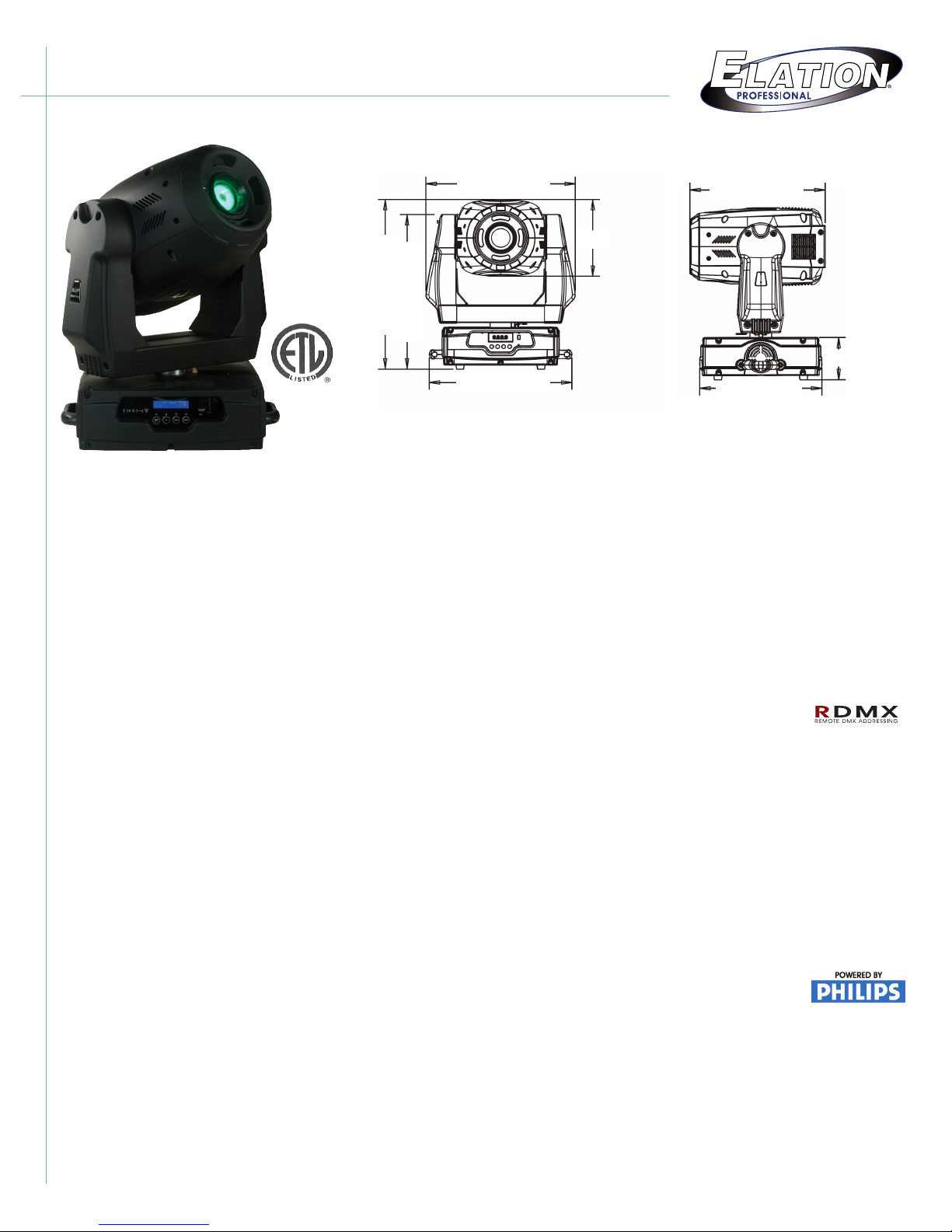

Design Spot 300E Dimensions

TECHNICAL SPECIFICATIONS

• DMX Channels: 21 DMX Channels,

RDMX - Remote DMX Addressing

• Control: USITT DMX-512 (16-bit resolution),

3-pin & 5-pin XLR serial input/output

• Dimmer: Dual Flag mechanical dimming system,

icker free

• Strobe: Variable speed strobe effect

(1-13) ashes per second

• Iris: Beam narrow to wide (5% - 100%)

• IP Rating: IP 20

• Electronic Power Supply:

Multi-voltage: AC 98V ~ 240V 50/60Hz

• Power Consumption: 500W

• Fuse: 8A (250V)

• Lamp: Philips “Fast Fit” MSD300/2

• Lamp life: 300W, 8500°K, 3000 HRS

• Dimensions: (

L x W x H

) 15.83” x 17.68” x 20.11” /

402mm x 449mm x 510.80mm

• Weight: 58 lbs. / 26.5 kg

• Rigging: 2 x 1/4 turn omega clamps

1 x safety cable

1 x 3-pin DMX data cable

17.67” (449mm) 15.83” (402mm)

4.9” (125mm)

14.25” (362mm)

18.30” (465mm)

20.11” (511mm)

9.09” (231mm)

16.9” (429mm)

Design Spot 300E

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

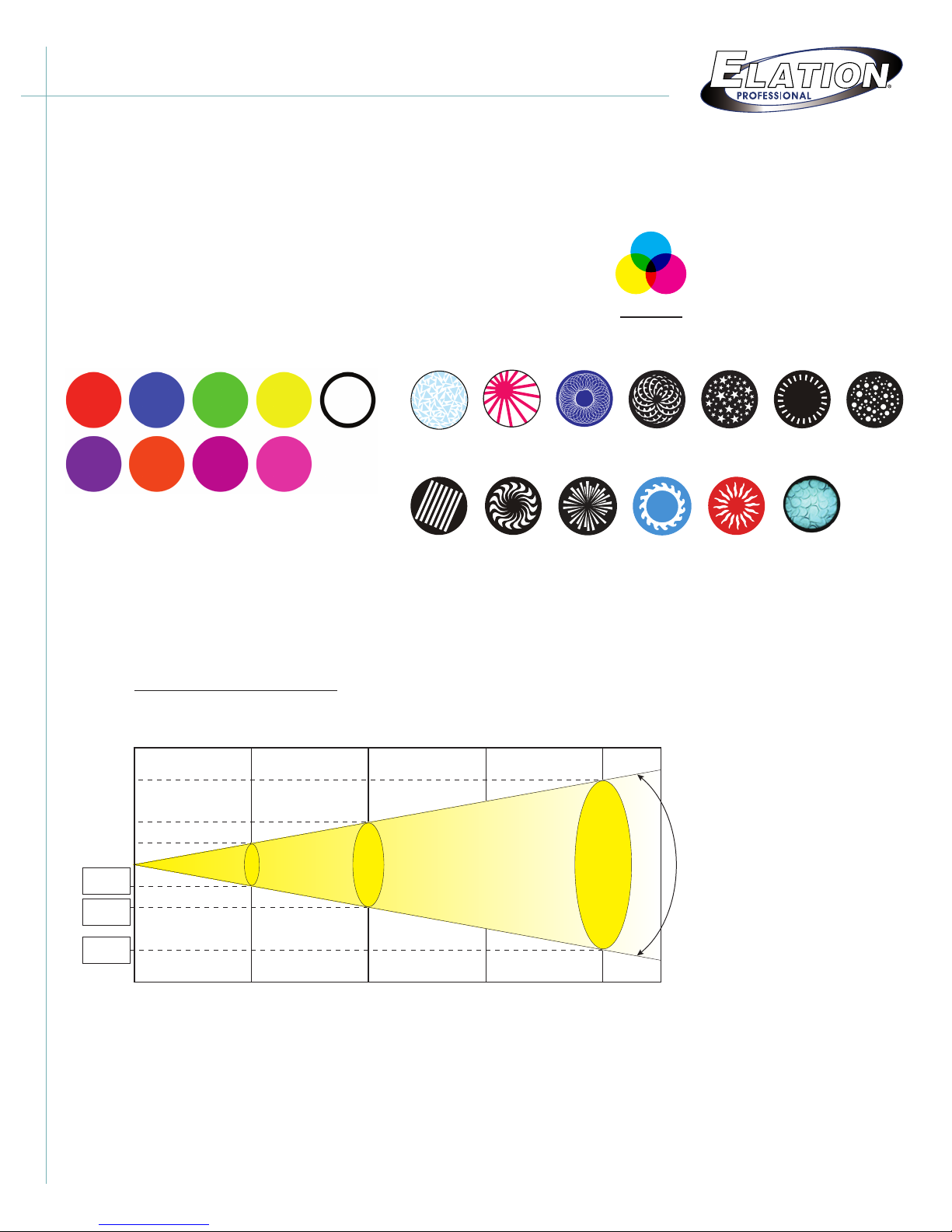

COLORS / GOBOS

• 8 Interchangeable Dichroic lters (including UV) + White

• CMY color mixing

• Continuous, variable speed, color scrolling in both directions (rainbow effect)

• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

• 2 Gobo Wheels, 13 Total Gobos, 10 Metal, 3 Glass

• 6 Interchangeable, Indexable, Rotating Gobos plus open

• 7 Interchangeable, Static Gobos plus open

• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter

• Glass Gobo Size: 26.9mm outside diameter, 23mm image diameter

• Gobo Overlay (Gobo Morphing)

PHOTOMETRICS

CMY

COLOR MIXING

CMY

COLOR MIXING

FIXED GOBO WHEEL

ROTATING GOBO WHEEL

COLORS

Design Spot 300E

Photometric Beam Angle Data

Standard Beam Angle 21.5°

LUX x0.0929 = FC

21.5°

Beam Angle

1625 FC

17500 LUX

404 FC

4345 LUX

112 FC

1203 LUX

0 m

0 ft

2.5 m

8.2 ft

5 m

16.4 ft

10 m

32.8 ft

Ø 3.76 m

Ø 12.34 ft

Ø 0.94 m

Ø 3.10 ft

Ø 1.88 m

Ø 6.20 ft

Beam Diameter

Ø 3.76 m

Ø 12.34 ft

Ø 0.94 m

Ø 3.10 ft

Ø 1.88 m

Ø 6.20 ft

Design Spot 300E

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

DMX TRAITS

Channel 1 - Pan movement (max. 540° or 630° user selectable)

Channel 2 - 16bit pan movement (pan ne)

Channel 3 - Tilt movement (max. 265°)

Channel 4 - 16bit tilt movement (tilt ne)

Channel 5 - Color wheel

Channel 6 - Cyan lter

Channel 7 - Magenta lter

Channel 8 - Yellow lter

Channel 9 - Gobo wheel 1 (rotating)

Channel 10 - Gobo index, gobo rotation speed/direction (gobo wheel 1)

Channel 11 - Gobo wheel 2 (rotating)

Channel 12 - Effects wheel – prism, frost, gobo macros

Channel 13 - Prism control – indexing and rotation

Channel 14 - Focus control motor (near ~ far)

Channel 15 - Strobe (0-13Hz), shutter close/open function + random strobe

Channel 16 - Dimmer (intensity) control

Channel 17 - Iris (closed to open)

Channel 18 - CMY speed

Channel 19 - Color macros (cmy and color wheels)

Channel 20 - Speed control (pan/tilt movement, blackout selection)

Channel 21 - Special (program control + lamp on, motor reset, lamp switch off)

Product Order Code Description

Design Spot 300E 300W CMY spot moving head xture

Accessories Order Code Description

DRC-300 Road case for Design Spot 300E
