EPAR TRI™

install guide

ELATION

|EPAR TRI

™

install guide

2EPAR TRI™ Install Guide

SAFETY INSTRUCTIONS

The EPAR TRI™is an extremely sophisticated piece of electronic equipment.

To guarantee a smooth operation, it is important to follow the guidelines in

this manual. The manufacturer of this device will not accept responsibility

for damages resulting from the misuse of this fixture due to the disregard of

the information printed in this manual.

This device falls under PROTECTION CLASS 1. It’s essential this device be

grounded properly. Only qualified personnel should perform all electrical

connections.

KEEP THIS FIXTURE AWAY FROM RAIN AND MOISTURE!

UNPLUG POWER BEFORE SERVICING FIXTURE

NEVER TOUCH FIXTURE DURING OPERATION AS IT MAY BE HOT

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE

SENSITIVE PERSONS MAY SUFFER AN EPILETIC SHOCK

•For proper operation, follow the Installation guidelines described in this manual. Only qualified

and certified personnel should perform installation of this fixture and only the original rigging

parts (brackets) included with this fixture should be used for installation. Any modifications will

void the original manufactures warranty and increase the risk of damage and/or personal injury.

•Never look directly into the light source of this fixture to prevent risk of injury to your retina, which

may induce blindness. Those suffering from EPILEPSY should avoid looking directly into the light

source of this unit at all times.

•The fan and air inlets must remain clean and never blocked. Allow approx. 6” (15cm) between

this fixture and other devices or a wall for proper cooling.

•Always disconnect from main power source before performing any type of service and/or

cleaning procedure. Only handle the power cord by the plug end, never pull out the plug by

tugging the wire portion of the cord.

•Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If

the power cord is damaged, replace it immediately with a new one of similar power rating.

3EPAR TRI™ Install Guide

GENERAL GUIDELINES

•NEVER OPEN THIS FIXTURE WHILE IN USE!

•During the initial operation of this fixture, a light smoke or smell may emit from the

interior of the fixture. This is a normal process and is caused by excess paint in the

interior of the casing burning off from the heat associated with the lamp and will

decrease gradually over time.

•This fixture is a professional lighting effect designed for INDOOR / DRY LOCATIONS

ONLY on stage, in nightclubs, theatres, etc.

•Please make sure there are NO FLAMMABLE MATERIALS close to the fixture while

operating, to prevent any fire hazard.

•The fixture must be installed in a location with consistent adequate ventilation,

at least 6” (15cm) from adjacent surfaces. Be sure no air ventilation slots are

blocked.

•DO NOT attempt installation and/or operation without knowledge how to do so.

•DO NOT permit operation by persons who are not qualified to operate this type

of fixture. Most damages are the result of operations by nonprofessionals.

•Consistent operational breaks may ensure the fixture will function properly for

many years to come.

•DO NOT shake fixture, avoid brute force when installing and/or operating fixture.

•Always install the fixture with an appropriate safety cable. When installing the

fixture in a suspended environment, always use mounting hardware that is no

less than M10 x 25 mm, also be sure the hardware is insert in the pre-arranged

screw holes in the bracket of the fixture.

•Use the original packaging and materials to transport the fixture in for service.

•DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power

and allow approximately 15 minutes for the fixture to cool down before

replacing or serving.

4EPAR TRI™ Install Guide

FIXTURE INSTALLATION

FLAMMABLE MATERIAL WARNING

Keep fixture at least 5.0 ft. (1.5m) away from any

flammable materials, decorations, pyrotechnics, etc.

ELECTRICAL CONNECTIONS

A qualified electrician should be used for all

electrical connections and/or installations.

CAUTIONS

•For added protection, mount the fixture in areas outside walking paths, seating

areas, or in areas were unauthorized personnel might reach the fixture.

•Allow approx. 6” (15cm) between this fixture and other devices or a wall for

proper cooling.

•Max ambient operating temperature for this fixture is 113°F. (45°C)

Do not use the fixture in areas under or above this ambient temperature.

•Before mounting the fixture to any surface, make sure the installation area can

hold a minimum point load of 10 times the weight of the fixture. 90 lbs / 41 kg)

•Fixture installation must always be secured with a secondary safety attachment,

such as an appropriate safety cable.

•Never stand directly below the device when mounting, removing or servicing.

5EPAR TRI™ Install Guide

CLAMP MOUNTING

The EPAR TRI™provides a unique integrated Dual Yoke / Floor Stand. When

mounting this fixture to truss be sure to secure an appropriately rated clamp using

an M10 screw fitted through the center hole of the Dual Yoke / Floor Stand.

MOUNTING POINTS

•Overhead mounting requires extensive experience, including amongst others

calculating working load limits, installation material being used, and periodic

safety inspection of all installation material and the device. If you lack these

qualifications, do not attempt the installation yourself. Improper installation can

result in bodily injury.

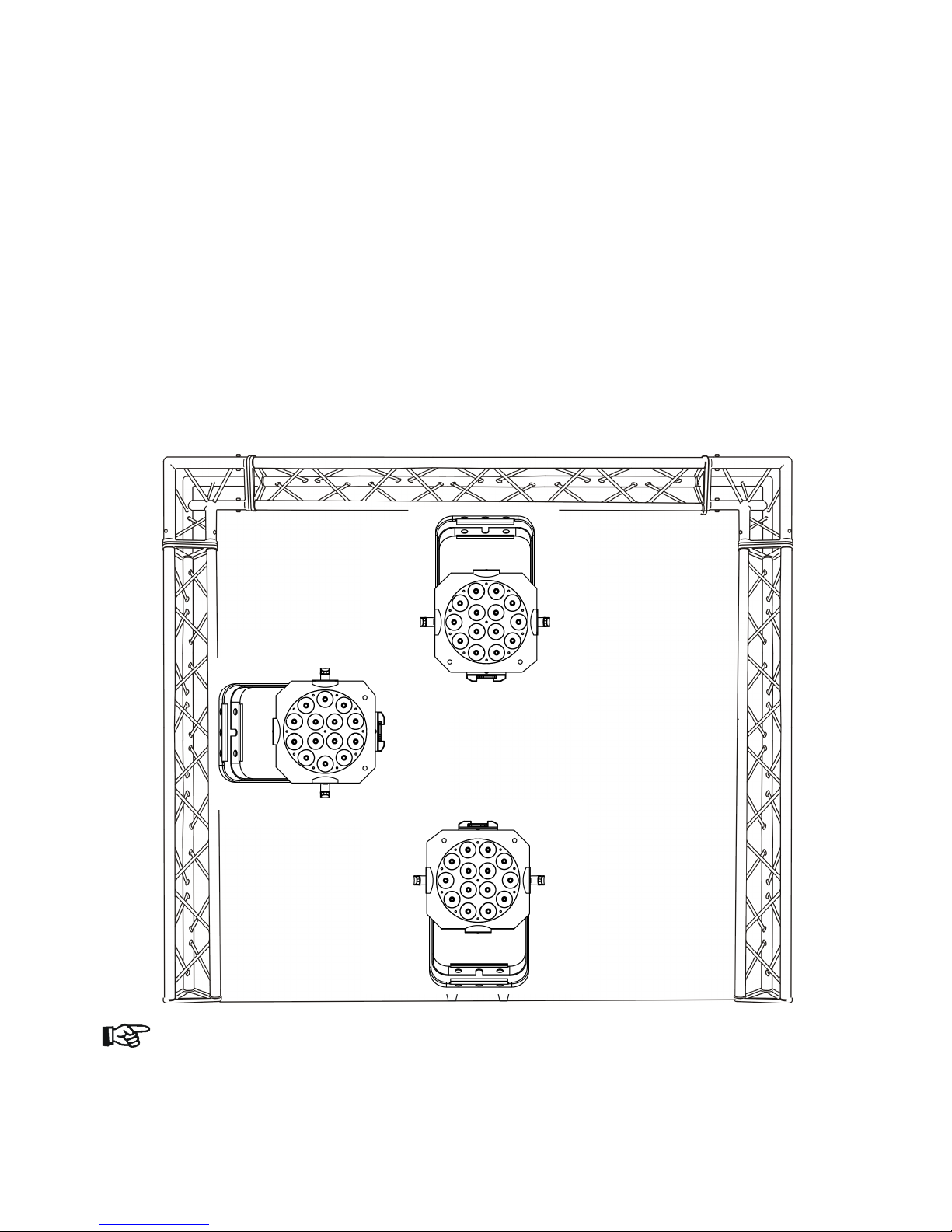

•Fixture is fully operational in the specific mounting positions as illustrated below.

SAFETY CABLE

Always use a Safety Cable whenever installing this fixture in a suspended

environment to ensure the fixture will not drop if the clamp fails.
