Elba OB60S4 Bedienungsanleitung
NZ AU
1104144-ß1 09.12
590498A 09.12
OB60S4 & OB60S7
models
INSTALLATION INSTRUCTIONS
Built-in Oven
2
IMPORTANT SAFETY INSTRUCTIONS!
To avoid hazard, follow these instructions carefully before installing or using this appliance.
Please make this information available to the person installing the appliance - doing so could
reduce your installation costs.
This appliance must be installed and connected to the mains power supply only by a suitably
qualified person according to these installation instructions and in compliance with any applicable
local building and electricity regulations. Failure to install the appliance correctly could invalidate
any warranty or liability claims.
If the power supply cable is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified person in order to avoid a hazard.
SAFETY AND WARNINGS
1
WARNING!
Electrical shock hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs.
Connection to a good earth wiring system is essential and mandatory.
Alterations to the domestic wiring system must only be made by a
qualified electrician.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Fire hazard
Do not use adapters, reducers, or branching devices to connect this appliance to
the mains power supply.
Failure to follow this advice may result in overheating, burning, or fire.
WARNING!
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
3

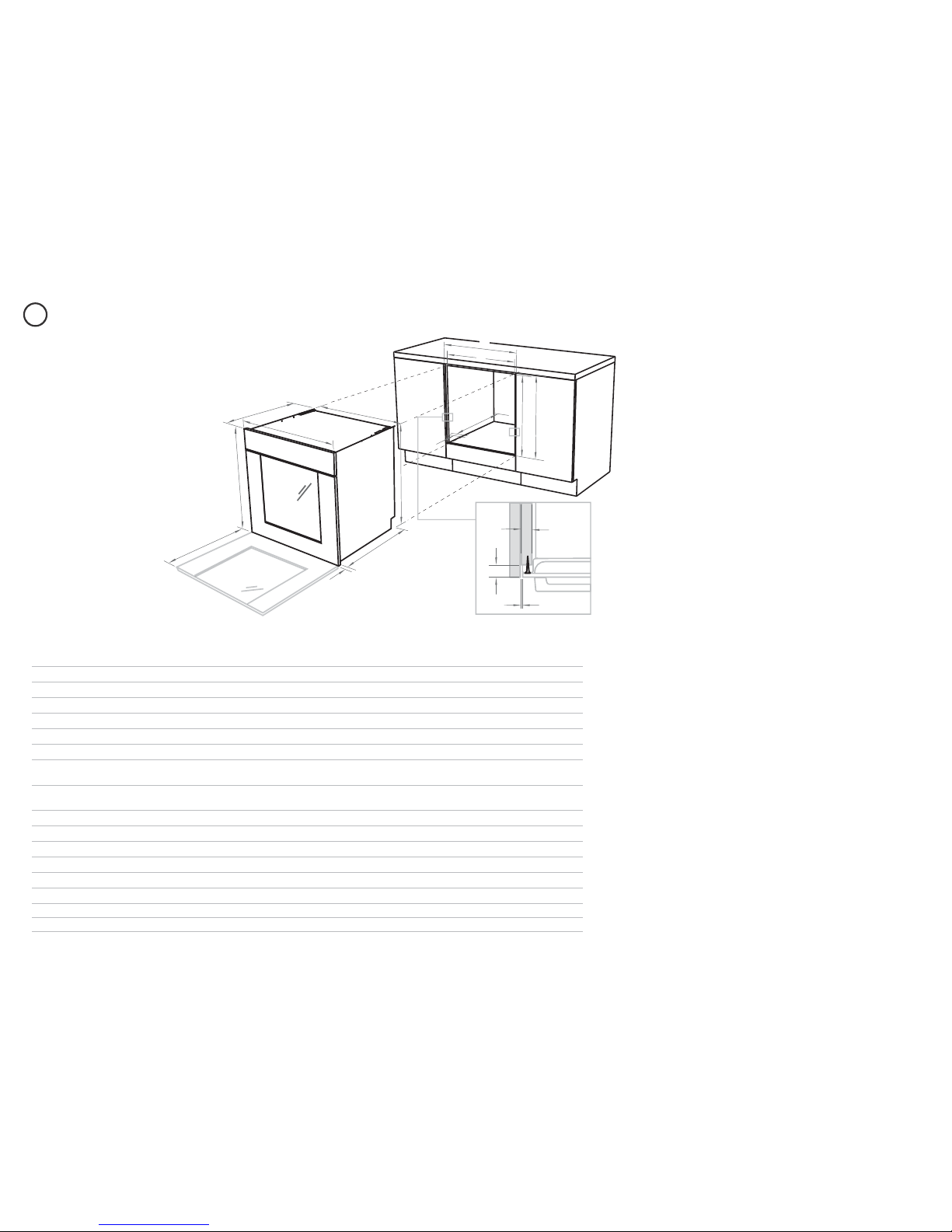

PRODUCT & CABINETRY DIMENSIONS
2
2.5 mm
16-20 mm
A
CE
D
F
G
H
J
K
L
L
I
I
I
J
I
B
Product and cabinetry dimensions (mm)
OB60S4
OB60S7
Aoverall height* of product 597 597
Boverall width of product 595 595
Coverall depth of product (excluding handle and knobs) 567 567
Dheight of chassis 582 582
Ewidth of chassis 556 556
Fdepth of chassis 545 545
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs) 22 22
Hdepth of oven door when fully open
(measured from front of control panel) 435 435
Iminimum inside width of cavity 560 560
IIoverall width of cavity 600 600
Jinside height of cavity 585 585
JIoverall height of cavity 600 600
Kminimum inside depth of cavity 550 550
Lflush fitting cabinetry clearance 22 22
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop manufacturer’s instructions.
*All height measurements include mounted feet.
4
3
4

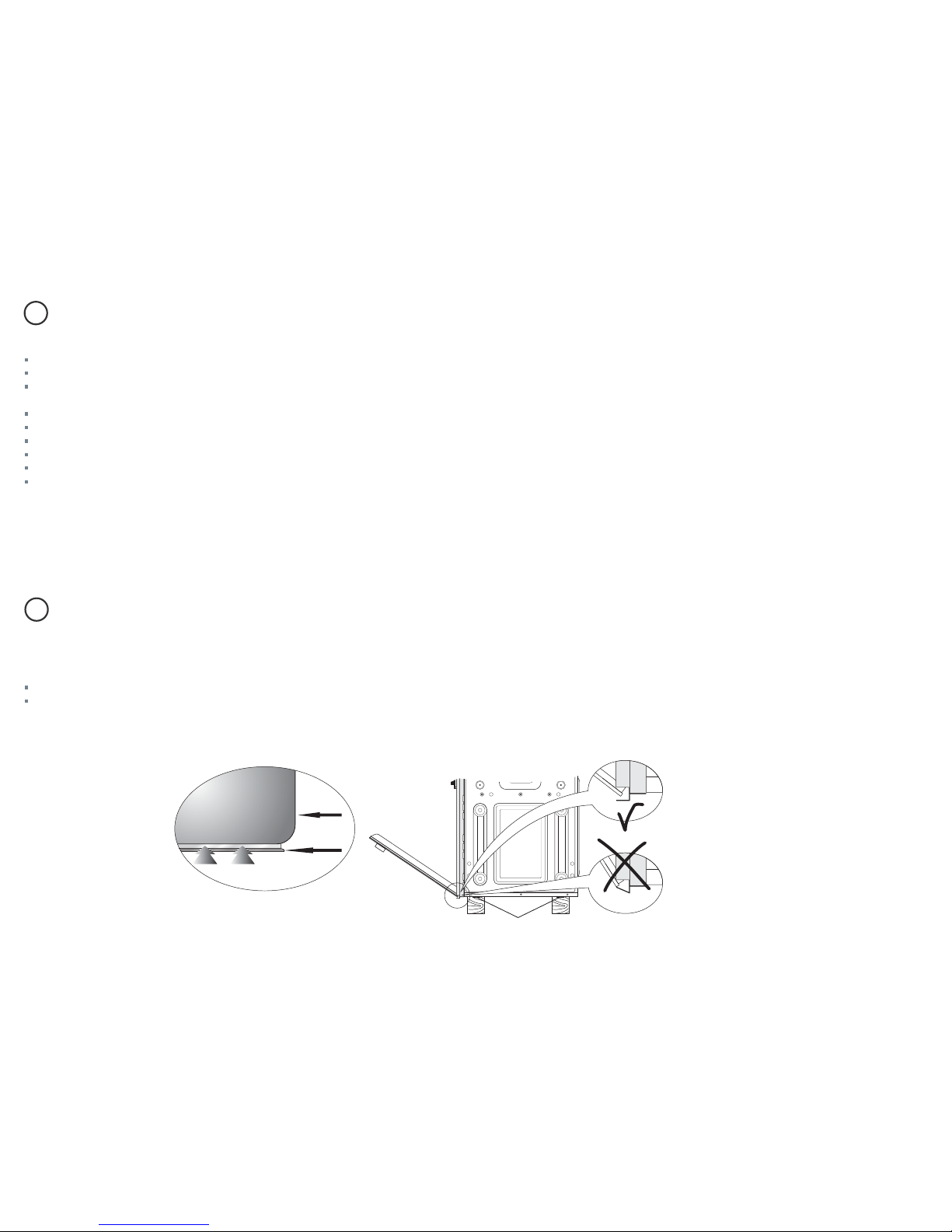

PRIOR TO INSTALLATION
UNPACKING THE OVEN
Before you install the oven, make sure that
the benchtop and oven cavity are square and level, and are the required dimensions
the installation will comply with all clearance requirements and applicable standards and regulations
a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations. The
isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)
the isolating switch will be easily accessible to the customer with the oven installed
there is at least 1.5 m (and not more than 2 m) free length of power supply cable within the cavity for ease of installation and servicing
the oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear wall
the oven will rest on a surface that can support its weight
the height from the floor suits the customer
you consult local building authorities and by-laws if in doubt regarding installation.
Important!
Some environmental factors and cooking habits can cause condensation in and around the oven during use. To protect surrounding cabinetry from possible damage caused by frequent or excessive condensation, we recommend
moisture-proofing the oven cavity.
LOWER TRIM
OVEN DOOR
LOWER TRIM
AIR FLOW
Feet
Important!
Do not lift the oven by the door handle.
Remove all packaging and dispose of it responsibly. Recycle items that you can.
Place the unpacked oven onto wooden blocks or similar supports to prevent damaging the lower trim. You may remove the feet, but ensure the oven does not sit on the lower trim
Important!
The lower trim ensures correct air circulation and allows the door to open and close without obstruction. The manufacturer does not accept any responsibility for damage resulting from incorrect installation.
5
5
6

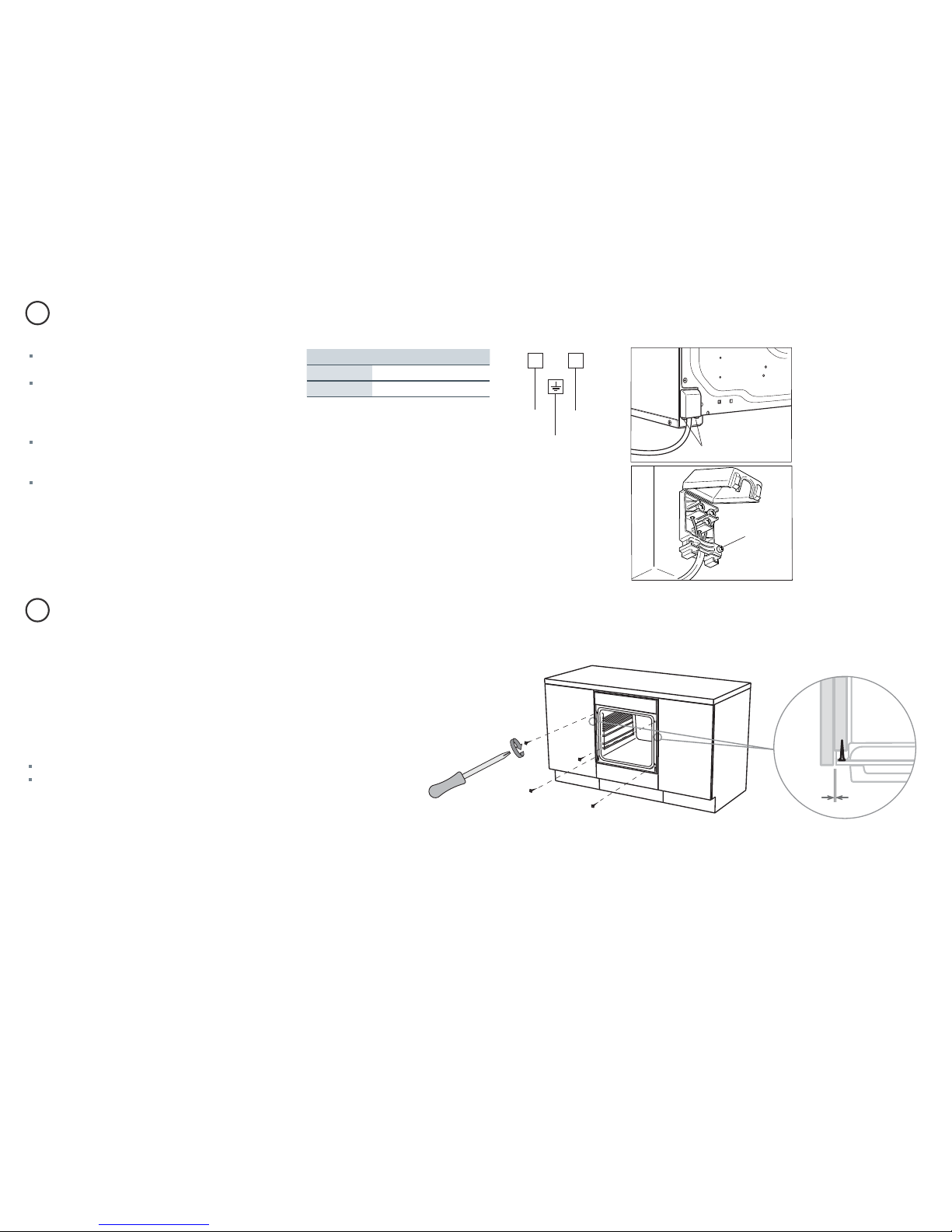

ELECTRICAL CONNECTION
SECURING THE OVEN TO THE CABINETRY
Important!
This oven must be connected to the mains power
supply only by a suitably qualified person.
This oven must be earthed.
Before connecting the oven to the mains power
supply, check that
the domestic wiring system is suitable for the power
drawn by the oven
(as specified on the rating plate)
the voltage corresponds to the value given on the
rating plate.
Model code Power Voltage
OB60S4 3070 W 220 - 240 V~
OB60S7 3070 W 220 - 240 V~
E
N
L
1
(L )
2
Unhook to open cover
1
2
Unscrew to open
cable clamp
1
Position the oven in the prepared cavity.
Important!
Do not lift the oven by the door handle.
2
Open the oven door fully.
3
Use the supplied screws to secure the oven to the cabinetry.
Important!
Do not over-tighten the screws.
Do not seal the oven into the cabinetry with silicone or glue. This makes future
servicing difficult. Fisher & Paykel will not cover the costs of removing the oven,
or of damage caused by this removal.
2.5 mm
6
7FINAL CHECKLIST
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change
at any time. For current details about model and specification availability in your country, please
visit our local website listed at the end of this document or contact your local Fisher & Paykel
dealer.
www.sherpaykel.co.nz www.sherpaykel.com.au
TO BE COMPLETED BY THE INSTALLER
Make sure the oven is level and securely fitted to the cabinetry and the oven
door opens and closes freely.
Make sure all the internal packaging has been removed from the oven
cavity.
Make sure all oven vents and openings are clear and are free of any
obstruction/damage.
Check the lower trim is still undamaged - open the oven door slowly to
its fully open position and check if there is adequate clearance between
the bottom of the door and the lower trim. This is to ensure correct air
circulation. Should the lower trim become damaged, straighten it and
ensure the oven door opens fully without obstruction.
Check that the power supply cable does not touch any metal parts that can
become hot during use.
Make sure that the isolating switch is easily accessible by the customer.
Turn the power to the oven on. On some models, the display should light up
and show 0:00.
Advise the customer to follow the instructions in their user guide in section
‘First use’.
Installer’s name:
Installer’s signature:
Installation company:
Date of installation:
LEAVE THESE INSTRUCTIONS WITH THE CUSTOMER
7
