Elba ESH-M7598(BK) Bedienungsanleitung

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Owner’s Manual

Please read this manual carefully before

operating your set.

Retain it for future reference.

Record model number and serial number

of the set.

See the label attached on the set and

quote this information to your dealer

when you require service.

COOKER HOOD

ESH-M7598(BK)

ESH-M9098(BK)

Please read this instruction carefully. It is advisable to keep this instruction

manual in a safe place for future reference.

SAFETY PRECAUTIONS

1. Keep electrical appliances out of reach from children. Do not let them to

operate the appliances without supervision.

2. To protect against the risk of electrical shock, do not immerse the product,

cord or plug into water or any other liquid.

3. This product is for household and indoor use only.

4. This product is not intended for use by person (including children) with

reduced physical, sensory or mental capabilities unless they have been

given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

5. If the power cord or plug is damaged, it must be replaced by the service

centre or a qualified service technician to avoid hazard.

6. Before installation, check if the mains supply voltage is matched with the

voltage stated on the rating plate of the hood.

7. There must be adequate air ventilation of the room when the cooker hood

is used with the cooking appliances with burning gas or other fuels.

8. Ensure that the installation of exhaust complies with the standard of local

building, gas and electrical authorities.

9. Do not ignite flames in the pans.

10.There is a risk of fire if cleaning is not carried out in accordance with this

instruction.

ASSEMBLY INSTRUCTIONS

Please check the following before installation:

•Installation of hood must be carried out by an authorized or qualified technician.

•For optimum air extraction, avoid having too many windows surrounding the

cooker hood which will cause air convection.

•Make sure the hood is in level after installation to avoid oil spill over.

•The optimum height for the installation is between 650 to 750mm which

measure from the bottom of the hood to the top of the hob.

•Remove all packaging materials from the cooker hood.

Please ensure the power supply is OFF when installing the hood.

1. Loosen the screws on the metal hook but do not loosen completely. Allow the

metal hook to move up and down slightly.

2. Using the metal hook provided, determine the height of the cooker hood to be

installed on the wall. Mark the wall with two markers left and right then drill

the hole.

3. Plug the plastic anchor into the holes tightly. Fix the installation screws by

leaving 5mm gap from the wall.

4. Hang the cooker hood to the installation screws of 5mm gap and tighten the

screws firmly.

5. Plug in the wall plug and switch on the power.

Note: Ensure that the plug is installed to the power point with proper earthing.

MOUNTING UNDER THE CABINET

1. This cooker hood has two work methods which is ducted mode or

recirculating mode.

2. For ducted mode, cut a minimum Ø120mm hole on the cabinet base. (To

activate ducted mode, please refer to ducted mode instruction page).

3. Place the air outlet socket on the top of the hood. Rotate to lock the air outlet

socket.

4. Remove the grease filter.

5. Lift the hood into cabinet as below and secure 4 screws under the cabinet

with the guideline below.

Air outlet

socket

6. Connect the duct pipe with 120mm and fix it with a pipe-tightening ring on air

outlet socket.

NOTE: Charcoal filter is an optional filter to install in this ducted mode to

purified air.

Min 55mm

Min 88mm

Bottom of cabinet

ESH-M7598(BK)

ESH-M9098(BK)

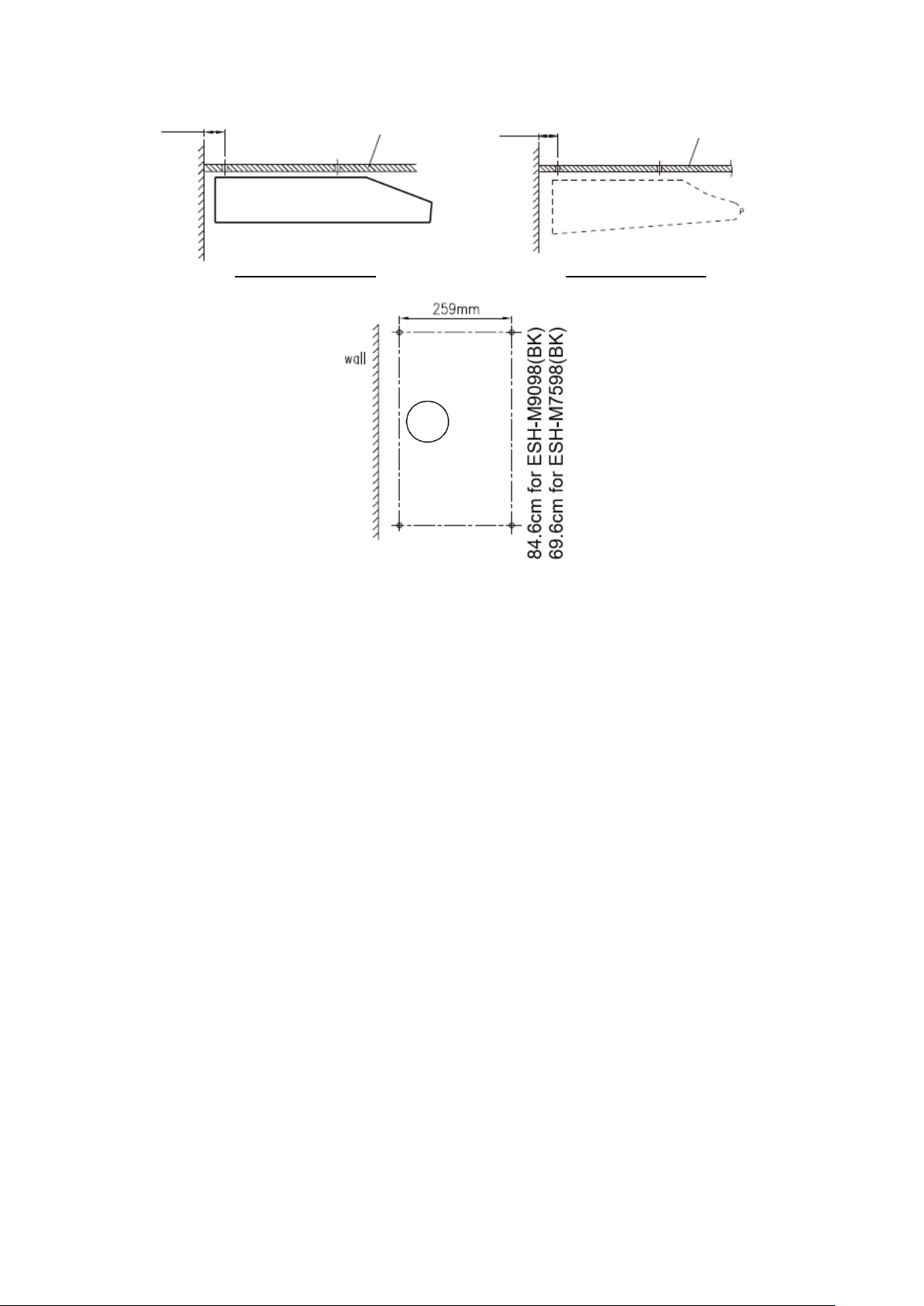

MOUNTING ON WALL

1. This cooker hood has two work methods which is ducted mode or

recirculating mode.

2. For recirculating mode, place the stopper on the top of the hood. Rotate to

lock the stopper (To activate recirculating mode, please refer to recirculating

mode instruction page).

NOTE: Stopper serve as a purpose to turn cooker for front ventilation.

3. Remove the grease filter.

4. Lift the hood and secure 4 screws behind the wall.

NOTE: In this recirculating mode, you must install charcoal filter to

purified air.

Bottom of cabinet

84.6cm for ESH-M9098(BK)

69.6cm for ESH-M7598(BK)

ESH-M7598(BK)

ESH-M9098(BK)

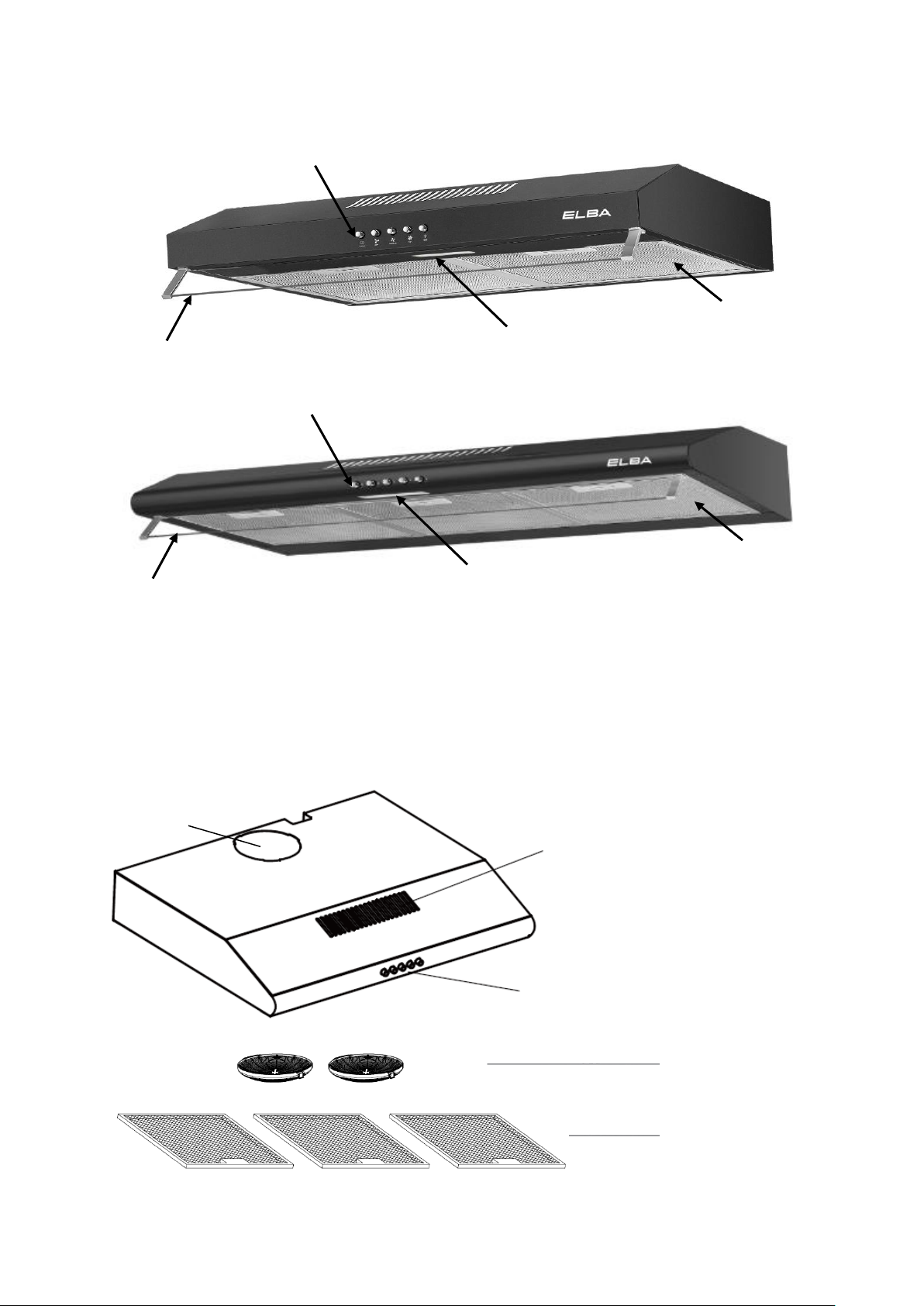

PRODUCT DESCRIPTION

1. Glass Visor

2. Control Switch

3. LED Light

4. Grease Filter

Ventilation

Control Panel

Charcoal Filter

Grease Filter

Ventilation

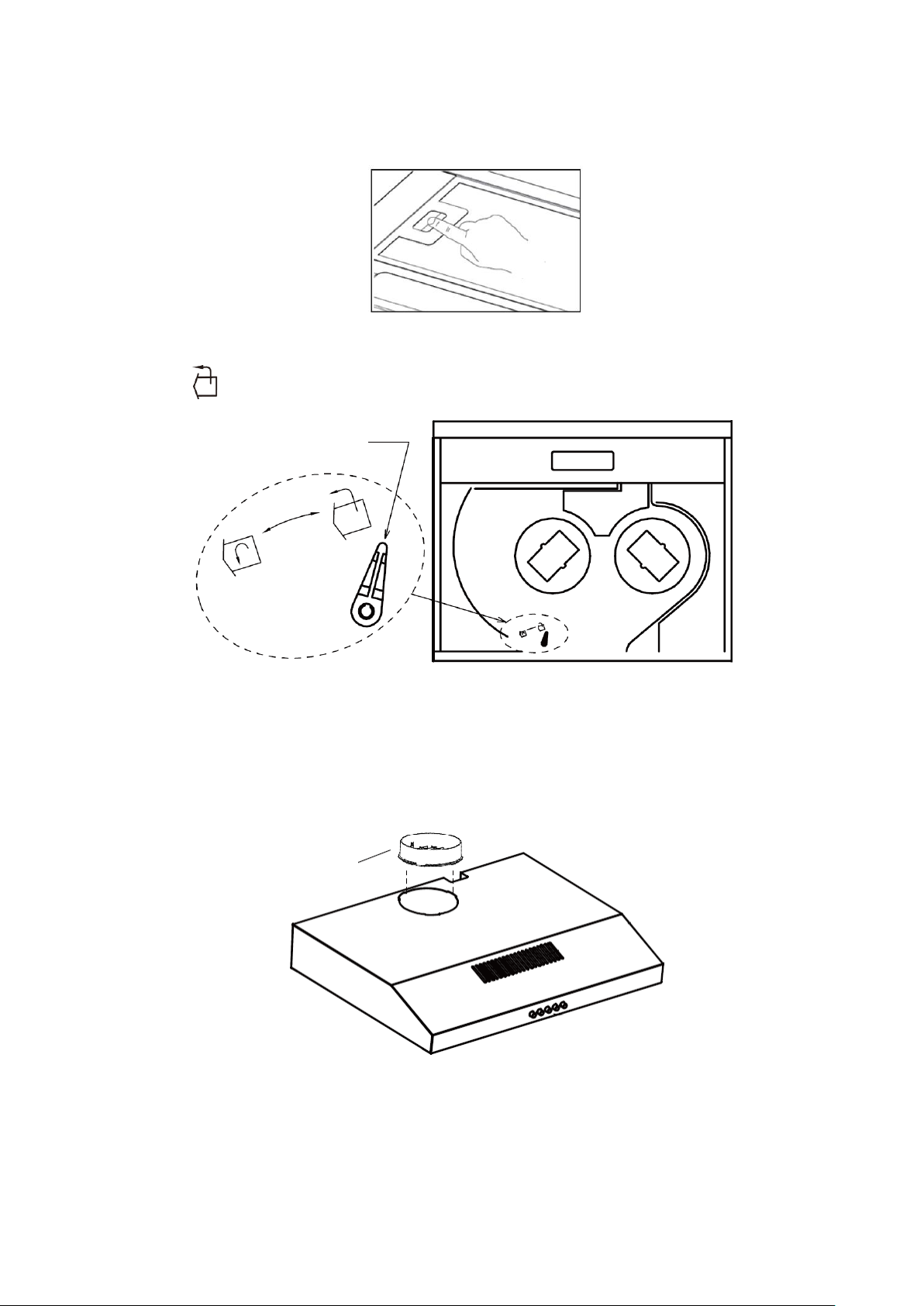

DUCTED MODE

1. Remove the grease filter.

2. Turn to active the ducting mode.

3. Place the air outlet connector on the top of the hood. Rotate to lock the air

outlet connector.

Turn to right

Air outlet

connector

4. Use Ø120mm duct pipe (not provided) and fix it with a pipe-tightening ring

(not provided) on air outlet connector.

NOTE: The accessory - duct pipe and pipe-tightening ring are not provided

in box.

ESH-M7598(BK) ESH-M9098(BK)

RECIRCULATING MODE

1. Remove the grease filter.

120mm

Grease filters

Cooking fumes

Duct
