Electric Time TBX Bedienungsanleitung
M209B
04-23-04 Electric Time Company, inc. Medfield, MA 02052 USA
Ph: (508) 359-4396 Fax: (508) 359-4482
www.electrictime.com
TBX
Thermometer / Barometer System
USER’S MANUAL
616TA
QUICK START GUIDE ..........................................................................
WIRING DIAGRAMS..............................................................................
INTRODUCTION ...................................................................................
SPECIFICATIONS .................................................................................
TERMINAL COMPARTMENT LAYOUT.................................................
FEATURES..............................................................................................
OPERATION...........................................................................................
DEVICE ADDRESSES............................................................................
TROUBLESHOOTING............................................................................
CALIBRATION PROCEDURE................................................................
SERVICE.................................................................................................
M209B
Pg.2of12
TABLE OF CONTENTS
3
6
6
7
8
8
9
10
11
12
A-5661
04-23-04 Electric Time Company, inc. Medfield, MA 02052 USA
Ph: (508) 359-4396 Fax: (508) 359-4482
www.electrictime.com
QUICK START GUIDE
1) DISCONNECT 115VAC POWER CIRCUIT BEFORE
MAKING ANY WIRING CONNECTIONS
2) INSTALL ALL THERMOMETER OR BAROMETER
DIALS
3) INSTALL TBX CONTROLLER IN ACCESSIBLE
LOCATION (#10 SCREWS RECOMMENDED)
5) CONNECT TEMPERATURE SENSOR TO TBX
CONTROLLER
IF POINTERS WERE PROVIDED SEPARATELY, DO NOT
INSTALL THEM YET
IF POINTERS ARE ALREADY INSTALLED, JUST GO ON
TO STEP (3) BELOW
½”NPT FITTING WITH NUT PROVIDED FOR MOUNTING
50’ CABLE PROVIDED WITH SENSOR ASSEMBLY
CLASS II SIGNAL CABLE - FOLLOW LOCAL CODES
OBSERVE POLARITY AS SPECIFIED
LOCATE SENSOR IN OPEN AIR
DO NOT LOCATE IN DIRECT SUNLIGHT OR NEAR
HEATING OR COOLING EQUIPMENT
!
!
!
!
!
!
!
!
4) MOUNT TEMPERATURE SENSOR ASSEMBLY
(THERMOMETERS ONLY)
M209B
Pg.3of12
TEMP. SENSOR
FROM TEMP. SENSOR
SHIELD
S+-
04-23-04 Electric Time Company, inc. Medfield, MA 02052 USA
Ph: (508) 359-4396 Fax: (508) 359-4482
www.electrictime.com
QUICK START GUIDE

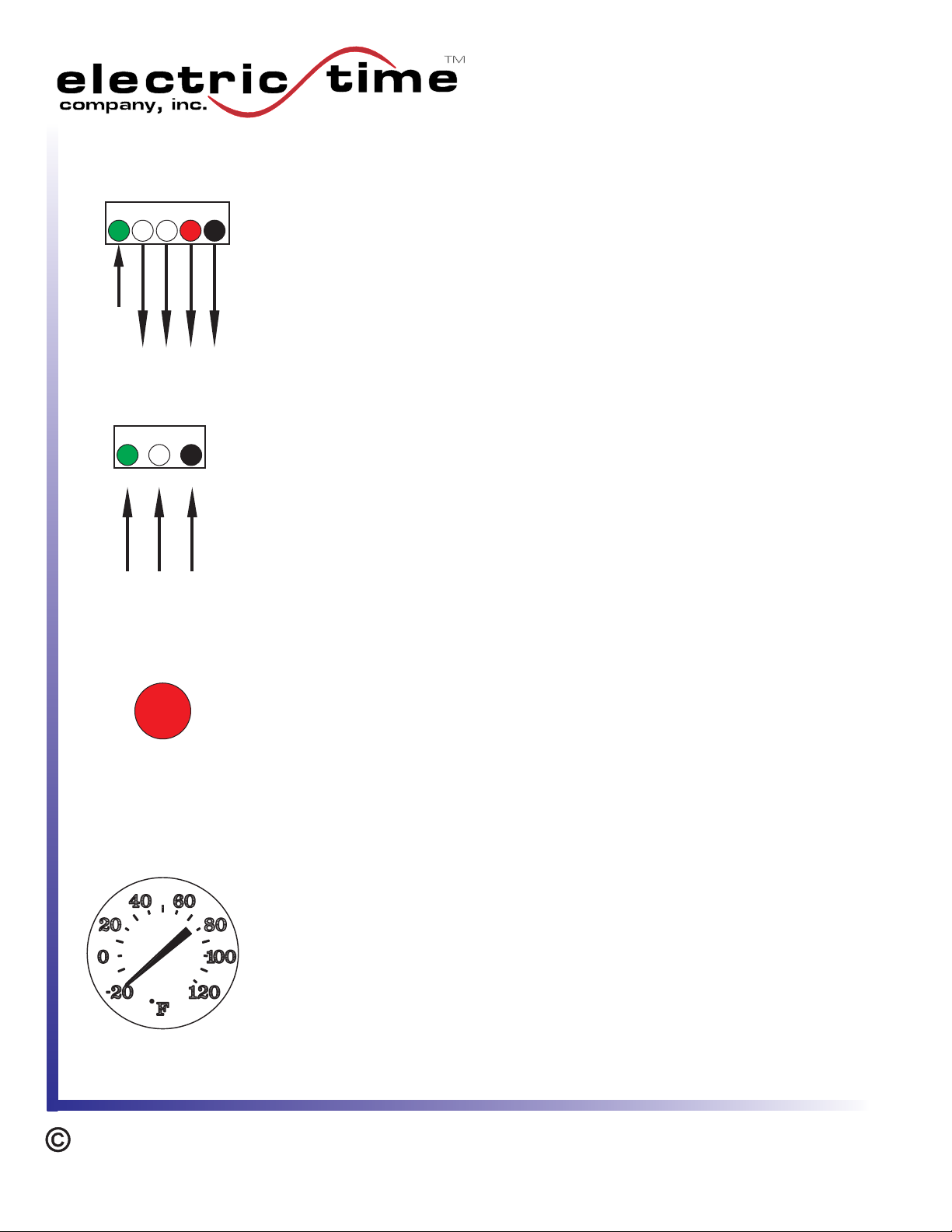

6) CONNECT TBX CONTROLLER TO DIALS
(24VDC - 16AWG RECOMMENDED)
CONNECT DEDICATED 115VAC BRANCH CIRCUIT
TO TBX CONTROLLER
!
!
!
!
CONNECT SHIELD TO CONTROLLER ONLY
CONNECT MULTIPLE DIALS IN PARALLEL
IF YOUR THERMOMETER DIALS WERE PROVIDED
WITH POINTERS ALREADY INSTALLED, SKIP TO STEP
(12)
WAIT AT LEAST 60 SECONDS BEFORE PROCEEDING
TO STEP 9
7)
8) TURN ON 115VAC POWER
9) INSIDE TBX CONTROLLER, PRESS “HOME”
BUTTON ONCE
10) IF POINTER WAS PROVIDED SEPARATELY,
INSTALL POINTER ONTO DIAL POINTING TO
LOWEST READING ON DIAL (-20 F SHOWN)~
115VAC/60Hz/1A
L
N
G
POWER IN
115 VAC DEDICATED
BRANCH CIRCUIT
M209B
Pg.4of12
HOME
WAIT
AB
S
MOVEMENT
TO CIRCUIT BOARD
ON MOVEMENT
SHIELD
+-
04-23-04 Electric Time Company, inc. Medfield, MA 02052 USA
Ph: (508) 359-4396 Fax: (508) 359-4482
www.electrictime.com
HOME
M209B
Pg.5of12
QUICK START GUIDE
11) INSIDE TBX CONTROLLER, PRESS “HOME”
BUTTON ONE MORE TIME
12) THERMOMETER WILL AUTOMATICALLY RESET
ITSELF TO CORRECT TEMPERATURE
04-23-04 Electric Time Company, inc. Medfield, MA 02052 USA
Ph: (508) 359-4396 Fax: (508) 359-4482
www.electrictime.com
INTRODUCTION
The TBX Thermometer / Barometer System is comprised of a microprocessor
based controller and a step-motor driven movement that provide accurate,
completely automatic indication of Temperature or Barometric Pressure.
Completely automatic operation - No user intervention required
Maintenance free
Automatically resets after power failures to ensure correct readings
For indoor or outdoor use - Protected to Ip67
!
!
!
!
M209B
Pg.6of12
SPECIFICATIONS
Power Requirements
Accuracy
Inputs
Outputs
Communication
24VAC/50-60 Hz/1.67A (Plug-in Wall Transformer Provided)
+/- 1.5 F
Temperature Sensor
Thermometer / Barometer Control Signal
RS-232
~
!
!
!
!
!
!
!
!
!
!
3 Position Screw Terminal Connection
2 Terminals = Sensor Signal
1 Terminal = Shield Wire
Barometer Sensor
Factory installed directly onto PC Board
5 Position Screw Terminal Connection
2 Terminals = 24VDC
2 Terminals = RS-485 Communication
1 Terminal = Shield Wire
**Controls up to (2) Thermometers or Barometers total
Factory programming and setup (DB9 Connector)
RS-485
Auxiliary communication port (3 Position Screw Terminal)
04-23-04 Electric Time Company, inc. Medfield, MA 02052 USA
Ph: (508) 359-4396 Fax: (508) 359-4482
www.electrictime.com
TEMPERATURE
SENSOR INPUT
MOVEMENT CONTROL
SIGNALS
POWER INPUT
(24VAC PLUG-IN
WALL TRANSORMER
PROVIDED)
Terminal Compartment Layout
M209B
Pg.7of12
04-23-04 Electric Time Company, inc. Medfield, MA 02052 USA
Ph: (508) 359-4396 Fax: (508) 359-4482
www.electrictime.com
M209B
Pg.8of12
FEATURES
1)
POWER: Illuminates to Indicate Input Power is OK
HEART BEAT: Blinks to indicate processor is functioning properly
TEMP SENS: Indicates Temperature Sensor is connected
BARO SENS: Indicates Barometer Sensor is installed on PC Board
1 - 16: Indicate RS-485 Device Address of connected movements
(See Table 1 - Pg. 9)
2)
Press once to send movement to its home index position
Press again to resume normal operation
Typically used to send movement to “home” position before installing pointer
3)
Press once to send movement to its full-scale reading
Press again to resume normal operation
Typically used to verify that movement is operating normally
LED’s
“HOME” Button
“FULL SCALE” Button
!
!
!
!
!
!
!
!
!
!
!
OPERATION
The TBX Controller is setup and calibrated at the factory to provide years of
maintenance-free, accurate temperature / barometric pressure indication. After
installing a Thermometer or Barometer per the setup instructions provided, the unit
operates as follows:
TBX reads Temperature Sensor or Barometric Pressure Sensor
TBX converts reading to a known angular pointer position on display dial
TBX sends command signal (via RS-485) to movement to drive pointer to correct
position
TBX repeats this process continually to constantly update pointer position as
required
After power outage, TBX will command movement to reindex (go to “HOME”
position) and then bring pointer back to correct position to ensure accuracy of
display
!
!
!
!
!
04-23-04 Electric Time Company, inc. Medfield, MA 02052 USA
Ph: (508) 359-4396 Fax: (508) 359-4482
www.electrictime.com
M209B
Pg.9of12
DEVICE ADDRESSES
Any Thermometer / Barometer movement that is connected to the TBX
Controller will have a unique address such that the TBX Controller can send different
commands (via RS-485) to specific movements depending upon their address. In
this way, one TBX Controller can control a Thermometer and Barometer
simultaneously (or two Thermometers with different temperature scales, etc.). The
status LED’s inside the TBX indicate what addresses are being used by movements
that are connected to the controller. Not only does this indicate that a movement is
connected (helpul when troubleshooting) but it also tells what type of movement is
connected. Using the following table it is possible to determine what type of
movement is connected to the control based upon its address.
Table 1
Address Type of Movement
1 Customizable
2 Customizable
3 Customizable
4 Customizable
5 HMI Thermometer
6 HMI Thermometer
7 B28 Thermometer
8 B28 Thermometer
9 HMI Barometer
A HMI Barometer
BB28Barometer
CB28Barometer
D C1 Thermometer
0 C1 Thermometer
04-23-04 Electric Time Company, inc. Medfield, MA 02052 USA
Ph: (508) 359-4396 Fax: (508) 359-4482
www.electrictime.com
M209B
Pg.10 of 12
TROUBLESHOOTING
“MY THERMOMETER / BAROMETER IS NOT CORRECT”
!Pointer still moves, but readings shown are not correct
1) Send the Pointer to “HOME” position
Inside TBX Controller, press “HOME” button once
Look at dial: Pointer should point to lowest reading on dial and stop (ex. -20 F)
If Pointer is NOT pointing to lowest reading on dial, it must be adjusted manually
Remove pointer from movement shaft and follow instructions in “Quick Start
Guide” for proper setup of Thermometer / Barometer systems
If Pointer IS pointing to lowest reading on dial, see “Calibration Procedure” on
Page 11 to calibrate the thermometer
!
!
!
!
!
~
“MY THERMOMETER / BAROMETER DOESN’T MOVE”
1) Check AC Power Input
Inside TBX Controller, is POWER LED illuminated?
If not, have an electrician check circuit breakers or building electrical supply
2) Check Temperature Sensor (for Thermometer Systems only)
Inside TBX Controller, is Temperature Sensor connected?
If not, reconnect sensor and hit “HOME” button once to re-index the thermometer
WAIT 60 Seconds, then hit “HOME” button again to resume operation
Is Pointer showing correct temperature?
If not, contact Electric Time Company for service
3) Is movement(s) connected to TBX Controller?
Inside TBX Controller, are any address LED’s illuminated (numbers 1-16)?
If not, check all wiring connections to movement
If all wiring connections are OK, contact Electric Time Company for service
!
!
!
!
!
!
!
!
!
!
04-23-04 Electric Time Company, inc. Medfield, MA 02052 USA
Ph: (508) 359-4396 Fax: (508) 359-4482
www.electrictime.com
